CS290F, Winter 2005 Large-scale Networked Systems

1

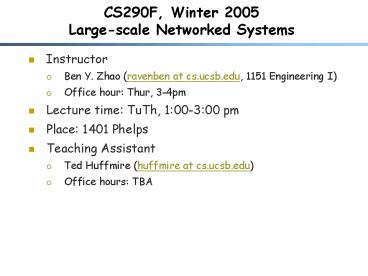

CS290F, Winter 2005Large-scale Networked Systems

• Instructor
• Ben Y. Zhao (ravenben at cs.ucsb.edu, 1151
  Engineering I)
• Office hour Thur, 3-4pm
• Lecture time TuTh, 100-300 pm
• Place 1401 Phelps
• Teaching Assistant
• Ted Huffmire (huffmire at cs.ucsb.edu)
• Office hours TBA

2
Overview

• Administrivia
• What this class is, and is not
• Enrollment, etc
• What you have to do for this class
• Grading
• Break
• Course projects
• organization
• some initial ideas

3
Administrivia

• Course webpage
• http//www.cs.ucsb.edu/ravenben/classes/290F
• check it periodically for announcements
• Class mailing list
• cs290f at lists.cs.ucsb.edu
• go to http//lists.cs.ucsb.edu/mailman/listinfo/c
  s290f
• sign up today!
• Deadlines
• Unless otherwise specified, it means 10 minutes
  before the lecture
• Special circumstances should be brought to my
  attention before deadlines

4
Class Registration

• Please send me (ravenben_at_cs.ucsb.edu ) an e-mail
  with the subject cs290f registration" and the
  following
• Last and first name
• Student ID
• Your department
• Preferred email address
• URL of your home page
• Please indicate explicitly if I can add you to
  the on-line web page that lists each student
  enrolled in the class (only your name and URL
  will be made public).

5
Class Enrollment

• Class size capped at 40
• currently enrollment is full
• for good discussion, we should be at 25
• For those unable to enroll
• email me with your student ID (perm )
• I expect enrollment to open up in first 1-2 weeks

6
Goals of this Course

• Understand
• How do peer-to-peer systems work?
• What are the design issues in building large
  networked systems?
• Where is networking research heading?
• Get familiar with current network research
• Understand solutions in context
• Goals
• Assumptions

7
Goals of this Course (contd)

• Appreciate what is good research
• Problem selection
• Solution and research methodology
• Presentation
• Apply what you learned in a class project

8
Reasons to Not Take This Class

• Its not...
• a survey class on p2p systems
• a reading seminar
• I might do a p2p reading group / seminar later
• will be focused more on reading papers
• Unreasonably high expectations
• this is my first grad class
• its in my research area
• And
• smaller class will benefit everyone
• also, this class will likely be offered next year

9
What do you need to do?

• A research-oriented class project
• Paper reading / reviews
• Lead class discussion on one research paper
• Participate in discussions in class
• this is meant to be an interactive class

10
Research Project

• Investigate new ideas and solutions in class
  project
• Define the problem
• Execute the research
• Work with your partners
• Write up and present your research
• Ideally, best projects will become conference or
  workshop papers
• e.g., SIGCOMM, MOBICOM, SOSP/OSDI, NSDI
• IPTPS, WCW, HotOS, WMCSA, NOSSDAV

11
Research Project Steps

• Ill distribute a list of projects
• You can either choose one of these projects or
  come up with your own
• Pick your project, partner, and submit a one-page
  proposal describing
• The problem you are solving
• Your plan of attack with milestones and dates
• Any special resources you may need
• A midterm presentation of your progress (5
  minutes)
• Poster session
• Submit project papers

12
Paper Reviews

• Goal synthesize main ideas and concepts in
  papers
• Number 2-3 per class
• Length no more than ½ page per paper
• Content
• Main points intended by the author
• Points you particularly liked/disliked
• Other comments (writing, conclusions)
• Submission
• Submit each review via email before class on
  lecture day
• See class web page for details

13
What is a Presentation?

• Presentations are in Powerpoint
• or PDF if you hate MSFT
• Target a 30 minute presentation
• thats about 15 slides
• idea is to engage the class in discussion on your
  points
• leave the audience with thoughtful questions
• Youll be graded on several things
• did you present the high-level points of the
  paper?
• did you get a good discussion going
• did you relate the paper to others in the course
  (context!)

14
Choose Your Paper

• Pick your paper from the lecture schedule online
• the readings and dates will be finalized by
  Thursday
• Email me to claim the paper
• Ill let you know if its already been taken
• presenters names will be updated online asap

15
About Grading
Paper reviews 10
Class presentations 20
Class Project 70

• This is a graduate networking class
• key is what you learn, not the grade
• Evaluation of projects
• 2 components execution and impact
• execution
• proposal, design, implementation, evaluation,
  presentation
• impact
• how novel is your work, how does it advance the
  state of the art?
• good execution ? B/A-, impact ? A/A

16
Class Topics

• Study existing p2p systems
• Gnutella, Freenet, Tapestry, OceanStore, PAST,
  RON, I3, Vivaldi
• Study fundamental system issues
• security, fault-tolerance, system measurement and
  deployment
• Study issues in alternative network environments
• sensor networks
• ad-hoc and mobile networks

17
Break

• Take a break, get up, walk around, stretch
• come back in 10 minutes

18
Course Projects

• Small project teams
• ideally teams of 3
• 2 (likely too small to tackle significant
  project)
• 4 (likely too large to coordinate well)
• Choose your team members
• use the class enrollment webpage (Ill put that
  up shortly)
• use the class mailing list
• Send me a one-page project proposal by Jan 15
• what is the problem youre solving (w/ related
  works)
• motivation/challenges (why is this important and
  new)
• plan of attack (w/ milestones and dates)
• any resources you might need

19
Background on Structured Overlays

• Each data item and machine (node) in the system
  has associated a unique ID in a large ID space
• ID space is partitioned among nodes
• DHT Hash table like interface
• put(id, data)
• data get(id)
• data items are stored at the node responsible for
  its ID
• DOLR directory service interface
• publish (id)
• routeToId (id, message)
• data stored anywhere and located via directory

20
Structured Peer-to-Peer Overlays

• Assign random nodeIDs and keys from secure hash
• incrementally route towards destination ID
• each node has small set of outgoing routes, e.g.
  prefix routing

ID ABCE
ABC0
To ABCD
AB5F
A930
21
Whats in a Protocol?

• Definition of name-proximity
• each hop gets you closer to destination ID
• prefix routing, numerical closeness, hamming
  distance
• Size of routing table
• amount of state kept by each node as f (N), N
  network size
• of overlay routing hops
• worst case routing performance (in overlay hops,
  not IP)
• Network locality
• does choice of neighbor consider network distance
• impact on actual performance of P2P routing
• Application Interface

22
Chord

• NodeIDs are numbers on ring
• Closeness defined by numerical proximity
• Finger table
• keep routes for next node 2i away in namespace
• routing table size log2 n
• n total of nodes
• Routing
• iterative hops from source
• at most log2 n hops

Node 0/1024
0
128
896
256
768
640
384
512
23
Chord II

• Pros
• simplicity
• Cons
• limited flexibility in routing
• neighbor choices unrelated to network proximity
  but can be optimized over time
• Application Interface
• distributed hash table (DHash)

24
Tapestry / Pastry

• incremental prefix routing
• 1111?0XXX?00XX ?000X?0000
• routing table
• keep nodes matching at least i digits to
  destination
• table size b logb n
• routing
• recursive routing from source
• at most logb n hops

Node 0/1024
0
128
896
256
768
640
384
512
25
Routing in Detail
Example Octal digits, 212 namespace, 2175 ? 0157
5712
0880
3210
4510
7510
26
Project Ideas

• Discuss 10 project suggestions
• some related to peer-to-peer protocols and
  systems
• Legend based on how well-defined projects are
  not necessary how difficult they are
• Well-defined projects (5)
• Less-defined project (3)
• You need to define projects goals (2)
• You can also work on variants of these, or make
  up your own topics
• Need to send me a one page proposal by Jan 15
• Ill provide feedback/meetings to iterate on topic

27
Project 1 Implement Chimera

• Implement a structured peer-to-peer protocol that
  is a hybrid of Tapestry, Pastry, and Bamboo
• implement in C/C
• focus on usability and performance
• Key features
• simplicity (leafsets like Pastry)
• stability (p2p exchange of routing tables like
  Bamboo)
• performance (locality like Tapestry)
• support standard p2p API and easy to build up
  on
• might support multiple teams

28
Project 2 the DIY P2P protocol

• Study the related literature on existing p2p
  protocols, and design something different
• must have something significantly novel/new
• can be new contribution in performance, security,
  theoretical interest, specialized for a useful
  application
• The challenge
• finding an area yet unexplored in the p2p space
• The result
• well-specified protocols on routing, node
  insertion/deletion, failure handling
• Warning this is not easy

29
Project 3-5 P2P Applications/Systems

• All applications built on common API
• should work w/ existing protocols and new ones
  developed in class
• Project 3 a lightweight p2p CDN/web-cache
• use a DHT/DOLR to quickly search for desired
  object
• use request tracking to determine optimal data
  placement
• implement a client-side http proxy
• The challenge
• maintaining data stability as nodes come and go
• providing fairness / load balancing across nodes

30
Project 4 P2P EBay

• Design and implement a scalable and secure
  auctioning / e-commerce system on a p2p
  infrastructure
• support large of transactions/time
• support large of users and items
• be stable and resilient against attacks
• The challenge
• understanding the types of attacks
• selecting a reasonable subset to resist
• maintaining scalability despite security
  enhancements

31
Project 5 Lightweight Data Synchronization

• Design and implement Quartz
• lightweight p2p data sharing system
• store your most critical files (lt100MB) online
• use simple application-specific handlers to
  provide fast data synchronization (a la CVS)
• synchronize your HTML bookmarks across machines
• synchronize your papers, homework files,
  financial records
• end to end encryption
• The challenge
• keeping data highly-persistent on a dynamic p2p
  network
• optimizing per-node operational overhead
• a simple user interface that people will
  actually use

32
Project 6 P2P Security

• Security is one of the biggest challenges in p2p
• large population spread across networks and
  domains
• high probability of node compromise
• need to function in presence of malicious nodes
• Existing work on security discouraging
• Sybil attacks hard to prevent
• bad users can create lots of identities online
  and generate collusion attacks
• hard to avoid malicious nodes
• youre 1, they are many

33
Project 6 a P2P reputation system

• Design and evaluate a highly-adaptive p2p
  reputation system
• quickly recognize malicious (or compromised)
  nodes
• use p2p collaboration to share reputation
  information
• form trusted circles
• use third-party anonymous verification to build
  reputations
• The challenge
• building reliable reputations that are highly
  adaptable
• doing so without generating massive network probe
  traffic
• minimizing impact if system is circumvented

34
Project 7 Distributed Workload Logging

• Modelnet and Emulab provide emulation
  environments for up to 1000s of virtual nodes
• good for reproducible experiments
• bad in a dedicated cluster, unlike real world
  conditions
• PlanetLab provides real-world platform for
  distributed applications (200 nodes across
  Inet)
• good for deploying / hardening your
  application/system
• bad for reproducible results
• What we need
• a way to gather interesting (and unexpected)
  environmental conditions from distributed
  networks like Planetlab, and use it as trace to
  drive Modelnet/Emulab

35
Project 7 cont.

• The goal
• design, implement, and deploy a distributed
  sensor and logging interface
• needs to be scalable, lightweight (minimize
  impact on environment), and accurate
• gather a large data set, and build an
  environmental trace

36
Project 8 P2P Benchmarking

• Design and test and benchmark for P2P routing
• needs to account for a wide-range set of
  application-level behaviors and working
  conditions
• throughput
• latency
• key lookup versus data read/store
• rate of node churn
• The challenge
• being comprehensive
• being fair to goals of different protocols

37
Project 9 Quantifying P2P Performance

• Test a set of protocols against a number of
  network topologies
• mostly simulations (might need to implement some
  protocols)
• test using different types of network models,
  GT-ITM, BRITE, Waxman, etc
• vary protocol parameters to measure impact on
  basic performance
• The challenge
• making sense of large quantities of test data
• getting a better understanding of inherent
  properties of network models and how they impact
  overlay networks

38
Project 10 P2P Ad-hoc

• Take p2p routing algorithms, and apply to the
  ad-hoc or sensor net space
• consider new constraints power, processing, no
  underlying IP
• design new routing protocol
• validate via simulation
• The challenge
• theres fairly little previous work, and its not
  clear the idea is feasible

39
Support Infrastructure

• CSIL machines
• you should all have accounts
• A new 32 node networking cluster
• just assembled, being installed now
• Dell Xeon servers, 2.4Ghz, 2G RAM
• cluster building in progress
• will have modelNet installed, and support
  large-scale network emulation tests (300 nodes)

40
Summary of TODOs

• What you need to do
• send me registration email with subject cs290f
  registration
• sign up online for class mailing
  listhttp//lists.cs.ucsb.edu/mailman/listinfo/cs2
  90f
• pick a paper to present and email me to claim
  it(after Thur, first come first serve)
• find other team members and pick a project
  topic(first draft of proposal due Jan 15)
