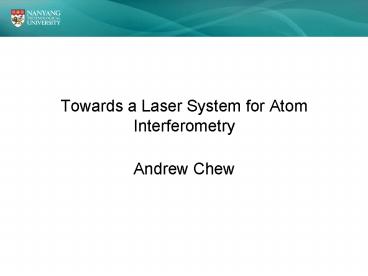

Title: Towards a Laser System for Atom Interferometry


1
Towards a Laser System for Atom Interferometry
  • Andrew Chew

2
Content
  • Overview of related Theory
  • Experimental Setup
  • Laser System
  • Frequency Stabilization
  • Characterisation of realized Lasers
  • Outlook

3
Atom Interferometry
  • Similar to Light Interferometry
  • Atoms replace role of the light.
  • Atom-optical elements replace mirrors and beam
    splitters

4
(No Transcript)
5
Motivation
  • Light Interferometry is used to make inertial
    sensors but the long wavelength limits the
    resolution of the phase measurement.
  • The atomic de Broglie wavelength is much shorter
    and thus allows for greater resolution of the
    phase measurement.
  • Atoms have mass and thus we can make measurements
    of the forces exerted on them.
  • An example would be the measurement of the
    gravitation force.

6
Raman Transitions
  • Stimulated Raman Transitions result in the super
    position of e and g states
  • Two phase-locked Lasers of frequency ?1 and ?2
    are used to couple the g,p and i,p hk1
    states, and the e, p h(k1-k2) and i states
    respectively.
  • A large detuning ? suppresses spontaneous
    emission from the intermediate i,p hk1 state.
  • The ground states are effectively stable.

7
Ramsey-Bordé Interferometer
  • A sequence of p/2, p and p/2 Raman pulses
  • 1st p/2 pulse acts a beam splitter Places the
    atomic wave in a superposition of g,p and e, p
    hkeff states
  • p pulse acts a mirror Flips the g,p to the
    e, p hkeff states and vice versa
  • 2nd p/2 pulse acts a beam splitter Projecting
    the atoms onto the initial state.

8
Laser System
  • Extended Cavity Diode Laser (ECDL) design used by
    Gilowski et. al in Narrow bandwidth interference
    filter-stabilized diode laser systems for the
    manipulation of neutral atoms. Optics
    Communications, 280443-447, 2007.
  • 3 Master Oscillator Power Amplifier (MOPA)
    systems for each wavelength, each consisting of
    an ECDL as the seeder and a Tapered Amplifier as
    the amplifier. One MOPA is for cooling, another
    for Raman lasers and last for the repumper beam

9
Experimental Setup
  • Laser system for Rubidium consisting of cooling
    and repumper lasers for preparation of atomic
    cloud.
  • Raman laser system for atom interferometry.
  • Laser system for imaging and detection of
    internal atomic states.
  • 1 set of laser systems for each individual
    species of atoms used for interferometry

10
ECDL Design
  • Cavity Length Defined by the distance between the
    laser diode and the cavity mirror/output coupler.
  • Output coupler mounted on a piezo-electric
    transducer which is partially transmitting and
    reflecting.
  • Inside the cavity, the emitted laser beam is
    collimated using a collimating lens, and then
    focused onto the output coupler, forming a very
    stable angular insensitive cavity.
  • DFB laser diode which promises narrow linewidth
    is used

11
Laser Operation
  • Tuning of wavelength by changing
  • Laser diode current (Fast MHz time scale)
  • Cavity length (acoustic time scale, kHz)
  • Temperature (Hz time scale)

12
Lasers
13
Fabry Perot ECDL
14
Littrow ECDL
15
Laser Characterization
  • Heterodyne 2 lasers to obtain their beat note in
    a optical setup shown below
  • Linewidth of the beat note corresponds to
  • We need 3 lasers and beat each one with each
    other to obtain a system of 3 simultaneous
    equations

16
Laser Characterization
  • We will beat 3 lasers 1 ECDL laser using a DFB
    ECDL, an Edge Emitting ECDL and a Littrow ECDL
    laser

17
(No Transcript)
18
Beat Note
  • DFB ECDL and Edge Emitting ECDL Beat Linewidth
    0.4775 /- 0.0300 MHz
  • Sweep Rate 30ms
  • Bandwidth 30KHz
  • DFB ECDL and Littrow ECDL Beat Linewidth 0.4910
    /- 0.0276 MHz
  • Sweep Rate 30ms
  • Bandwidth 30KHz

19
Beat Note
  • Edge Emitting Diode and Littrow ECDL Beat
    Linewidth 0.5295 /- 0.0356 MHz
  • Sweep Rate 30ms
  • Bandwidth 30KHz

20
Results
21
Analysis
  • The Spectrum Analyzer was set to have a fast
    sweep rate setting of 30ms as the free running
    DFB and Fabry Perot ECDL have a slow frequency
    drift of a few MHz within 100ms timescale.
  • A more ideal setup would require all 3 lasers
    locked to an atomic reference during the
    measurement.
  • The DFB ECDL, as expected, has the narrowest
    linewidth of all the 3 lasers

22
Outlook
  • The Laser system is characterized and we will now
    proceed to build the tapered amplifier to form
    the MOPA system. 2 other MOPAs will also be
    constructed
  • Vacuum system for experiment will be constructed.
  • We want to do inertial measurements by year-end.
  • Laser system for the second atomic species will
    also need to be set up and characterized.
