Title: Continuous-Time Laser Programmable Analog Array for Radiation Environments


1

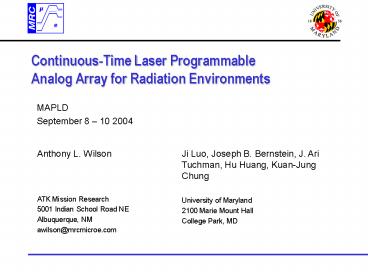

Continuous-Time Laser Programmable Analog Array
for Radiation Environments
MAPLD September 8 10 2004
Anthony L. Wilson ATK Mission Research 5001
Indian School Road NE Albuquerque,
NM awilson_at_mrcmicroe.com
Ji Luo, Joseph B. Bernstein, J. Ari Tuchman, Hu
Huang, Kuan-Jung Chung University of
Maryland 2100 Marie Mount Hall College Park, MD
2
Outline
  • Introduction Goals and Objectives
  • Overview of Technical Approach
  • Process Description
  • Switch Description
  • Amplifier Design
  • Configurable Analog Block (CAB) Architecture
  • Laser Programmable Analog Array (LPAA)
    Architecture Description
  • How to get from Point A to Point B - Router
    Development
  • User Interface
  • Lessons Learned

3
Introduction
a monolithic collection of analog building
blocks, a user-controllable routing network used
for passing signals between building blocks
E. Pierzchala, et al., Field-Programmable Analog
Arrays, Kluwer Academic Pub., 1998
  • Definitions
  • LPAA Laser-Programmable Analog Array
  • CAB Configurable Analog Array
  • FBFTFN Fully Balanced Four-Terminal Floating
    Nullor
  • PRA Programmable Resistor Array
  • PCA Programmable Capacitor Array
  • SOS Silicon-on-Sapphire

4
Goals/Objectives
  • Design of a radiation tolerant programmable
    analog array
  • Design of an high performance analog array
  • Demonstration of the laser via technology
  • Demonstration of Peregrine UTSi CMOS SOS
    technology for analog applications
  • Development of an analog router for analog arrays

5
Overview of LPAA Design
  • Array style architecture
  • Fully Differential Circuit Topology
  • Voltage and Current Mode Capability
  • CMOS Silicon-on-Sapphire Technology
  • Continuous-Time Operation
  • Parasitic Aware Analog Router
  • Low Resistant Laser Via Technology

6
Process Description
  • Fully depleted CMOS/SOS (silicon on sapphire)
    processing technology
  • Has only a small source/drain to body. Reduces
    parasitic capacitance and produces a higher speed
    technology
  • The threshold voltage can be easily tailored and
    values of 0.0, 0.3, and 0.8 volts are available
    in the technology
  • The thin gate oxide has high intrinsic radiation
    hardness
  • Fully depleted body exhibits no back channel
    effects
  • There is no possibility of radiation induced
    leakage current between adjacent devices
  • Linear MIMCAP available
  • High Value resistor available

7
Radiation Performance of the UTSi Transistors
Pre/Post Radiation Performance UTSi? NMOS
transistor. (Data courtesy of Peregrine
Semiconductor)
Pre/post Radiation Performance of UTSi? PMOS
transistor. (Data courtesy of Peregrine
Semiconductor)
8
Switch Description - Laser Via Technology
  • The most reliable type of link that can be formed
    is based on the principle that two adjacent
    (horizontally or vertically) metal lines can be
    exposed to an infrared (IR) laser pulse and
    thermal expansion of the metal fractures the
    intervening dielectric. Rapidly expanding molten
    metal quickly flows through the resultant crack
    and electrically connects the lines
  • The structure is designed using the top two
    layers of metal in the target process
  • Laser via structures can be located directly over
    transistors since the active area is shadowed by
    the upper metal annulus and, at the laser energy
    levels needed for link formation
  • Hermeticity, radiation hardness, and
    compatibility with advanced CMOS fabrication
    processes
  • Laser vias exhibit the same hardness to total
    ionizing dose and to energetic heavy ions as
    normal vias and normal interlevel dielectric

W. Zhang, et al., Reliability of Laser-Induced
Metallic Vertical Links, IEEE Trans. on Adv.
Pack., vol. 22, no. 4, pp. 614-619, 1999.
FIB Cross-section View
9
Laser Via Energy Profile
  • 8 different test patterns
  • Each block was a continuous chain of links that
    would be connected using the laser formed vias
  • The preliminary evaluation achieved fewer than
    one failed link per 20,000 links across the
    entire laser energy window from 0.30 to 0.70
    mJoules
  • This energy window corresponds to the amount of
    laser energy deposition is needed to form the via
  • Formed via has less than 0.8 ohms of resistance

10
Amplifier Description
  • Fully balanced fully differential architecture
  • Fully Balanced Four-Terminal Floating Nullor
    (FBFTFN) Amplifier Structure
  • Class AB output stage
  • Differential difference input stage
  • Inner and outer CMFB circuits (not shown)
  • Bias circuit included (not shown)
  • Provides voltage and current output nodes
    simultaneously

11
FBFTFN Flexibility
  • Support configurations of a universal active
    element
  • H. Schmid, Approximating the Universal Active
    Element, IEEE TCAS-II, vol. 47, no. 11, pp.
    1160-1169, 2000

12
FBFTFN AC Performance
  • Simulation plot of the FBFTFN circuit
  • Shows gain-bandwidth 15 MHz
  • Shows phase margin 67 deg

13
Voltage Amplifier Simulation
  • FBFTFN configured as a voltage amplifier
  • Feedback resistors are varied for various gains
  • Shows reduced bandwidth for increased gain (as
    expected)

14
Transconductor Amplifier Simulation
  • FBFTFN configured as a transconductor amplifier
  • Variable gains
  • Show constant bandwidth for various gains
  • Bandwidth smaller than voltage amplifier

15
Sallen-Key Filter Simulation
  • Bandpass Filter simulation
  • FBFTFN configured as a fully differential 2nd
    generation current conveyor

Center Frequency 837 kHz Q 7.07
16
PRA and PCA Descriptions
  • Programmable Resistor Array (PRA)
  • Allows of single, parallel and series connnection
  • Can select multiple individual resistors if
    needed
  • Can short paths for direct connections
  • Programmable Capacitor Array (PCA)
  • Similar to PRA
  • No short connectors

17
CAB Design
  • Each CAB uses 1 FBFTFN
  • 4 inputs/4 outputs
  • 4 PRAs
  • 4 PCAs
  • Lines in read 8 track buses
  • Boxes represent laser formed via arrays used for
    routing

18
Architecture Description
  • 4x2 array of CABs
  • 8 tracks per channel
  • Switch Box
  • Connection Box
  • Dedicated routing for power supplies
  • Dedicated routing for bias and common mode
    voltages
  • Input pads on left and bottom
  • Output pads on right and top

19
Analog Array Architecture Description
Assumptions
  • The Analog Array has the coordinate system
    defined from (0, 0) to (3, 5). The four corner
    positions, (0, 0), (0, 5), (3, 0), (3, 5), are
    blank areas.
  • Each X or Y directed channel belongs to the pad
    or CAB right below it, or on the left to it,
    having the same coordinates.
  • The legal routing connections are
  • LHS pads can connect to all the tracks in channel
    y (0, 1) RHS pads can connect to all the tracks
    in channel y (2, 1).
  • Bottom row pads can connect to all the tracks in
    channel x (1, 0) top row pads can connect to all
    the tracks in channel x (1, 4).
  • Input CAB pins can connect to tracks in the
    channels immediately on the left, top and bottom
    of the CAB output CAB pins can connect to tracks
    in the channels immediately on the right, top and
    bottom of the CAB.
  • Tracks in the horizontal channel can connect to
    tracks in vertical channel if a switch is
    available at the intersection.
  • Direct connections between CAB pins are not
    allowed direct connections between PADs and CAB
    pins are not allowed.
  • Dogleg is not allowed, i.e., CAB pin cannot be
    acted as intermediate vertex to route a net.

20
Analog Array Architecture Diagram
  • A uniform architecture
  • Channel Width 8
  • Connection Block Flexibility8
  • Switch Block Flexibility 4
  • Segment Length 4

21
Connection and Switch Boxes
  • Connection box used to achieve a connection
    flexibility of 8
  • Switch box chosen to achieve a connection
    flexibility of 4
  • Alternate parity for switch boxes (Pattern 1 and
    Pattern 2) used to increase routability

22
Router Development
  • Definition of routing Given a netlist along with
    a placement of the CABs and IO cells, to route
    all the nets on the given FPAA architecture
    without exceeding the total available routing
    resources and without overly degrading the
    performance of the circuit (Goals (1) Avoid
    congestion (2) Satisfy a set of performance
    constraints)
  • Routing Problem - Graph Problem
  • Routing Resource Graph (RRG)
  • Vr I/O pins, wire segments
  • Er feasible connections
  • Routing Resource type pin, pad and track (PPT
    number)

find a set of disjoint trees TT1,Tn. Each
tree spans all the terminals of the net with
minimum cost
Minimum Steiner Tree (MST) Problem NP-Complete
23
LPAA Router Description
  • Analog array router based on the Pathfinder
    Negotiated Routing Algorithm
  • Completed a routability-driven router
  • Although called routability-driven, the router
    resolves the congestion and attempts to find the
    shortest path.
  • Therefore the accumulated parasitic (especially
    the loading capacitance and serial resistance)
    are automatically kept to a near minimum value,
    along with the wave expansion process
    (breadth-first search).
  • The extremely small parasitic associated with the
    laser via, this router is sufficient for this
    relatively small-scaled analog array

LPAA Design Flow
24
Pathfinder Negotiated Routing Flow
25
User Interface
  • JavaTM chosen as language cross platform
  • Direct input from user
  • Allows user to perform local connections within
    CAB
  • Allows user to perform CAB-to-CAB connections
  • Spice netlist creation
  • Router compatible netlist file creation

26
Screenshot of User Interface
  • Early Development Phase

27
Lessons Learned
  • Reticle Size Problem
  • Floor planning a must
  • Optimizations
  • Add additional parameters to the router code
    cost function
  • Segmentation would need further addressing for
    larger arrays
  • Adding switched-capacitor implementation for
    increased flexibility
  • Programmable amplifier bias
  • Inclusion of voltage reference
  • Separation of amplifier and buffer stage
