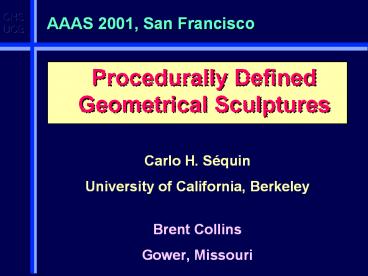

AAAS 2001, San Francisco

1
AAAS 2001, San Francisco

• Procedurally Defined Geometrical Sculptures

• Carlo H. Séquin
• University of California, Berkeley
• Brent Collins
• Gower, Missouri

2
My Professional Focus

• Computer-Aided Design
• Design useful and beautiful objectswith the help
  of computers.
• Develop (interactive) computer programsto make
  these tasks easier.

3
Computer-Aided Design I Integrated Circuits

• RISC I chip (1981)

4
Computer-Aided Design II Mathematical Models

• Granny Knot Lattice
• Berkeley UniGrafix (1982)

5
Computer-Aided Design III Buildings
Soda Hall, CS Dept. Berkeley (1992)
6
Computer-Aided Design IV Mechanical Parts
Octahedral Gear

• Design (1985) Realization (FDM) (2000)

7
Computer-Aided Design V Abstract Sculpture
(virtual)
(Since 1995)
8
Computer-Aided Design V Abstract Sculpture
(virtual)

• Scherk-Collins Tower

9
Computer-Aided Design V Abstract Sculpture
(virtual)

• Doubly-looped Scherk-Collins saddle-chain

10
Computer-Aided Design V Abstract Sculpture
(real)

• Bonds of Friendship(2001)
• Fabricated by Fused Deposition Modeling
• Currently in S.F.at Gallery 650,Delancy/Brannan

11
Roots of My Passion for Sculpture

• My love for geometry and abstract
  sculptureemerged long long before I learned to
  play with computers.
• Thanks to Alexander Calder, Naum Gabo,Max
  Bill, M.C. Escher, Frank Smullin, ...

12
Leonardo -- Special Issue
On Knot-Spanning Surfaces An Illustrated Essay
on Topological Art With an Artists Statement by
Brent Collins
George K. Francis with Brent Collins
13
Brent Collins Early Sculptures
All photos by Phillip Geller
14
My Fascination with...

• Brent Collins Abstract Geometric Art
• Beautiful symmetries
• Graceful balance of the saddle surfaces
• Superb craftsmanship
• Intriguing run of the edges
• What type of knot is formed ?
• Mystery one-sided or two-sided ?
• gt Focus on Chains of Saddles

15
Brent Collins Stacked Saddles
16
Scherks 2nd Minimal Surface
Normal biped saddles
Generalization to higher-order saddles(monkey
saddle)
17
Hyperbolic Hexagon by B. Collins

• 6 saddles in a ring
• 6 holes passing through symmetry plane at 45º
• wound up 6-story
  Scherk tower
• What would happen,
• if we added more stories ?
• or introduced a twist before closing the ring ?

18
Closing the Loop
straight or twisted
19
Collins - Séquin Collaboration

• Discuss ideas on the phone
• Exchange sketches
• Vary the topological parameters
• But how do you know whether it is beautiful ?
  Need visual feedback.
• Making models from paper strips is not good
  enough.

20
Brent Collins Prototyping Process
Mockup for the "Saddle Trefoil"
Armature for the "Hyperbolic Heptagon"
Time-consuming ! (1-3 weeks)
21
Collins Fabrication Process

• Building the final sculpture (2-3 months)
• Take measurements from mock-up model,transfer
  parallel contours to 1 boards.
• Roughly precut boards, leaving registration
  marksand contiguous pillars for gluing boards
  together.
• Stack and glue together precut boards,remove
  auxiliary struts.
• Fine-tune overall shape,sand and polish the
  surface.
• A big investment of effort !

22
Collins Fabrication Process
Lamination process to make an overall shape that
withincontains the final sculpture. Example
Vox Solis
23
Sculpture Generator I

• Prototyping Visualization tool
  forScherk-Collins Saddle-Chains.
• Slider control for this one shape-family,
• Control of about 12 parameters.
• Main goal Speed for interactive editing.
• Geometry part is about 5,000 lines of C
• 10,000 lines for display user interface.
• gt VIDEO

24
VIDEO

• 6 min

25
Base Geometry One Scherk Story

• Hyperbolic Slices gt Triangle Strips
• precomputed -- then warped into toroid

26
Slices through the Sculpture

• One thick slicethru Heptoroidfrom which Brent
  can cut boards and assemble a rough
  shape.Shown are top andbottom as well
  ascuts at 1/4, 1/2, 3/4of one board.

27
Our First Joint Sculpture

• Six monkey saddles in a ring with no twist
• (like Hyperbolic Hexagon)
• azimuth 30, flange 1.5
• (aesthetics)
• size, thickness
• (fabrication consideration)

28
Hyperbolic Hexagon II (wood)
29
Heptoroid ( from Sculpture Generator I )
Cross-eye stereo pair
30
Emergence of the Heptoroid (1)
Assembly of the precut boards
31
Emergence of the Heptoroid (2)
Forming a continuous smooth edge
32
Emergence of the Heptoroid (3)
Smoothing the whole surface
33
Advantages of CAD of Sculptures

• Exploration of a larger domain
• Instant visualization of results
• Eliminate need for prototyping
• Create virtual reality pictures
• Making more complex structures
• Better optimization of chosen form
• More precise implementation
• Rapid prototyping of maquettes

34
Sculpture Design

• branches 4
• storeys 11
• height 1.55
• flange 1.00
• thickness 0.06
• rim_bulge 1.00
• warp 330.00
• twist 247.50
• azimuth 56.25
• mesh_tiles 0
• textr_tiles 1
• detail 8
• bounding box
• xmax 6.01,
• ymax 1.14,
• zmax 5.55,
• xmin -7.93,
• ymin -1.14,
• zmin -8.41

35
Breckenridge Competition
36
FDM Maquette of Solar Arch

• 2nd place

37
We Can Try Again in L.A.
38
or in Washington D.C.
39
V-art
GlassScherkTowerwith MonkeySaddles Jane Yen
40
SFF Maquettes of Future Sculptures
Monkey- Saddle Cinquefoil
41
Various Scherk-Collins Sculptures
42
Fused Deposition Modeling (FDM)
43
Looking into the FDM Machine
44
Zooming into the FDM Machine
45
Séquins Minimal Saddle Trefoil

• Stereo-lithography master

46
Séquins Minimal Saddle Trefoil

• bronze cast, gold plated

47
Minimal Trefoils -- cast and finished by Steve
Reinmuth
48
Brent Collins Trefoil
49
Family of Symmetrical Trefoils
W2
W1
B1 B2 B3
B4
50
Higher-order Trefoils (4th order saddles)
W1
W2
51
Exploring New Ideas

• Going twice around the loop ...

Resulting in an interwoven structure.
52
9-story Intertwined Double Toroid
Bronze investment casting from wax original
made on 3D SystemsThermojet
53
Brent Collins Pax Mundi
54
Keeping up with Brent ...

• A bent Scherk tower is not able to describe a
  shape like Pax Mundi.
• Need a broader paradigm !
• Use SLIDE modeling environment,it provides a
  nice combination of procedural modeling and
  interactivity.

55
SLIDE-UI for Pax Mundi Shapes
56
Viae Globi Family (Roads on a Sphere)
L2 L3 L4
L5
57
Via Globi 3 (Stone)
Wilmin Martono
58
Via Globi 5 (Wood)
Wilmin Martono
59
Via Globi 5 (Gold)
Wilmin Martono
60
Conclusions (1)

• Interactive computer graphics is a novel (to
  artists) medium that can play an important role
  -- even for traditional artists.
• Virtual Prototyping can save time and can tackle
  sculptures of a complexitythat manual techniques
  could not conquer.

61
Conclusions (2)

• The computer is not only a great visualization
  and prototyping tool,
• It also is a generator for new ideas and
• an amplifier for an artists inspiration.

62
Questions ?
THE END
63
SPARE

64
Stepwise Expansion of Horizon

• Playing with many different shapes and
• experimenting at the limit of the domain of the
  sculpture generator,
• stimulates new ideas for alternative shapes and
  generating paradigms.

Swiss Mountains
65
Figure-8 Knot with C-Section
66
Conclusions (3)

• What makes a CAD tool productive for this kind
  of work ?
• Not just virtual clay,
• partly procedural
• fewer parameters that need to be set.
• Keep things aligned, joined
• guarantee symmetry, regularity,
• watertight surfaces.
• Interactivity is crucial !
