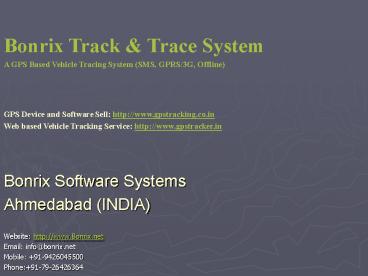

Bonrix Track Trace System A GPS Based Vehicle
Tracing System (SMS, GPRS/3G, Offline)
GPS Device and Software Sell http//www.gpstracki
ng.co.in Web based Vehicle Tracking Service
http//www.gpstracker.in
Bonrix Software Systems Ahmedabad
(INDIA) Website http//www.Bonrix.net Email
info_at_bonrix.net Mobile [phone] Phone91-7
9-26426364
2
Module Specification
Bonrix Track Trace System
Mobile Application Mobile Handset GPS Device
Web Based Application Map Viewer
SMS, GPRS/3G, Offline
3
Introduction

• Bonrix Track Trace System is an application
  which consists of a web based application and
  mobile application which can be used to track any
  person or vehicle.
• In mobile application, he/she has to select one
  of the three options i.e. Online mode, Offline
  mode, SMS mode.
• In online mode, data comes from GPS device i.e.
  latitude, longitude, date, time, distance and
  send to the server at regular time period.
• In offline mode, data comes from GPS device and
  its regularly stored in mobile itself in CSV
  format.

4
Objective

• The chief objective of this application is to
  track or trace person or vehicle by getting data
  from GPS device to mobile via Bluetooth and
  mobile sends this data via GPRS/SMS/Offline to
  the web application and web application display
  that information on Map provided by Google Earth.
  And its accessible from anywhere on the internet.

• Using this application, manager can easily track
  his vehicle/resource by just one click.
• Even manager can check history of particular
  vehicle, like at a particular time where his
  vehicle/resource was.

5
Introduction-

• On Web application, two different modules are
  there, one for admin and another for manager.
• Admin can add deviceType images that is used by
  manager in order to display device images on
  Google Earth Map.
• Admin can also has privilege to change the status
  of manager i.e. Demo, Active, Deactive
• Demo user can add only two devices which is
  default type of any manager. Active manager can
  add any no. of devices.
• Deactive manager are unauthorized for
  authentication on web application.

6
Introduction-

• Manager can add, update and delete devices, more
  over he can view his all devices on Google Map,
  can make zoom on particular device, check
  particular device information, can go through
  history of device.
• Even a searching mechanism is also there which
  help manager to find particular device according
  to device name.
• In Device History, searching mechanism is there
  which helps manager to search particular device
  date and time vise.

7
Module Specification-

• Mobile Application Module-
• This module provides several
  functionality to the user. It is a jar file which
  has to be installed on mobile device which
  support GPRS as well as Bluetooth connectivity.
  It gets data from GPS device and send that data
  to the server.
• It has 4 sub modules which are given bellow.
• 1 gtLogin
• 2 gtChange Password
• 3 gtOnline Mode
• 4 gtOffline Mode

8
Module Specification-

• Login-The purpose of Login is to implement
  security. The mobile application ensures that a
  person can use application by providing username
  and password by manager.
• Change Password-User can change its password
  from these options as he/she has to write its old
  password and new desire password.

9
Module Specification-

• Online Mode-In online mode, user have to select
  GPS device from option and then GPS device send
  information like latitude, longitude , distance,
  speed to the mobile application and all this
  informations are sent to the web application
  frequently in fix time interval.
• Offline Mode-In offline mode, user have to
  select GPS device from option and the GPS device
  send information like latitude, longitude ,
  distance, speed to the mobile application and all
  this informations are write to the local file in
  CSV format frequently in fix time interval.

10
Module Specification-

• Web Application Module-
• ? Web application gets data from mobile
  application and according to that data it shows
  data on the Google Earth Map.
• ? It has 2 different module.
• 1 gt Admin Module
• 2 gt Manager Module

11
Module Specification-

• Admin Module-Admin module is further divided in
  3 different module. They are listed bellow.
• 1 gt Login
• 2 gt DeviceType Management
• 3 gt Manager Management
• ? Login-This sub module is there for the
  authentication purpose for the admin. Admin can
  log in through its username and password and
  further access all functionality.

12
Module Specification-

• ? DeviceType Management-With the help of
  this sub module, admin can add new device type
  i.e. name of new device type and icon image of
  device type. He/she can also edit all device type
  from this sub module.
• ? Manager Management- This sub module helps
  admin to manage managers account. Like by
  default all managers are having demo status. So
  admin can change this status as active or
  deactive. Demo user only can add two devices.
  While active user can add any no of device.
  Deactive use is the user which account is no
  longer available.

13
Module Specification-

• Manager Module-Manager module is further divided
  in 3 different module. They are listed bellow.
• 1 gt Registration of new user
• 2 gt Login
• 3 gt Forget Password
• 4 gt Device Management
• 5 gt Upload CSV File
• 6 gt History Of Device

14
Module Specification-

• ? Registration of New User-This sub module
  allows manager to register as a user by which
  he/she can log in to the web application.
• ? Login- This sub module is design for security
  purpose. As authentication required in all web
  application. Manager can only log in through
  username and password and then he can use the web
  applications feature further.
• ? Forget Password-This module allows manager to
  remind its details like username, its password by
  simply giving its email id which he/she gives at
  the time of registration.

15
Module Specification-

• ? Device Management-Manager can add new device
  through this sub module, can select device
  display icons, even searching facility is also
  there so that manager can search particular
  device. Edit device facility is also available in
  this module.
• ? Upload CSV- With the help of this sub module,
  manager can upload CSV file direct to the
  database which comes from the mobile application
  in offline mode.
• ? History-Through this sub module, manager can
  check its all device history on Google Earth Map
  with particular traveling path which he has
  follows.

16
Mobile Application Screen Shoot

• Login Page
• Allows the Device User
• to login to the system.

17
Mobile Application Screen Shoot

• Selection Screen
• After login to the system
• from this screen,
• user has to select
• one of the option.

18
Mobile Application Screen Shoot

• Main Menu
• Allow the user to select
• particular option from
• the main menu.

19
Mobile Application Screen Shoot

• Data On Mobile Screen
• Allow the salesman to
• view all details about
• product.

20
Web Application Screen Shoot

• Login Page

21
Web Application Screen Shoot

• New Registration Page

22
Web Application Screen Shoot

• Forgot Password Screen

23
Web Application Screen Shoot

• Main Page

24
Web Application Screen Shoot

• Device Management

25
Web Application Screen Shoot

• History in device Management

26
Web Application Screen Shoot

• History(Hibrid map) in device Management

27
Web Application Screen Shoot

• Admin Login

28
Web Application Screen Shoot

• Main menu in Admin Module

29
Web Application Screen Shoot

• Device Type Management in Admin Module

30
Web Application Screen Shoot

• Manager Management in Admin Module

31
