The Herschel Space Observatory

1

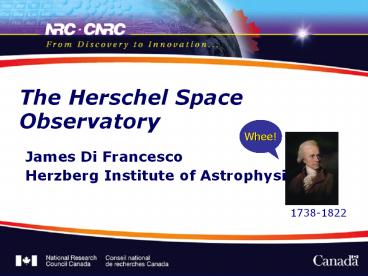

The Herschel Space Observatory
Whee!

• James Di Francesco
• Herzberg Institute of Astrophysics

1738-1822
2
What is Herschel?!

• 3.5 m diameter space
• telescope
• covers 57 - 670 mm
• to be launched by ESA
• in 2008
• 4th ESA cornerstone
• missions from Horizon
• 2000 plan

3
Payload Module
Mirror Assembly
Service Module
Sunshield/shade
Herschel Space Observatory
4
Why go into space?
Whee!
5
Why go into space?
submillimetre wavelengths
transparent
350 mm
1
2
5
10
4
8
9 mm
opaque
longer wavelength
shorter wavelength
No atmospheric absorption!!
6
Herschel Primary Science Goals

• The cool universe formation of galaxies and
  stars,
• ISM physics/chemistry, solar system objects

• Herschels large aperture, low background and no
• atmospheric attenuation high sensitivity

7
Herschel in Context the Past
IRAS (1983) o.57 m aperture - all sky survey at
12, 25, 60, 100 mm - low-res spectroscopy at 7.5
- 23 mm
ISO (1995-1998) o.60 m aperture - photometry at
2.5 - 240 mm - spectroscopy at 2.4 - 197 mm
KAO (1974-1995) o.91 m aperture - photometry
and spectroscopy from ll 20 mm to 500 mm
many instruments
8
Herschel in Context the Present
JCMT (1987 - ?) 15 m aperture - photometry at
450 850 mm (SCUBA2) - spectrpy at 1300, 850,
650, 450 mm
Spitzer (2003 - 2008?) 0.85 m aperture -
photory at 3.6, 4.5, 5.8, 8.0 mm (IRAC), 24,
70, 160 mm (MIPS) - spectroscopy at 5-38 mm (IRS)
ASTRO-F Akari (2006 - ?) 0.685 m - 4-band
all-sky survey at 50-200 mm (FIS) -
imaging/spectrpy at 1.8-26 mm (IRC)
9
Herschel Factoids

• primary diameter 3.5 m (large!)
• primary material SiC with a thin
• reflective Al layer plasil layer
• primary WFE lt 6
• telescope temperature lt 90 K
• telescope emissivity lt 4
• abs/rel pointing (68) lt 3.7 / 0.3
• science instruments 3
• cryostat lifetime gt 3.5 years
• height / width 7.5 m / 4 m
• launch mass 3200 kg
• power 1500 W

cold side
hot side
10
Herschel Science Team at ESTEC on 2006 Feb
1 Spacecraft in structural thermal test
configuration Flight cryostat parts of flight
service module and sunshade installed
Whee!
11
(No Transcript)
12
(No Transcript)
13
Herschel located in large Lissajous orbit around
L2
14
Herschel Instruments

• PACS (Photodetector Array Camera and
  Spectrometer)
• SPIRE (Spectral and Photometric Imaging
  REceiver)
• HIFI (Heterodyne Instrument for the Far-Infrared)

HIFI
SPIRE
PACS
(EQMs)
15
Herschel Instruments

• Photometry/Imaging 6 bands at 75-500 mm
• - PACS 1.7 x 3.5 FOV at 75/110 mm and 170
  mm
• - SPIRE 4 x 8 FOV at 250, 363 and 517 mm
• - sensitivity 1 mJy - 1 s - 1 hour
  (confusion!)
• - no chopping! (no spatial filtering of
  emission)
• - angular resolution 15 x (l/250 mm)

PACS
SPIRE
16
Herschel Instruments

• Spectroscopy 57 - 670 mm range, R 20 - 107
• - PACS (grating) 0.8 FOV at 57 - 210 mm,
• R 1500 - 4000, 5 x 5 spatial x 16
  spectral pixels
• - SPIRE (FTS) 2.6 FOV at 200 - 670 mm,
• R 20 - 100
• - HIFI (heterodyne) 1-pixel FOV at 157 - 212
  mm and
• 240 - 625 mm (no gaps), 4000 channels, R
  107

17
Confusion Limitations

• Photometric Confusion

Zod- iacal dust
inter stellar dust
inter galtic dust
exgal bkgrd
CMB
- extragalactic confusion 1 source / 20
beams - interstellar dust cirrus w. powerlaw
fluctuations - both improve w. instrumental
resolution - Herschel Confusion Noise Model
made by scaling COBE/ISO data, etc. to
PACS/SPIRE bands - determining actual
confusion will be major PV activity
18
Confusion Limitations

• Spectroscopic Confusion

Schilke et al. (2001)
- U lines problematic (but not like OMC1
everywhere)
19
Herschel Timeline Telescope

• 2008 August - LAUNCH
• travel to L2, cooldown
• commissioning performance verification
• science demonstration workshop
• routine science operations (36 months)
• - 1000 days of available time (2009-2011)
• - 1/3 share is Guaranteed Time (GT) to
  instrument teams
• - 2/3 share is Open Time (OT) to world
  community
• three Calls for Proposals (Cycles) foreseen
• - one for Key Projects (gt100 hrs), GT OT
• - two for regular programs, GT OT
• - in every cycle, GT before OT observations

6 mos.
20
Herschel Timeline Data

• issue AO as late as possible, to maximize
  timeliness of
• scientific programmes and knowledge of
  instruments
• 2007 Feb 1 AO for KP proposals issued
• 2007 Apr 5 deadline for GT KP proposals
• 2007 Jul 5 selection/announcement of GT KP
  projects
• 2007 Nov 1 deadline for OT KP proposals
• 2008 Feb 28 selection/announcement of OT KP
  projects
• 2008 Feb 28 AO for regular GT proposals
• 2008 Apr 3 deadline for GT1 proposals
• 2008 Jun 5 selection/announcement for GT1
  projects
• 2008 August LAUNCH

21
Space Astronomy Proposals

• given limited time (and maybe the promise of
  extra
• ), space astronomy observing time is often
  heavily
• oversubscribed (e.g., HST 10!)
• also, relatively few proposal opportunities
  available
• during lifetime of any given satellite
• need to have the highest quality proposals
  possible, with
• very little room for largesse (in words or in
  time!)

Google image search for working hard
22
Herschel Pre-Observations
Google image search for waiting

• space observations require careful planning and
  program
• optimization (mission costs 1o6 euros/day!)
• use Astronomical Observing Templates (AOTs)
  to script a series of Astronomical
  Observing Requests
• (AORs) to execute a program, minimize overheads
• For this, Herschel will use HSPOT, a variant of
  the Spitzer
• Observing Tool (SPOT) extremely easy and fun
  to use!

23
(No Transcript)
24
Herschel Post-Observations

• data reduced using single, coherent package
  HCSS-DP
• Java-based, platform independent - no licences
  to buy
• toolbox to aid interactive analysis (IA) of data
• generation of standard data products and
  relevant quality
• information (SPG QC pipelines)
• up to GT groups to provide extra tools
• extensive, online context sensitive
  documentation
• data will be in FITS format and VO-compliant

Google image search for data reduction
25
(No Transcript)
26
Summary

• Herschel will probe a relatively unexplored
  regime of
• the EM spectrum at high sensitivities
• data will be very complementary to JCMT, ALMA
• 2/3 observing time is available to the world
  community,
• 2009-2011
• For more info see http//www.rssd.esa.int/hersche
  l

Whee!
Whee!
Whee!
The end???
