Radiation-Enhanced Diffusion of La in Ceria

1

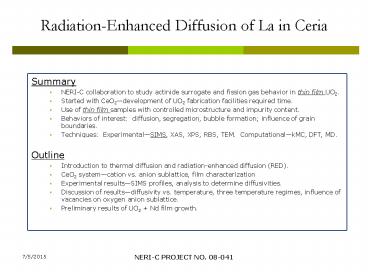

Radiation-Enhanced Diffusion of La in Ceria

• Summary
• NERI-C collaboration to study actinide surrogate
  and fission gas behavior in thin film UO2.
• Started with CeO2development of UO2 fabrication
  facilities required time.
• Use of thin film samples with controlled
  microstructure and impurity content.
• Behaviors of interest diffusion, segregation,
  bubble formation influence of grain boundaries.
• Techniques ExperimentalSIMS, XAS, XPS, RBS,
  TEM. ComputationalkMC, DFT, MD.
• Outline
• Introduction to thermal diffusion and
  radiation-enhanced diffusion (RED).
• CeO2 systemcation vs. anion sublattice, film
  characterization
• Experimental resultsSIMS profiles, analysis to
  determine diffusivities.
• Discussion of resultsdiffusivity vs.
  temperature, three temperature regimes, influence
  of vacancies on oxygen anion sublattice.
• Preliminary results of UO2 Nd film growth.

2
Acknowledgements

• University of Illinois
• J. Stubbins, R. Averback. P. Bellon, J. Eckstein
• H. Pappas, M. Strehle, H. Ju, M. El-Bakhshwan, X.
  Han, D. Heuser.
• T. Spilla, D. Jeffers, S. Burdin
• Funding
• DOE NEUP/NERI-C program
• UIUC MRL and DOE

3
DiffusionMicroscopic point of view w/point
defects
Diffusion processes at microscopic scale coupled
to point defects in crystalline solid
D(T)Do exp(-Ea/kT)
4
DiffusionActivation Energy of point defects
D(T)Do exp(-Ea/kT)
Activation Energy, Ea Vacancy Interstitial Ea
Ef Em 1 eV 2 eV Ef energy of
formation 0.2 eV 2 eV Em energy of
migration 1 eV 0.1 eV Interstitial defects
more costly to make, but easier to move. As a
consequence, VSD dominate mechanism for
self-diffusion.
5
Radiation Damage ProcessFreely-migrating
defects, FMDs
Few point defects (FMDs) survive displacement
cascade quenching
FMDsvacancies and Interstitials in equal
numbers
6
Radiation-Enhanced Diffusion (RED)Combination
of Elevated Point Defect Populations and Elevated
Temperature
Thermal VSD
Fate of FMDs
Sink-Limited Kinetics
Recombination- Limited Kinetics
Ballistic Mixing
7
CeO2 and UO2 have same structureCeria often used
as surrogate for Urania.
Fluorite Structureanions red, cations white
Epitaxial relationship Fluorite
structureR-plane Sapphire
CeO2 Tm2673 K a5.4114 A UO2 Tm3138 K a5.466 A
8
Sample Architecture w/La Impurity Layer

• Two ways to consider La?CeO2
• Tracer or marker layer for cation diffusion
• 3 dopant in CeO2
• La is 3 actinide surrogate
• (Am, for example) and high-yield
• (A139) fission product.

9
Experimental Facilities at Illinois

• Microanalytical AES, SIMS, RBS, XRD/XRR, TEM.
• Implantation/Bombardment Van de Graaff (0.5-2.3
  MeV H, He, Xe, Kr, Ne 100 nA).
• 1.8 MeV Kr ions 100 nA variable fluence
  variable temperature.

Physical Electronics PHI Trift III SIMS Instrument
High Voltage Engineering Van de Graaff Accelerator
10
Ion BombardmentTRIM results
1.8 MeV Kr implantation into CeO2 on sapphire
1.8 MeV Kr Energy to RecoilsFD (need later)
CeO2
FD 115 eV/Å/ion
sapphire
FD
Kr
CeO2
Variable temperature, constant fluence
bombardment F 1x1016 ions/cm2
? 0.02 FIMA 2 burnup
NERI-C PROJECT NO. 08-041
11
Secondary Ion Mass Spectroscopy (SIMS)
O or Cs sputter beam rastered over 400 x 400 mm2
area
Au analytical beam Beam rastered over 50 x 50 mm2
area
Residual positive charge on sample surface after
O sputter beam raster







Sample surface
Positive-charged species liberated by analytical
beam accelerated across voltage biasmass
separated by time-of-flight
CeO2
12
XRD Analysis of MBE CeO2 film
Specular Scan
Rocking Curve
In-plane f Scan
CeO2 is single crystalno grain boundaries.
13
SIMS ResultsRT
1.8 MeV Kr bombardment Variable fluence
constant T
Ballistic mixing parameter x Dt /FFD Relates
to energy deposition to RMS distance
La depth profiles
1-D Diffusion Geometry s 2 Dt 2Dt (sirr)2
(sref) 2
As grown s26Å

• 4 Å5/eV in CeO2
• 120 Å5/eV in Au
• 1-5 Å5/eV in MgO

CeO2
14
SIMS ResultsElevated T


1.8 MeV Kr bombardment Variable T constant
fluence
Kinetic Rate Theory
Time rate of change Production Loss to sinks
- Loss via
recombination
La depth profiles
RT irradiated s36Å
KFrenkel pair production rate K0.02 1/s (heavy
ion) K10-10 1/s (fast neutron) Kv,idefect
removal rates at sinks v,ipoint defect fractions
induced by bombardment vothermal equil.
vacancy fraction niinterstitial jump frequency
15
Steady-State Solutions to Kinetic Rate Theory
Total vacancy fraction
Total interstitial fraction
Diffusivities due to Frenkel defects
Total diffusivity
16
Three Temperature Regimes
Recombination limited vi0
Low T lt800K
Sink limited v ? dislocation i ? dislocation
Intermediate T
D ? f(T)
High T gt1100K
VSD
17
Diffusivity versus Temperature
D(T)Do exp(-Ea/kT)
VSD
VSD
18
Discussion

• Cation vs. Anion diffusion.
• 3 dopant-anion vacancy cluster.
• No influence from grain boundaries.

19
(No Transcript)
20
Magnetron Sputtering System at Illinois
Targets depleted U Ce Nd Mo Power Supply 3
DC 1 RF Gas Supply O2 1x10-9 to 1x10-3 T
Ar 1 to 100 sccm Max. Ts850 C
21
UO2 Single Crystal Film Growth on YSZ
Strain free UO2
RBSUO2
Smooth surface
Single crystal domain
22
SIMS on UO2 Nd
Nd isotopes
s31 Å
U-235 region
U isotopes
