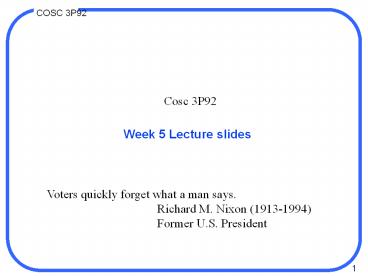

Week 5 Lecture slides

1
Cosc 3P92

• Week 5 Lecture slides

Voters quickly forget what a man says. Richard
M. Nixon (1913-1994) Former U.S. President
2
Hardware components MIC(overview)

• MAR and MDR are registers which latch the
  addresses and data prior to processing

3
Hardware components MIC (overview)

• Translate byte address 0, 1, 2, 3 to 4 byte
  words.
• Shift 2 bits left.
• Causes word 0, 1, 2, 3 to be addressed.
• Alignment of words.

4
Hardware components MIC (overview)

• Each micro instruction controls
• register enables
• bus enables
• ALU
• Memory
• Next Micro instruction address

5
Hardware components MIC (overview)
6
Memory control

• MAR - memory address register
• CPU writes addresses of memory to read, write
• MBR - memory buffer register
• contains data for write or read
• both act as latches to hold addr, data until
  memory finished using them.

7
Control unit

• main functions of a control unit
• - instruction interpretation
• - instruction sequencing
• the control unit is a finite-state machine.

8
Execution unit

• An execution unit consists of
• a register section
• an ALU
• some dedicated hardware or firmware

9
Data transfer within a CPU

• A single-bus architecture
• To compute R2 lt R0 R1
• 1. A lt R0,
• 2. B lt R1,
• 3. R2 lt AB

10
Data transfer within a CPU

• A two-bus architecture
• To compute R2 lt R0 R1
• 1. Buffer lt R0 R1 (via Bus A and Bus B),
• 2. R2 lt Buffer (via either Bus A or Bus B).

11
Data transfer within a CPU

• A three-bus architecture
• To compute R2 lt R0 R1
• 1. R2 lt R0 R1 (via Bus A, Bus B and Bus C).

12
Design of control units

• Hardwired approach

• The control unit is treated as a synchronous
  (i.e., clocked) sequential circuit and is
  implemented as a hardwired state machine.

13
Microprogramming

• Use of memory to implement the control unit
• Instructions are implemented as sequences of
  instructions stored in control memory
• Each machine language instruction is interpreted
  by circuitry, and executed using sequences of
  microprogram instructions
• Micro-programs are much like assembled code,
  except
• direct mapping between instruction fields and
  hardware components of the CPU.
• control fields are specified.
• timing is critical parallelism can be exploited.

14
Microprogramming

• What is being controlled?
• data paths inter-register connections
• control points hardware enabling lines which
  govern register-to-register communications
• idea is that we can control the operation of ALU
  and micro-control unit using combinations of
  control fields encoded in micro-instructions

15
Microprogramming

• Each control point specifies a micro-operation
• All micro operations which may be executed in
  parallel can be specified in a single micro
  instruction.
• Factors which determine parallel operations.
• Buses must only have 1 input active at a time.
• Registers can be either read/written
• Not both at the same time.

16
Microprogramming

• Basic microinstruction formats Over heads

17
Data path

• 32-bit registers (none are user-accessible)
• B bus main one to ALU
• C bus from ALU back to registers
• H reg contains other operand for ALU
• loaded by performing null op on data, and sending
  it to H

18
Data path

• ALU control 6 control lines
• shifter 2 control
• 1. logical shift left 8 bits
• 2. arithmetic shift right 8 bits

19
Data path timing

• Four sub-cycles
• 1. control signals set up (w)
• 2. registers loaded on B bus (x)
• 3. ALU and shifter (y)
• 4. results available to registers on C (z)

20
Data path timing

• These are implicit sub-cycles they rely on
  timing of previous steps
• Only real clock signals used
• falling edge of clock (starts the cycle)
• rising edge (loading from C in step 4)
• ALU is continually processing all intermediate
  values it sees. Its output only makes sense at
  the appropriate time above (after 3)
• Can operate and save a register in 1 clock cycle
• load PC to B
• inc
• save to PC

21
Memory again

• 2 memory buffers
• 32 bit port MAR, MDR (read, write)
• word addresses
• 8-bit MBR
• low byte from PC (read only)
• byte addresses
• can be loaded signed, unsigned onto B bus
• call reads into MBR fetches
• control
• black arrow enable from C bus
• white arrow enable onto B bus
• 2 bus control
• out B
• in C
• out B / in C
• none

22
Memory again

• MAR aligned to words (32 bits, 4 bytes) 4.4
• Memory is available 2 cycles from when read was
  initiated
• avail. at end of 2nd cycle, so 3rd cycle can use
  them

23
Microinstructions

• 29 signals for data path
• 1. 9 signals to control C bus output into
  registers
• 2. 9 signals to enable registers onto B bus
• 3. 9 signals for ALU, shifter functions
• 4. 2 signals for memory W/R via MAR/MDR
• 5. 1 signal for memory fetch via PC/MBR
• Issues
• may load more than 1 reg from C (9 bits)
• but never load more than 1 reg onto B (4 bits,
  encoded will force this) --gt 4 signals.
• Need 2 more fields for determining next m.i.
• NextAddr (9 bits, addr space of 512)
• conditional jumps (3 bits)

24
Microinstructions

• Fields
• Addr address of next micro-instruction
• JAM determines how next m.i. selected
• ALU ALU, shifter control
• C which registers written from C bus
• Mem memory functions
• B B source (encoded)

25
Example micro-architecture Mic-1
26
Example microarchitecture Mic-1

• sequencer executes microinstructions
• Two tasks
• set control signals for system
• determine next m.i. to execute
• control store contains m.i. for interpreting ISA
  instns.
• each instn a 36-bit word like 4.5
• each m.i specifies its successor
• MPC MicroProgram Counter
• 9-bit address of next m.i. to execute
• MIR MicroInstruction Register
• 36-bit m.i. being executed
• Note that bits in MIR may directly control other
  parts of the circuit
• eg. C

27
Mic-1 operation cycle

• Basic ALU cycle
• 1. set up the inputs to the ALU
• 2. let the ALU do its computation
• 3. store the results
• Clock cycles for Mic-1
• 1. MIR enabled (during subcycle w)
• 2. MIR signals control data path (B bus note H
  always enabled) (subcycle x)
• 3. B and H inputs are stable, and ALUs computes
  output shifter finishes N, Z bits stable
  (subcycle y)
• 4. shifter, N, Z outputs loaded from C but into
  registers
• rising clock edge determines end
• MIR is reloaded and calculated at this point as
  well
• Memory read is initiated at end too
• Note that all the above will complete in 1 cycle
• microinstructions can specify all these
  operations in parallel

28
Mic-1 sequencing

• First, 9-bit next addr field copied into MPC
• JAM inspected
• 000 use MPC as it is
• if JAMN (or JAMZ) set, then N bit (or Z) are ORed
  with high-bit of MPC
• hence next address is either MPC, MPC with
  high-bit ORed with 1
• JMPC set MBR byte ORed with low byte of NextAddr
  field
• permits multiway jumps
• can quickly branch to instn for just-loaded
  opcodes (ie. opcode number address in control
  store!)

29
Microinstructions and notation

• As in assembler programming, helps to use
  higher-level notation instead of raw numeric m.i.
  fields
• can specify everything that happens in 1 clock
  cycle
• permits parallelism eg. prefetch next instns
• Notation high-level, but directly translatable
  to single m.i.s
• Examples
• SPSP1 incr SP by 1
• MDR SP copy SP into MDR
• MDR SPH rd add SP and H, save in MDR, and
  initiate a read
• SPMDRSP1 incr SP, load into both MDR, SP

30
Microinstructions and notation

• Memory takes 2 cycles
• MARSP rd assign value into MDR
• (another instn)
• memory ready now!
• next addresses assume it is the labeled next
  m.i. after current one (unless a conditional
  jump)
• if (Z) goto L1 else goto L2 sets JAMZ
• L1 and L2 are same low-8 bits (set by assembler)
• Summary of legal operations on operands

31
Example M.I. implementation IJVM

• A stack-based virtual machine for which Mic-1 is
  designed to implement.
• All instructions access the stack no general
  registers are used by compiler
• eg. parameter passing 4.8
• eg. arithmetic 4.9
• Recall
• JVM instruction formats 5.15
• Java memory usage, registers 4.10
• Complete instruction set 4.11
• Example translated code 4.14

32
(No Transcript)
33
JVM Instruction Formats
34
Memory area of IJVM
35
IJVM Instruction Set
36
Translating Java to IJVM
37
Implementation (cont)

• See overheads (book page 234-236)
• Note
• each m.i. contains address of next instn
• micro-assembler labels all instns appropriately,
  and must put them in right control store
  addresses (equiv. to opcode)
• the sequenced instns may reside in any free area
  of control store! Microassembler auto sets next
  address fields.
• only explicit gotos will override this
  sequencing
• Two parts
• 1. fetch next byte for next instn (done at Main1)
• 2. branch to that opcode address and carry out
  instruction
• Fetching instructions (Main1)
• PC always points to next instruction in Java
  application program
• can be reset by branches (see goto5, T, F,...)
• When Main1 executed, assumed next opcode ready.
  the fetch at Main1 is for next opcode. Hence
  instns must fetch it if necessary(eg. see bipush2)

38
Implementation (cont)

• Example 1 iadd (pop 2 words from stack, push
  their sum)
• iadd1 reads next-to-top word in stack (TOS
  register already contains top of stack word)
  bumps down the SP for writing result
• iadd2 sets TOS ready for addition (put in H)
• iadd3 add next-to-top value (read in iadd1) to
  H, update TOS, save result in MDR for writing
• Example 2 dup (copy top stack word and push
  it)
• dup1 incr SP pointer, copy to MAR
• dup2 save TOS (top stack word) to new SP, write
  it
• note cant write it in dup1, because both SP and
  MDR must be updated thru data path, and not both
  at once

39
Implementation (cont)

• Example 3 goto offset (unconditional branch)
• Fig 4.22
• goto1 save addr of opcode to OPC (old PC)
• goto2 get the 2nd byte of offset (1st byte
  already in MBR)
• goto3 shift 1st byte left 8 bits
• goto4 OR low byte into high byte
• goto5 add 16-bit offset to (old) PC get next
  opcode
• goto6 goto Main1
• Note pause needed in goto6 (must wait 2 extra
  cycle)

40
(No Transcript)
41
Improving performance

• 1. Faster clock, transistors, electrical circuits
• 2. simpler organization yields shorter clock
  cycles
• eg. get rid of (B bus) decoder
• 3. Merge interpreter loop with microcode (pt 2)
• 4.23, 4.24
• saves extra cycles if done in all instns
• significant speedup!
• 4. Three-busses
• 4.25, 4.26
• reduces need for separate instns to load H reg

42
(No Transcript)
43
2 Bus v.s. 3 Bus
44
Improving performance

• 5. Instruction fetch unit 4.27
• in Mic-1, ALU is used to increment PC and fetch
  instns
• this uses up instn. cycles
• IFU can be used
• 1. pre-fetches all instns outside of main data
  path
• 2. pre-fetches operands if they are required,
  they are there (else garbage, but ignored anyway)

45
Fetch Unit
46
Improving performance

• Instruction fetch unit (cont)
• shift register always loaded with next bytes
  from memory
• MBR1 (1 byte, as before) and new MBR2 (2 bytes)
• values from shift reg dumped into both MBR1, MBR2
  after every instn read if needed, they are
  quickly put onto data path as reqd
• need some fetching logic to know when to read
  more bytes into shift register, when to refresh
  MBR1, MBR2
• IMAR separate memory addr reg (separate from
  MAR)
• own dedicated incrementer (no need for ALU)
• IFU must keep PC incremented properly, depending
  on instn length (if MBR1, MBR2 used)
• branches may reset PC as well (from C)

47
Improving performance

• Mic-2
• A, B buses
• IFU
• new IJVM 4.30, See overheads
• smaller, faster
• MBR1 always has next opcode (due to IFU)

48
Mic-2
49
Improving performance 6. Pipelining

• divide instn. execution into modular steps and
  carry out different steps for seql. instns
  simultaneously
• instruction-level parallelism
• superscalar single pipeline with parallel
  functional units
• most instns take more than 1 cycle to complete
• with pipelining n instns in n cycles
• To implement it 4.31
• add latch to A, B, C buses
• they keep values stable during sub-cycles can
  use values in 3 sections of the data path
• (i) loading before ALU (A, B)
• (ii) doing ALU, shift, and loading C latch
• (iii) storing C back into registers

50
Mic-3
51
Improving performance 6. Pipelining

• need 3 cycles now to complete 1 instn
• but maximum delay between all components is
  shorter (1/3) so can speed up clock
• advantage throughput -- 3 instns can be
  processed simult.
• all parts of data path are busy... none are idle
  (usually)
• best analogy car factory assembly line

52
Pipelining (cont)

• 4.32, 4.33, 4.44
• interpreting instns in pipelined processor
  (Mic-4)
• new sub-cycles microsteps
• takes 3 cycles to process instn (steps i, ii, iii
  from earlier)
• call latches A, B, C (like registers)
• advantage 4.33 is that different stages can
  work independently of one another now
• more stages in pipeline means higher efficiency

53
(No Transcript)
54
(No Transcript)
55
Pipelining (cont)

• One complication memory reads
• takes 2 cycles to get word from memory
• hence a m.i. that uses a word in MDR must wait
  until its available
• called a true or RAW (read after write)
  dependence
• pipeline must stall until it is ready
• ideally, put other m.i. instns in wait states
• Another complication conditional branches
• cannot predict which instn to fetch/put into
  pipeline
• have to squash or flush pipeline when a jump
  ruins sequence of instns

56
Pipelines and branch prediction

• unconditional branches
• fetch unit needs to know in advance where to
  access instns
• a jump instn. isnt decoded right away, and so
  F.U. wont know branch location until later
  called the delay slot
• soln compiler places other executable instns in
  delay, that it knows can be executed
• conditional branches
• dynamic prediction carried out during run time
• keep a running table of branched instn addresses,
  along with a branch/no branch bit
• if branch in table, and branch bit set, then
  predict it will be taken --gt fetch it
• can use 2 prediction bits predict its fetched
  twice, and not fetched twice (extra logic)

57
Pipelines and branch prediction

• static branch prediction carried out during
  compile time
• if a loop nearly always done, then have a field
  in the instn. which tells CPU that branch should
  be fetched (eg. UltraSPARC)
• can do simulations to determine how cond.
  branches executed

58
Improving performance out-of-order exec, reg
renaming

• instruction ops can take varying clock cycles
• superscalar systems mean those functional units
  need more time to process their instns
• problem cant exec one instn that requires
  results of another
• means the pipeline stalls until register values
  are computed when subsequent instns require them.
• soln move instruction order, so that no idle
  waiting
• overall exec must be identical to linear order
• dependencies
• RAW (read after write) try to read reg before
  another instn has written it.
• WAR (write after read) try to write before
  another has read it
• WAW (write after write) both write simult.

59
In-order exec, in-order completion

• decode in cyc n, exec n1, writeback n2 (except
  multiply in n3)
• 2 instns decoded simult.
• uses scoreboard 1 counter per reg keeping track
  of instns using it as a source or destination
• keeps track of max regs that can be processed
  concurrently

60
Out-of-order exec, reg renaming (cont)

• idea execute instns so long as resources are
  available, and no conflicts
• move order of instns to permit this
• registers are renamed automatically to reduce
  conflicts secret regs
• eg. if a register is in conflict, rename it so
  conflict is removed.
• copy values to original named reg later if
  required.
• result huge performance gain (were trying to
  make pipeline maximally useful!)

61
Improving performance speculative exec

• block a section of sequential code 4.45
• Can increase throughput by moving instructions
  beyond their blocks
• hoisting moving an instruction over a branch
• speculative execution executing an instruction
  before it is known whether it will be needed
• OK to do it so long as there is no side effect
  (eg. write to memory, trap/interrupt)
• may sometimes cause slowdown if spec. exec
  fetches an instn from memory that isnt needed
• otherwise, idea is to move slower instructions up
  the queue so that their processing can occur in
  the interim
• some solns
• speculative instns only fetch/exec instructions
  that are in the cache
• poison bits dont set traps automatically wait
  until that instn actually executed, and if a
  poison bit is set, then set the trap

62
Speculative exec
63
Example 1 Pentium II

• 1. Fetch/decode 4.46
• fetches instns and breaks them into m.i.s
• 2.dispatch/exec
• takes m.i.s and execs them
• 3. retirement unit
• completes exec, stores reg values (speculative
  exec)
• 1, 2, 3 above act as high-level pipeline
• ROB (reorder buffer) table of m.i.s to execute
• Fetch/decode 4.47
• 7-stage pipeline
• multiple formats, sizes means instn decoding is
  involved
• analyzes instns to determine size,
  branch-prediction
• usually between 1 and 4 m.i.s per ISA instn.
• uses reg renaming
• both static, dynamic branch prediction used
• Dispatch/exec 4.48
• 5 m.i.s can be execd at once

64
P2-micro architecture
65
(No Transcript)
66
Example 2 UltraSPARC II

• 4.49
• RISC all instns are 3-register microinstns
  already
• branch prediction (i) cache flags (ii) 2-bit
  prediction (iii) compiler directions in instns
• tries to exec 4 instns in parallel all the time
• instns may be executed out of order
• 9-stage pipeline 4.50
• split integer, float pipelines
• int adds 2 stages (N1, N2) to keep it same as fp

67
UltraSPARC
68
UltraSPARC Pipeline
69
Example 3 picoJava II

• 4.51
• instn, data caches are optional
• register file (64 entries)
• contains top 64 words of stack
• dribbling reg file read/written to memory when
  it gets too empty/full
• free access, w/o accessing caches (which may
  not be used)

70
(No Transcript)
71

• 6-stage pipeline 4.52
• CISC instns
• not superscalar instns fetched, retired inorder
  (unlike Pentium II)
• no branch prediction alg (economy)

72
Folding

• Folding 4.53, 4.54, 4.55
• replace a set of m.i.s with one m.i.
• looks up patterns in a table 4.55, and replaces
  with equivalent m.i.
• only possible if operands are high in stack, in
  register file
• huge gain in speed, like RISC performance

73
(No Transcript)
74
(No Transcript)
75
Comparing these examples

• common features
• all m.i.s contain opcode, 2 source regs, dest
  reg
• 1 m.i. per cycle
• deep pipelines
• split instn and data caches
• Pentium II complexity is in deconstructing its
  CISC instns into micro-operations
• JVM complexity is in folding sets of m.i.s into
  single operations
• UltraSparc most straight-forward to implement,
  because instns require minimal decoding (all RISC
  instructions are micro-operations already!)

76
The end
