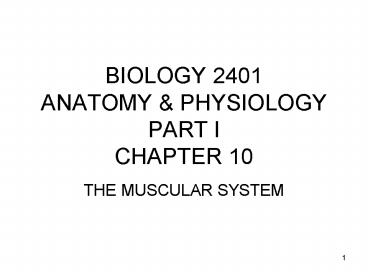

BIOLOGY 2401 ANATOMY

1
BIOLOGY 2401ANATOMY PHYSIOLOGYPART ICHAPTER
10

• THE MUSCULAR SYSTEM

2
Skeletal Muscles Work Together

• Since muscles can only contract and shorten, to
  produce opposing motions it takes at least two
  different muscles.
• Muscle classifications
• Agonist muscle that causes an action
• Antagonist a muscle working in opposition to
  agonist
• Example the biceps brachii is the agonist when
  flexing the elbow to lift weights, but is the
  antagonist when the triceps brachii is extending
  the elbow to move a bowling ball back to prepare
  to bowl
• Synergists muscles that work together to cause a
  movement

3
Information Revealed By the Names of Skeletal
Muscles

• The naming of muscles usually follows one of 7
  criteria
• Location of the muscle frontalis, temporalis
• Relative size of the muscle maximus, minimus
• Shape of the muscle deltoid, trapezius,
  rhomboid
• Direction of muscle fibers rectus, oblique,
  transversus
• Location of attachments sternocleidomastoid
• Number of origins biceps, triceps, quadriceps
• Action of the muscle adductor, flexor

4
Arrangement of Fascicles

• The fascicles of muscles can be arranged in a
  variety of ways the most common are
• 1. Parallel - fascicles are parallel to the long
  axis of the muscle.
• Some of these are also classified as fusiform
  muscles.
• 2. Pennate - the fascicles are short and attach
  to a central tendon
• Can be unipennate, bipennate or multipennate
• 3. Convergent - muscle has a broad origin but the
  fascicles converge to one tendon.
• May be multipennate.
• 4. Circular - muscle has the fascicles arranged
  in concentric circles.

5
Lever Systems

• Lever systems help move a load more efficiently
  or with greater speed.
• Quickly show lever types next

6
Types of Lever Systems First Class
7
Types of Lever Systems Second Class
8
Types of Lever Systems Third Class
9
Major Skeletal Muscles, Anterior ViewPrint on
full page for use as reference
10
Major Skeletal Muscles, Posterior ViewPrint on
full page for use as reference
11
For dissection labs

• Wear closed toed shoes
• Bring your own gloves

12
Muscles of the Scalp and Face

• Epicranius consists of
• frontalis (or frontal belly of epicranius)
• occipitalis (or occipital belly of epicranius)
• These two muscles pull the scalp forward and
  backward
• Various muscles are involved in opening and
  closing the eyes and mouth, and smiling
• Ex orbicularis oculi, orbicularis oris,
  zygomaticus, etc.
• Usually insert in skin (rather than bone), and
  adjacent muscles often fuse
• There are multiple muscles involved in
  mastication (chewing)
• Prime movers temporalis and masseter
• Synergists buccinator and orbicularis oris

13
Muscles of the Face
14
Muscles of Mastication
15
Muscles of the Neck Head Movements

• Sternocleidomastoid muscles flex the head/neck if
  they are both contracted or rotate the head if
  only one is contracted
• The trapezius muscle works with the deeper
  splenius muscles to extend and hyperextend the
  head/neck

16
Muscles of the Deep Back Trunk Movements

• Erector spinae is the prime mover of back
  extension
• Erector spinae muscles consist of three columns
  on each side of the vertebrae
• (iliocostalis, longissimus, and spinalis)
• Lateral bending of the back is accomplished by
  unilateral contraction of these muscles

17
Muscles of Respiration Inspiration

• Function of deep thoracic muscles is to promote
  movement for breathing
• External intercostals more superficial layer
  that lifts the rib cage and increases thoracic
  volume to allow inspiration
• Diaphragm most important muscle in inspiration

18
Muscles of Respiration Expiration

• Internal intercostals deeper layer that aids in
  forced expiration

19
Muscles of the Abdominal Wall

• The abdominal wall is composed of 4 paired
  muscles
• external obliques
• internal obliques
• rectus abdominis
• transversus abdominis
• Their fascicles run at right and oblique angles
  to one another, giving the abdominal wall added
  strength
• They are involved with lateral flexion rotation
  of the trunk
• They help promote urination, defecation,
  childbirth, vomiting, coughing, and screaming
  (and laughing)

20
Muscles of the Abdominal Wall
21
Muscles of the Abdominal Wall
22
Muscles of Pelvic Floor and Perineum

• Pelvic diaphragm Funnel-shaped, supports the
  pelvic viscera. Pierced by anal canal, urethra ,
  in female, vagina.
• Perineum diamond-shaped area inferior to pelvic
  diaphragm. Anterior half of diamond is urogenital
  triangle posterior half is anal triangle

23
Shoulder Muscles Found on Thorax

• Some of the muscles that control the shoulder
  (humerus or scapula) are found on the thorax
• Anterior Thorax
• pectoralis major,
• pectoralis minor, and
• serratus anterior
• Posterior Thorax
• latissimus dorsi,
• trapezius,
• levator scapulae, and
• rhomboids

24
Shoulder Muscles on Thorax, Anterior View
25
Shoulder Muscles on Thorax, Posterior View
26
Muscles Inserting On and Moving the Humerus

• Flexion at shoulder (humerus moves anteriorly)
• Pectoralis major
• Anterior fibers of deltoid
• Abduction at shoulder (humerus moves laterally)
• Lateral fibers of deltoid
• Extention at shoulder (humerus moves posteriorly)
• Latissimus dorsi
• Posterior fibers of deltoid
• Stability and rotation at the shoulder (4 rotator
  cuff muscles)
• Supraspinatus
• Infraspinatus
• Teres minor
• Subscapularis

27
Muscles Inserting on Humerus, Ant. View
28
Muscles Inserting on Humerus, Posterior View
29
Rotator Cuff, Anterior View)
30
Muscles Moving the Antebrachium

• Elbow flexion
• Biceps brachii and
• Brachialis
• Elbow extension
• Triceps brachii

31
Muscles Moving the Antebrachium
32
Muscles Moving the Antebrachium Transverse
Section

• This transverse section shows the flexors in the
  anterior compartment and the extensors in the
  posterior compartment

33
Movements at the Hip Joint

• Flexion of the Hip (femur moves anteriorly)
• Anterior compartment muscles
• Rectus femoris, tensor fascia latae and iliopsoas
• Extension of the hip (femur moves posteriorly)
• Posterior compartment muscles
• Gluteus maximus and
• 3 Hamstring muscles
• Biceps femoris, Semitendinosus, Semimebranosus
• Adduction of the hip (femur moves toward midline)
• Medial compartment muscles
• Adductors (5 of them)
• Abduction and Rotation of the Hip
• Gluteus medius, gluteus minimus, and sartorius

34
Movements at the Knee Joint Some of the Same
Muscles (hip)

• Extension of the knee (tibia and fibula move
  anteriorly)
• The Quadriceps
• Rectus femoriship
• Vastus lateralis
• Vastus medialis
• Vastus intermedialis (deep to rectus femoris)
• Flexion of the knee (tibia and fibula move
  posteriorly)
• The Hamstrings
• Biceps femoriship
• Semitendinosuship
• Semimembranosuship
• Because the knee is backwards compared to the
  hip and most other joints, a muscle that flexes
  the hip would extend the knee.
• And a muscle that extends the hip, would flex the
  knee.

35
Movements at the Hip Flexors, Adductors and
Rotators
36
Movements at the Hip Extensors
37
Movements at the Knee Extensors
38
Movements at the Knee Flexors
39
Muscles Moving the Hip and Knee Transverse
Section
40
Movements at the Ankle

• Plantar Flexion (toes point downward)
• Posterior compartment muscles
• Gastocnemius
• Soleus
• Dorsiflexion (toes point upward)
• Anterior compartment muscles
• Tibialis anterior

41
Movement at the Ankle Plantar Flexors
42
Movement at the Ankle Dorsiflexors

• Muscles of the anterior compartment are the
  primary toe extensors and ankle dorsiflexors
• They include the tibialis anterior

43
Practice Questions
44

• A muscle that assists the muscle primarily
  responsible for a given action is a(n)
• Antagonist
• Synergist
• Primary antagonist
• Levator
• Originator

45

• A muscle that is inserted on the mandible is
  probably involved in
• Frowning
• Kissing
• Wrinkling the forehead
• Chewing
• Blowing

46

• Muscles ending in the suffix "-costal" would be
  associated with the
• neck.
• head.
• groin.
• abdomen.
• ribs.

47

• Muscles with fibers that run straight or parallel
  to the long axis of the body are called
• Obliques
• Rectus
• Lateralis
• Transversus
• Medialis

48

• The attachment site of the muscle tendon to the
  more movable bone is called the
• Proximal end
• Insertion
• Distal end
• Origin
• Belly

49

• The names of the muscles can indicate all of the
  following EXCEPT
• The region of the body where the muscle is
  located
• Action of the muscle
• Fat content of the muscle
• The direction of the muscle relative to the long
  axis of the body
• Structural characteristics of the muscle

50

• Muscles that act as sphincters to close openings
  are circular muscles.  True False

51

• The deltoid muscle is named for its
  location.  True False

52
Specific muscle questions
53

• The muscle that extends the forearm while doing
  push-ups is the
• Biceps
• Pectoralis
• Deltoid
• Brachialis
• Triceps

54

• The muscular wall of the abdomen is composed of
• glossal muscles.
• oblique and rectus muscles.
• spinal erector muscles.
• pectoralis muscles.
• muscles of mastication.

55

• The major abductor muscle of the upper arm is
  the
• subscapularis.
• deltoid.
• coracobrachialis.
• teres major.
• supraspinatus.

56

• Which of the following muscles is NOT a muscle of
  the hamstring group?
• Semimembranosus
• Biceps femoris
• Semitendinosus
• Quadriceps femoris

57

• The muscle that inserts on the acromion and
  scapular spine is the trapezius.  True False

58

• The semimembranosus muscle belongs to the group
  known as the "hamstrings."  True False
