Binary Trees

1

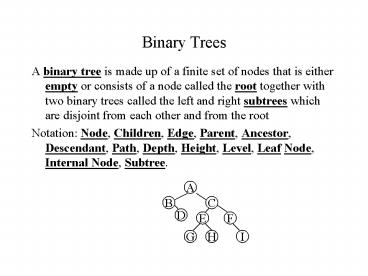

Binary Trees

• A binary tree is made up of a finite set of nodes
  that is either empty or consists of a node called
  the root together with two binary trees called
  the left and right subtrees which are disjoint
  from each other and from the root
• Notation Node, Children, Edge, Parent, Ancestor,
  Descendant, Path, Depth, Height, Level, Leaf
  Node, Internal Node, Subtree.

A
C
B
D
F
E
G
I
H
2
Full and Complete Binary Trees

• A Full binary tree has each node being either a
  leaf or internal node with exactly two non-empty
  children.
• A Complete binary tree If the height of the tree
  is d, then all levels except possibly level d are
  completely full. The bottom level has all nodes
  to the left side.

3
Full Binary Tree Theorem

• Theorem The number of leaves in a non-empty full
  binary tree is one more than the number of
  internal nodes.
• Proof (by Mathematical Induction)
• Base Case A full binary tree with 1 internal
  node must have two leaf nodes.
• Induction Hypothesis Assume any full binary tree
  T containing n-1 internal nodes has n leaves.
• Induction Step Pick an arbitrary leaf node j of
  T. Make j an internal node by giving it two
  children. The number of internal nodes has now
  gone up by 1 to reach n. The number of leaves
  has also gone up by 1.
• Corollary The number of NULL pointers in a
  non-empty binary tee is one more than the number
  of nodes in the tree.

4
Traversals

• Any process for visiting the nodes in some order
  is called a traversal.
• Any traversal that lists every node in the tree
  exactly once is called an enumeration of the
  trees nodes.
• Preorder traversal Visit each node before
  visiting its children.
• Postorder traversal Visit each node after
  visiting its children.
• Inorder traversal Visit the left subtree, then
  the node, then the right subtree.
• void preorder(BinNode root)
• if (rootNULL) return
• visit(root)
• preorder(root-gtleftchild())
• preorder(root-gtrightchild())

5
Expression Trees

• Example of (a-b)/((xy3)-(6z))

/
-
-
a
b


6
z
3

y
x
6
Binary Search Trees

• Left means less right means greater.
• Find
• If itemltcur-gtdat then curcur-gtleft
• Else if itemgtcur-gtdat then curcur-gtright
• Else found
• Repeat while not found and cur not NULL
• No need for recursion.

7
Find min and max

• The min will be all the way to the left
• While cur-gtleft ! NULL, curcur-gtleft
• The max will be all the way to the right
• While cur-gtright !NULL, curcur-gtright
• Insert
• Like a find, but stop when you would go to a null
  and insert there.

8
Remove

• If node to be deleted is a leaf (no children),
  can remove it and adjust the parent node (must
  keep track of previous)
• If the node to be deleted has one child, remove
  it and have the parent point to that child.
• If the node to be deleted has 2 children
• Replace the data value with the smallest value in
  the right subtree
• Delete the smallest value in the right subtree
  (it will have no left child, so a trivial delete.

9
Array Implementation

• For a complete binary tree
• Parent(x)
• Leftchild(x)
• Rightchild(x)
• Leftsibling(x)
• Rightsibling(x)

(x-1)/2
2x1
2x2
x-1
x1
10
Huffman Coding Trees

• Each character has exactly 8 bits
• Goal to have a message/file take less space
• Allow some characters to have shorter bit
  patterns, but some characters can have longer.
• Will not have any benefit if each character
  appears with equal probability.
• English does not have equal distribution of
  character occurance.
• If we let the single bit 1 represent the letter
  E, then no other character can start with a 1.
  So some will have to be longer.

11
The Tree

• Look at the left pointer as the way to go for a 0
  and the right pointer is the way to go for a 1.
• Take input string of 1s and 0s and follow them
  until hit null pointer, then the character in
  that node is the character being held.
• Example
• 0 E
• 10 T
• 110 P
• 111 F
• 0110111010EPFET

E
T
F
P
12
Weighted Tree

• Each time we have to go to another level, takes
  time. Want to go down as few times as needed.
• Have the most frequently used items at the top,
  least frequently items at the bottom.
• If we have weights or frequencies of nodes, then
  we want a tree with minimal external path weight.

13
Huffman Example

• Assume the following characters with their
  relative frequencies.
• Z K F C U D L E
• 2 7 24 32 37 42 42 120
• Arrange from smallest to largest.
• Combine 2 smallest with a parent node with the
  sum of the 2 frequencies.
• Replace the 2 values with the sum. Combine the
  nodes with the 2 smallest values until only one
  node left.

14
Huffman Tree Construction

• Z K F C U D L E
• 2 7 24 32 37 42 42 120

306
186
120 E
79
107
65
37 U
42 D
42 L
33
32 C
9
24 F
2 Z
7 K
15
Results

• Let Freq Code Bits Mess. Len. Old Bits Old Mess.
  Len.
• C 32 1110 4 128 3 96
• D 42 101 3 126 3 126
• E 120 0 1 120 3 360
• F 24 11111 5 120 3 72
• K 7 111101 6 42 3 21
• L 42 110 3 126 3 126
• U 37 100 3 111 3 111
• Z 2 111100 6 12 3 6
• TOTAL 785 918

16
Heap

• Is a complete binary tree with the heap property
• min-heap All values are less than the child
  values.
• Max-heap all values are greater than the child
  values.
• The values in a heap are partially ordered.
  There is a relationship between a nodes value
  and the value of its children nodes.
• Representation Usually the array based complete
  binary tree representation.

17
Building the Heap

• Several ways to build the heap. As we add each
  node, or create a tree as we get all the data
  and then heapify it.
• More efficient if we wait until all data is in.

1
1
2
3
5
7
4
5
6
7
4
2
6
3
7
7
5
1
5
6
4
2
6
3
4
2
1
3
18
Heap ADT

• class heap
• private
• ELEM Heap
• int size
• int n
• void siftdown(int)
• public
• heap(ELEM, int, int)
• int heapsize() const
• bool isLeaf(int) const
• int leftchild(int) const
• int rightchild(int) const
• int parent(int) const
• void insert(const ELEM)
• ELEM removemax()
• ELEM remove(int)
• void buildheap()

19
Siftdown

• For fast heap construction
• Work from high end of array to low end.
• Call siftdown for each item.
• Dont need to call siftdown on leaf nodes.
• void heapbuildheap()
• for (int in/2-1 igt0 i--) siftdown(i)
• void heapsiftdown(int pos)
• assert((posgt0) (posltn))
• while (!isleaf(pos))
• int jleftchild(pos)
• if ((jlt(n-1) key(Heapj)ltkey(Heapj1)))
• j // j now has position of child with greater
  value
• if (key(Heappos)gtkey(Heapj)) return
• swap(Heappos, Heapj)
• posj

20
Priority Queues

• A priority queue stores objects and on request,
  releases the object with the greatest value.
• Example scheduling jobs in a multi-tasking
  operating system.
• The priority of a job may change, requiring some
  reordering of the jobs.
• Implementation use a heap to store the priority
  queue.
• To support priority reordering, delete and
  re-insert. Need to know index for the object.
• ELEM heapremove(int pos)
• assert((posgt0) (posltn))
• swap (Heappos, Heap--n)
• if (n!0)
• siftdown(pos)
• return Heapn
