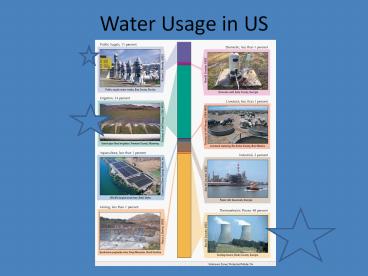

Water Usage in US

1
Water Usage in US
2
Water Usage in US (2)
3
Types of Available Water
4
of Water Types Used for All Sectors
5
Water Usage by User in US
6
Water Uses in Energy Production

• Cooling water for steam turbine condenser
  (largest user)
• Makeup water treatment plant (second largest
  user remaining in no particular order)
• Boiler makeup water
• NOx control for gas turbines
• Auxiliary plant cooling water
• Makeup water to flue gas desulphurization
• Ash handling and disposal
• General domestic use

7
Water Used for Cooling Purposes
Open Loop System
Closed Loop System

• H20 withdrawn directly from source
• Lake/river
• Heated H20 returned to source
• Thermal pollution
• Entrainment problems
• Generally only used at coastal facilities

• Uses tower to transfer heat to ambient air
• Withdrawal lt5 of open systems
• Overall greater consumption

8

• Types of Cooling Systems
• Once through with cooling ponds/canals
• Freshwater once through
• Saline once through
• Recirculating systems with cooling ponds/canals
• Recirculating systems with forced draft cooling
  towers
• Recirculating systems with induced draft
  cooling towers
• Recirculating systems with natural draft
  cooling towers

(Yang)
9
Types of Water Used by Thermoelectric Plants

• Current Sources
• Fresh Groundwater
• Surface Freshwater
• Surface Saline water
• Public Delivery
• Sewage
• Mixed water sources

(Water Use, Yang)
10
Cooling Water Sources
industrial wastewater
sewage reservoir waste water effluent
wells
rivers
cooling pond
ground water
treatment system
Ocean aquifer mill supply
municipal
lakes
11
Treatment of Water

• Impurities present in surface/groundwater sources
  that must be addressed
• Total dissolved solids
• For many processes, it is unnecessary to reduce
  except in substantial evaporation losses
• Suspended solids/particulate matter
• Treatment depends on level of solids present
• Can cause silting/fouling problems in cooling
  towers/circuits
• Colloidal species
• Cant be removed by ion exchange technology
• Must use membrane separation technology
• Dissolved organic matter
• Can cause corrosion in turbine cylinders if not
  treated

Water Treatment for Fossil Fuel Power Generation,
Paton
12

• Research for new sources
• Mine pool water
• geological carbon sequestration coal bed
  methane produced water
• Industrial/municipal wastewater
• ...and research for water reuse recovery
• reuse power plant cooling water
• recover water from plant flue gas

NETL
13
New Sources
14
Water Usage in Hydroelectric Power

• Consumptive Uses
• Increased sfc. area of reservoir causes faster
  evaporation
• Non-consumptive Uses
• Water flowing through turbine
• Evaporation 18gal/kWh consumed by end user
• (NREL Consumptive Water Use for US Power
  Production)
