1-7 Three-Dimensional Figures

1

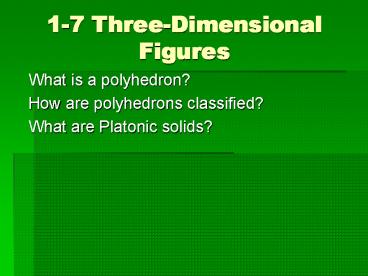

1-7 Three-Dimensional Figures

• What is a polyhedron?
• How are polyhedrons classified?
• What are Platonic solids?

2
You identified and named two-dimensional figures.

• Identify and name three-dimensional figures.

3
Definitions

• A polyhedron is a solid with all flat surfaces
  that enclose a single region of space.
• A face is each flat surface of the polygon
• Faces are named in the same way as polygons.
• Edges are the line segments where the faces
  intersect.
• A vertex is the point where three or more edges
  meet.
• Polyhedrons or polyhedra are named by the shape
  of their bases and type of solid.

4
p. 67
5

• Prisms and pyramids are Polyhedrons.
• Cylinders, cones and spheres are not.

6
Bases

• The bases of the figure are the two parallel
  congruent faces of the three dimensional figure.
• BEWARE!!
• The figure may not be sitting on its base

7
Naming polyhedrons

• Polyhedrons are named by the shape of their bases.

8
Identify Solids
Determine whether the solid is a polyhedron. Then
identify the solid. If it is a polyhedron, name
the bases, faces, edges, and vertices.
The solid is formed by polygonal faces, so it is
a polyhedron. The bases are rectangles. This
solid is a rectangular prism.
Answer rectangular prism
Bases rectangles EFHG, ABDC Faces rectangles
FBDH, EACG, GCDH,EFBA, EFHG,
ABDC Vertices A, B, C, D, E, F, G, H
9
Identify Solids
Determine whether the solid is a polyhedron. Then
identify the solid. If it is a polyhedron, name
the bases, faces, edges, and vertices.
The solid has a curved surface, so it is not a
polyhedron. The base is a circle and there is one
vertex. So, it is a cone.
Answer Base circle TVertex Wno faces or
edges
10
Identify the solid
A. triangular prism B. triangular
pyramid C. rectangular pyramid D. cone
11
Platonic Solids
12
Identify the solid
A. cone B. cylinder C. pyramid D. polyhedron
13
Identify the solid
A. triangular pyramid B. pentagonal
prism C. rectangular prism D. square pyramid
14

• What is a polyhedron?
• A polyhedron is a solid whose faces are polygons.
• How are polyhedrons classified?
• Polyhedrons are named by the shape of their
  bases.

15
Assignment 1-7

• Page 70, 1, 2, 6-16, skip 12
