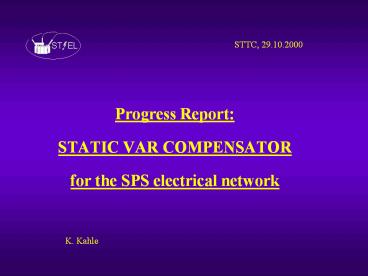

Progress Report:

1
STTC, 29.10.2000

• Progress Report
• STATIC VAR COMPENSATOR
• for the SPS electrical network

K. Kahle
2
Contents

• 1. Project Status
• 2. Filter Design, Layout and Performance
• 3. Interfaces with BE renovation project
• 4. Interfaces with other ST services
• 5. Planning and Budget

3
2. Filter Design, Layout and Performance
TCR
100
550
150
350
650
250
HF1
HF2
4
1. Project Status
Status
o.k. 10/2000
- Contract with ABB Sweden - Electrical design
studies - Mechanical design studies -
Preparation of CE - Preparation of CV
almost finished
in progress
in progress
in progress
5
2. Filter Design, Layout and Performance
maximum possible reduction of harmonic
disturbances created by the SPS power converters
and the TCR (250 Hz, 350 Hz, 550 Hz, 650 Hz, 850
Hz, 950 Hz and HF)
Goal
Realisation
Harmonic filters for 100 Hz, 150 Hz, 250 Hz,
350 Hz, 550 Hz, 650 Hz, 850 Hz, 950 Hz, 1050 Hz)
6
2. Filter Design, Layout and Performance
Example for a simple harmonic filter
Tuning frequency of a filter f0 1 / (2 pi
sqrt(LC)
L
Result very low impedance at tuning
frequency (trap for
harmonic currents)
C
7
2. Filter Design, Layout and Performance
TCR
100
550
150
350
650
250
HF1
HF2
8
2. Filter Design, Layout and Performance
Network Impedance with SVC
Impedance Z f ( frequency)
Z (dB)
Frequency (Hz)
550 Hz
850 1550 Hz
250 Hz
100 Hz
9
2. Filter Design, Layout and Performance
Harmonic Performance of the filter design
10
2. Filter Design, Layout and Performance
SVC Mechanical Layout
- SVC yard and concrete platform - earth wall -
cable duct for feeding cables
11
3. Interfaces with BE renovation project
- power cabling 18 kV (DO-19381/ST) - SVC
supervision in the BE safe room - control
interfaces SCADA system - measurement panels in
the BE safe room
12
4. Interfaces with other ST services
CE (W. v. Baaren)
- concrete platform 2500 m2 (SVC yard)
(IT-2887/ST) - cable duct to feeding BE
substation (DO-19367/ST)
13
4. Interfaces with other ST services
CV (B. Pirollet)
- supply for primary cooling water for the
cooling of the high voltage thyristors
(DO-19361/ST)
14
5. Planning
10/00 11/00 11/00 01/01 04/01 03/01 08/01 09/01 10
/01
- Finish of electrical design studies - Ordering
of the electrical components (ABB) - Mechanical
design studies - CE, cable duct - CE, platform -
CV, primary cooling water - Electrical
installation of the SVC - Commissioning, without
pulsed load - Final tests with pulsed loads

15
5. Planning (if LEP continues 2001)
10/00 11/00 11/00 01/01 04/01 03/01 08/01 05/02 05
/02
- Finish of electrical design studies - Ordering
of the electrical components (ABB) - Mechanical
design studies - CE, cable duct - CE, platform -
CV, primary cooling water - Electrical
installation of the SVC - Commissioning, without
pulsed load - Final tests with pulsed loads
