The PSciCo Project: Parallel Scientific Computing in ML

1

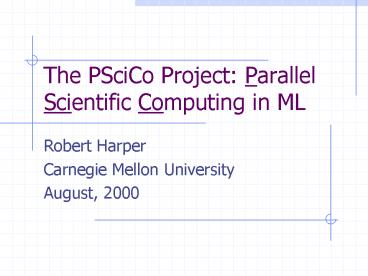

The PSciCo Project Parallel Scientific Computing
in ML

• Robert Harper
• Carnegie Mellon University
• August, 2000

2
Acknowledgements

• This talk represents collaboration with Guy
  Blelloch (CS), Gary Miller (CS), and Noel
  Walkington (Math).
• Much of the work is done by our students Umut
  Acar, Hal Burch, Franklin Chen, Perry Cheng,
  David Garmire, Aleks Nanevski, Leaf Petersen,
  Seth Porter, and Chris Stone.

3
Project Goal

• Use high-level languages for scientific computing
  to achieve ...
• Smooth integration of production and prototyping.
• Richer data structures and more complex
  algorithms.
• Free exchange of re-usable components.
• Expressiveness with acceptable efficiency.

4
Project Thesis

• We may achieve these goals by exploiting
• Functional programming.
• Persistent data structures.
• Higher-order functions, especially staging
  (currying) and parameterization.
• Implicit coarse-grained parallelism.
• Parallel operations on aggregates.
• Modular programming.
• Interfaces, parameterization, hierarchy.

5
How We Can Win

• Use methods that are unthinkable in current
  languages.
• persistence, parallelism, higher-order functions,
  modularity
• Change the terms of the debate.
• Efficiency matters, but its not everything.
• Expressiveness, concision, robustness,
  flexibility matter too.

6
How We Can Win

• Eliminate the distinction between
• Prototyping languages, for experimenting with new
  ideas.
• Encourage quick and dirty hacks.
• Poor software engineering properties.
• Production languages, for building systems for
  real.
• Sacrifice ease of use and maintainability for the
  sake of efficiency.

7
The State of the Art

• Prototyping languages
• eg, Mathematica, MatLab
• Convenient, especially interactively
• Support numeric and symbolic computation
• High-level, language-oriented
• Packages / toolkits for various domains
• Easy to build an application

8
The State of the Art

• Production languages
• eg, Fortran, C, C
• Batch-oriented, not interactive
• Low-level, machine-oriented
• Poor support for symbolic computation
• Large collection of libraries, packages
• More effort to build a system

9
Starting Point ML NESL

• ML
• Excellent support for complex data structures and
  symbolic computing
• Excellent support for modularity
• Poor support for numeric computation
• Poor support for parallelism

10
Starting Point ML NESL

• NESL
• First-order functional language.
• Excellent support for implicit parallelism.
• scan vector model of data parallelism
• No support for complex data stuctures or symbolic
  computing.
• No support for modularity.

11
Current Work

• Shared libraries.
• Adaptive precision arithmetic.
• General purpose geometry and physics.
• Triangulated surfaces (simplicial complexes).
• Applications.
• Convex hull.
• Delaunay triangulation.
• n-Body problem.
• Terrain modelling.
• Finite element method.

12
Current Work

• Language technology.
• TILT compiler for Standard ML.
• typed intermediate languages for efficient data
  representation
• Parallel run-time system with space- and
  time-efficient thread scheduling.
• exploited by data parallel sequence primitives.
• Parallel, concurrent, real-time copying GC.
• Multiple mutators and collectors on an SMP

13
Shared Libraries

• Geometry primitives
• Points, vectors, figures.
• Line-side test, in-circle test.
• Arithmetic.
• adaptive precision floating point
• interval arithmetic
• Simplicial complexes.
• Persistent representation of surfaces.

14
Representing Geometry

• Single dimension-independent interface signature
  GEOMETRY ...
• Several dimension-dependent implementations
• structure Geo2D gt GEOMETRY ...
• structure Geo3D gt GEOMETRY ...
• Different types for different dimensions!
• avoids run-time checking for conformance

15
Representing Geometry

• signature GEOMETRY sigstructure Vec
  VECstructure Point POINTstructure HalfSpace
  HALF_SPACEstructure Box BOXsharing Point.Vec
  Vecand HalfSpace.Point Point
• end

16
Representing Geometry

• signature VEC sigstructure Scalar
  NUMBERtype tval t t -gt tval scale t
  Scalar.t -gt tval dot t t -gt Scalar.tval
  norm t -gt Scalar.t
• end

17
Representing Geometry

• signature POINT sigstructure Vec
  VECstructure Number NUMBERtype tval origin
  tval translate t Vec.t -gt tval - t t -gt
  Vec.t
• end

18
Representing Geometry

• signature HALF_SPACE sigexception
  Degeneratestructure Pt POINTstructure Vec
  VECtype tval from_pts Pt.t Seq.t -gt tval
  side_test t -gt Pt.t -gt Side.t ( 3-valued )
• end

19
An Object-Oriented Approach

• CGAL uses OOP techniques.
• No common interface for any dimension.
• One implementation for all dimensions.
• Point translate (Point p, Vector v)
• Requires run-time conformance checks.
• Uses templates for numeric precision (float,
  double, etc)

20
ML vs OO

• In ML conformance is ensured by sharing
  specifications.
• Vectors and points must agree on common types.
• Run-time checks are avoided.
• ML supports coherent integration of
  abstractions better than do C or Java.
• Geometry library is a good example of this.

21
Arithmetic

• Key questions in geometric algorithms
• Side test is a point above or below a given line
  or plane?
• Circle test is a point within a circle or
  sphere?
• These functions convert a floating point number
  to a boolean.
• Check sign of a determinant.

22
Arithmetic

• It is essential that these questions be answered
  consistently and accurately.
• Otherwise higher-level results are nonsense (eg,
  convex hull not convex).
• It is essential that these be implemented
  efficiently.
• Lie at the heart of just about any algorithm in
  CG.

23
Arithmetic

• Adaptive precision via error analysis (Priest,
  Shewchuk).
• Calculate using single precision.
• Calculate fuzz factor by forward error
  analysis.
• If reliable, answer, otherwise re-do in double
  precision, then arbitrary precision.
• Key weakness must derive and implement the error
  calculation not a general arithmetic package.

24
Arithmetic

• Lazy interval arithmetic.
• Use a general interval arithmetic package for all
  arithmetic.
• IA determines reliability of result (eg, for
  positivity test, interval cannot span origin).
• Carry a symbolic representation of the history
  of the computation of the point.
• Re-do using full precision if unreliable.

25
Arithmetic

• Intervals work well for polynomials.
• Enough to do CG tests, assuming virgin data.
• Polynomials are not enough, in general!
• eg, projections onto a sphere require square
  roots
• How much can we feasibly support?
• algebraic numbers?
• transcendentals?

26
Real Numbers

• Why not represent all (computable) real numbers?
• eg, Edalat and Potts representation as infinite
  sequences of convergent intervals
• Basic limitation equality and ordering of reals
  is not decidable.
• eg, cannot decide whether xgt0 in general
• most algorithms assume a decidable equality test

27
Real Numbers

• CG algorithms assume that geometric objects are
  discrete.
• eg, line-side and in-circle tests
• Computationally, this is nonsense!
• cannot decide in general if x lies on L or within
  C
• Edalat suggests to treat geometric objects
  themselves as sequences of intervals.
• successive refinement to interior and exterior
• But we must re-work CG in this framework.

28
Representing Surfaces

• Triangulated surfaces arise frequently.
• Finite element method for solving boundary-value
  problems.
• Computation of convex hull of a set of points.
• Terrain modeling from altitude data.
• Putting clothes on the Toy Story characters.

29
Representing Surfaces

• A triangulated surface is a simplicial complex.
• An n-complex is a set of n-simplexes that fit
  together well.
• Intersection of two n-simplexes is an
  (n-1)-simplex.
• A 1-simplex is a point, a 2-simplex a line, a
  3-simplex a triangle, etc.
• Vertices are affinely independent when embedded
  in n-space.

30
Representing Surfaces

• signature SIMPLEX sig
• structure Vertex VERTEXtype simplexval
  compare simplex simplex -gt orderval dim
  simplex -gt intval vertices simplex -gt
  Vertex.vertex seqval simplex Vertex.vertex seq
  -gt simplexval down simplex -gt Vertex.vertex
  simplexval join Vertex.vertex simplex -gt
  simplexval faces simplex -gt simplex seqval
  flip simplex -gt simplex
• end

31
Representing Surfaces

• signature VERTEX sig
• type vertexval compare vertex vertex -gt
  ordertype statetype pointval new state
  point -gt state vertexval loc vertex -gt point
• end

32
Representing Surfaces

• signature SIMPCOMP sig
• structure Simplex SIMPLEXtype a complexval
  dim intval empty a complexval isempty
  a complex -gt boolval simplices a complex
  -gt int -gt Simplex.simplex seqval data a
  complex -gt Simplex.simplex -gt a option...
• end

33
Representing Surfaces

• signature SIMPCOMP sig ... val grep a
  complex -gt int Simplex.simplex -gt
  Simplex.simplex seq val add a complex -gt
  Simplex.simplex a -gt a complex ...
• end

34
Representing Surfaces

• Signature of complexes is dimension-independent.
• Allows dimension-independent code to manipulate
  surfaces.
• Implementations are dimension-dependent.
• Different dimensions have different types.

35
Implementing Surfaces

• Usual implementation is imperative.
• Doubly-linked edge list.
• Constant-time traversal operations.
• Ephemeral, not easily parallelizable.
• Our implementation is functional.
• Simplex is a sequence of vertices.
• Logarithmic-time traversal of complex.
• Persistent, easily parallelizable.

36
Cost of Persistence?

• Lower bound on 3D hull ?(n lg n).
• Matching upper bounds are known.
• eg, Quickhull algorithm.
• But they rely on constant-time surface
  operations!
• eg, find all three neighbors of a triangle
• Can we match this in the persistent case?

37
Cost of Persistence?

• Naively, wed expect O(n lg2 n) to pay for
  persistence.
• Surface operations are O(lg n) instead of O(1).
• Burch and Miller discovered an optimal randomized
  algorithm for the persistent case!
• Touches surface O(n) times, at a cost of O(n lg
  n).
• O(n lg n) floating point operations.
• Plus it is persistent and parallelizable!

38
Delaunay Triangulation

• Generate a triangulation of a region with
  boundary (in 2-space).
• Must include the boundary segments.
• Configuration of triangles must be good in
  several senses (well discuss one).
• A triangulation is a 2-complex.
• Use simplicial complex package to represent it.

39
Delaunay Triangulation
40
Delaunay Triangulation

• Goal avoid skinny triangles.
• Lead to ill-conditioned numeric problems.
• Method improve a triangulation by adding new
  vertexes.
• Turn a skinny triangle into two fat ones.
• Where to add vertices?
• Circumcenter of triangle usually works.
• Other choices are sometimes forced.

41
Delaunay Triangulation
42
Ruperts Algorithm

• Adding a vertex may violate the boundary!
• New vertex may introduce a new skinny triangle
  somewhere else in the region.
• If the new triangle is on the boundary, further
  splitting may remove a boundary segment!

43
Ruperts Algorithm
44
Ruperts Algorithm
45
Ruperts Algorithm

• Typical solution search whenever a vertex is
  about to be added.
• Lots of ad hoc code for a rare case.
• Introduces overhead at each step.
• A simpler solution back out when a boundary
  violation occurs.
• Can be arbitrarily far in the future.

46
Ruperts Algorithm in ML

• Use dynamic exceptions and persistent surface
  representation.
• Associate an exception with each new vertex.
• If the boundary is violated, raise the exception
  of some new vertex, passing a better location
  for it.
• Handler restarts triangulation from there.

47
Ruperts Algorithm in ML

• For the 2D case this is nice.
• simplifies coding
• easier to explain
• For the 3D case this is a big win.
• conditions much harder to state and enforce
• persistence helps enormously
• first implementation of 3D Ruppert nearly complete

48
N-Body Problem

• Problem given n bodies, compute the potentials
  between them.
• Gravitational potential between stars.
• Electrical potential between charged bodies.
• Naive solution O(n2).
• For each body, sum potential due to all other
  bodies in the system

49
N-Body Problem

• Approximate potentials by clustering distant
  bodies.
• eg, think of Andromeda as one body relative to
  the Sun
• Several choices
• How to form clusters?
• How far is distant?
• How to approximate potentials?

50
Clustering

• Build a tree by recursively dividing space into
  regions.
• Each node is a cluster.
• Each leaf is a body.
• Two division methods
• Equal-sized regions of space (quaternary).
• Split bounding box on longest dimension (binary).

51
Clustering Even Division
52
Clustering Split Bounding Box
53
Approximation

• Treat each node as a pseudo-body.
• Potential based on approximation method.
• Valid approximation for distant objects.
• Several approximation methods.
• Monopole first-order term (center of gravity).
• Multipole expansion higher-order terms.
• Spherical distribution k points evenly
  distributed on the surface of a sphere.

54
Force Calculation

• For each body, traverse the tree.
• If far enough away from the cluster, use the
  approximation.
• Otherwise, sum potentials due to each child.
• Distance criterion s/d gt ?.
• s size of cell, d distance away
• ? threshold factor

55
Force Calculation

• There is a trade-off between the approximation
  and the separation criterion.
• Smaller ? implies more interactions to be
  calculated.
• More terms in the expansion makes approximation
  harder to calculate, but improves accuracy.

56
A Modular Implementation

• Use a functor parameterized on separation,
  partition, and approximation method
• functor NBody(structure Sep SEPARATION
  structure Part PARTITION structure Approx
  APPROX sharing Sep.Geom Part.Geom and
  Part.Geom Approx.Geom)

57
A Modular Implementation

• We can mix-and-match methods to compare speed,
  accuracy, etc.
• Facilitates prototyping and comparison of
  methods.
• A single framework for all tree-based methods.
• Standard methods use one trajectory through the
  space of options.

58
Opportunities For Parallelism

• Tree-based methods are very amenable to
  parallelization.
• During construction, can construct cells in
  parallel.
• During evaluation, can compute body-cell
  interactions in parallel.
• Can calculate effect on all bodies simultaneously.

59
Summary

• Scientific computing demands a programming
  language with
• A flexible module system,
• Numeric and symbolic computation,
• Dynamically-allocated data structures
• ... while providing
• Competitive efficiency on stock hardware.
• Super reliability and maintainability.

60
Summary

• Merging ML and NESL is a good start ...
• superior expressiveness, modularity
• natural support for parallelism
• ... but theres much more to be done!
• need a killer app (3D Ruppert?)
• performance comparisons

61
Further Information

• Visit the PSciCo home page
• http//www.cs.cmu.edu/pscico
