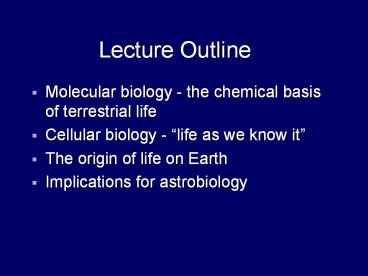

Lecture Outline

1
Lecture Outline

• Molecular biology - the chemical basis of
  terrestrial life
• Cellular biology - life as we know it
• The origin of life on Earth
• Implications for astrobiology

2
Carbon (C) is a unique element, key role in
organic chemistry and molecular biology

• Strong C-C bonds provide the structural support
  for very large 3D molecules
• C can simultaneously form strong bonds with H and
  O thus allowing large and complex molecules
• CO2 is a gas allowing easy C transport and
  interactions
• Organic (C structured) compounds are 50x more
  numerous than inorganic ones
• Not particularly abundant in the Earths mantle,
  C/OMantle10-3C/OCosmic (carbon starvation?)

3
Liquid Water Essential for Life

• Essential for terrestrial biology
• Water is a flexible solvent
• Lots of local order in water
• Cells are mostly water

4
Four major classes of bio-molecules

• Proteins chains of amino acids that are the
  functional machines of biology
• Nucleic Acids lengthy sequences of nucleotides
  which store, copy implement protein structures
• Carbohydrates energy storage structure
• Lipids energy storage cell membranes

5
All 4 types of bio-molecules are long polymers
made of a set of identical building blocks
6
The Lego Principle

• Biology is largely built from on a small number
  of components- 20 L amino acids- 5 nucleotide
  bases- a few D sugars fatty acids
• A common property of biology (and mass-produced
  childrens toys) throughout the universe??

7
(No Transcript)
8
Nucleic AcidsThree key self-propagation
mechanisms

• DNA (info archive)storage and replication
• DNA to RNA (blueprint) transcription
• RNA to protein (hardware) construction
• RNA only ?? (RNA World Hypothesis)

The functioning of these mechanisms requires a
genetic code/language, a bio-energy supply
and carrier (ATP, Adenosine Triphosphate), a
building tool (ribosome) and water as a
medium. All above are universal features of
terrestrial life!
9
Amino acids are the lego building block
components of proteins

• 13 to 27 atoms of C, O, N, H S
• A COOH (carboxy) end that loses a H ion
• A NH2 (amino) end that takes a H ion
• More than 170 known, but only 20 are coded by
  nucleic acids and used to make proteins
• 19 are l-chiral (left-handed) one is symmetric
• Carboxy amino ends plug together to form a
  peptide bond and thus make long chains
• H3N COO- -gt OC-NH H2O

10
Amino Acids
11
The 4 levels of protein structure

• Peptide bond chains of 100s of amino acids
• Chain winds to form an ?-helix or folds to form a
  ?-sheet stabilized by H bonds
• Fold into specific 3D shapes set by disulfide
  bonds and hydrophobic interactions
• Also such proteins may combine as subunits to
  form a larger and more complex protein

12
ProteinStructure
13
Protein functions many and diverse

• Structure
• Enzymes
• Hormones
• Transportation
• Protection
• Sensors
• Toxins
• Gates
• Movement

• Proteins comprise gt50 of the mass of many
  cells (the rest being largely water).
• More than 104 human proteins are known.
• Genetic information specifies proteins and
  nothing else.

14
Nucleic acids (DNA and RNA)

• Very long chains (again) of nucleotides
• Each nucleotide is made of a phosphoric acid, a
  sugar and a base
• Sugar is d-ribose in RNA deoxy-d-ribose in DNA
• RNA bases are Cytosine, Uracil, Adenine
  Guanine DNA bases C, A, G Thymine

15
DNA structure replication

• Consists of two nucleotide chains/strands wrapped
  around each other in a spiral helix
• A on one strand matches T on the other
• Similarly G and C pair between strands
• When the strands are separated, they can each
  regenerate their partner thus copy the
  information they encode
• A codon consists of 3 sequential bases and
  specifies one amino acid (or start/stop)

16
DNA Nucleotides
17
(No Transcript)
18
(No Transcript)
19
RNA structure transcription

• Consists of a single chain/strand of nucleotides
• Organized in the same 3 base codons as DNA except
  that U replaces T
• DNA generates/transcribes messenger-RNA (mRNA)
  which provides the working blueprint for
  protein synthesis

20
Protein synthesis/construction

• mRNA carries the amino acid sequence information
  for the protein
• transfer-RNA (tRNA) provides the raw material
  amino acids by binding them to anti-codon
  (complementary base triplets)
• Ribosome macromolecule/protein reads mRNA to
  select specified amino acids from tRNA and
  extrudes them in a chain as it moves along the
  mRNA
• ATP energizes the individual bondings by transfer
  of a phosphate group to a X-OH component
• mRNA, tRNA ribosome are reusable for additional
  syntheses, but ATP degrades to ADP must be
  re-energized

21
(No Transcript)
22
What is Life?
23
Definition of Life (many possibilities)

• Metabolism (chemical activity)
• Growth/development
• Energy utilization
• Local entropy reduction
• Preservation of information/identity
• Procreation
• Mutation
• Spatial boundaries
• Functional in abiotic environments

24
Cells

• Cells are alive, satisfy all definitions of life
• All normal life forms are cellular
• Most terrestrial life is unicellular
• Cells are enclosed by a membrane
• Within cells the processes of molecular biology
  occur in an aqueous solution
• Cells organize/utilize a large number of
  biomolecules their interactions -gt life

25
Two fundamental classes of cells

• Prokaryotes no nucleus relatively little
  internal structure
• Eukaryotes nucleus containing cells DNA,
  defined by an inner membrane, complex internal
  structures
• Quite different in many ways
• Major clue to the evolution of life on Earth

26
Properties of prokaryotes

• No nuclear membrane
• Single circular strand of DNA
• mRNA generated from start to stop codons
• No internal organelles little structure
• Relatively small (0.1-10?m diameters)
• Ancient,oldest life forms (3.9 Gyr ago ?)
• Two evolutionary branches (split 3.5 Gyr ?)

27
Archaea

• Third kingdom
• Archaea differ more from bacteria than we do from
  bacteria
• Structurally like bacteria however, archaea have
  metabolic pathways similar to eukaryctes
• Use a wide variety of energy sources including
  ammonia, metal ions, free hydrogen
• Many extremophiles are archaea
• No pathogens or parasites!
• Methanogens in our guts

http//www.ucmp.berkeley.edu/archaea/archaea.html
28
Two typical prokaryotes
29
Properties of eukaryotes

• DNA segregated into nucleus by membrane
• Multiple linear stands of DNA
• An intermediary mRNA is edited into exon and
  intron segments -gt final mRNA
• Complex internal structure/many organelles
• Relatively large (10-100?m diameters)
• Relatively recent (appeared 2-3 Gyr ago)
• Unicellular and all multi-cellular life forms

30
Exon/intron editing during transcription
31
Typical eukaryote internal structures
32
Major eukaryote organelles

• Nucleus
• Cytoskeleton
• Flagellum
• Lysosome
• Mitochondrium
• Peroxysome
• Endoplasmic reticulum
• Golgi apparatus
• Plastids

• DNA, DNA-gtmRNA
• Internal transport/support
• Movement
• Digestion/waste removal
• Foodoxygen -gt ATP
• Fat metabolism
• Protein lipid synthesis
• Protein lipid storage
• photosynthesis

33
Origin of biochemistry

• First produce the macromolecule building blocks
• Happened very fast, 4 Gyr ago (Earth just cooled)
• Possible locations/environment
• Shallow tidal pools or lagoons (Darwin)
• Deep sea hydrothermal vents
• On wet clay surfaces
• Deep underground?
• Proteins or nucleic acids first?? (chicken egg
  issue)
• RNA biology first (no DNA or proteins)? RNA world?

34
Oparin-Haldane HypothesisUrey-Miller Experiment
(1953)

• water (H2O)
• methane (CH4)
• ammonia (NH3)
• hydrogen (H2)
• no oxygen
• sparks
• YIELDS
• amino acids! (gt2 of C in one week)

35
Urey-Miller experiment issues subsequent
developments

• Seminal influence on origin of life studies
• Many variations on details work also
• All DNA/RNA bases later produced in (HCN)
  experiments
• No progress in assembling building blocks into
  useful macromolecules by similar techniques
• Now believed that Earths primordial atmosphere
  was CO2 dominated had little CH4 which very
  much reduces the amino acid yields
• U-M conditions resemble oceanic hydrothermal
  vents
• Clay surfaces may facilitate macromolecule
  assembly

36
Origin of cellular life

• Also very very fast (3.7 - 3.9 Gyr)
• Requires formation of enclosing lipid membranes
• Simple protein membranes have been formed
  spontaneously in lab experiments
• Membranes need to effectively isolate important
  macromolecules their reactions but not seal off
  environment completely (complex function)
• Speculative possibility of noncellular ancestors??

37
Prokaryote microfossil dated at 3.7 Gyr
38
Mitochondria and Lysosomes
Mitochondria have their own internal DNA (loop)
and reproduce separately from the cell!
Note internal complexity of these organelles,
likely endosymbionts.
39
General Characteristics of the Molecular Biology
of Terrestrial Life

• Extraordinarily complex inter-connected
  chemical processes, vastly richer than any other
  known chemical systems
• Basic biochemistry shared by all known
  terrestrial organisms as well as many of its
  details
• Carbon based and water dependent
• Hierarchically structured (using much simpler
  subcomponents), polymerized macromolecules
• Few (4) general classes of compounds but many
  individual ones with highly specialized and
  specific biological functions

40
Implications for Extraterrestrial Life

• Requires no exotic conditions or constituents
• Appears to have happened only once on Earth
• Intricate complexity -gt origin problem
• No obvious route of gradual development
• Jump in complexity wrt other natural chemistry
• Absence of theoretical or empirical alternative
  biochemistries -gt one type of life only??
• Physical mechanism for evolutionary adaptation
  and development once started

41
Evolution of cellular life

• Last Common Ancestor prokaryote, anaerobic
  heterotrophe, maybe 250 genes, resembling
  present day mycoplasmas (lt500 genes)
• Even simpler RNA-only cells a possibility?
• Split into Archaea and Bacteria classes (3.5 Gyr
  ?)
• Anaerobic autotrophs/chemoautrophs next
• Photoautotrophs, cyanobacteria (2.7 - 2.5 Gyr)
• O2 respiration by 2.2 Gyr (high octane biology!)
• Eukaryotes w 6000 genes, evolved via
  endosymbiont colonization? (3 - 2 Gyr)
• Multicellular life consisting of eukaryotes (1
  Gyr)

42
Implications for extraterrestrial life

• Multiple hurdles
• Biochemistry (proteins nucleic acids)
• Cells
• Autotrophism (chemo/photo-synthesis, food)
• Internal organelles
• Oxygen respiration
• Multicellular cooperation
• Appearance time is often interpreted to imply
  probability/improbability of each development

43
Convergence or Divergence of Cosmic and
Biological Evolution? (How similar to here?)

• Large/coarse scales -gt convergence
• But on some small/fine scales -gt divergence
• Divergence might begin on the scale of planetary
  systems since known extrasolar systems are unlike
  the Solar System
• However it might not occur until far finer levels
  of detail lt- assumption!

44
(No Transcript)
