Pulsed Measurement of PMD in Field-Installed Optical Fibers

1

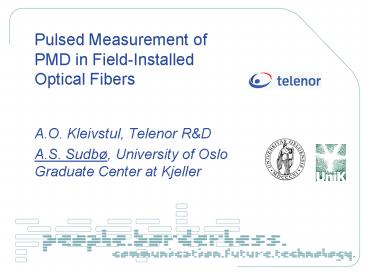

Pulsed Measurement of PMD in Field-Installed
Optical Fibers

• A.O. Kleivstul, Telenor RD
• A.S. Sudbø, University of Oslo Graduate Center at
  Kjeller

2
PMD Measurements in the FieldOutline of Talk

• Fixed Analyzer (FA) Method
• One-way and two-way measurements
• FA Method with OTDR. Many fibers
• Field measurement results
• Comparison One- and two-way
• Conclusion

3
FA Method, One-way
Fiber
TunableLaser
PowerMeter
4
FA Method, Two-Way
Fiber
PowerMeter
TunableLaser
5
FA Method Polarization Analyzed Spectral
Response (PASR) of Fiber
6
Measurement Uncertainty(Ideal Random Coupling)
frequency interval

• tPMD Mean (DtDGD)
• Var (DtDGD) 0.129 tPMD/Dn

• 0.25
  Ne2W /Dn
• Var (DtFA2W) 0.19 tPMD/Dn

7
Tuneable OTDR Measures Several Fibers
8
OTDR Measurement Results
9
OTDR Measurement Results
10
Pulsed FA methodPASR obtained from pulse height
11
Measuremant Setup (One-way)
Fibers
Modulator
Pol.
Return fiber
c
OTDR
Computer
12
Measurement Setup (Two-Way)
Fibers
Modulator
Pol.
c
OTDR
Computer
13
Measurement Setup (Two-Way)
Fibers
Modulator
c
OTDR
Computer
14
OTDR measurements with polarizer
15
Tuneable OTDR methodPASR obtained from pulse
height
16
(No Transcript)
17
Conclusions

• Tuneable OTDR with polarizer well suited for
  surveying PMD on installed fiber cables
• Many fibers may be connected to one OTDR and
  measured in parallell
• One-way method Better signal-to-noise ratio,
  shorter measurement time
• Two-way method No need to travel to far end (?)
