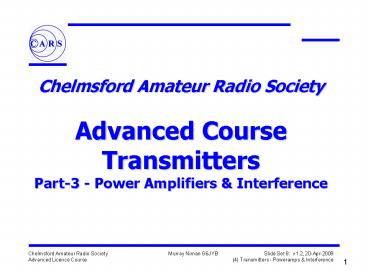

Title: Chelmsford Amateur Radio Society Advanced Course Transmitters Part-3 - Power Amplifiers


1
Chelmsford Amateur Radio Society Advanced
CourseTransmittersPart-3 - Power Amplifiers
Interference
2
Amplifier Class Bias
  • Class-A, B, AB and C are defined by the bias and
    operating region of the transistor

3
Amplifier Classes
  • Class-ABiased well on for high fidelity but also
    results in low efficiency and high heat
    dissipation on poweramps
  • Class-BGives only only half the waveform, so
    usually used in Push-Pull configurations. Fairly
    efficient, but can get crossover distortion
  • Class-ABA variation of Class-B with but biased
    on each transistor to conduct for slightly more
    than half cycle for better fidelity
  • Class-CNonlinear but efficient - high distortion
    needs filtering - Used for FM and in GSM mobile
    phones
  • Other Classes exist but are out of scope D, E,
    F, G, H, S etc

4
Transmitter Amplifiers
  • Modulation schemes which carry information in
    their amplitude require good linearity in all
    stages, or else distortion will occur
  • AM SSB require linear amplification eg Class-A
  • An FM-only transmitter does not need to be
    linear, so a Class-C amplifier can be used which
    is more efficient
  • CW is only on or off, so Class-C is also fine for
    this.
  • Data Modulation Frequency or Phase-shift keyed
    schemes are like FM and could use Class-C. If
    Amplitude changes then a linear amplifier is
    needed
  • Non-linear amps need filtering to avoid harmonics
    or bandwidth spread

5
Poweramp Circuits
  • Modulation schemes which carry information in
    their amplitude require good linearity in all
    stages, or else distortion will occur
  • AM amps need filtering to avoid harmonics or
    bandwidth spread

6
Automatic Level Control
  • Splatter, distortion and damage can occur if a
    Poweramp is overdriven
  • Heat dissipation and output power varies with
    nature of drive and modulation. For example, a
    long SSTV transmission has a higher duty cycle
    than SSB - check if rating is for continuous
    operation
  • Power Limits in Licence are PEP so may need to
    back-off transmissions on SSB unless speech
    processors are used to average out voice peaks
  • Automatic Level Control, ALC, can display the
    need to reduce the drive level, or do so
    automatically.
  • External PAs can link ALC back to the
    transceiver. ALC is easier to integrate on
    internal Poweramps
  • Excess SWR detection is often also built in as a
    protection measure

7
Valve Poweramps
  • Older amplifiers and some very high power
    amplifiers still use Valves
  • Valve Operation is similar to a FET, except heat
    causes electrons to be initially emitted -
    Thermionic Emission
  • In a Triode DrainAnode, GridGate, SourceCathode

8
Valve Poweramp Benefits
  • Advances in technology are encroaching on Valves,
    although they continue to be developed for
    specialist purposes
  • Advantages
  • Readily handle high powers at higher frequencies
    - VHF, UHF upwards
  • Robust in the face of mismatches compared to
    transistors
  • Disadvantages
  • Need high voltages in amplifier and PSU - SAFETY
    ISSUE
  • Physically fragile and prone to vibration
    (including from cooling fans)
  • Deteriorate with age

9
Transmitter Interference
  • Interference can be in band, adjacent channel or
    out of band
  • In band/Adjacent can come from key clicks, drift
    chirp
  • Spurii from synthesisers, mixers, and multipliers
    can also be causes
  • Harmonics and Intermods etc can cause
    interference on other bands

10
Modulation Terms
  • FM Deviation refers to the max shift away from
    the nominal carrier
  • Narrow vs Wideband FM. The FM section 2m band has
    been re-channelised to 12.5kHz spacing compared
    to 25kHz on most of 70cms
  • Peak Deviation is 2.5kHz for 12.5kHz channel
    spacing and 4.8-5kHz for a 25kHz spacing.
  • Wide deviation on narrowband receivers will
    interfere in adjacent channels. It will also get
    clipped by IF filters/discriminators and result
    in choppy received audio

11
Synthesiser Spurii
  • Phase comparator time constant and frequency has
    a degree of uncertainty which manifests itself as
    phase noise
  • Situation is not helped if small frequency step
    resolution, but rapid tuning are both desired
  • Synthesisers must detect out of lock and
    inhibit transmission
  • Modern synthesisers use dual loops to get small
    step sizes
  • DDS steps would also show up as sidebands/jitter
    unless filtered out

12
CW Modulation
  • Morse, also called CW, is the simplest form of
    digital mode.
  • Fast Edges can give key clicks or cause
    overshoot/ringing in the Poweramp

13
CW Key Click Filter
  • Block diagram of CW transmitter
  • Modified Keying stage switches RF
  • Slower rise and fall time of RF envelope will
    avoid excess bandwidth

RF oscillator
