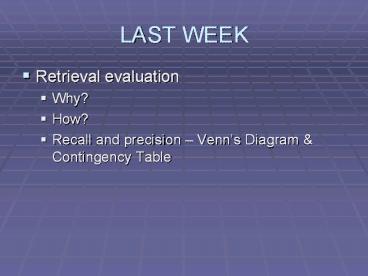

LAST WEEK

1
LAST WEEK

• Retrieval evaluation
• Why?
• How?
• Recall and precision Venns Diagram
  Contingency Table

2
WMES3103INFORMATION RETRIEVAL

• WEEK 5
• QUERY LANGUAGES
• AND OPERATION

3
QUERY LANGUAGES

• Will cover the different kinds of queries sent to
  text retrieval systems.
• Will show the different types of query that a
  user can formulate.
• Normally, the main and most popularly used type
  of user query is the keyword-based retrieval.

4

• Different queries are continuously sent to an
  IRS.
• Most query languages use the content (semantics)
  and the structure of the text (text syntax) to
  find the relevant documents.
• At times, the IRS may fail to trace and retrieve
  the relevant documents.
• Therefore, we need to use a number of techniques
  which will hopefully enhance the query and this
  will enable us to retrieve an acceptable level of
  relevant documents.

5
QUERY LANGUAGES

• eg. use of thesaurus, synonyms, stemming,
  stopwords, etc
• A keyword is a word that can be retrieved by an
  IRS.
• The retrieval unit is the basic element which can
  be retrieved by the system as an answer to a
  query also known as documents
• A retrieval unit can be a file, document, Web
  page, paragraph, or some other structural unit
  which contains the answer to the query.

6
Example Keyword

• Keyword used is artificial intelligence

7
Example Retrieval unit

• website

8
Example Retrieval unit

• document

9
TYPES OF QUERY LANGUAGES

• Keyword-based querying
• Single-word
• Context
• Boolean
• Natural language
• Pattern matching
• Structural queries
• Form-like fixed
• Hypertext
• Hierarchical

10
KEYWORD-BASED QUERYING

• Query formulation of a user information need.
• Query a keyword or a number of keywords a
  basic query
• Documents containing such keywords are searched
  for in the IRS.
• Keyword-based queries are popular because
• Intuitive
• Easy to express
• Allows for fast ranking.

11
Single-word query

• Simplest form of query that can be formulated in
  an IRS.
• Text document long sequences of words.
• The IRS will look at the text and search for the
  word.
• Result of a word query a set of documents
  containing at least one of the words of the
  query.
• Set of documents will be ranked according to the
  degree of similarity to the query.

12
(No Transcript)
13
(No Transcript)
14
(No Transcript)
15
Single-word query

• Ranking done via word occurences inside the text
• Most popularly used term frequency counts the
  number of times a word appears inside a document

16
Context query

• Singleword queries are complemented with the
  ability to search for words in a given context
  near other words.
• Words which appear near other words may indicate
  a higher possibility of relevance than if they
  appear apart.
• 2 type of queries
• phrase
• proximity

17

• Phrase sequence of single-word queries.
• Proximity more relaxed version of the phrase
  query.
• Phrase is given together with a maximum allowed
  distance between them.
• Distance measured in characters or words
  depending on the system

18
Example ABI-INFORM (CD)

• PRE/n first keyword precede second keyword by
  up to n words.
• European pre/1 community the word European must
  precede the word community by up to 1 word
  European economic community, European flavoured
  community

• W/n first keyword must be within n words of the
  second keyword.
• computer w/1 data the word computer must be
  within 1 word of the word data computer
  generated data, computer simulated data, data
  mining computer

19
Example COMPENDEX

• Desired proximity of keywords specified with full
  stops between keywords
• back..basics back to basics, back to the
  basics
• Keywords must appear in the same sentence type
  in the keywords separated by an underscore
• computer_medicine

• Search for a phrase type in each keyword
  separated by a space will search for the phrase
  with the 2 keywords next to each other and in the
  specified order
• artificial intelligence

20
Boolean query

• Oldest form of keyword query use of Boolean
  operators
• Typical Boolean query words operators.
• Given 2 basic keyword queries A and B
• A or B - selects all documents with the word A or
  B.
• A and B selects all documents with A and B
• A not B selects all documents with the word A
  but without the word B.
• Represented by Venns Diagram

21
Boolean operator AND
22
Boolean operator OR
23
Boolean operator NOT
24
Natural Language

• User determines the keywords that should be
  eliminated and are not useful for searching.
• Ranking for documents with these keywords would
  be very low.

25
TARGET - Dialog

• ? target
• Input search terms separated by spaces ( e.g. DOG
  CAT FOOD). You can enhance your TARGET search
  with the following options
•
• -          PHRASES are enclosed in single quotes
  (e.g. DOG FOOD)
• -          SYNONYMS are enclosed in parentheses
  (e.g. (DOG CANINE))
• -          SPELLING variations are indicated with
  a ? (e.g. DOG? To search for DOG, DOGS)
• -          Terms that MUST be present are flagged
  with an asterisk (e.g. DOG FOOD)
•
• Q QUIT H HELP
•
• ? komodo dragon food diet nutrition
• Your TARGET search request will retrieve up to 50
  of the statistically relevant records.
• Searching 1997 1998 records only
• Processing Complete
•
• Your search retrieved 50 records
• Press ENTER to browse results C Customize
  display Q Quit H Help

26
Pattern Matching

• More specific query formulation
• Retrieve pieces of text that have some property.
• Used in the retrieval of text statistics, data
  extraction, etc.
• A pattern is a set of syntactic features that
  must occur in a text segment.
• Segments that fulfils the pattern specifications
  pattern match

27
Pattern Matching

• Interested in documents containing segments which
  match the given search pattern.
• Each IRS will allow some degree of search
  pattern.
• Very simple or very complex.
• The more powerful the set of patterns allowed,
  the more involved are the queries that can be
  formulated by the user, and the more complex is
  the implementation of the search.

28
Pattern Matching

• Words a word in the text, most basic pattern.
• Prefixes the beginning of a text word eg.
  prefix comput will retrieve all documents
  containing the words such as computers,
  computing, computation, computational, etc.
• Suffixes - the termination of a text word eg.
  prefix ters will retrieve all documents
  containing the words such as monsters, posters,
  potters, painters, etc.

29
Pattern Matching

• Substrings can appear within a text word eg.
  tal will retrieve all documents containing the
  words such as coastal, talk, metallic, pedestal,
  etc.
• Ranges A pair of strings which matches any word
  lying between them in lexicographical order eg.
  range between words held and hold will retrieve
  strings such as hoax, hissing, helm, help, etc.

30
Pattern Matching

• Allowing errors A word together with an error
  threshold
• will retrieve all text words which are similar to
  the given word.
• errors are caused by typing, spelling, etc.
• most accepted model is the Levenshtein distance
  or edit distance.

31
Pattern Matching

• Example Edit distance between COLOR and COLOUR
  is 1, SURVEY and SURGERY is 2. Therefore, in the
  query, we must specify the maximum number of
  allowed errors for a word to match the pattern.

32
Structural Queries

• Based on structure of the text
• 3 structures fixed, hypertext, hierarchical
• The user will query the text based on the
  structure.
• Query language nowadays integrates both contents
  and structural queries.

33

• Example UM Library OPAC records
• Example of query fi au ali and subject malaysia


34
(No Transcript)
35
(No Transcript)
36
Query Protocols

• Protocol a strict set of rules that govern the
  exchange of information between computer devices
• Query languages used automatically by software
  applications to query text databases.
• Some are standards for querying CD-ROMs or as
  intermediate languages to query library systems.
• Not intended for human use refer as protocols
  and not languages.

37
Query Protocols

• Z39.50 query bibliographical information using a
  standard interface between the client and the
  host database manager which is independent of the
  client user interface and of the query database
  language at the host. Originally used for
  bibliographical information based on MARC format.
• WAIS Wide Area Information Service popular
  before Web network publishing protocol and can
  query databases through the Internet.

38
www.ukoln.ac.uk/dlis/z3950/
39
(No Transcript)
40
Protocols for CD-ROM

• Allows for flexibility in data communication
  between primary information providers and end
  users.
• Significant cost savings - allows access to a
  variety of information without the need to buy,
  install, and train users for different data
  retrieval applications.
• 3 protocols has been recommended
• CCL (Common Comand Language)
• CD-RDx (Compact Disk Read only Data exchange)
• SFQL (Structured Full-text Query Language)

41
QUERY OPERATIONS

• Users - difficult to formulate queries which are
  well-designed for retrieval purposes because they
  do not know the collection make-up and the
  retrieval environment.
• Web search engines users spend a lot of time
  reformulating their queries to get effective
  retrieval.
• First query formulation retrieve documents and
  examine for relevance - construct new improved
  query formulations - retrieve documents and
  examine for relevance - process is repeated until
  the user is satisfied.

42
QUERY OPERATIONS

• 2 processes involved
• expanding the original query with new terms
• reweighting the terms in the expanded query.
• 2 ways of improving initial query formulation
• approaches based on feedback information from the
  user
• approaches based on information derived from the
  set of documents initially retrieved (called the
  local set of documents)

43
User Relevance Feedback

• Most popular query formulation strategy.
• User is presented with a list of retrieved
  documents, examines them, and marks those which
  are relevant.
• Only the top 10 or 20 ranked documents need to be
  examined.
• Separates into relevant and non-relevant.
• Select important terms attached to the retrieved
  and relevant documents only, and enhance
  importance of terms in new query formulation.

44
User Relevance Feedback

• Expect new query will move towards the relevant
  documents and away from the non-relevant ones.
• Advantages
• Protects the user from the details of the query
  reformulation process because all the user has to
  do is reuse the terms
• Breaks down the entire search process into a
  sequence of small steps which are easier to
  grasp.
• Provides a control process designed to emphasis
  some terms and deemphasis others.

45
Automatic Local Analysis

• Documents retrieved for a given query are
  examined immediately to determine terms for query
  expansion.
• Similar to relevance feedback cycle but done
  without the assistance of the user automatic.
• Local feedback strategies are based on expanding
  the query with terms correlated to the query
  terms local clusters built from local documents
  set.
