Introducing Physics to Ogre

1

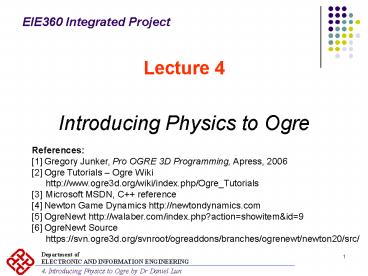

EIE360 Integrated Project

• Lecture 4
• Introducing Physics to Ogre

References 1 Gregory Junker, Pro OGRE 3D
Programming, Apress, 2006 2 Ogre Tutorials
Ogre Wiki http//www.ogre3d.org/wiki/index.php/Ogr
e_Tutorials 3 Microsoft MSDN, C reference 4
Newton Game Dynamics http//newtondynamics.com 5
OgreNewt http//walaber.com/index.php?actionshow
itemid9 6 OgreNewt Source https//svn.ogre3d.o
rg/svnroot/ogreaddons/branches/ogrenewt/newton20/s
rc/
1
2
Architecture of the Interactive Virtual Aquarium
System
Computer A
USB port
Your program
Kinect Sensor Device
Network
Computer B
3D Graphics System
Your program
3D Graphics
2
3
Game Physics

• Computer animation physics or game physics
  involves the introduction of the laws of physics
  into a simulation or game engine
• With game physics, we will see game objects react
  to stimulation similar to real objects in real
  world
• Become more and more important in computer game
  development since it provides the realism to the
  game
• To facilitate the implementation of game physics,
  physics engines have been developed
• Professional ones Havok very expensive
• Free engines ODE, Tokamak, PhysX, and Newton
  Game Dynamics

3
4
Newton Game Dynamics

• Newton Game Dynamics is a physics engine for
  realistically simulating rigid bodies in games
• In contrast to most other real-time physics
  engines it goes for accuracy over speed
• Its solver is deterministic and not based on
  traditional iterative methods
• Advantages it can handle higher mass ratios (up
  to 4001) and the simulation is very robust and
  easy to tune
• Disadvantage a bit slower than engines with an
  iterative solver
• However the new Newton 2.0 has greatly improved
  the simulation speed
• To use Newton, a SDK should be downloaded from
  4 and installed in the computer

5
OgreNewt Library

• OgreNewt is a library that wraps the Newton Game
  Dynamics physics SDK into an object-oriented set
  of classes that facilitate integration with the
  OGRE 3D engine
• OgreNewt library is pretty much a 11 conversion
  of the Newton functions into a class-based
  environment
• OgreNewt is available as a part of "ogreaddons"
  in the Ogre CVS. It is also available from 5
• Different from Ogre, there is not a
  well-documented API reference for OgreNewt
• Can check the usage of APIs from their source 6

5
6
Newton Basic Elements
Basic Elements
World
Collisions
Joints
Rigid Bodies
Materials
Others
Primities
TreeCollisions
MaterialID
Convex Hulls
MaterialPair
6
7
Newton Basic Elements World

• WORLD (OgreNewtWorld)
• This is the "space" in which all objects exist
• In most applications, we only need 1 World
  object, inside which all other objects are placed
• However the system allows for multiple worlds to
  co-exist

OgreNewtWorld mWorld new OgreNewtWorld()
mWorld-gtsetWorldSize( , ) //specify a
box with 2 3-dimensional points //as the min
and max
7
8
Newton Basic Elements World framelistener

• The Newton world has its own framelistener to
  update all the objects in each time step. Need to
  be created and add to Ogre
• A framelistener receives notification before and
  after a frame is rendered to the screen

OgreFrameListener mNewtonListener new
OgreNewtBasicFrameListener(mWindow,
mWorld) mRoot-gtaddFrameListener(mNewtonListener)
//One more framelistener is added
9
Newton Basic Elements Rigid Body

• RIGID BODY (OgreNewtBody)
• This is the basic object in the physics world
• It represents a solid (rigid) body, which can
  interact with other bodies in the scene
• Bodies can have mass, size, and shape. Basically
  everything we want to be affected by physics
  calculations needs a Body
• However, to create a Body, we need to first
  define its collision primitive

9
10
Newton Basic Elements Rigid Body Example
Body for the barrel
Body for the floor
Body for the fish
11
Newton Basic ElementsCollision

• COLLISION (OgreNewtCollision)
• Visible shape of an object is defined by its mesh
  model
• Rigid Bodies require a Collision object to define
  their shape for physics calculation E.g. to
  calculate the reaction after colliding with
  another object
• Not necessarily equal to the visible shape,
  actually often much simple
• One of the purposes is to reduce the computation
  complexity since visible shape can be very
  complex
• Newton provides several different kinds of
  collision objects. They include Primitive shapes,
  Convex Hulls and Tree Collisions

11
12
Newton Basic ElementsCollision - TreeCollisions

• TREE COLLISIONS
• TreeCollision objects are just polygon collision
  objects
• For any object made up by polygons, we can create
  a TreeCollision object from it
• However, TreeCollision objects CANNOT be used for
  active rigid bodies (e.g. movable bodies)
• All Bodies created from a TreeCollision will
  automatically have infinite mass, and therefore
  be completely immobile
• Best used for "background" objects that will not
  move
• For moving objects, use convex hulls or
  primitives.

12
13
Newton Basic ElementsCollision - TreeCollisions

• Assume the entity of the ground groundEnt has
  been created

An id for the object
OgreNewtCollisionPtr col( new
OgreNewtCollisionPrimitivesTreeCollision (
mWorld, groundNode, false, 1 )) // Create the
TreeCollision object OgreNewtBody ground_body
new OgreNewtBody( mWorld, col ) // Create
the rigid body
mean we dont want newton to try to optimize the
object for us

• In the example, we would like to create a
  TreeCollision object for the ground, since it
  will not move

13
14
Newton Basic ElementsCollision Convex Hulls

• Convex Hulls
• Convex hulls are a more general primitive type
• They take a series of points in space, and create
  the smallest possible convex shape based on all
  of those points
• In most cases, we would use the vertices that
  makeup a model for the points
• This results in a primitive shape that looks
  something like our 3D model wrapped up in
  wrapping paper

14
15
Newton Basic ElementsCollision Convex Hulls

• In the example, the collision objects for the
  barrel and the fish are of the primitive type
  convex hulls

16
Newton Basic ElementsCollision Convex Hulls

• Assume the entity for the Barrel has been created
  and pointed by barrelEnt

An id for the object
OgreNewtConvexCollisionPtr col_convex(
new OgreNewtCollisionPrimitivesConvexHull (m
World, barrelEnt, 2)) // Create the convex hull
object OgreNewtBody barrel_body new
OgreNewtBody( mWorld, col_convex ) //
Create the Body
16
17
How the Body is connected to the 3D World?

• Newton will automatically update the position and
  rotation of object bodies based on physics laws
• Newton has a callback system built in, which
  automatically calls only the callback for bodies
  that are moving, bodies that have not moved since
  the last update are properly ignored
• To enable the above, we only need to attach the
  body to the scene node and set the initial
  position and orientation

ground_body-gtattachToNode( groundNode
) ground_body-gtsetPositionOrientation( )
17
18
Mass, MOI, and Force

• If we want objects to move following physics
  laws, a few parameters of the objects should be
  defined
• Mass the mass of the object
• MOI moment of inertia
• Force the force applied to the object
• Mass is simple, we can use any units that see
  fit, although usually Kilograms is used
• Inertia might not be so intuitive, as it's a
  value that represents an objects resistance to
  rotation around a specific axis, many factors can
  affect this value
• An object having mass and inertia defined still
  cannot move since it needs a force to trigger the
  motion

18
19
Mass and MOI

• OgreNewt provides standard functions to define
  the mass and inertia of objects

OgreReal mass 1.0 OgreVector3 inertia
OgreNewt MomentOfInertiaCalcSphereSolid(mass,
10) //Compute the MOI of a sphere of size
10 //Check OgreNewt reference for other
shapes //such as cylinder, box,
etc. bod-gtsetMassMatrix( mass, inertia )
//Assume bod is the Body we want to define
19
20
Mass and MOI (cont)

• For convex hulls, OgreNewt also provides a more
  general function calculateInertiaMatrix()
• It calculates the MOI for a collision primitive,
  as well as the computed center of mass
• Two Vector3 objects should be passed into the
  function and they will be populated with the info
• It is only for boxes, ellipsoids and convex hulls
  but NOT work on TreeCollisions.

OgreVector3 inertia, centre_of_mass col_convex-
gtcalculateInertialMatrix(inertia,
centre_of_mass) //Assume the collision
object is col_convex
20
21
Force

• In Newton world, object cannot be translated by
  moving its scene node, since it does not follow
  physics
• Need to apply a force to the object to make it
  move
• The most common type of force is the gravity
• OgreNewt provides a standard function
  setStandardCallback() to apply a constant
  gravitational (-Y) force of 9.8units/sec2 to
  bodies

barrel_body-gt setStandardForceCallback() //So
the barrel will fall //onto the floor
Gravity force
21
22
Force (cont)

• For custom force, one needs to add a special
  callback function to apply to a body

EIE360ProjectcreateScene() mFish_body-gtsetCu
stomForceAndTorqueCallback
ltEIE360ProjectAppgt(EIE360ProjectApp
customSwimCallback, this) // register the
callback function EIE360ProjectcustomSwimCallb
ack(OgreNewtBody body, float timestep, int
threadIndex) //This callback function will be
called when newton // wants to apply force to the
body body-gtaddForce() body-gtsetForce()
22
Time since last call
Id of the thread calling this function
23
Example Fish Swimming
EIE360Project customSwimCallback(OgreNewtBody
body, float timestep, int threadIndex)
OgreReal mass OgreVector3 inertia
body-gtgetMassMatrix(mass, inertia)
OgreVector3 velocity (mFishLastPosition -
pos)/ timeStep OgreVector3 accel (velocity
body-gtgetVelocity()) / timeStep
OgreVector3 force mass accel
body-gtaddForce(force)
Current pos
Pos it wants to go
F MA!!!
Velocity needed to go the target pos
Current velocity
23
23
24
Example Changing Orientation
OgreVector3 direction
mFishLastPosition - newPos direction.normalise()
OgreVector3 pos mFish_body-gtgetPosition() m
Fish_body-gtsetPositionOrientation(pos,
OgreVector3UNIT_X.getRotationTo(direction))
The default orientation of the fish model
Return the orientation of the fish that heads to
the required direction
24
24
25
Collision Detection

• Collision detection is one of the most important
  operations to enable interactions between objects
  in the game world
• By collision detection, it refers to the
  automatic detection and subsequent actions when
  two game objects are collided
• An automatic approach is essential since there
  can be numerous objects collide with each other
  at a particular time. It will be extremely time
  consuming if programmers need to manually do this
  in their programs
• A standard procedure for collision detection can
  be found in Ogre
• Newton (and OgreNewt) provides an even simpler
  approach by using materialID and materialPair

25
26
Newton Basic ElementsMaterial

• MATERIAL (OgreNewtMaterialID
  OgreNewtMaterialPair)
• Materials are how Newton lets one adjust the
  interaction between bodies when they collide
• This can be as simple as adjusting the friction,
  or much more complex
• The material system is pretty simple
• First create "MaterialID" objects to represent
  each material that might be required in the
  system
• Then build what is called a "MaterialPair". A
  material pair is a description of what happens
  when 2 materials collide with each other

26
27
OgreNewts Collision Detection System

• When the screen is updated with a new frame,
  OgreNewt will also update the position and
  orientation of each body by calling
  OgreNewtWorldupdate()
• At the same time, OgreNewt also checks if two
  bodies are collided
• The collision detection procedure starts with the
  overlapping of the AABB of two bodies

• AABB stands for Axis Aligned Bounding Box
• All meshes have a "bounding box" (a cube in which
  the entire mesh fits in)

28
OgreNewts Collision Detection System (cont)
A simplified flow diagram (assume bodies only
contact once and all functions return 1)
Update()
Move all bodies
AABB overlap?
Y
onAABBOverlap()
N
Bodies actually contact?
Y
contactsProcess()
N
End
29
OgreNewts Collision Detection System (cont)

• onAABBOverlap()
• Called if the AABB of the 2 bodies in question
  overlap
• If it returns 0, OgreNewt will not perform
  further action even if it is really a collision.
  Return 1 otherwise.
• contactsProcess()
• Called if the 2 bodies in question really collide
• Inside this function you can get lots of
  information about the contact (contact normal,
  speed of collision along the normal, tangent
  vectors, etc), or even modify some collision
  parameters

30
A Simple Example

• Assume we want to detect if a fish collides with
  the barrel in the game world. If yes, some
  bubbles are generated around the barrel

31
Step 1

• Create a materialID for the fish and the barrel.
  Then group them into a materialPair and connect
  them to their body. In createScene(), add the
  following codes

OgreNewtMaterialID fish_material_id new
OgreNewtMaterialID(mWorld) OgreNewtMaterialI
D barrel_material_id new
OgreNewtMaterialID(mWorld) //Group them into
a pair OgreNewtMaterialPair pair new
OgreNewt MaterialPair(mWorld,
fish_material_id, barrel_material_id
) mFish_body-gtsetMaterialGroupID(fish_material_id
) barrel_body-gtsetMaterialGroupID(barrel_material
_id)
32
Relationship between classes
EIE360Project
FishBarrelContactCallback
new FishBarrelContactCallback(this) pair-gt
setContactCallback (fishBarrelCallback) start
Bubbles() ...
mProject this
contactsProcess() mProject-gt startBubbles()
Call if there is contact between fish and barrel
33
Step 2

• Tell OgreNewt where the callback functions of
  this materialPair can be found
• In this example, the callback functions are
  implemented in a class called FishBarrelContactCal
  lback
• In createScene(), add the following statements

FishBarrelContactCallback fishBarrelCallback
new FishBarrelContactCallback(this) //Instantia
te an object of that class pair-gtsetContactCallbac
k(fishBarrelCallback) //Tell the system the
callback functions of //the materialPair pair
can be found in that //object
34
Step 3

• Design the class FishBarrelContactCallback

FishBarrelContactCallbackFishBarrelContactCallba
ck (EIE360Project project) mProject
project //mProject is a member variable of the
class FishBarrelContactCallback FishBarrelCo
ntactCallback(void) void FishBarrelContactCall
backcontactsProcess(
OgreNewtContactJoint contactJoint,
OgreReal timeStep, int threadIndex ) //Codes
for collision detection // you can use the
ContactJoint to iterate through //contact-points

35
Step 4

• Implement contactsProcess()

void FishBarrelContactCallbackconstactsProcess(
OgreNewtContactJoint contactJoint,
OgreReal timeStep, int threadIndex) mProje
ct-gtstartBubbles()
The function startBubbles() should have been
implemented In EIE360Project() that will
generate bubbles around the barrel
