Tracking the Baseball with the TrackMan Doppler Radar

1

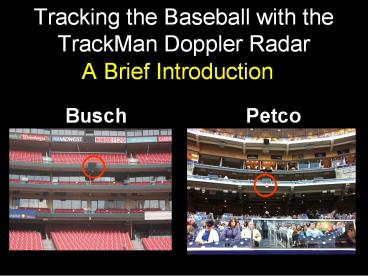

Tracking the Baseball with the TrackMan Doppler
Radar

• A Brief Introduction

Petco
Busch
2
The Doppler Technique

• Doppler Frequency Shift

fD Doppler Shift FTX - FRX ? 2FTX(VR/c)
VR dr/dt rate of change of distance of ball
from TM
3
Frequency/Velocity vs. Time
Doppler shift
Radial velocity
Time ?
4
Slightly More Detail

• Want to determine location of baseball as
  function of time
• TM determines r,?,?
• r distance from TM
• ?,?orientation angles wrt TM

5
Summary of TM Technique r,?,?

• Determining r(t)
• Doppler shift determines dr/dt
• Two-frequency phase shift determines r(0)

6
Determining r(0)

• Transmit two wavelengths ?1 and ?2
• Initially in phase
• After reflection and detection, out of phase by
  2r(1/ ?1 - 1/ ?2)
• Measuring phase shift at t0 determines r(0)

7
Summary of TM Technique r,?,?

• Determining r(t)
• Doppler shift determines dr/dt
• Two-frequency phase shift determines r(0)
• Determining ?(t),?(t)
• Phase shift between pairs of detectors

8
Measuring angles

• Phase Shift Between Detectors? Angles

Extra distance Dsin(?) ? phase shift
9
Three Detectors ? ?,?
10
Summary of Technique
Doppler shift determines dr/dt Two wavelength
phase shift determines r(0) r(0) dr/dt ?
r(t) 3-detector array phase shifts determine
?(t), ?(t) r(t), ?(t), ?(t) gives full 3D
trajectory Need to convert to field coordinates
using location and orientation of TM
11
Measurement Principle Spin
Doppler frequency modulated by rotation frequency
? Sidebands separated by n?
12
TrackMan Capabilities IFull pitched ball
trajectory

• Everything PITCHf/x gives plus.
• Actual release point (extension)
• ? perceived velocity
• Total spin (including gyro component)
• Many more points on the trajectory
• Utility of more points under study

13
TrackMan Capabilities IIFull batted ball
trajectory

• Batted ball speed, launch spray angles
• Equivalent to HITf/x
• Landing point coordinates at ground level and
  hang time
• Equivalent to Hittracker
• Initial spin
• and more, if you want it
