What if you didn

1

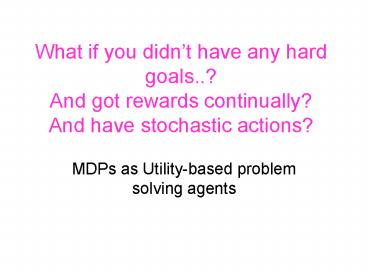

What if you didnt have any hard goals..?And got
rewards continually?And have stochastic actions?

• MDPs as Utility-based problem solving agents

2
Repeat
can generalize to have action costs C(a,s)
If Mij matrix is not known a priori, then we
have a reinforcement learning scenario..
3
Repeat
U is the maximal expected utility (value)
assuming optimal policy
4
Policies change with rewards..
Repeat
-
-
-
-
5
Repeat
(Value)
(sequence of states behavior)
How about deterministic case? U(si) is the
shortest path to the goal ?
6
MDPs and Deterministic Search

• Problem solving agent search corresponds to what
  special case of MDP?
• Actions are deterministic Goal states are all
  equally valued, and are all sink states.
• Is it worth solving the problem using MDPs?
• The construction of optimal policy is an overkill
• The policy, in effect, gives us the optimal path
  from every state to the goal state(s))
• The value function, or its approximations, on the
  other hand are useful. How?
• As heuristics for the problem solving agents
  search
• This shows an interesting connection between
  dynamic programming and state search paradigms
• DP solves many related problems on the way to
  solving the one problem we want
• State search tries to solve just the problem we
  want
• We can use DP to find heuristics to run state
  search..

7
SSPPStochastic Shortest Path Problem An MDP with
Init and Goal states
Not discussed (MDP variation closest to A)

• MDPs dont have a notion of an initial and
  goal state. (Process orientation instead of
  task orientation)
• Goals are sort of modeled by reward functions
• Allows pretty expressive goals (in theory)
• Normal MDP algorithms dont use initial state
  information (since policy is supposed to cover
  the entire search space anyway).
• Could consider envelope extension methods
• Compute a deterministic plan (which gives the
  policy for some of the states Extend the policy
  to other states that are likely to happen during
  execution
• RTDP methods

• SSSP are a special case of MDPs where
• (a) initial state is given
• (b) there are absorbing goal states
• (c) Actions have costs. Goal states have zero
  costs.
• A proper policy for SSSP is a policy which is
  guaranteed to ultimately put the agent in one of
  the absorbing states
• For SSSP, it would be worth finding a partial
  policy that only covers the relevant states
  (states that are reachable from init and goal
  states on any optimal policy)
• Value/Policy Iteration dont consider the notion
  of relevance
• Consider heuristic state search algorithms
• Heuristic can be seen as the estimate of the
  value of a state.

8
Why are they called Markov decision processes?

• Markov property means that state contains all the
  information (to decide the reward or the
  transition)
• Reward of a state Sn is independent of the path
  used to get to Sn
• Effect of doing an action A in state Sn doesnt
  depend on the way we reached state Sn
• (As a consequence of the above) Maximal expected
  utility of a state S doesnt depend on the path
  used to get to S
• Markov properties are assumed (to make life
  simple)
• It is possible to have non-markovian rewards
  (e.g. you will get a reward in state Si only if
  you came to Si through SJ
• E.g. If you picked up a coupon before going to
  the theater, then you will get a reward
• It is possible to convert non-markovian rewards
  into markovian ones, but it leads to a blow-up in
  the state space. In the theater example above,
  add coupon as part of the state (it becomes an
  additional state variableincreasing the state
  space two-fold).
• It is also possible to have non-markovian
  effectsespecially if you have partial
  observability
• E.g. Suppose there are two states of the world
  where the agent can get banana smell

Added based on class discussion
9
What does a solution to an MDP look like?

• The solution should tell the optimal action to do
  in each state (called a Policy)
• Policy is a function from states to actions (
  see finite horizon case below)
• Not a sequence of actions anymore
• Needed because of the non-deterministic actions
• If there are S states and A actions that we
  can do at each state, then there are AS
  policies
• How do we get the best policy?
• Pick the policy that gives the maximal expected
  reward
• For each policy p
• Simulate the policy (take actions suggested by
  the policy) to get behavior traces
• Evaluate the behavior traces
• Take the average value of the behavior traces.
• How long should behavior traces be?
• Each trace is no longer than k (Finite Horizon
  case)
• Policy will be horizon-dependent (optimal action
  depends not just on what state you are in, but
  how far is your horizon)
• Eg Financial portfolio advice for yuppies vs.
  retirees.
• No limit on the size of the trace (Infinite
  horizon case)
• Policy is not horizon dependent
• Qn Is there a simpler way than having to
  evaluate AS policies?
• Yes

We will concentrate on infinite horizon
problems (infinite horizon doesnt
necessarily mean that that all behavior
traces are infinite. They could be finite
and end in a sink state)
10
(No Transcript)
11
(Value)
How about deterministic case? U(si) is the
shortest path to the goal ?
12
.8
.1
.1
13
Bellman equations when actions have costs

• The model discussed in class ignores action costs
  and only thinks of state rewards
• More generally, the reward/cost depends on the
  state as well as action
• R(s,a) is the reward/cost of doing action a in
  state s
• The Bellman equation then becomes
• U(s) max over a R(s,a) expected utility
  of doing a
• Notice that the only difference is that R(.,.) is
  now inside the maximization
• With this model, we can talk about partial
  satisfaction planning problems where
• Actions have costs goals have utilities and the
  optimal plan may not satisfy all goals.

Not discussed
14
Updates can be done synchronously OR
asynchronously --convergence guaranteed
as long as each state updated
infinitely often
Why are values coming down first? Why are some
states reaching optimal value faster?
.8
.1
.1
15
Terminating Value Iteration

• The basic idea is to terminate the value
  iteration when the values have converged (i.e.,
  not changing much from iteration to iteration)
• Set a threshold e and stop when the change across
  two consecutive iterations is less than e
• There is a minor problem since value is a vector
• We can bound the maximum change that is allowed
  in any of the dimensions between two successive
  iterations by e
• Max norm . of a vector is the maximal value
  among all its dimensions. We are basically
  terminating when Ui Ui1 lt e

16
Policies converge earlier than values

• There are finite number of policies but infinite
  number of value functions.
• So entire regions of value vector are mapped
  to a specific policy
• So policies may be converging faster than
  values. Search in the space of policies
• Given a utility vector Ui we can compute the
  greedy policy pui
• The policy loss of pui is Upui-U
• (max norm difference of two vectors is the
  maximum amount by which they differ on any
  dimension)

P4
P3
V(S2)
U
P2
P1
V(S1)
Consider an MDP with 2 states and 2 actions
17
n linear equations with n unknowns.
We can either solve the linear eqns exactly,
or solve them approximately by running the
value iteration a few times (the update wont
have the max operation)
18
Other ways of solving MDPs

• Value and Policy iteration are the bed-rock
  methods for solving MDPs. Both give optimality
  guarantees
• Both of them tend to be very inefficient for
  large (several thousand state) MDPs
• Many ideas are used to improve the efficiency
  while giving up optimality guarantees
• E.g. Consider the part of the policy for more
  likely states (envelope extension method)
• Interleave search and execution (Real Time
  Dynamic Programming)
• Do limited-depth analysis based on reachability
  to find the value of a state (and there by the
  best action you you should be doingwhich is the
  action that is sending you the best value)
• The values of the leaf nodes are set to be their
  immediate rewards
• If all the leaf nodes are terminal nodes, then
  the backed up value will be true optimal value.
  Otherwise, it is an approximation

RTDP
19
What if you see this as a game?
If you are perpetual optimist then V2
max(V3,V4)
Min-Max!
If you have deterministic actions then RTDP
becomes RTA (if you use h(.) to evaluate leaves
20
MDPs and Deterministic Search

• Problem solving agent search corresponds to what
  special case of MDP?
• Actions are deterministic Goal states are all
  equally valued, and are all sink states.
• Is it worth solving the problem using MDPs?
• The construction of optimal policy is an overkill
• The policy, in effect, gives us the optimal path
  from every state to the goal state(s))
• The value function, or its approximations, on the
  other hand are useful. How?
• As heuristics for the problem solving agents
  search
• This shows an interesting connection between
  dynamic programming and state search paradigms
• DP solves many related problems on the way to
  solving the one problem we want
• State search tries to solve just the problem we
  want
• We can use DP to find heuristics to run state
  search..

21
Incomplete observability(the dreaded POMDPs)

• To model partial observability, all we need to do
  is to look at MDP in the space of belief states
  (belief states are fully observable even when
  world states are not)
• Policy maps belief states to actions
• In practice, this causes (humongous) problems
• The space of belief states is continuous (even
  if the underlying world is discrete and finite).
  GET IT? GET IT??
• Even approximate policies are hard to find
  (PSPACE-hard).
• Problems with few dozen world states are hard to
  solve currently
• Depth-limited exploration (such as that done in
  adversarial games) are the only option

Belief state s10.3, s20.4 s40.3
5 LEFTs
5 UPs
This figure basically shows that belief states
change as we take actions
22
Incomplete observability(the dreaded POMDPs)

• To model partial observability, all we need to do
  is to look at MDP in the space of belief states
  (belief states are fully observable even when
  world states are not)
• Policy maps belief states to actions
• In practice, this causes (humongous) problems
• The space of belief states is continuous (even
  if the underlying world is discrete and finite).
  GET IT? GET IT??
• Even approximate policies are hard to find
  (PSPACE-hard).
• Problems with few dozen world states are hard to
  solve currently
• Depth-limited exploration (such as that done in
  adversarial games) are the only option

Belief state s10.3, s20.4 s40.3
5 LEFTs
5 UPs
This figure basically shows that belief states
change as we take actions
23
Claude Shannon (finite look-ahead)
Chaturanga, India (550AD) (Proto-Chess)
Von Neuman (Min-Max theorem)
9/28
Donald Knuth (a-b analysis)
John McCarthy (a-b pruning)
24
Agenda

• Loose ends from MDP
• Horizon in MDP
• And making rewards finite over infinite horizons
• RTA (is RTDP with deterministic actions)
• Min-max is RTDP with min-max instead of
  expectimax
• And todays main topic
• Its all fun and GAMES

Steaming in Tempe
25
Announcements etc.

• Homework 2 returned ?
• (!! Our TA doesnt sleep)
• Average 33/60
• Max 56/60
• Solutions online
• Homework 3 socket opened ?
• Project 1 due today
• Extra credit portion will be accepted until
  Thursday with late penalty
• Any steam to be let off?
• Todays class
• Its all fun and GAMES

Steaming in Tempe
26
What does a solution to an MDP look like?

• The solution should tell the optimal action to do
  in each state (called a Policy)
• Policy is a function from states to actions (
  see finite horizon case below)
• Not a sequence of actions anymore
• Needed because of the non-deterministic actions
• If there are S states and A actions that we
  can do at each state, then there are AS
  policies
• How do we get the best policy?
• Pick the policy that gives the maximal expected
  reward
• For each policy p
• Simulate the policy (take actions suggested by
  the policy) to get behavior traces
• Evaluate the behavior traces
• Take the average value of the behavior traces.
• How long should behavior traces be?
• Each trace is no longer than k (Finite Horizon
  case)
• Policy will be horizon-dependent (optimal action
  depends not just on what state you are in, but
  how far is your horizon)
• Eg Financial portfolio advice for yuppies vs.
  retirees.
• No limit on the size of the trace (Infinite
  horizon case)
• Policy is not horizon dependent
• Qn Is there a simpler way than having to
  evaluate AS policies?
• Yes

We will concentrate on infinite horizon
problems (infinite horizon doesnt
necessarily mean that that all behavior
traces are infinite. They could be finite
and end in a sink state)
27
(No Transcript)
28
What if you see this as a game?
If you are perpetual optimist then V2
max(V3,V4)
Review
Min-Max!
29
RTA(RTDP with deterministic actionsand leaves
evaluated by f(.))
S
S n
m
k
G
G1 H2 F3
G1 H2 F3
n
m
G2 H3 F5
k
infty
RTA is a special case of RTDP --It is useful
for acting in determinostic, dynamic worlds
--While RTDP is useful for actiong in stochastic,
dynamic worlds
--Grow the tree to depth d --Apply f-evaluation
for the leaf nodes --propagate f-values up to the
parent nodes f(parent) min(
f(children))
30
Game Playing (Adversarial Search)

• Perfect play
• Do minmax on the complete game tree
• Resource limits
• Do limited depth lookahead
• Apply evaluation functions at the leaf nodes
• Do minmax
• Alpha-Beta pruning (a neat idea that is the bane
  of many a CSE471 student)
• Miscellaneous
• Games of Chance
• Status of computer games..

31
Fun to try and find analogies between this and
environment properties
32
(just as human weight lifters refuse to compete
against cranes)
33
(No Transcript)
34
Searching Tic Tac Toe using Minmax
35
(No Transcript)
36
(No Transcript)
37
(No Transcript)
38
Evaluation Functions TicTacToe
If win for Max infty If lose for Max
-infty If draw for Max 0 Else
rows/cols/diags open for Max -
rows/cols/diags open for Min
39
(No Transcript)
40
(No Transcript)
41
What depth should we go to? --Deeper the
better (but why?) Should we go to uniform
depth? --Go deeper in branches where
the game is in a flux (backed up
values are changing fast)
Called Quiescence Can we avoid the horizon
effect?
42
Why is deeper better?

• Possible reasons
• Taking mins/maxes of the evaluation values of the
  leaf nodes improves their collective accuracy
• Going deeper makes the agent notice traps thus
  significantly improving the evaluation accuracy
• All evaluation functions first check for
  termination states before computing the
  non-terminal evaluation

43
(so is MDP policy)
44
lt 2
lt 2
lt 5
lt 14
Cut
2
14
5
2

• Whenever a node gets its true value, its
  parents bound gets updated
• When all children of a node have been evaluated
  (or a cut off occurs below that node), the
  current bound of that node is its true value
• Two types of cutoffs
• If a min node n has bound ltk, and a max ancestor
  of n, say m, has a bound gtj, then cutoff occurs
  as long as j gtk
• If a max node n has bound gtk, and a min ancestor
  of n, say m, has a bound ltj, then cutoff occurs
  as long as jltk

45
(No Transcript)
46
An eye for an eye only ends up making the whole
world blind. -Mohandas Karamchand Gandhi,
born October 2nd, 1869.
Lecture of October 2nd, 2003
47
Another alpha-beta example
Project 2 assigned
48
(order nodes in terms of their static eval
values)
Click for an animation of Alpha-beta search in
action on Tic-Tac-Toe
49
(No Transcript)
50
(No Transcript)
51
Multi-player Games
Everyone maximizes their utility --How does
this compare to 2-player games? (Maxs
utility is negative of Mins)
52
Expecti-Max
53
What if you see this as a game?
If you are perpetual optimist then V2
max(V3,V4)
Min-Max!
54
(No Transcript)
55
(No Transcript)
56
(No Transcript)
