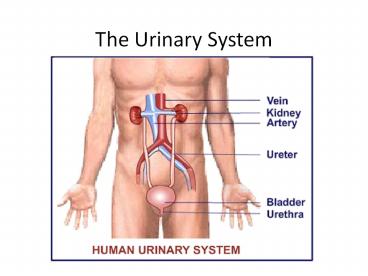

The Urinary System

1
The Urinary System
2
(No Transcript)
3
Function

• Maintain the consistency of fluids in the body
• Similar to a water purification plant

4
Facts

• Kidneys filter 200 liters of fluid every day
• Removes metabolic waste, ions, toxins from the
  bloodstream
• Help regulate blood pressure and secretes
  erythropoietin

5
Organs

• Kidneys
• Ureters
• Urinary bladder
• Urethra

6
Kidney Location

• Superior lumbar region
• T12 to L3
• Receive some protection from the lower ribs
• Right kidney is crowded by liver so it lies
  slightly lower than left kidney
• Weighs 150g (0.33 lbs)
• 12cm long, 6cm wide, 3cm thick (about size of
  large bar of soap)

7
(No Transcript)
8
(No Transcript)
9
(No Transcript)
10
Internal Anatomy

• Three regions
• Cortex
• Medulla
• Contains renal pyramids
• Pelvis
• Collects urine to send down ureter to bladder

11
Blood Supply

• Under normal conditions, the renal arteries
  deliver approximately ¼ of blood supply to the
  kidneys every minute

12
Nephrons

• Each kidney contains over one million tiny
  processing units called nephrons
• They carry out the process of making urine
• Each consists of
• Glomerulus mass of capillaries
• Bowmans capsule structure that collects
  filtrate from glomerulus

13
(No Transcript)
14
(No Transcript)
15
Glomerulus

• Endothelium is very porous
• Large amounts of solute-rich, protein free fluid
  pass from the blood to the Bowmans capsule
• This fluid (or filtrate) is raw material that is
  processed by the renal tubules to form urine

16
(No Transcript)
17
(No Transcript)
18
(No Transcript)
19
(No Transcript)
20
Renal Tubule

• Filtrate leaves the glomerulus and travels
  through a set of small tubes tubules
• About 3 cm long
• Three parts
• Proximal convoluted tubule (closer to glomerulus)
• Loop of Henle
• Distal convoluted tubule

21
Collecting Ducts

• Receive filtrate from many nephrons
• Give renal pyramids striped appearance

22
2
1
4
3
1
1
1
5
6
7
23
(No Transcript)
24
(No Transcript)
25
Quiz

• Click Here

26
Kidney Physiology

• Of the approximately 1000mL of blood that passes
  through the glomeruli each minute, 650mL is
  plasma
• About of 120mL of plasma is forced into the renal
  tubules
• Equivalent to filtering entire blood plasma 60
  times a day 47 gallons
• Kidneys consume 20-25 of all oxygen used by body
  at rest

27
Filtrate vs. Urine

• Once filtrate has moved through the collecting
  ducts, it has lost most of its water, nutrients
  and essential ions
• What remains is called urine and contains mostly
  metabolic wastes
• About 1.5L of the 180L of filtrate leaves the
  body as urine
• Rest is returned to circulation

28
Urine Formation

• Three processes
• Glomerular filtration
• Tubular reabsorption
• Tubular secretion

29
Glomerular Filtration

• For the most part, filtration is a passive,
  nonselective process in which fluids and solutes
  are forced through a membrane by hydrostatic
  pressure
• Very efficient because of high permeability and
  high blood pressure
• 55mm Hg in contrast to other capillaries in body
  at 18mm Hg

30
(No Transcript)
31
Tubular Reabsorption

• Our total blood volume is filtered into the renal
  tubules about every 45 minutes
• If some was not reclaimed, all of our plasma
  would be drained away within an hour
• This reclaiming process is called tubular
  reabsorption

32
Tubular Reabsorption

• All organic nutrients (glucose, amino acids) are
  completely reabsorbed but the reabsorption of
  water and ions are regulated by hormones
• Which hormone regulates the reabsorption of water
  by adjusting the permeability of the collecting
  ducts?
• Antidiuretic hormone
• Reabsorption of
• Cations (Na, K, Mg2, Ca2)
• Anions (HCO3-, Cl-)
• HCO3- is bicarbonate where did that come from?
• Small Intestine

33
(No Transcript)
34
Tubular Secretion

• Disposing of certain drugs (penicillin,
  phenobarbital seizures and anxiety)
• Eliminates urea
• CO(NH2)2
• How body eliminates nitrogen
• Eliminates uric acid
• C5H4N4O3
• Uric acid is a product of the breakdown of purine
  nucleotides. Which ones are purines?
• adenine (A) and guanine (G)
• High blood concentrations of uric acid can lead
  to a type of arthritis known as gout

35
GOUT
Gout
36
Formation of Dilute Urine

• Simple process because no water is absorbed in
  the renal tubules

Formation of Concentrated Urine

• Antidiuretic hormone (ADH) inhibits urine output
  by increasing reabsorption of water
• During maximum ADH secretion, 99 of water is
  reabsorbed and returned to blood

37
Diuretics

• Chemicals that increase urinary output
• Alcohol inhibits ADH release
• Caffeine, drugs for hypertension and edema from
  congestive heart failure inhibit sodium ion
  reabsorption which inhibits water reabsorption

38
Characteristics of Urine

• Generally clear and pale to deep yellow in color
• Color results from the bodys destruction of
  hemoglobin and creation of by-product bilirubin
• More water pale urine, and vice versa
• Pink or brown urine can result from foods like
  beets or rhubarb or due to bile pigments or blood
  in urine
• Cloudy urine may indicate infection of some part
  of urinary tract

39
(No Transcript)
40
Characteristics of Urine

• Odor
• Fresh urine has a slight odor
• Urine that is allowed to stand develops an
  ammonia odor due to bacteria
• Some foods or drugs can create unusual odor
• In persons with diabetes, urine can smell fruity
  when glucose is high

41
Chemical Composition

• 95 of urine is water
• 5 is solutes
• Urea
• breakdown of amino acids
• Creatinine
• Helps regenerate ATP, more in skeletal muscles
• Uric acid
• Breakdown of purines

42
Kidney Stones

• Caused by Ca, Mg, or uric acid salts
  crystallizing in kidney
• Most are smaller than 5mm so they pass without
  problems
• Larger crystals can obstruct ureter
• Prevention includes adequate hydration
• Treatment includes shock wave lithotripsy (using
  ultrasound to break up stones)

43
(No Transcript)
44
(No Transcript)
45
(No Transcript)
46
(No Transcript)
47
Pyelonephritis

• Infection of entire kidney
• In females, usually caused by E. coli bacteria
  from anal area into urinary tract
• Severe cases can result in abscesses that cause
  kidney to fill with pus
• If left untreated, kidneys can be damaged

48
(No Transcript)
49
Renal Failure

• Causes
• Repeated damage from infections
• Physical injury to kidneys
• Crush injury to skeletal muscles (releases
  myoglobin that clogs renal tubules)
• Heavy metal poisoning (Hg or Pb)
• Organic solvent poisoning (paint thinner,
  acetone, dry-cleaning fluid, etc.)
• Inadequate blood supply (can occur in
  arteriosclerosis)

50
Physiology of Renal Failure

• Filtrate formation decreases or stops
• Nitrogen waste builds up
• Blood pH becomes more acidic

51
Hemodialysis

• Artificial kidney
• Patients blood is passed through membrane tubing
  that is permeable and wastes diffuse out of blood
• Usually done 3-4 times per week and each session
  takes 4-8 hours
• Life threatening kidney failure only becomes
  obvious after about 75 of renal function has
  been lost
• Only permanent solution is kidney transplant

52
(No Transcript)
53
(No Transcript)
54
(No Transcript)
55
Ureters

• Tubes that take urine from each kidney to bladder
• Each begins at L2
• Stretching of ureters causes peristalsis to push
  urine down

56
Urinary Bladder

• Smooth, collapsible, muscular sac that
  temporarily stores urine
• A moderately full bladder holds about 500mL of
  urine (2 cups)

57
Urethra

• Thin walled muscular tube that drains urine from
  the bladder to outside the body
• Has sphincters
• Internal involuntary sphincter keeps urethra
  closed when urine is not being passed
• External voluntary sphincter that relaxes
  during voiding of urine

58
(No Transcript)
59
Urinary Tract Infections

• Overall, 40 of all women get UTIs
• Urethra is only 3-4 cm long
• Proximal to anal opening
• Improper toilet habits
• Sexual intercourse can cause vaginal bacteria to
  move into urethra

60
(No Transcript)
61
Incontinence

• Inability to control urination
• Infants have not learned to control external
  sphincter
• In older adults, the sphincter malfunctions

62
Crash Course

• Video
• About 12 minutes
