Knowledge Engineering for Bayesian Networks

1

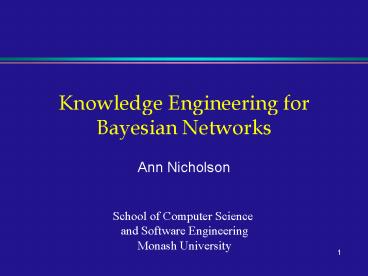

Knowledge Engineering for Bayesian Networks

• Ann Nicholson

School of Computer Science and Software
Engineering Monash University
2
Overview

• Representing uncertainty
• Introduction to Bayesian Networks
• Syntax, semantics, examples
• The knowledge engineering process
• Case Study Intelligent Tutoring
• Summary of other BN research
• Open research questions

3
Sources of Uncertainty

• Ignorance
• Inexact observations
• Non-determinism
• AI representations
• Probability theory
• Dempster-Shafer
• Fuzzy logic

4
Probability theory for representing uncertainty

• Assigns a numerical degree of belief between 0
  and 1 to facts
• e.g. it will rain today is T/F.
• P(it will rain today) 0.2 prior probability
  (unconditional)
• Posterior probability (conditional)
• P(it wil rain today rain is forecast) 0.8
• Bayes Rule P(HE) P(EH) x P(H)
•
  P(E)

5
Bayesian networks

• Directed acyclic graphs
• Nodes random variables,
• R it is raining, discrete values T/F
• T temperature, cts or discrete variable
• C colour, discrete values red,blue,green
• Arcs indicate dependencies (can have causal
  interpretation)

6
Bayesian networks

• Conditional Probability Distribution (CPD)
• Associated with each variable
• probability of each state given parent states

Jane has the flu
P(FluT) 0.05
Models causal relationship
Jane has a high temp
P(TeHighFluT) 0.4 P(TeHighFluF) 0.01
Models possible sensor error
Thermometer temp reading
P(ThHighTeH) 0.95 P(ThHighTeL) 0.1
7
BN inference

• Evidence observation of specific state
• Task compute the posterior probabilities for
  query node(s) given evidence.

Flu
8
BN software

• Commerical packages Netica, Hugin, Analytica
  (all with demo versions)
• Free software Smile, Genie, JavaBayes,
• http//HTTP.CS.Berkeley.EDU/murphyk/Bayes/bnsoft.
  html
• Example running Netica software

9
Decision networks

• Extension to basic BN for decision making
• Decision nodes
• Utility nodes
• EU(Action) ? p(oAction,E) U(o)
• o
• choose action with highest expect utility

• Example

10
Elicitation from experts

• Variables
• important variables? values/states?
• Structure
• causal relationships?
• dependencies/independencies?
• Parameters (probabilities)
• quantify relationships and interactions?
• Preferences (utilities)

11
Expert Elicitation Process

• These stages are done iteratively
• Stops when further expert input is no longer cost
  effective
• Process is difficult and time consuming.
• Current BN tools
• inference engine
• GUI
• Next generation of BN tools?

12
Knowledge discovery

• There is much interest in automated methods for
  learning BNS from data
• parameters, structure (causal discovery)
• Computationally complex problem, so current
  methods have practical limitations
• e.g. limit number of states, require variable
  ordering constraints, do not specify all arc
  directions
• Evaluation methods

13
The knowledge engineering process

• 1. Building the BN
• variables, structure, parameters, preferences
• combination of expert elicitation and knowledge
  discovery
• 2. Validation/Evaluation
• case-based, sensitivity analysis, accuracy
  testing
• 3. Field Testing
• alpha/beta testing, acceptance testing
• 4. Industrial Use
• collection of statistics
• 5. Refinement
• Updating procedures, regression testing

14
Case Study Intelligent tutoring

• Tutoring domain primary and secondary school
  students misconceptions about decimals
• Based on Decimal Comparison Test (DCT)
• student asked to choose the larger of pairs of
  decimals
• different types of pairs reveal different
  misconceptions
• ITS System involves computer games involving
  decimals
• This research also looks at a combination of
  expert elicitation and automated methods (UAI2001)

15
Expert classification of Decimal Comparison Test
(DCT) results
H high (all correct or only one wrong)
L low (all wrong or only one correct)
16
The ITS architecture
Adaptive Bayesian Network
Inputs
Student
Generic BN model of student
Decimal comparison test (optional)
Item
Answers
Answer

• Diagnose misconception
• Predict outcomes
• Identify most useful information

Information about student e.g. age (optional)
Computer Games
Hidden number
Answer
Classroom diagnostic test results (optional)
Feedback
Answer
Flying photographer

• Select next item type
• Decide to present help
• Decide change to new game
• Identify when expertise gained

Item type
System Controller Module
Item
Decimaliens
New game
Sequencing tactics
Number between
Help
Help
.
Report on student
Classroom Teaching Activities
Teacher
17
Expert Elicitation

• Variables
• two classification nodes fine and coarse (mut.
  ex.)
• item types (i) H/M/L (ii) 0-N
• Structure
• arcs from classification to item type
• item types independent given classification
• Parameters
• careless mistake (3 different values)
• expert ignorance - in table (uniform
  distribution)

18
Expert Elicited BN
19
Evaluation process

• Case-based evaluation
• experts checked individual cases
• sometimes, if prior was low, true
  classification did not have highest posterior
  (but usually had biggest change in ratio)
• Adaptiveness evaluation
• priors changes after each set of evidence
• Comparison evaluation
• Differences in classification between BN and
  expert rule
• Differences in predictions between different BNs

20
Comparison evaluation

• Development of measure same classification,
  desirable and undesirable re-classification
• Use item type predictions
• Investigation of effect of item type granularity
  and probability of careless mistake

21
Comparison expert BN vs rule
Undesirable
Desirable
Same
22
Results
Same
varying prob. of careless mistake
Desir.
Undes.
varying granularity of item type 0-N and H/M/L
23
Investigation by Automated methods

• Classification (using SNOB program, based on MML)
• Parameters
• Structure (using CaMML)

24
Results
25
Another Case Study Seabreeze prediction

• 2000 Honours project, joint with Bureau of
  Meteorology (with Russell Kennett and Kevin Korb,
  PAKDD2001 paper, TR)
• BN network built based on existing simple expert
  rule
• Several years data available for Sydney
  seabreezes
• CaMML (Wallace and Korb, 1999) and Tetrad-II
  (Spirtes et al. 1993) programs used to learn BNs
  from data
• Comparative analysis showed automated methods
  gave improved predictions.

26
Other BN-related projects

• DBNS for discrete monitoring (PhD, 1992)
• Approximate BN inference algorithms based on a
  mutual information measure for relevance (with
  Nathalie Jitnah, ICONIP97, ECSQARU97,
  PRICAI98,AI99)
• Plan recognition DBNs for predicting users
  actions and goals in an adventure game (with
  David Albrecht, Ingrid Zukerman,
  UM97,UMUAI1999,PRICAI2000)
• Bayesian Poker (with Kevin Korb, UAI99, honours
  students)

27
Other BN-related projects (cont.)

• DBNs for ambulation monitoring and fall diagnosis
  (with biomedical engineering, PRICAI96)
• Autonomous aircraft monitoring and replanning
  (with Ph.D. student Tim Wilkin, PRICAI2000)
• Ecological risk assessment (2003 honours project
  with Water Studies Centre)
• Writing a textbook! (with Kevin Korb)
• Bayesian Artificial Intelligence

28
Open Research Questions

• Methodology for combining expert elicitation and
  automated methods
• expert knowledge used to guide search
• automated methods provide alternatives to be
  presented to experts
• Evaluation measures and methods
• may be domain depended
• Improved tools to support elicitation
• e.g. visualisation of d-separation
• Industry adoption of BN technology
