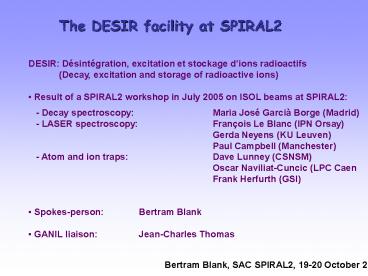

The DESIR facility at SPIRAL2

• DESIR Désintégration, excitation et stockage
  dions radioactifs
• (Decay, excitation and storage of
  radioactive ions)
• Result of a SPIRAL2 workshop in July 2005 on
  ISOL beams at SPIRAL2
• - Decay spectroscopy Maria José Garcià
  Borge (Madrid)
• - LASER spectroscopy François Le Blanc (IPN
  Orsay)
• Gerda Neyens (KU Leuven)
• Paul Campbell (Manchester)
• - Atom and ion traps Dave Lunney (CSNSM)
• Oscar Naviliat-Cuncic (LPC Caen
• Frank Herfurth (GSI)
• Spokes-person Bertram Blank
• GANIL liaison Jean-Charles Thomas

Bertram Blank, SAC SPIRAL2, 19-20 October 2006
2
Why another ISOL facility?

• close to stable beam intensities for exotic
  nuclei
• much higher intensities than at ISOLDE or Oak
  Ridge
• not too far from EURISOL intensities
• key nuclei like 78Ni, 100Sn, 132Sn with high
  intensities
• fusion-evaporation to access high-spin states

3
Conclusions of the SPIRAL2 Workshop (july 2005)
Low energy RIB
1. A new experimental area of about 1500m2
located at the ground floor, dedicated to the
experiments with low-energy beams from SPIRAL2 is
strongly requested. The new building includes
areas for the experimental equipments,
acquisition and control rooms. 2. A High
Resolution mass Separator (HRS) with a resolution
of M/?Mgt5000 with a dedicated identification
station is absolutely necessary. A separation
scheme Low Resolution mass separator ? RFQ cooler
? HRS is proposed. 3. The low energy radioactive
beams should be available for experiments already
at the beginning of the operation of SPIRAL 2.
The physics program requires both neutron-rich
and neutron-deficient beams. 4. More than one
production target ion source station is
required to ensure flexible schedule and a
possibility for fast change of the mass of
radioactive beams. 5. An extension of the current
LIRAT beam line in order to take full advantage
of the SPIRAL 1 beams is proposed.
4
DESIR physics program

• Decay spectroscopy
• - decay properties and nuclear structure
  studies
• - particle-particle correlations, cluster
  emission, GT strength
• - exotic shapes, halo nuclei
• Laser spectroscopy
• - static properties of nuclei in their ground
  and isomeric states
• - deformation
• Fundamental interactions
• - CVC hypothesis, CKM matrix unitarity via 0 ?
  0 transitions
• - exotic interactions (scalar and tensor
  currents)
• - CP (or T) violation with e.g. Radium
• Solid state physics and other applications

5
SPIRAL 2 LAYOUT
GANIL facility
LIRAT
6
Underground
J.C. Thomas, GANIL
7
DESIR Ground-floor
LUMIERE
general purpose spec
Paul trap
laser
MOT
trap
BESTIOL
neutrons
buncher
Ion sources
x
8
Beam handling methods
Magnetic separation (HRS)
PENNING TRAP
A. Jokinen, JYFL
9
Beam handling RFQ cooler and buncher
RFQ-cooler 3 p mm mrad, 0.5 eV, 10 ms, 60
D. Lunney et al., CSNSM
10
Beam handling Implementation
F. Varenne, GANIL
11
Summary of decay spectroscopy experiments The
BESTIOL facility (BEta decay STudies at the
SPIRAL2 IsOL facility)

• Decay studies with halo nuclei
• Clustering studies in light nuclei
• Super-allowed b decays and the standard model of
  electro-weak interaction
• Angular correlation measurements and standard
  model of electro-weak interaction
• Cases of astrophysical interest
• New magic numbers
• Transition from Order to Chaos
• Shape coexistence, deformation and Gamow-Teller
  distribution
• High-spin isomers
• Test of isospin symmetry combined with charge
  exchange reactions
• Beta-delayed charged-particle emission e.g.
  proton-proton correlation

12
Decay properties of exotic nuclei

• 1916 Rutherford Wood ?? Philos. Mag. 31 (1916)
  379
• 1963 Barton Bell identified 25Si as ?p
  emitter

• Global properties

?-delayed particle emission

• Very Selective probe

E, ? Level density Spin, Isospin ?-decay
properties
13
Search for exotic interactions
e
nucleus
q
ne

• b-n angular correlation

requires to measure the recoil ion b particle

• within the SM

x Fermi fraction r GT/F mixing ratio

• beyond the SM

a contains quadratic S and T contributions
O. Naviliat-Cuncic et al., LPC Caen
14
Search for exotic interactions Production and
preparation of 6He
candidate
(pure GT transition)
deduce bn angular correlation from measurement
of b-recoil (recoil with very low energies lt 1
keV)
6He production at SPIRAL
cooling in H2 gas / bunching
trapping/measuring
LIRAT low energy beam line
O. Naviliat-Cuncic et al., LPC Caen
15
Search for exotic interactions Setup and first
results

• TOF of ions extracted from trap

• first time difference for b-decay

(V-A theory)
RF ON/OFF
O. Naviliat-Cuncic et al., LPC Caen
16
CVC, CKM, exotic currents 0 ? 0 b decays
3073.5 (12) s (1) 3074.4 (12) s
(1,2)
Measurements - Q value
- T1/2 - branching
ratios
? Vud00 0.9738(4) (1)
0.9736(3) (1,2,3) VusK 0.2200(23)
(PDG) 0.2254(21) (4) VubB
0.00367(47) (PDG) ?
0.9987(11)
( 2? shift)

• (1) Towner and Hardy, PRL 94 (2003) 092501, PRC
  71 (2005) 055501
• (2) Savard et al., PRL 95 (2005) 102501
• (3) Marciano Sirlin, PRL 96 (2006) 032002
• (4) E865, KTeV, NA48, KLOE
• (PDG) Particle Data Group, S. Eidelman et al.,
  PLB 592 (2004) 1

17
0 ? 0 b decays Physics output

• 1. Vud matrix element (? test of unitarity)
• 2. test of CVC (constancy of Ft0? 0 values)
• 3. right-handed currents
• -0.0005 lt ? lt 0.0015 (90 C.L.)
• 4. scalar currents

Ad 3 Left Right Symm.-models W1 WL cos? - WR
sin? W2 WL sin? WR cos? ? m12 / m22
0.011
Ad 4 scalar currents
N. Severijns et al.
18
0 ? 0 b decays Future studies

• further improve results for classical isotopes

• determine Ft-values for new isotopes of
  interest
• Tz -1 isotopes 18Ne, 22Mg, 26Si, 30S, 34Ar,
  38Ca, 42Ti
• Tz 0 isotopes 62Ga, 66As, 70Br, 74Rb, 78Y,
  82Nb, 86Tc, 90Rh, 94Ag, 98In
• stronger limits for new physics
• test and improve reliability of isospin
  corrections
• extend CVC test to higher mass region
• ? needs
• - relatively pure beams (? 103 at/s) of
  classical and new 0 ? 0 isotopes
• - precision spectroscopy techniques (for
  t1/2 and BR)
• - Penning traps (mainly for QEC/mass)

19
Study of GT strength via b-delayed proton decay
21Mg
21Mg
J.C. Thomas
20
Mirror symmetry studies
? ?nuc ?SCC

• Allowed Gamow-Teller transitions
  (log(ft)lt6)

• 17 couples of nuclei
• 46 mirror transitions

Average asymmetry d
11 (1) in the 1p shell (Alt17)
0 (1) in the (2s,1d) shell (17ltAlt40)
J.C. Thomas, J. Giovinazzo et al. (GANIL/CENBG)
21
Search for p-p correlation in b2p decay

• Two possible decay schemes
• sequential ? no angular or energy correlation
• 2He type decay ? angular and energy correlation
• ? pairing correlations, nucleon-nucleon
  interaction, final-state interactions.

Possible candidates 22Al, 23Si, 26P, 27S, 31Ar,
35Ca, 43Cr, 50Ni .

• Setup Cube-silicium
• 6 DSSSD
• 6 large-area
• silicon det.
• g detection
• beam catcher
• or fast tape

I. Matea et al., CEN Bordeaux-Gradignan
22
Study of decay of 31Ar at SPIRAL/LIRAT
Proton spectrum

• Production rate 0.5 1 31Ar per second
• strong contamination from 33Ar

I. Matea et al., CEN Bordeaux-Gradignan
23
One- and two-proton emission from isomers 94Ag
24
One- and two-proton emission from isomers 94Ag
Relative energy spectra for p-p
3-body
0.39(4)s
1.9 keV
Si-Si-?? (92Rh)
I. Muhka, Nature 439 (2006) 298
25
LUMIERE Laser Utilisation for Measurement and
Ionization of Exotic Radioactive Elements

• Collinear Laser spectroscopy
• - spins
• - magnetic moments
• - quadrupole moments
• - change of charge radii
• N50, N64, N82, etc.
• b-NMR spectroscopy
• - nuclear gyromagnetic factor
• - quadrupole moment
• monopole migration of proton and neutron
  single particle levels around 78Ni
• persistance of N50 shell gap around 78Ni
• persistance of N82 shell gap beyond 132Sn
• Microwave double resonance in a Paul trap
• - hyperfine anomaly and higher order momenta
• (octupole and hexadecapole deformation)

26
Atomic hyperfine structure
Interaction between an orbital e- (J) and the
atomic nucleus (I,mI,QS)

• results in a hyperfine splitting (HFS) of the e-
  energy levels

n
J
with
F
DEHFS

• Hyperfine structure constants

and

• Collinear laser spectroscopy DmI/mI 10-2,
  DQS/QS 10-1 for heavy elements

27
Isotope shift measurements
Frequency shift between atomic transitions in
different isotopes of the same chemical element

• related to the mass and size differences

J2, F2
dnA,A
J2, F2
J1, F1
J1, F1

• mean square charge radius variations with a
  precision 10-3

• study of nuclei shape (deformation)

28
Isotope shift and nuclear moment measurements
178Hf isomer at Orsay F. Le Blanc et al.
101Zr at JYFL P. Campbell et al.
29
Isotope shift measurements

• previous experiments

N82
N104
F. Le Blanc et al., IPN Orsay
30
Isotope shift measurements at DESIR

• with I 103-104 pps

• N50

• neutron skin in N gt 50 Ge isotopes (neutron star
  studies)

• deformation in N 50 Ni isotopes (collectivity
  vs magicity)

• N82

• shape evolution for Z 50 (Ag, Cd, In, Sn)

• N64

• strongly oblate shapes predicted in Rb, Sr and Y
  for N gt 64

• Z40

• shape transitions predicted in the Zr region
  (Mo, Tc, Ru)

• Rare earth elements

• large deformation and shape transitions
  predicted (Ba, Nd, Sm)

31
b-NMR spectroscopy
b-asymmetry in the decay of polarized nuclei in a
magnetic field

• Zeeman splitting related to gI and QS

MI
I
M-I
with
and

• resonant destruction of the polarization (i.e.
  b-asymmetry) by means of an additional RF
  magnetic field

• DgI/gI 10-3, DQS/QS 10-2

• complementary technique to collinear laser
  spectroscopy

• suitable for light elements (low QS values)

32
The physics case for b-NMR on polarized 60 keV
beams

• polarized 60 keV beams are obtained using
  resonant laser excitation.
• with I 5.103 pps, T½ from 1 ms to 10 s, beam
  purity gt 50 .
• b-NMR is a sensitive and precise method to
  measure g-factors and quadrupole
• moments of exotic nuclei (ground states,
  isomers) with lifetimes from 1 ms up
• to several seconds.
• combination with hyperfine structure
  measurements yields a unique determination
• of the spin (e.g. PRL 94, 022501 (2005)).
• Systematic precise measurements of g-factors
  reveal deviations from normal
• behaviour and provide information on
  configuration mixing or onset of deformation
• (breaking of shell closures).
• N50 g factor of neutron-rich Ga and Cu
  isotopes to determine where
• the inversion of the pp3/2 and pf5/2 orbitals
  occurs.
• N82 g.s. configuration from gI measurements.

33
The physics case for b-NMR on polarized beams
nuclear structure towards and beyond 78Ni
Kr
Produced at SPIRALII with d-induced fission
Se
Ge

• Evolution of n orbits
• from Z40 to Z28
• ground state spins and moments
• of 83Ge, 81Zn, 79Ni and
• of 81Ge, 79Zn, 77Ni
• g-factors can reveal erosion
• of N50 shell closure

Zn
Ni
Lifetime OK for b-NMR studies
G. Neyens et al., KU Leuven
34
Collinear laser spectroscopy and b-NMR

• previous experiments at COLLAPS

• from the position of hyperfine transitions spin
  assignment and sign of gI for the g.s. of 31Mg

HFS 31Mg1
b asymmetry
nRF (MHz)

• from b-NMR precise measurement of gI

• strongly deformed intruder Ip 1/2 g.s. of
  31Mg, G. Neyens et al, PRL 94, 022501 (2005)

• from QS measurements via b-NMR QS(11Li) gt
  QS(9Li)
• ? p-n interaction halo n orbitals, D.
  Borremans, Ph.D. Thesis, 2004, KU Leuven
•
  R. Neugart et
  al.

35
Estimated budget

• Building 6000 kEuros
• - DESIR hall 3000 kEuros
• - Basement 1000 kEuros
• - Crane 1000 kEuros
• - 20 overhead 1000 kEuros
• HRS 816 kEuros
• - RFQ cooler 150 kEuros
• - 2 magnets power supplies 400 kEuros
• - pumps, beam lines, diagonstics 130
  kEuros
• - 20 overhead 136 kEuros
• Beam handling 1640 kEuros
• - off-line source 60 kEuros
• - RFQ cooler/buncher and switch yards 650
  kEuros
• - Preparation Penning trap 460 kEuros
• - in-trap decay detection system 195
  kEuros
• - 20 overhead 275 kEuros

36
The DESIR Collaboration
37
Summary

• solid physics case
• very promising intensities for exotic nuclei
  (e.g. fusion-evaporation)
• almost 100 co-authors the  DESIR  LOI
• with its installations a unique facility
• preliminary study of building at CENBG
• study of cooler/buncher and HRS at CSNSM
• installation of collinear laser spectroscopy at
  ALTO
• to be built it has to be included in  reference
  solution
• synergies with FAIR DESPEC, LASPEC, MATS, NCAP
