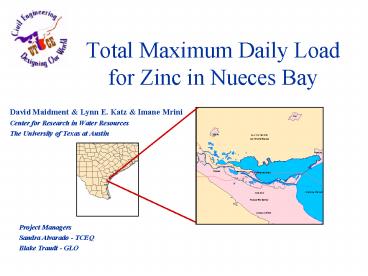

Total Maximum Daily Load for Zinc in Nueces Bay
  • David Maidment Lynn E. Katz Imane Mrini
  • Center for Research in Water Resources
  • The University of Texas at Austin

Project Managers Sandra Alvarado - TCEQ Blake
Traudt - GLO
2

Zinc Impairment / criteria
  • Texas Department of Health Guidelines
  • Average zinc concentrations in oysters from
    Nueces Bay should be consistently below 700 mg
    Zn/kg edible tissue
  • Data Observations
  • High concentrations ( 2,389 mg/kg) were found in
    oysters resulting in acute adverse health effects
    (TDH, 1994)
  • No threat for fish or crabs

3
Zinc in Oyster Tissue
4
Outline
  • Review of issues
  • Study area Nueces Bay
  • Zinc impairment
  • Study objectives
  • Study of Zinc monitoring data
  • Estimation of watershed zinc loadings
  • Next steps

5
Sources of Contamination
?
?
6
Water Quality Pollution Loading Model
Load Mass/Time Runoff Vol/Time x
Concentration Mass/Vol
Precip.
Runoff
DEM
LandUse
Accumulated Load
EMC Table
Load
Concentration
7
Expected Mean Concentration
Land Use
EMC
Table derived from USGS water quality monitoring
sites
8
Water Quality Analysis
Salinity Concentration and Mass Fluxes in
Corpus Christi Bay.
Finite Segment Analysis
Flow of water
Transport of Constituents
Fluxes
Loads
Advection
Dispersion
9
Observed vs. Expected
Zinc (µg/l)
Chromium (µg/l)
10
Physicochemical Reactions
sunlight
Atmospheric Deposition
Photochemical Reactions
Inorganic Reactions
Flux
Organic/Biological Reactions
Flux
Sediment-Water Exchange
11
Resuspension and Deposition
Deposition
Resuspension
12
Study Area Nueces Bay
  • Nueces bay TMDL segment 2482
  • Average area of 74.87 Km2 Mean depth 0.68 to
    0.92m
  • Relatively small average residence time (V/Q)
    30 days
  • Uses Aquatic life, contact recreation, fishing,
    production of edible oysters, clams and mussels,
    and shellfish harvesting (oyster water use )
  • TMDL for zinc in oyster tissue

13
Study Objectives
  • Acquire existing data and information necessary
    to support modeling and assessment activities
  • Determine current allowable loadings of the
    constituent (zinc)
  • Allocate the total loadings to appropriate
    pollutant sources

14
Zinc Monitoring Stations
15
Zinc Monitoring dataZinc in sediments
Zn conc. ( ppm)
71 - 140
140.1 - 430
430.1 - 864
864.1 - 2100
16
(No Transcript)
17
Zinc Monitoring dataZinc in water
Zinc conc. ( ?g/L)
15 - 21
21.1 - 40
40.1 - 53.4
53.5 - 73.3
73.31 - 546
18
Zinc Monitoring dataZinc in sediments vs zinc
in water
Water
Sediment
19
Hydrodynamic Circulation
Simulation by Dr Junji Matsumoto, TWDB
Animation
20
Sediment Data for Nueces Bay
21
Sediment Data for the Inner Harbor
Average Zinc Conc. 440 ppm
22
Zinc Monitoring dataZinc partitioning in
sediment/water/oyster tissue
Ratio 2300
Ratio 55,000
Ratio 24
23
Watershed delineation Procedure
procedure developed for delineating watersheds in
coastal and low-lying regions with little to no
slope.
24

Watershed delineationdelineated watersheds for
each segment
25
Watershed source loadings of zinc
26
Current watershed sources of zinc
  • Total annual loadings of zinc from non point
    source pollution 282 kg
  • Volume of the bay 62.26 Mm3
  • Annual concentration of Zinc from NPS 4.53 ?g/L
  • Mean Measured concentration of zinc in water in
    Nueces bay 42.1 ?g/L

Watershed sources are not the whole picture
27
Estimation of Mass of Zinc in Sediments in Nueces
Bay
  • 10 cm sediment bed depth and surface area of 74.9
    km2 ?V 7,490,000 m3
  • Mass of sediments 1.984 x1010 kg
  • Average concentration of zinc in sediments 440
    ppm (mg/kg)
  • Total mass of zinc in sediments 8,730 metric
    tons

28
Pollution Sources in Nueces Bay
  • Total mass of zinc in sediments 8,730 metric
    tons
  • Based on 1 kg/day watershed loading it will take
    24,000 years to accumulate this mass
  • We must have point sources or legacy sources !!

29
Next Steps
  • Estimate background levels of zinc in sediments
  • Evaluate point sources
  • Consider hydraulics between inner harbor and
    Nueces Bay
  • Suggestions

30
(No Transcript)
31
Zinc Monitoring data Zinc in sediments at
station 12960Nueces river North of Viola Basin
126.7 mg/kg
32
Zinc Monitoring data in Nueces bay Zinc in
sediments at station 13421
33
Zinc Monitoring data in Nueces bay Zinc in
sediments at station 13422
34
Zinc Monitoring data in Nueces bay Zinc in
sediments at station 13425
35
Zinc Monitoring data Zinc in sediments at
station 13432 ( Inner Harbor Nr nav bridge)
36
Zinc Monitoring data Zinc in sediments at
station 13430 ( Inner Harbor in Avery basin)
37
Zinc Monitoring data Zinc in sediments and
water at station 13439( Inner Harbor)
38
Zinc Monitoring data Zinc in sediments at
station 13432 ( Inner Harbor Nr nav bridge)
