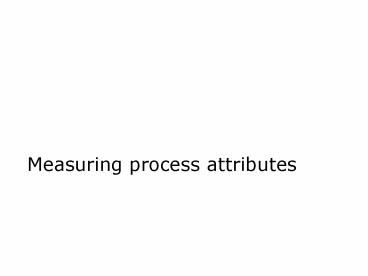

Measuring process attributes

1

• Measuring process attributes

2
Good Estimates

• Predictions are needed for software development
  decision-making (figure 12.1)
• A prediction is useful only if it is reasonably
  accurate, close enough to actual
• A prediction/estimate is a range/window not a
  single number.

3
What is an Estimate

• A prediction/estimate is a range/window not a
  single number.
• It is a probabilistic assessment, estimate refers
  to the center of the range
• Formal definition median of the distribution
  (Fig 12.2)
• Do not set estimate as target
• Estimate should be presented as a triple (the
  median plus upper and lower bounds/confidence
  intervals)

4
Evaluating Estimation Accuracy

• Relative error (RE) in estimate RE (actual
  value estimated value) / actual value
• Mean RE for n projects --- n
  RE 1 / n ? REi
• i 1

5
Evaluating Estimation Accuracy

• Mean magnitude of RE for n projects -----
  n MRE 1 / n ? MREi
• i 1
• If mean magnitude of RE is small then our
  predictions are good
• Conte, Dunsmore and Shen, acceptable level of it
  is lt 0.25

6
Evaluating estimation accuracy

• Measure of prediction quality,PRED(q) k/nOut
  of n projects, k number of projects have mean
  magnitude of relative error less than or equal to
  q.
• Eg PRED(0.25) 0.4747 of the predicted values
  fall within 25 of their actual values.
• Conte, Dunsmore and Shen suggests that an
  estimation technique is acceptable if PRED(0.25)
  is at least 0.75.

7
Evaluating estimation accuracy

• DeMarco suggests EQF (estimating quality factor)
  to assess the accuracy of the prediction process.
• Estimates are made repeatedly throughout the
  process as more info is known.
• Fig 12.3
• Effectiveness of the estimating process area of
  the hatched region divide by D x A.

8
Cost Estimation Problems and Approaches

• Cost estimation normally refers to likely amount
  of effort, time and staffing levels required to
  build software.
• Cost estimation and effort estimation are
  sometime used interchangeably.

9
Problems with cost estimation

• The nature of the problem
• Convert estimate to target, manipulate estimation
  parameters to fit an already-given outcome.
  (price-to-win)
• Not encourage to collect data, thus no history
  records to make judgment and predictions.

10
Current Approaches

• techniques for estimating effort and schedule
• expert opinion estimate is made based on experts
  past experience
• analogy identifying a similar past project and
  adjusting
• decomposition divide and conquer
• models using a model relating key inputs and
  effort
• decomposition and modeling are preferred.

11
Current Approaches

• These techniques can either be applied bottom-up
  or top-down.
• Bottom-up estimation begins with the lowest-level
  parts of product or task, and provides
  estimates for each.
• Top-down estimation begins with the overall
  process or product.

12
Models of Effort and Cost

• Two type of models
• cost models
• providing direct estimates of effort or duration
• often based on empirical data reflecting factors
  that contribute to overall cost.
• input consist of one primary input (size) and a
  number of secondary adjustment factors (cost
  drivers - characteristics that are expected to
  influence effort or duration).
• Eg COCOMO

13
Models of Effort and Cost

• Two type of models
• constraint models
• demonstrate the relationship over time between
  two or more parameters of effort, duration, or
  staffing level
• Rayleigh curve(Figure 12.4)

14
Regression-based models

• One of the models used is E aS b where a, b are
  parameters that are estimated by regression
  techniques, see Figure 12.5.
• next step - identify the factors that cause
  variation between predicted and actual effort (eg
  experience of developers).
• In this way an effort adjustment factor F is
  obtained.
• The unadjusted result is then multiplied by this
  factor to give the adjusted effort (E aS b F)
• F is the product of the cost driver values.

15
COCOMO

• In 1970s, Boehm derived the constructive cost
  model (COCOMO) .
• The original COCOMO is a collection of three
  models a basic model to be applied early, an
  intermediate model to be applied after
  requirements are specified, and an advanced
  model to be used when design is complete.

16
Oiginal COCOMO Effort

• All three have the form E aSb F E - effort in
  person months, S - size in thousands of
  delivered source instructions (KDSI)F -
  adjustment factor (1 in the basic model).
• The parameters a,b are dependent on the type of
  software, organic(data processing) embedded(real
  time software within a larger, hardware-based
  system) and semi-detached (a blend of these) see
  Table 12.2.

17
Original COCOMO Effort

• Eg 12.7
• There are 15 independent adjustment factors, see
  Table 12.3, i.e. F F1 x F2 x ... x F15 used
  in the intermediate and advanced model.
• The advanced model uses the intermediate model on
  the component level and then a phase-based model
  is used to build up an estimate for the complete
  project.

18
Oiginal COCOMO Duration

• For duration (D) the model D a E b is used. D
  is duration in months, and the parameters are
  given in Table 12.4.
• Eg 12.8

19
COCOMO 2.0

• An updated, three stage version COCOMO 2.0, was
  presented in 1995.
• Based on 3 major stages of any development
  projects
• Stage 1, project builds prototypes to resolve
  high-risk issues involving user interface,
  interactions etc.
• Estimate size in object points based on number of
  screens, reports and 3rd generation language
  components (refer to page 265, 266), reuse is
  taken into account.

20
COCOMO 2.0

• Stage 2
• employs function point as a measure of size.
• Function point estimate functionality captured in
  the requirement.
• Stage 3
• Development has begun
• Can use LOC as measure of size.
• Other differences between the stages can be seen
  in Table 12.5.
• COCOMO 2.0 incorporates reuse, takes in account
  maintenance and breakage.

21
Putnam's SLIM Model

• Putnams model assumes that the effort for
  software development projects is distributed
  similarly to a collection of Rayleigh curves,
  one for each major development activity, see
  Figure 12.6.
• constructed for US Army use in 1978 to cover
  projects exceeding 70 KLOC.

22
Putnam's SLIM Model

• like the COCOMO model it is based on empirical
  studies.
• Derived from basic Rayleigh formula.
• S C K 1/3 td 4/3 S - size in LOC C - a
  technology factor (C)K - total project effort in
  person years (includes maintenance) td - elapsed
  time to delivery in years (in theory the point at
  which Rayleigh curve reaches a max)

23
Putnam's SLIM Model

• assess the effect of varying delivery date on the
  total effort needed to complete the project.
• eg a 10 decrease in elapsed time S C K 1/3
  td 4/3 C K 1/3 (0.9 td) 4/3 results in
  K/K 1.52, i.e., in a 52 increase in total
  life-cycle effort.

24
Putnam's SLIM Model

• To estimate effort/duration, Putnam introduce
  D0 K / td 3 D0 - manpower acceleration
  constant (12.3 for new software with many
  interface and interactions with other system), 15
  for stand-alone system, 27 for re-implementation
  of existing systems)

25
Putnam's SLIM Model

• From the 2 equations can derive K (S / C)
  9/7 D0 4/7
• SLIM uses separate Rayleigh curves for design and
  code, test and validation, maintenance and
  management.
• Requirement specification is not included.

26
Multi-project models

• Effort estimates are affected by other projects
• Cost can be amortized over several upcoming
  projects.
• Reuse normally involves multiple projects

27
Problems with existing modeling methods

• Conte group suggests that a model be considered
  acceptable when PRED (0.25) exceeds 0.75 but that
  rarely happens.
• It shows model insufficiency.

28
Problems with existing modeling methods

• Reasons
• Model structure
• Many studies agree that b in the effort-duration
  models is about 1/3. However, there is little
  consensus about the effect of reducing or
  extending duration.
• Overly complex models
• Models with many parameters (eg. cost drivers)
  are not necessarily preferable (accuracy,
  subjectivity, independency, static).
• Product size estimation
• Size estimates in LOC are not available early in
  the process.

29
Dealing with problems of current estimation
methods

• use local data definitions
• calibrate models in the actual environment
• use independent estimation group
• reduce input subjectivity
• do preliminary estimate (group estimate like
  Delphi estimate by analogy) and re-estimation

30
Dealing with problems of current estimation
methods

• use other than LOC for early size estimation
• Function points
• Specification weight metrics/bang metrics
  (DeMarco)
• Function bang measure - based on the number of
  functional primitive (bubble) in a data-flow
  diagram.
• Data bang measure - based on the number of
  entities in the ER model.

31
Dealing with problems of current estimation
methods

• use locally developed cost models
• 5 steps in defining a local cost model (DeMarco,
  1982)
• Decompose cost element
• Formulate cost theory
• Collect data
• Analyze data and evaluate model
• Check model - use PRED (0.25) or other to assess
  acceptable accuracy
