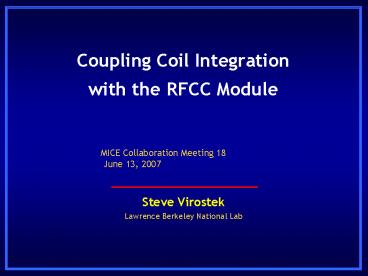

Coupling Coil Integration with the RFCC Module

1
Coupling Coil Integration with the RFCC Module
MICE Collaboration Meeting 18 June 13, 2007

• Steve Virostek
• Lawrence Berkeley National Lab

2
RF Cavity Coupling Coil Modules in MICE
RFCC Modules
3
Coupling Coil Integration Topics

• A revised coupling coil design has been developed
  by LBNL and ICST at Harbin, China
• The coil length has increased from 250 to 285 mm,
  resulting in a longer coil vacuum vessel
• New design affects access to cavity ports (RF,
  vacuum and diagnostic) and tuner connections
• Magnetic forces must be transmitted from the cold
  mass support cones to the vacuum vessel
• A new 3D CAD model has been developed by LBNL
  incorporating the ICST coupling coil model

4
Coupling Coil Design Configuration
Cryocoolers
Cold mass supports
Support cone
Service tower
He cooling pipes
Reinforcing plates
Indented sections
Coil assembly
5
Updated RFCC Module 3D CAD Model
6
Coupling Coil Gusset Connections
Gussets welded to cold mass support cones
transmit magnetic forces to vacuum shell and
support stand
Tuner actuators nest between gussets
7
Upper Cold Mass Support Cones
Weld
Weld
8
Lower Cold Mass Support Cones
Support stand side plate
Interior gusset
9
Connection to Support Side Plate
Tuner cutout
Support stand side plate
Weld
10
Vacuum Vessel Assembly to Coil
Vacuum weld on interior
11
RF Coupler/Coil Interface
Coupler vacuum sleeve nests in coil vacuum shell
recess (3 mm gap)
12
Vacuum System/Coil Interface
Vacuum manifold
Gate valve
Vacuum pump
13
Vacuum System-to-Cavity Connection
Inside cavity vacuum connection
Outside cavity vacuum connection
14
Vacuum Manifold/Coil Interface
Vacuum manifold end nests in coil vacuum shell
recess (3 mm gap)
