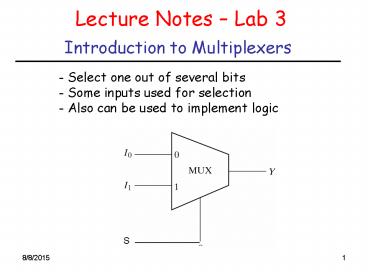

Introduction to Multiplexers
Lecture Notes Lab 3
- Select one out of several bits - Some inputs
used for selection - Also can be used to
implement logic
S
2
Introduction to Multiplexers
Lecture Notes Lab 3
True Table
3
4-to-1 multiplexer
Lecture Notes Lab 3
4
4-to-1 multiplexer
Lecture Notes Lab 3
5
4-to-1 multiplexer VHDL Implementation
Lecture Notes Lab 3
Architecture
ARCHITECTURE multiplexor4x1 OF mux4x1 IS BEGIN
PROCESS(S, D0, D1, D2, D3) BEGIN CASE
S IS WHEN "00" gt Y lt D0 WHEN "01"
gt Y lt D1 WHEN "10 gt Y lt D2
WHEN OTHERS gt Y lt D3 END CASE
END PROCESS END multiplexor4x1
Entity
ENTITY mux4x1 IS PORT ( S IN
STD_LOGIC_VECTOR (1 downto 0) D0 IN
STD_LOGIC D1 IN STD_LOGIC D2 IN
STD_LOGIC D3 IN STD_LOGIC Y OUT
STD_LOGIC ) END mux4x1
See details in the file mux4x1.vhd
6
Digital Arithmetic - Addition
Lecture Notes Lab 3
Block Diagram
A
S
B
1-bit adder
C
K
True Table
7
1-bit Adder Using Two 4-to1 Mux
Lecture Notes Lab 3
K-map for S
A A A A
0 A A 1
S
S
C
K-map for C
B K
B K
See VHDL implementation in addition.vhd
8
1-bit Adder Using Two 4-to1 Mux - VHDL
Lecture Notes Lab 3
Architecture
ARCHITECTURE addition_arch OF addition IS SIGNAL
sig1 STD_LOGIC_VECTOR (1 DOWNTO 0) BEGIN
sig1(1) lt B sig1(0) lt K P1 PROCESS
(sig1, A) BEGIN CASE sig1 IS WHEN
"00" gt S lt A WHEN "01" gt S lt
NOT(A) WHEN "10 gt S lt NOT(A)
WHEN OTHERS gt S lt A END CASE END
PROCESS P2 PROCESS (sig1, A) BEGIN
CASE sig1 IS WHEN "00" gt C lt 0
WHEN "01" gt C lt A WHEN "10 gt C
lt A WHEN OTHERS gt C lt 1 END
CASE END PROCESS END multiplexor4x1
Entity
ENTITY addition IS PORT ( A IN
STD_LOGIC B IN STD_LOGIC K IN
STD_LOGIC S OUT STD_LOGIC C OUT
STD_LOGIC ) END addition
9
Digital Arithmetic - Subtraction
Lecture Notes Lab 3
Block Diagram
X
D
1-bit subtraction
Y
B
b
True Table
10
1-bit Subtraction Using Two 4-to1 Mux
Lecture Notes Lab 3
Design a binary Subtractor Using Two 4to-1
Mux 1- K-map for D 2- Derive the inputs of the
mux D 3- K-map for B 4- Derive the inputs of the
mux B 5- Implement
11
Lecture 8 - XOR Gate
Operation
XOR (eXclusive OR)
Expressions
x ? y xy xy
Truth table
Logic gate
12
Lecture 8 - XOR Gate
  • A two-input XOR gate outputs true when exactly
    one of its inputs is true
  • XOR corresponds more closely to typical English
    usage of or, as in eat your vegetables or you
    wont get any pudding.
  • Several properties of the XOR operation

x ? y x y x y
13
More XOR
  • The general XOR function is true when an odd
    number of its arguments are true.
  • For example, we can use Boolean algebra to
    simplify a three-input XOR to the following
    expression and truth table.

x ? (y ? z) x ? (yz yz)
Definition of XOR x(yz yz) x(yz
yz) Definition of XOR xyz
xyz x(yz yz) Distributive
xyz xyz x((yz) (yz))
DeMorgans xyz xyz x((y z)(y
z)) DeMorgans xyz xyz x(yz
yz) Distributive xyz xyz
xyz xyz Distributive
K-map looks like that
yz
x
14
Adders using XOR
  • A circuit called a full adder takes the carry-in
    value into account

A ? (B ? Carry-in)
15
Parity generation using XOR
  • For a given number of bits, attach a new bit 0 or
    1, in order to ensure that the total number of 1s
    is even (odd)
  • Remember the property of XOR it is true when an
    odd number of its arguments are true.

Receiver detects the error (he computes the XOR
of 1111010, which gives 1.
Sender wants to transmit 110101 using even
parity. Then, it attach 0 (by computing the XOR
of 110101), i.e., 1101010
Channel
B
A
Channel flips a bit 1111010
