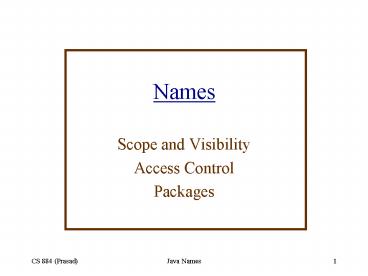

Names

1
Names

• Scope and Visibility
• Access Control
• Packages

2
Declaration

• A declaration introduces an entity into a
  Java program and includes an identifier that can
  be used in a name.
• A name is used to refer to an entity declared
  in a Java program.
• Simple Name (identifier)
• Qualified Name (period-separated sequence of
  identifiers)

3
Declarations/Definitions

• package definition (e.g., package one)
• single-type import declaration (e.g., import
  java.io.File)
• type-import-on-demand declaration (e.g., import
  java.io.)
• class definition (e.g., class Point )
• interface definition (e.g., interface Colorable
  )
• field definition (e.g., int x_coord)
• method definition (e.g., int distance (Point pt)
  )
• formal parameter definition (e.g., catch
  (Exception e) )
• local variable definition (e.g., int iterations
  0)

4
Scope of a declaration

• Region of program text within which the declared
  entity can be referred to using simple name.
• scope of package is host system dependent.
• scope of imported types is the compilation unit.
• scope of class/interface types is the package.
• scope of fields/methods is the entire
  class/interface.
• The declaration must precede use in a field
  initialization expression.
• scope of parameters/local vars is the rest of the
  block.
• int i (i 3) 2 is legal.

5

• Name conflicts due to multiple inheritance of
  interfaces?
• class C
• implements I, J
• . . .
• interface I
• int i
• interface J
• int i

• Ordering of declarations is immaterial except for
  initialization context
• class C
• f() g()
• g() f()
• int i
• int j i

6

• Static nesting of scopes
• class B extends A
• static int i
• int j
• class C extends B
• int i
• void f()
• i B.i j

• Lexical nesting of scopes
• class C
• int i
• int f(int i)
• return this.i i

7
Resolving Names

• Scopes can overlap. (Same name for different
  entities.)
• To disambiguate a name
• Use contextual information to determine if name
  refers to a package, a type, a method, a
  label, a variable (field/local/formal) etc.
• Use signature to resolve method names.
• Within nested scopes, type names, variable names
  method names resolved by shadowing, hiding, or
  overriding.
• Otherwise, Ambiguity error.
• Possible remedy use fully qualified name.

8
Name in Context

• The meaning of a name depends on the context of
  its use. (This permits certain kinds of
  multiple definitions.)
• package Reuse
• class Reuse
• Reuse Reuse Reuse(Reuse Reuse)

• Reuse for
  ()
•
  if (Reuse . Reuse (Reuse) Reuse)
•
  break Reuse
• return Reuse

9
Members (Cf. Namespaces)

• Package
• sub-package, class, interface
• every member of a package has a unique name.
• Class type
• fields and (non-constructor) methods, declared or
  inherited
• hiding, overriding, overloading
• Interface type
• constants and method signatures, declared or
  (multiply) inherited
• ambiguity resolved using qualified names
• Array type
• length, plus those inherited from class Object

10
Syntactic Classification of Names

• Method/Constructor name
• Integer.parseInt(15)
• new StreamTokenizer(inFile)
• Package name
• package abc.pqr
• import java.io.
• import java.applet.Applet
• Type name
• class SquarePanel extends java.awt.Button

11
Syntactic Classification of Names

• Expression name
• int i argv0 j
• Ambiguous name
• Local.field Package.Package.Class.field
• Parameter.field.field Class. method()
  Local.method(1,2)
• An ambiguous name is reclassified as package
  / type / expression name. Reclassification uses
  declarations and additional scoping rules. In
  Java 1.0, it implicitly assumed that classes
  cannot be nested.

12
Resolving Simple Names by Ordering Namespaces

• Local variables in a code block, for loop, or the
  parameters to an exception handler.
• Parameters to method or constructor.
• Fields of enclosing class or interface.
• Class or interface types in the compilation unit.
• Explicitly named imported types in the
  compilation unit.
• Other class or interface types in the other
  compilation units of the same package.
• Implicitly named imported types in the
  compilation unit.
• Packages available on the host system.

13
Additional Constraints

• Interpretation of keywords static and final
  as applied to classes, fields, and methods.
• See name resolution for class members.
• Disallow hiding of local variables by for loop
  parameter. However, allow non-overlapping for
  loops to have same loop parameter.

14
Access Control

• Access control is different from scope it
  specifies the part of the program text within
  which the declared entity can be referred to by a
  qualified name.
• In the context of classes, it applies to access
  to class members by qualified names, in
  subclasses, and to the constructor invocation.

15
(cont.)

• Class / Interface type
• public wherever the package is accessible.
• default local to the package.
• Members of Reference type
• public wherever the type is accessible.
• protected accessible in the package, class and
  its subclasses
• default accessible in the package
• private accessible in the class

16
Access to private members

• Private members of an object are accessible to
  other objects of the same class.
• Objects are not shielded from each other.
  Privacy is only class deep.
• complex plus (complex c)
• c . real this . real c . real
• c . imag this . imag c . imag
• return c

17
Default Access to members

• package points
• public class Point
• public int x, y
• void move(int dx, int dy)
• x dx y dy
• public void moveAlso(int dx, int dy)
• move(dx, dy)

18

• package morepoints
• public class PlusPoint extends points.Point
• public void move(int dx, int dy)
• //super.move(dx, dy) // compile-time error
• moveAlso(dx, dy)
• move in class Point is not accessible outside
  package points. So super.move() is illegal. (No
  question of overriding move in PlusPoint.)
• Invoking moveAlso on PlusPoint instance invokes
  move in package Points (and not that in
  PlusPoints). (No dynamic binding and infinite
  loop).

19
private Method Accessibility and Overriding

• A method can be overridden only if it is
  accessible.
• A private method of a class cannot be overridden
  in a subclass.
• A private method is not accessible outside its
  own class, so an invocation of a private method
  always invokes the same implementation. (cf.
  dynamic binding)

20
Access to protected members

• The protected members of a subclass object
  (defined in another package) are not accessible
  in the superclass.
• public class Point
• protected int x, y
• int dummy (threePoint.Point3D
  p)
• return p.x p.z
  // one compile-time error
• package threePoint
• public class Point3D extends Point
• protected int z

21
Access to protected members

• The protected members of a class are accessible
  to the code in a subclass (outside the package)
  only when the members belong to the subclass
  object being implemented.
• package threePoint
• public class Point3D extends Point
• protected int z
• public void delta (Point p)
• p.x this.x p.y this.y
  // compile-time errors
• public void delta3D (Point3D p)
• p.x this.x p.y
  this.y p.z this.z

22
Motivating protected Restriction

• The protected members of a class are accessible
  to the code in a subclass (outside the package)
  only when the members belong to the subclass
  object being implemented.
• Otherwise
• class Secret // in package A
• protected int i
• class Sneaky extends Secret // in package B
• public int violateProtection (Secret s)
• return (s.i) // compile-time error

23
private, protected, public (diff package)

• class S extends C
• public int i
• protected int j
• private int k
• int p(C c)
• return c.x
• // c.y c.z
• int q(S s)
• return s.x s.y
• // s.z
• s.i s.j
• s.k

• class C
• public int x
• protected int y
• private int z
• int p(C c)
• return c.x c.y
• c.z
• int q(S s)
• return s.x s.y
• // s.z
• s.i
• // s.j s.k

24
Access control super

• The protected constructors of a class are
  accessible to a subclass (outside the package)
  through the use of super in a constructor
  definition, but not in a class instantiation
  expression.
• The protected methods of a class are accessible
  to a subclass (outside the package) using its
  name when it is inherited, or using super (in
  method definitions) when it is overridden.

25
Packages

• Java Program set of packages.
• Package set of compilation units.
• Package Members sub-packages and types.
• Compilation unit with no package declaration is
  part of unnamed package.
• There is no special access relationship between a
  package and a sub-package.

26
Importing into Compilation Unit

• Implicit import java.lang. in all packages.
• Types, but not sub-packages, may be imported.
• import java.io is illegal.
• Types-imported-on-demand may be hidden by
  explicit type definitions and
  single-type-import declarations.
• A public type in a package is exported.

27
Packages to UNIX File System

• (Sub) Packages are mapped to (sub) directories.
• p.q. ... to p/q/ ...
• The names of Java source file and the
  corresponding bytecode file for public class C
  are required to be C.java and C.class resp.
• The environment variable CLASSPATH contains path
  to each top-level package (roots of forest of
  trees).
• Each subdirectory can contain an unnamed package.
  However, only the one associated with the
  CurrentWorkingDirectory is available.

28
CLASSPATH
(Sub-)Package
Compilation Unit
29
Further Updates

• Java 1.1 Nested and Inner classes
• Java 5 Importing static fields, Enumerated types
• Java 5 Overload resolution Varargs, Co-variant
  types
