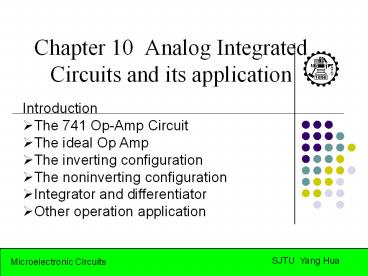

Chapter 10 Analog Integrated Circuits and its application

1
Chapter 10 Analog Integrated Circuits and its
application

• Introduction
• The 741 Op-Amp Circuit
• The ideal Op Amp
• The inverting configuration
• The noninverting configuration
• Integrator and differentiator
• Other operation application

2
Introduction
??????????????????,????????,???
??,??????????? ?????????????(??????????) ???
???????????????????????????,
???A/D???PC? ????????CPU(MCU,DSP,PC)
3
Content

• Part 1. The 741 Op-Amp Circuit and analysis.
• Part 2. Analog integrated circuits application
• _ the application of operational
  amplifier
• _ the application of comparer
  circuits

4
Part I

• Analog ICs include operational amplifiers, analog
  multipliers, A/D converters, D/A converters, PLL,
  etc.
• A complete op amp is realized by combining analog
  circuit building blocks.
• The bipolar op-amp has the general purpose
  variety and is designed to fit a wide range of
  specifications.
• The terminal characteristics is nearly ideal.

5
The 741 Op-Amp Circuit
6
Structure

• ??????????????????????
• ???????????????????
• ???? ????????????
• ????????????

7
General Description

• 24 transistors, few resistors and only one
  capacitor
• Two power supplies
• Short-circuit protection

8
(No Transcript)
9
(No Transcript)
10
The Input Stage

• The input stage consists of transistors Q1
  through Q7.
• Q1-Q4 is the differential version of CC and CB
  configuration.
• High input resistance.
• Current source (Q5-Q7) is the active load of
  input stage. It not only provides a
  high-resistance load but also converts the signal
  from differential to single-ended form with no
  loss in gain or common-mode rejection.

11
The Intermediate Stage

• The intermediate stage is composed of Q16, Q17
  and Q13B.
• Common-collector configuration for Q16 gives this
  stage a high input resistance as well as reduces
  the load effect on the input stage.
• Common-emitter configuration for Q17 provides
  high voltage gain because of the active load
  Q13B.
• Capacitor Cc introduces the miller compensation
  to insure that the op amp has a very high
  unit-gain frequency.

12
(No Transcript)
13
The Output Stage

• The output stage is the efficient circuit called
  class AB output stage.
• Voltage source composed of Q18 and Q19 supplies
  the DC voltage for Q14 and Q20 in order to reduce
  the cross-over distortion.
• Q23 is the CC configuration to reduce the load
  effect on intermediate stage.
• Short-circuit protection circuitry
• Forward protection is implemented by R6 and Q15.
• Reverse protection is implemented by R7, Q21,
  current source(Q24, Q22) and intermediate stage.

14
The Output Stage
(a) The emitter follower is a class A output
stage. (b) Class B output stage.
15
The Output Stage

• Wave of a class B output stage fed with an input
  sinusoid.
• Positive and negative cycles are unable to
  connect perfectly due to the turn-on voltage of
  the transistors.
• This wave form has the nonlinear distortion
  called crossover distortion.
• To reduce the crossover distortion can be
  implemented by supplying the constant DC voltage
  at the base terminals.

16
The Output Stage

• QN and QP provides the voltage drop which equals
  to the summer of turn-on voltages of QN and QP.
• This circuit is call Class AB output stage.

17
(No Transcript)
18
The Biasing Circuits

• Reference current is generated by Q12, Q11 and
  R5.
• Wilder current provides biasing current in the
  order of µA.
• Double-collector transistor is similar to the
  two-output current mirror. Q13B provides biasing
  current for intermediate stage, Q13A for output
  stage.
• Q5, Q6 and Q7 is composed of the current source
  to be an active load for input stage.

19
The Ideal Op Amplifier
symbol for the op amp
20
The Ideal Op Amplifier
The op amp shown connected to dc power supplies.
21
Characteristics of the Ideal Op Amplifier

• Differential input resistance is infinite.
• Differential voltage gain is infinite.
• CMRR is infinite.
• Bandwidth is infinite.
• Output resistance is zero.
• Offset voltage and current is zero.
• No difference voltage between inverting and
  noninverting terminals.
• No input currents.

22
Ideal Op amplifier works at linear region
uo Aod ( uN - uP )
1. Differential input voltage is zero
uN uP
Virtual short circuit
2. Input current is zero
iN iP 0
Virtual disconnect circuit
Working at linear region ? circuit with negative
feedback
23
Ideal Op amplifier works at nonlinear region
uo ? Aod ( u - u- )
1. Vo have only two value
uo UOPP when ugt u-
uo - UOPP when u lt u-
Virtual short circuit doesnt exsist
2.
i i- 0 Virtual disconnect-circuit
24
Equivalent Circuit of the Ideal Op Amp
25
The Inverting Configuration

• Virtual short circuit.

• Virtual disconnect-circuit

Virtual ground that is, having zero voltage but
not physically connected to ground
26
The Inverting Configuration

• The inverting closed-loop configuration.

27
The Inverting Configuration
28
Effect of finite open-loop gain
29
The Inverting Configuration

• Shunt-shunt negative feedback
• Closed-loop gain depends entirely on passive
  components and is independent of the op
  amplifier.
• Engineer can make the closed-loop gain as
  accurate as he wants as long as the passive
  components are accurate.
• Exercises example 2.2

30
Example2.2
31
Homework

• May 27th, 2009
• 2.8 2.22

32
The Non-inverting Configuration

• The noninverting configuration.

Series-shunt negative feedback.
33
The Noninverting Configuration
Effect of finite open-loop gain
34
The Voltage follower

1. The unity-gain buffer or follower amplifier.
2. Its equivalent circuit model.

35
The Weighted Summer
36
The Weighted Summer
37
(No Transcript)
38
Example 2.6 A Single Op-Amp Difference Amplifier
Linear amplifier. Theorem of linear Superposition.
39
A Single Op-Amp Difference Amplifier

• Application of superposition
• Inverting configuration

40
A Single Op-Amp Difference Amplifier
Application of superposition. Noninverting
configuration.
41
Integrators
The inverting configuration with general
impedances in the feedback and the feed-in paths.
42
The Inverting Integrators
The Miller or inverting integrator.
43
(No Transcript)
44
Frequency Response of the integrator
45
The op-amp Differentiator
46
The op-amp Differentiator
Frequency response of a differentiator with a
time-constant RC.
47
Practical op-amp Differentiator
disadvantages 1 )?????????????????,????????????,?
?????? 2) ?????????,???????????????????????????? R
1??????,?????R?????DZ1(2)???????????????????????
?,??????C1??????,?????????
48
Logarithm operation
49
Exponential operation
50
(No Transcript)
51
Instrumentation Amplifier
UAUI1,UBUI2
Output voltage
52
Integrated Instrumentation Amplifier
??????????
6?7,???1 2?6?7,???10 3?6?7,???100 5?6/4?7,???1000
INA102
53
exercises
54
Homework

• June 3rd, 2009
• 2.36 2.44 2.61 2.65
