Title: ROC809 Remote Operations Controller


1

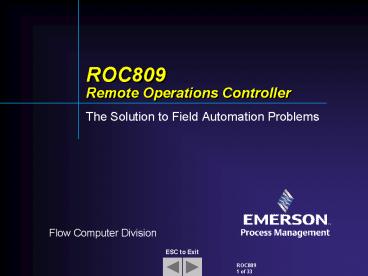

ROC809 Remote Operations Controller
  • The Solution to Field Automation Problems

2
Building on Our Reputation for Solving Problems
  • The ROC family of Remote Operations Controllers
    has established an industry benchmark for
    flexibility, robustness, ease of use and
    reliability.
  • The ROC809 builds upon this reputation with new
    features, benefits and technology that make it
    the preferred choice for your most demanding
    remote measurement and control application.

3
An RTU, Flow Computer, and PLC in One
  • The ROC809 was designed to solve many of the
    problems that limit the performance, reliability,
    and flexibility of traditional RTUs, Flow
    Computers, and PLCs.
  • With the ROC809, you have in a single device,
    the
  • Ruggedness and low power consumption of an RTU
  • Audit trails and historical data of a Flow
    Computer
  • The scalability, speed and control of a PLC.
  • RTU
  • Flow Computer
  • PLC

4
Unparalleled Applications Flexibility
  • The ROC809 is ideal for field applications where
    the monitoring, measurement and control of
    processes and equipment are required.
  • Some of the more popular applications include
  • Gas production
  • Fiscal metering
  • Compressor stations
  • Offshore platforms
  • Small gas processing operations
  • Water and wastewater facilities
  • Tank farms
  • Boilers and chillers.

5
Outstanding Functionality
IEC61131-3 compliant programming
High performance CPU and real-time operating
system
Sophisticated PID loop control
Distributed architecture
Flexible logic and sequencing control
Fast, accurate AGA flow calculations
Broad communications capability
Fill-in-the-blanks configuration
6
Field-Ready Hardware
Rugged I/O and communication modules feature
fuseless protection
DIN rail mounting tabs make installation easy
Generous wiring raceways with covers keep wiring
neat
Modular ABS housing resists corrosion
Field wiring terminals plug-in for easy module
removal
Reliable operation over a wide temperature range
I/O and communication modules can be removed and
replaced under power
Low power -- draws less than 70 ma at 12 VDC
(base unit)
7
Performance Problems Solved
  • Traditional RTUs lack the processing speed and
    capacity to handle control jobs requiring
    extremely fast response, like those performed by
    PLCs.
  • The ROC809 closes this performance gap by using
    the Motorola PowerPC (MPC862) 32-bit
    microprocessor as its engine.
  • Not only is the MPC862 fast, but it is designed
    for telecommunications and networking giving it a
    real edge over most PLCs.

8
Performance Problems Solved
  • The ROC809 uses a real-time, multi-tasking
    operating system designed specifically for the
    kind of measurement and control tasks encountered
    in field applications.
  • This operating system has proven its robustness
    in industrial control, telecommunications and
    avionics applications.

9
Performance Problems Solved
  • The high power consumption of PLCs often limits
    their use to factory applications. Low power
    consumption for remote operation was a key design
    goal of the ROC809.
  • In addition to using low-power components,
    extensive use was made of the "sleep" modes
    provided by the CPU.
  • Sleep modes shut down operations when they are
    not needed, such as certain software tasks, and
    they control power to devices such as LEDs.

10
I/O Problems Solved
  • Interfacing to end devices can be the weakest
    link in a measurement and control system.
    Problems related to grounding, wiring errors,
    electrical noise, and transients are commonplace.
  • The ROC809 solves many of these problems because
    weve designed its I/O and communications modules
    with accuracy, ruggedness and survivability in
    mind.

Thermocouple In
Analog In
Analog Out
Discrete In
Pulse In
Discrete Out
RTD In
Relay Out
11
I/O Problems Solved
  • Plug-in I/O modules make extensive use of optical
    (electrical) isolation, transient suppression,
    and current limiting. This dramatically improves
    reliability and virtually eliminates failures
    related to power, grounding and wiring errors.
  • All I/O modules are isolated from the backplane
    to minimize cross-card failures. The benefits of
    this extensive protection are less downtime,
    fewer trips to the field for repairs, and reduced
    spares inventory to name a few.

12
I/O Problems Solved
  • To facilitate expansion or repair, I/O modules
    can be removed and replaced under power. To
    simplify configuration, they are self-identifying
    to the firmware.
  • An outstanding feature of the analog input
    modules is their high accuracy. For example, the
    12-bit module uses a 16-bit analog-to-digital
    (A/D) converter for greater accuracy than most
    competitive units.

13
I/O Problems Solved
  • Up to nine I/O modules can be plugged into the
    module slots in any order and combination of
    module types.
  • The low point count density of these modules lets
    you better match I/O to your application
    requirements.
  • You buy more of what you need, and less of what
    you dont need.
  • Should a module fail, the impact on your
    application is minimized.

14
Communication Problems Solved
  • Modern automation systems place increasingly
    greater demands on the communications
    capabilities of field equipment.
  • We designed the ROC809 to blend into almost any
    system environment by virtue of its wide range of
    communications and networking options.

15
Communication Problems Solved
  • With the Ethernet capability of the ROC809, you
    can effectively extend your companys local area
    network (LAN) to the field. You get more data at
    a lower cost than with conventional
    communications methods.
  • When coupled with our DS800 Development Suite,
    Ethernet makes it possible to network ROC809s,
    giving you tremendous I/O and control
    capabilities for large applications.

16
Communication Problems Solved
  • In addition to an Ethernet port, the ROC809 has
    two built-in EIA-232 (RS-232) ports, one
    typically used for communications to a PC-based
    local operator interface, and one for
    communication to other devices.
  • Three additional ports can be added using plug-in
    Communication Modules.

17
Communication Problems Solved
  • An outstanding feature of the ROC809 is its
    Spontaneous Report-by-Exception (SRBX) Data
    Transmission capability.
  • A host computer can poll the ROC809 at a
    user-specified time interval, or the unit can
    initiate a transmission when certain alarm
    conditions occur.
  • SRBX can greatly reduce communication system
    loading and related costs.

18
Application Problems Solved
  • The problem with many RTUs, PLCs and flow
    computers is their inability to meet a wide range
    of applications common to field installations.
  • The ROC809 addresses this problem with a
    comprehensive applications package that supports
    a wide range of metering and control needs.
  • The package builds upon the outstanding features
    proven in tens of thousands of ROC300 series
    installations worldwide.

AGA calculations
PID loop control
Logic Control
Sequencing Control
19
Application Problems Solved
  • The power of the ROC809 is demonstrated by the
    number of processes that it can handle
    simultaneously with a small amount of I/O.
  • For example, 12 Meter Runs and 16 Control Loops
    can be managed by the ROC809 using only two
    multi-variable sensor ports and 16 analog outputs.

20
Application Problems Solved
  • The ROC809s gas calculations comply with AGA and
    API standards and incorporate
  • AGA 3 for orifice metering
  • AGA 7/ ISO 9951 for turbine metering
  • AGA 8 / ISO 12213-2 for compressibility
  • API Chapter 21 Section 1.
  • Setting up meter runs is fast and easy with our
    fill-in-the-blanks configuration method. Theres
    no learning curve, and minimal knowledge of AGA
    calculations is needed.

21
Application Problems Solved
  • A new feature introduced by the ROC809 is the
    Meter Station, which makes it easy to configure
    and operate multiple meter runs with similar
    properties.
  • Meter Stations also reduce communications
    overhead and reduce data entry when configuring
    multiple meter runs.
  • The ROC809 can handle up to 12 meter runs, and
    runs can be grouped in up to 12 Meter Stations.

22
Application Problems Solved
  • The ROC809 provides outstanding PID loop control
    capability that rivals that found in dedicated
    process controllers. The control firmware
    incorporates
  • Pre-configured templates for basic PID loop
    control
  • Up to 16 PID control loops each with override
    support
  • Support for both analog and discrete control
    devices.
  • In addition, special loop control strategies can
    be implemented using the extensive programming
    capabilities of the ROC809.

23
Application Problems Solved
  • The ROC809 also provides you with Function
    Sequence Table (FST) control.
  • You construct control strategies by choosing from
    a set of logic, math, comparison, time-related,
    control-related, database and general command
    sets.
  • Current ROC300 users can run their FSTs on the
    ROC809 with only minor modifications, such as
    redefining input points.

24
Programming Problems Solved
  • To fully exploit the capabilities of the ROC809,
    you dont need to be a programming expert.
  • Weve assembled programming tools that make
    almost anyone look like an expert. And all tools
    are Microsoft Windows-based for ease of use.

25
Programming Problems Solved
  • The optional DS800 Development Suite lets you
    create control strategies using any of 6
    programming languages.
  • Five are IEC 61131-3 graphical languages
  • sequential function chart
  • function block diagram
  • ladder diagram
  • structured text
  • instruction list.
  • A graphical flow chart language is also provided.

26
Programming Problems Solved
  • DS800 provides a standard programming interface
    that lets people with different backgrounds and
    skills create different elements of a program.
    When completed, all elements will work together
    seamlessly.
  • For example, if you program PLCs, DS800 lets you
    create programs in ladder logic. And, if your
    background is process control, you can create
    programs using Function Block diagrams.

27
Programming Problems Solved
  • User C/C Programming capability allows
    experienced programmers to implement control
    strategies in the ROC809.
  • We provide a library of commands that allows you
    use off-the-shelf programming tools to interface
    to the ROC809s database.
  • The User C/C support for the ROC809 was
    developed so programmers do not need an extensive
    knowledge of the firmware architecture.

28
Configuration Problems Solved
  • The ROC809 uses our Microsoft Windows- based
    ROCLINK 800 software package to perform
    configuration and data retrieval functions.
  • These functions can be performed on-site, or
    remotely through virtually any communications
    link. The remote capability can yield tremendous
    cost savings by reducing the need for on-site
    travel.
  • Operator help screens can be accessed either from
    a Help menu or in a context-sensitive fashion.

29
Configuration Problems Solved
  • With ROCLINK 800 you can
  • Configure and view I/O points, meter stations,
    flow calculations, PID control loops, system
    parameters and power management features
  • Retrieve, log and print history data
  • Retrieve, log and print events and alarms
  • Perform five-point calibration on analog inputs
    including multi-variable sensor inputs
  • Implement user security levels
  • Create and edit graphical displays
  • Create and edit Function Sequence Tables (FSTs)
  • Set up communications parameters for direct
    connection, radio interface, telephone modems and
    other communications methods.

30
Support Problems Solved
  • Doing business with Emerson Process Management
    gives you the confidence that the products,
    services and solutions you buy are backed by our
    unmatched global support. And, Emersons industry
    expertise will help you achieve your performance
    and profitability goals.
  • The information and support you need is as close
    as your telephone or web browser, or right around
    the corner. With over 600 locations in more than
    85 countries, chances are we have an office near
    you.

31
Go With the Leader in Process Control...
32
...And the Leader in Customer Service
33
Go with Emerson Process Management!
  • For detailed information on the ROC809 and other
    Flow Computer Division products, contact your
    Emerson Process Management Representative or
    call
  • 1-800-807-0730 (U.S. Canada only)
  • 1-641-754-3449 (Worldwide).
  • You can also visit us on the World Wide Web at
  • www.EmersonProcess.com/flow
Write a Comment
User Comments (0)
About PowerShow.com
