C Programming A Modern Approach

1

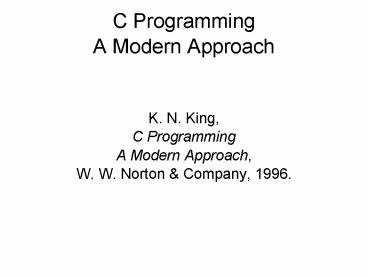

C ProgrammingA Modern Approach

• K. N. King,
• C ProgrammingA Modern Approach,
• W. W. Norton Company, 1996.

2
Note About Coverage

• This class has only part of the semester
  dedicated to C
• You already know Java, which has similar syntax
• You should be able to read the book quickly

3
Similarities of C to Java

• / Comments /
• Variable declarations
• If / else statements
• For loops
• While loops
• Function definitions (like methods)?
• Main function starts program

4
Differences between C and Java

• C does not have objects
• There are structures
• But data are not tied to methods
• C is a functional programming language
• C allows pointer manipulation
• Input / Output with C
• Output with printf function
• Input with scanf function

5
C Strengths

• Efficiency
• Limited amount of memory
• Fast
• Portability
• Compilers are small and easily written
• C UNIX and ANSI/ISO standard
• Power
• Flexibility
• Standard library
• Input/output, string handling, storage
  allocation, etc.
• Integration with UNIX

6
C Weakness

• Can be error-prone
• Flexibility
• C compiler doesnt detect many programming
  mistakes
• Pitfalls
• Can be difficult to understand
• Some features are easier to be misused
• Flexibility
• Can be difficult to modify
• No modules

7
Compiling and Linking
8
Variables and Assignments

• C is case-sensitive
• Compiler remembers only first 31 characters
• Type
• Should be declared
• int height, length, width
• Declarations must precede the statements.
• The value should be assigned before using the
  variable in computations
• height 8
• length 12
• width 5
• int volume height length width

9
Constants

• Macro definition
• define SCALE_FACTOR (5.0/9.0)
• No semicolon at the end!

10
Formatted Output printf

• printf(string, expr1, expr2,)
• Format string contains both ordinary characters
  and conversion specifications
• Conversion specification is a placeholder
  representing a value to be filled in during
  printing.
• The information after specifies how the value
  is converted form its internal form(binary) to
  printed form (characters)

11
(No Transcript)
12
(No Transcript)
13
Pitfalls
14
(No Transcript)
15
Formatted Input scanf

• scanf(string, expr1, expr2,)
• Reads input according to a particular format.
• Format string contains both ordinary characters
  and conversion specifications
• scanf(ddff, i, j, x, y)
• Number of conversion specification should match
  number of variables.
• Each conversion should be appropriate for type of
  the variable.
• while (scanf (d, i)1)

16
How scanf Works

• For each conversion specification, tries to
  locate an item of appropriate type, skipping
  blank spaces if necessary.
• Reads it, stopping when it encounters the symbol
  that cant belong o item.
• Ignores white-space characters.
• scanf(ddff, i, j, x, y)

17
(No Transcript)
18
Assignment Operators

• Simple assignment(right associative)
• int i5, j3
• int k 53
• i 72.99
• float f
• f 136
• i j k 7
• f i 33.3
• k 1 (j i)
• Compound assignments(right associative)
  ,
  -, , /,
• i j k
• i k vs i k

19
Increment and Decrement Operators

• Prefix operators i, --i
• Postfix operators i, i

20
Precedence and Associativity
21
Sub expression Evaluation

• a 5
• c (b a 2) (a 1)
• i 2
• j i i
• Any expression can be used as a statement
• i
• ij -1
• i j / i j /

22
Relational Operators

• 0 (false) and 1 (true)
• Their precedence is lower than the precedence of
  the arithmetic operators.
• Left associative
• i lt j lt k

23
Equality Operators

• 0 (false) and 1 (true)
• Their precedence is lower than the precedence of
  the relational operators.
• i lt j j lt k
• Left associative

24
Logical Operators

• Logical negation !
• !expr 1 if expr has the value 0
• Right associative
• The same precedence as unary plus and minus
• Logical and
• expr1 expr2 1 if both expr1 and expr2 has
  non-zero values
• Logical or
• expr1 expr2 1 if either expr1 or expr2 (or
  both) has non-zero values
• Short-circuit evaluation
• Left associative
• The precedence is lower that that of the
  relational and equality operators

25
if else Statement

• if (expression) statement
• if (expression) statement else statement
• Statement can be compound statements
• if (i0) vs if (i0)
• if (expression)
• statement
• else if (expression)
• statement
• else
• statement

26
(No Transcript)
27
Dangling else Problem

• if (y ! 0)
• if (x ! 0)
• result x / y
• else
• printf (Error y is equal to ) \n)
• Use compound statement
• Compiler always match the closest unmatched if
  statement

28
Conditional Expression

• expr1 ? expr2 expr3
• int i, j, k
• i 1
• j 2
• k i gt j ? i j
• k (i gt 0 ? i 0) j
• return (i gt j ? i j)
• printf (d\n, i gt j ? i j)

29
switch Statement

• switch ( expression )
• case constant-expression statements
• case constant-expression statements
• default statements
• Controlling expression should be an integer
  expression (characters)
• Constant expression cant contain variables or
  function calls.
• Statements do not require . Usually, the last
  statement is break.

30
Example
31
while Loop

• while (expression) statement
• Statement can be compound
• while (igt0) printf (d\n, i--)
• while (igt0)
• printf (d\n, i)
• i--
• Infinite loops while(1)
• Break, goto, return

32
Example
scanf(d, n)
33
do Loop

• do statement while (expression)
• Statement can be compound
• do printf (d\n, i--) while (igt0)
• do
• printf (d\n, i)
• i--
• while (igt0)

34
for Loop

• for (expr1 expr2 expr3) statement
• Statement can be compound
• expr1
• while (expr2)
• statement
• expr3
• for (i10 igt0 i--)
• printf (d\n, i)
• Infinite loop for ()
• Comma operator
• for (i1, j2 ijlt10 i, j) printf (d\n,
  ij)

35
Example
36
Exiting From a Loop break

• for (d2 dltn d)
• if (nd0) break
• if (dltn) printf (d is divisible by d\n,
  n,d)
• else printf(d is prime \n,n)
• for ()
• printf (Enter a number(0 to stop) )
• scanf(d,n)
• if (n0) break
• printf(d cubed is d\n,n,nnn)
• break escapes only one level of nesting.

37
Skipping the Rest of Iteration continue

• n 10
• sum 0
• while (n--gt0)
• scanf(d, i)
• if (i20) continue
• sumi

38
Null statement

• for (d2 dltn d)
• if (nd0) break
• for (d2 dltn nd !0 d)
• Accidentally putting a semicolon after the
  parentheses in if, while or for statement ends
  the statement prematurely.
• if (i0)
• printf (Zero\n)
• while (igt0) printf (d\n, i--)

39
Basic Types Integers

• Signedness signed (defaut), unsigned
• Size short, long
• ltlimits.hgt holds ranges for int types.

40
Integer Constants

• Decimal (base 10) literals
• digits between 0-9, no leading zero
• 15, 255, 32767
• Octal (base 8) literals
• digits between 0-7, must start with 0
• 017, 0377, 077777
• Hexadecimal (base 16) literals
• digits between 0-9 and letters between A-F (a-f),
  must start with 0x (0X)
• 0xF, 0xFF, 0x7FFF

41
Basic Types Floating Types

• ltfloat.hgt
• Assume IEEE 754 standard
• Scientific notation sign, an exponent, a
  fraction
• .57e2, 57, 5.7e1, 570.0e-1

42
Basic Types char

• Character set Latin (7 bit), ASCII (8 bit)
• Treats as integers
• unsigned (0-255) and signed (-128-127) version
• Some compilers use unsigned by default, the other
  compilers use signed by default.
• char ch65 / its A now /
• int i a / its 97 /
• ch / its B now /
• if (alt ch ch ltz)
• ch ch a A /
  chtoupper(ch)/
• for (chA chltZ ch)
• cha b / c

43
Read and Write char Alternative

• ch getchar()
• putchar(ch)
• while ( ( ch getchar() ) ! \n )
• while ((chgetchar()) )
• printf(Enter an integer )
• scanf(d, i)
• printf(Enter a command )
• command getchar()

44
sizeof Operator

• sizeof (type-name)
• Unsigned integer representing the number of bytes
  required to store a value of type-name
• sizeof(char) is always 1
• Can be applied to constants, variables,
  expressions
• int i, j
• int k sizeof(i) / k is assigned 2/
• k sizeof (i j )

45
Implicit Type Conversion

• Convert operands to the narrowest type that
  will safely accommodate both values.
• If the type of either operand is a floating
  point
• float -gt double - gt long double
• Otherwise
• if there are short and char operands,
  convert them to int, then
• int -gt unsigned int -gt long int -gt unsigned long
  int
• int i -10
• unsigned int u10

46
Conversion During Assignment

• char c A
• int ind
• float f
• double d
• i c / will get 65 /
• f i / will get 65.0 /
• d f
• i 824.97 / 824 /
• c 100000000
• f 1.0e1000

47
Explicit Type Conversion cast

• (type-name) expression
• Unary operator
• float f 3.45, frac
• frac f (int) f
• int num15, num2 3
• float quotient (float) num1/ num2
• int i1000
• long int i (long int) j j
• long int i (long int) (j j)

48
Celsius vs Fahrenheit table (in steps of 20F)?

• C (5/9)(F-32)

include ltstdio.hgt int main() int fahr,
celsius, lower, upper, step lower 0
upper 300 step 20 fahr lower
while (fahr lt upper) celsius 5 (fahr
- 32) / 9 printf("d\td\n",fahr,
celsius) fahr step return
1

• 5/9 0
• Integer arithmetic 0F 17C instead of 17.8C
• d, 3d, 6d etc for formatting integers

49
New Version Using Float
include ltstdio.hgt int main() float
fahr, celsius int lower, upper, step
lower 0 upper 300 step 20
fahr lower while (fahr lt upper)
celsius (5.0 / 9.0) (fahr - 32.0)
printf("3.0f 6.2f \n", fahr, celsius)
fahr step return 1

• 6.2f 6 wide 2 after decimal
• 5.0/9.0 0.555556
• Float has 32 bits
• Double has 64 bits
• Long Double has 80 to 128 bits
• Depends on computer

50
Version 3 with for loop
include ltstdio.hgt int main() int fahr
for (fahr0 fahr lt 300 fahr 20)?
printf("3d 6.1f \n", fahr, (5.0 /
9.0) (fahr 32.0)) return 1
51
Version 4 with Symbolic Constants
include ltstdio.hgt define LOWER 0 define UPPER
300 define STEP 20 int main() int fahr
for (fahrLOWER fahr lt UPPER fahr STEP)?
printf("3d 6.1f \n", fahr, (5.0 /
9.0) (fahr - 32.0)) return 1

52
One Dimensional Array

• Data structure containing a number of values of
  the same type.
• Declare array type, name and number of elements
• int a10
• Subscripting
• for (i0 iltN i) ai0
• for (i0 iltN i) scanf (d, ai)
• i0
• while (iltN)
• ai 0
• const int month31,28,31,30,31,30,31,31,30,31,3
  0,31

53
Array Initialization

• int a10 1,2,3,4,5,6,7
• int a 1,2,3,4,5,6,7

54
sizeof Operator for Arrays

• sizeof(varName)
• Determines the size of variable in bytes.
• for ( i 0 ilt sizeof(a) / sizeof(a0) i)
• ai0

55
Multidimensional Array

• int mij
• Stores in row-major order
• int m331,2,3,
• 4,5,6,
• 7,8,9
• int m331,2,4,5,6

56
Arrays

• Count occurrences of each digit, blank, tab,
  newline, other characters

include ltstdio.hgt int main() int c, i,
nwhite, nother int ndigit10 nwhite
nother 0 for (i0 ilt10 i)? ndigiti
0 while ((c getchar()) ! EOF)? if (c
gt '0' c lt '9')? ndigitc-'0'
else if (c ' ' c '\n' c '\t')?
nwhite else
nother

printf("digits ") for (i0 ilt10 i)?
printf("d ",ndigiti) printf(", white space
d, other d\n",nwhite, nother)
57
Functions

• return type function-name (parameters)
• declarations
• statements
• Function can not return array
• If function doesnt return value, use void.
• List of parameters type name, type name (void)
• ex.float average(float a, float b) return
  (ab)/2

58
Function Calls

• A call of void function is a statement
• void f (int a)
• printf(d\n, a)
• f(345)
• A call of non-void function is an expression
• float average(float a, float b)
• return (ab)/2
• float av average (345, 2)

59
Function Declaration

• C doesnt require to define function before its
  first use.
• void main()
• int i 4, k5
• float av average (i,k)
• float average(float a, float b) return
  (ab)/2
• To ensure error message, declare function before
  its first call (function prototype)
• return-type function-name(parameters)
• float average (float a, float b)
• float average(float, float)

60
Arguments

• Parameters appear in function definition
• Arguments are expressions in function calls.
• In C, arguments are passed by value
• int power (int x, int n)
• void main
• int k3, pow power (2, k)
• int power (int x, int n)
• int result1
• while (n-- gt0) resultx
• return result

61
Example

• void decompose (float x, int integer, float
  fract)
• integer (int) x
• fract x integer
• void main()
• int i5
• float f 3.4
• decompose (3.14, i, f)

62
Array Arguments

• int f (int a)
• int sum(int, int)
• int sum(int a, int n)
• int i,sum0
• for(i0 iltn i) sumai
• return sum
• int a101,4,6,7,3,2,4
• int total sum (a, 10)
• int f(int a10)

63
return and exit Statements

• return expression
• double Largest (double x, double y)
• return xgty? x y
• void print_int(int i)
• if (ilt0) return
• printf(d\n,i)
• The value returned by main is a status code.
• In ltstdlib.hgt exit(expression)
• Normal success EXIT_SUCCESS (0)
• Abnormal termination EXIT_FAILURE (1)

64
Recursive Function

• int power (int x, int n)
• return n0? 1 xpower(x, n-1)
• int factorial(int n)
• return nlt1 ? 1 nfactorial(n-1)
• int sum_digits(int n)
• return n0 ? 0 n10sum_digits(n/10)

65
Functions
include ltstdio.hgt int power(int, int)
/ function prototype / int main() int i
for (i 0 i lt 10 i)? printf("d d
d\n", i, power(2,i), power(-3,i)) int
power(int base, int n) int p for (p 1 n
gt 0 --n)? p p base return p

66
Functions

• Call by value mechanism
• Change in n's value not reflected in main
• Using pointers, we can achieve Call by reference
  effect.

67
External (Global) Variables

• All variables declared so far are local to the
  functions
• External or Global variables are accessible to
  all functions
• These are defined once outside of functions
• Must be defined once more within each function
  which is going to use them

68
Scope Rules

• Automatic/Local Variables
• Declared at the beginning of functions
• Scope is the function body
• External/Global Variables
• Declared outside functions
• Scope is from the point where they are declared
  until end of file (unless prefixed by extern)?

69
Scope Rules

• Static Variables use static prefix on functions
  and variable declarations to limit scope
• static prefix on external variables will limit
  scope to the rest of the source file (not
  accessible in other files)?
• static prefix on functions will make them
  invisible to other files
• static prefix on internal variables will create
  permanent private storage retained even upon
  function exit

70
Example

• int i //global variable
• void f1 ()
• int j0 //call every time when f invoked
• j

void f2 () static int j0 //only done once
j
71
Scope Rules

• Variables can be declared within blocks too
• scope is until end of the block

72
Data Structures (struct)

• Arrays require that all elements be of the same
  data type.
• C and C support data structures that can store
  combinations of character, integer floating point
  and enumerated type data. They are called a
  structs.

73
Structures (struct)

• A struct is a derived data type composed of
  members that are each fundamental or derived data
  types.
• A single struct would store the data for one
  object. An array of structs would store the data
  for several objects.
• A struct can be defined in several ways as
  illustrated in the following examples
•

74
Declaring Structures (struct)
struct date int day char
month3 char year4 / The name date"
is called a structure tag / Struct date
date1 Struct date date2 3,Jan,1912

• Struct
• int day
• char month3
• char year4
• my_date
• my_date date3 2,Jul,2010

75
User Defined Data Types (typedef)

• The C language provides a facility called typedef
  for creating synonyms for previously defined data
  type names. For example, the declaration
•
• typedef int Length
• makes the name Length a synonym (or alias)
  for the data type int.
• The data type name Length can now be used in
  declarations in exactly the same way that the
  data type int can be used
• Length a, b, len
• Length numbers10

76
Typedef Struct

• Often, typedef is used in combination with struct
  to declare a synonym (or an alias) for a
  structure
•
• typedef struct / Define a structure /
• int label
• char letter
• char name20
• Some_name / The "alias" is Some_name /
•
• Some_name mystruct / Create a struct
  variable /

77
Accessing Struct Members

• Individual members of a struct variable may be
  accessed using the structure member operator (the
  dot, .)
•   mystruct.letter
•
• Or , if a pointer to the struct has been declared
  and initialized
•   Some_name myptr mystruct
•   by using the structure pointer operator (the
  -gt)
•   myptr -gt letter
•   which could also be written as
•   (myptr).letter

78
Sample Program With Structs

• int main ( )
• struct identity js "Joe Smith", ptr js

• js.person.id 123456789
• js.person.gpa 3.4
• printf ("s ld f\n", js.name, js.person.id,
• js.person.gpa)
• printf ("s ld f\n", ptr-gtname,
  ptr-gtperson.id,
• ptr-gtperson.gpa)

/ This program illustrates creating structs and
then declaring and using struct variables. Note
that struct personal is an included data type in
struct "identity".
/ include ltstdio.hgt struct
personal //Create a struct long
id float gpa struct identity
//Create a second struct that includes the first
one. char name30 struct
personal person
79
Enumeration enum

• enum is a type whose values are listed
  (enumerated) by the programmer who creates a name
  (enumeration constant) for each of the values.
• enum yellow,red, green, blue c1,c2
• enum colors yellow,red, green, blue
• enum colors c1,c2
• typedef enum yellow,red, green, blue Colors
• Colors c1,c2
• typedef enum FALSE, TRUE Bool
• C treats enumeration variables and constants as
  integers.

80

• include ltstdio.hgt
• int main( )
• int apr570,0,0,0,1,2,3,4,5,6,7,8,9,10,
• 11,12,1314,15,16,17,18,19,20,21,22,23,24,
• 25,26,27,28,29,30
• enum days Sunday, Monday, Tuesday,
• Wednesday, Thursday, Friday, Saturday
• enum week week_1, week_2, week_3,
• week_4, week_5
• printf ("Monday at the third week of April is
• April d\n, apr week_3 Monday )

81
enum

• enum dept CS20, MATH10, STAT25
• enum colors BLACK, GRAY7, DK_GRAY, WHITE15 c
• int iGRAY /its 7 now/
• c0 /its BLACK
  now/
• c8 /its DK_GRAY
  now/
• i c4 2 / its 16 now /
• typedef struct
• enum RANK, DEG kind
• union status
• int rank
• char deg4 status

82
Pointers

• Executable program consists of both code and
  data.
• Each variable occupies one or more bytes of
  memory
• The address of the first byte is said to be the
  address of the variable.
• Pointer variable is a variable storing address.
• int i1
• int p i
• Declaration
• type name
• int i, j, p

p
1
i
2000

83
The Address and Indirection operators

• operator returns address of a variable
• int i, p
• p i
• int i, pi
• p is alias for i.
• i1 p2
• operator returns an object that a pointer
  points to.
• printf(d\n, p)
• int jI

84
Pointer Assignment

• int x ,y, p, q
• p x
• q y
• qp
• p 1
• q 2
• int x1, y2, p, q
• p x
• q y
• p q

85
Pointers as Argument

• void decompose (float x, int integer, float
  fract)
• integer (int) x
• fract x integer
• void main()
• int i5 float f 3.4
• decompose (3.14, i, f)
• scanf(d, i)
• p i
• scanf(d, p)

86
const to Protect Arguments

• void f(const int p)
• int j
• pj
• p1
• void f(int const p)
• int j
• pj
• p1
• void f(const int const p)
• int j
• pj
• p1

87
Pointers as Return Values

• double Largest (double x, double y)
• return xgty? x y
• int p, x,y
• p max(x, y)
• You can return pointer to one element of the
  array passed as an argument, to static local
  variable, to external variable.
• Never return a pointer to an automatic local
  variable!

88
Pointer Arithmetic

• int a5, pa0
• pa
• int q
• pa2
• qp2
• p

89
Pointer Arithmetic

• int a5, q, pa4
• qp-3
• p-4

90
Pointer Arithmetic

• int a5
• int qa1, pa4
• int ip-q
• iq-p

• Meaningful, if pointers point to the element of
  the same array.
• pltq
• int sum0
• for (pa0pltaN p)
• sump

91
Combining and (--)

• int sum0, pa0
• while (pltaN)
• sump

92
Array Name as a Pointer

• int a10, pa
• a 7
• (a1)12
• (ai) is the same as ai
• pi is the same as (pi)
• for (pa pltaN p) sump
• Array parameter is treated as pointer, so its
  not protected against change.
• The time required to pass array to a function
  doesnt depend on its size.
• int f(int a) is the same as int f(int a)
• int max f(a5,10)

93
Pointer Example
cat ptr_example.c include ltstdio.hgt int
main() int x1 int p / p points to
an integer / p x / Set p to x's
address / printf(" x is d\n", x) p
0 / Set p's value to 0 / printf(" x now
is d\n", x) return 0 gcc
ptr_example.c -o ptr_example ./ptr_example x
is 1 x now is 0
94
Using pointers to achieve Call-By-Reference effect

• Pass the address of a variable
• Alter the value

void swap (int px, int py) int temp
temp px px py py temp
int a10,b20 swap(a,b)
95
Main difference between arrays and pointers

• Even though both contain addresses
• Array name is not a variable so
• pa a pa OK
• a pa a NOT OK
• When an array name is passed as a parameter to a
  function
• Actually the address of the first element is
  passed
• Arrays are always passed as pointers

96
Strings

• Double quotes
• C treats string literals as character arrays,
  that is, a pointer of type char .
• For string literal of length n, it stores n
  characters of the string literal and null
  character (\0) to mask the end of the string.
• char ch abc1
• char digit_to_hex(int digit)
• return 0123456789ABCDEFdigit
• char pabc
• pb / not recommended/

97
String Variables

• char strlength1
• char date8June 14
• char date9June 14 /2 null characters at
  the end/
• char dateJune 14
• char dtJune 14
• Characters of array date can be modified, dt
  points to string literal which characters should
  not be modified.
• date is an array name, dt is a pointer and can
  point to the other string literal.
• char strlength1, p
• pstr

98
Writing Strings

• printf(s\n,str)
• printf(.4s\n,C is a fun language)
• printf(10s\n,Hi)
• printf(10.4s\n,C is a fun language)
• puts(str)

99
Reading Strings

• scanf(s, str) / never contain white spaces/
• scanf(10s, str)
• gets(str)
• Reads until finds newline character
• It replaces newline character with null character
  before storing to a variable
• Doesnt skip leading white spaces

100
C String Library

• char str110,str210
• str1abc /wrong/
• str2str1 /wrong/
• str1str2 compares pointers!
• ltstring.hgt
• char strcpy(char s1, const char s2)
• strcpy(str2, abcd)
• strcpy(str1,strcpy(str2, abcd))

101
C String Library

• char strcat(char s1, const char s2)
• strcat(str1, abc) strcat(str2, def)
• strcat(str1, strcat(str2,gi))
• int strcmp(const char s1, const char s2)
• Lexicographic ordering
• if (strcmp(str1,str2)lt0)
• size_t strlen(const char s)
• int len strlen(abc)
• len strlen()

102
String Idiom

• Search for the null character at the end of a
  string
• while(s) s
• while(s)
• size_t strlen(const char s)
• const char ps
• while (s)
• return s-p

103
Dynamic Storage Allocation

• Its ability to allocate storage during program
  execution
• Available for all types of data
• Mostly used for strings, arrays and structures.
• Dynamically allocated structures can form lists,
  trees and other data structures.
• ltstdlib.hgt
• malloc allocates a block of memory, but doesnt
  initialize it
• calloc allocates a block of memory and clears it
• free releases the specified block of memory

104
NULL Pointer

• If memory allocation function cant allocate a
  block of the requested size, it returns a null
  pointer (NULL).
• ltlocale.hgt,ltstddef.hgt,ltstdio.hgt,ltstdlib.hgt,
  ltstring.hgt, lttime.hgt
• It is responsibility of a programmer to test if
  received pointer is a null pointer.
• pmalloc(1000)
• if (pNULL) / appropriate actions/

• if ((pmalloc(1000))NULL) /actions/

• if (p) . is the same as if (p!NULL)
• if (!p) . is the same as if (pNULL)

105
Using malloc Strings

• void malloc(size_t size)
• Allocates a block of size bytes and returns a
  pointer to it if fails, returns NULL.
• Since sizeof(char) is1, to allocate space for a
  string of n characters
• char pmalloc(n1)
• Memory allocated using malloc isnt cleared or
  initialized strcpy(p, abc)
• There are no checks to detect usage of memory
  outside the bounds of the block
• Dynamical allocation makes possible to write
  functions that return a pointer to a new
  string char p
  concat(abc,def)

106

• includeltstring.hgt
• includeltstdlib.hgt
• includeltstdio.hgt
• char concat(const char s1, const char s2 )
• char resultmalloc(strlen(s1)strlen(s2)1)

• if (resultNULL)
• printf(malloc failed\n)
• exit(EXIT_FAILURE)
• strcpy(result,s1)
• strcpy(result,s2)
• return result

107
Dynamically Allocated Arrays

• Elements of an array can be longer than one byte
  gt sizeof should be used.
• int amalloc(n sizeof (int))
• for(i0iltni) ai0
• void calloc(size_t nmemb, size_t size)
• Allocates space for an array with nmemb elements,
  each of which is size bytes sets all bits to 0
  and returns a pointer to it.
• If space is not available, returns NULL.
• int acalloc(n, sizeof(int))
• struct point int x,y p
• pcalloc(1, sizeof(struct point))

108
Deallocating Storage

• Memory block are obtained from a storage pool
  (heap).
• Garbage is a block of memory thats no longer
  accessible to a program.
• A program that leaves garbage behind has a memory
  leak.
• int pmalloc(100), qmalloc(100)
• pq
• void free (void ptr)
• int pmalloc(100), qmalloc(100)
• free(p)
• pq

109
Memory Leak Examples

• int int_ptr
• for ()
• int_ptr malloc(100 sizeof(int) )
• if ( int_ptr NULL )
• fprintf(stderr, "...")
• exit(1)
• for ( i 1 i lt 5 i)
• printf("s\n", concat(abc,
  012345digit))

110
Memory Leak

• for ( i 1 i lt 5 i)
• char strconcat(abc, 012345digit)
• printf("s\n", str)
• free(str)
• for ( i 1 i lt 5 i)
• char strconcat(abc, 012345digit)
• free(str)
• printf("s\n", str)
• free(str)

111
Dangling Pointers

• char pmalloc(4)
• free(p)
• strcpy(p,abc) /wrong/
• Several pointers may point to the same block of
  memory. When the block is freed, all these
  pointers are left dangling.

112
Memory Allocation Rules

• If memory is allocated it must be freed.
• Do not use memory after it is freed.
• Do not free memory that will be used later.
• Do not free a block of memory more than once.
• Do not free memory that was not allocated.
• Do not use memory outside the bounds of an
  allocated block.

113
Linked Lists

• A linked list is a chain of structures (nodes),
  with each node containing a pointer to the next
  node in the chain.
• The last node in the list contains a null pointer.

114
Declaring a Node Type

• struct node
• int value
• struct node next
• struct point
• double x,y
• struct vertex
• struct point element
• struct vertex next

115
Building Linked List

• First, create an empty list
• struct node firstNULL
• Then create nodes one by one
• Allocate memory for the node
• struct node new_node
• new_nodemalloc(sizeof (struct node))

• Store data into the node
• (new_node).value10
• new_node-gtvalue10
• Insert the node into the list

116
Inserting a Node at the Beginning of the List

• If first points to the first node of the linked
  list
• new_node-gtnextfirst
• firstnew_node

struct node firstNULL, new_node
new_node
new_nodemalloc(sizeof (struct node))
117
Inserting a Node at the Beginning of the List
new_node-gtvalue10
new_node-gtnextfirst
firstnew_node
118
Inserting a Node at the Beginning of the List
new_nodemalloc(sizeof (struct node))
new_node-gtvalue20
new_node-gtnextfirst
firstnew_node
119
Searching a Linked List

• for (pfirst p!NULL pp-gtnext)
• int value20 struct node p
• for (pfirst p!NULL pp-gtnext)
• if (p-gtvalue value) return p
• struct node find(struct node list, int n)
• while (list!NULL and list-gtvalue!n )
• pp-gtnext
• return list

first
20
10
120
Inserting a Node at the Middle of the List

• struct node pfirst
• struct node cur find(p, 10)

• struct node tmp malloc(sizeof (struct node))
• tmp-gtvalue cur-gtvalue
• tmp-gtnext cur-gtnext_ptr

• cur-gtvalue 15
• cur-gtnext tmp

121
Deleting a Node from the List

• struct node pfirst
• struct node cur find(p, 20)
• struct node tmp
• tmp cur-gtnext

• cur-gtvalue tmp-gtvalue

• cur-gtnext tmp-gtnext

• free(tmp)

122
Review

• C versus Java
• C data types
• Functions
• Control Flow
• Scope
• Pointers, Arrays
• Strings
