Title: NASA Technology Roadmap: Launch Propulsion Systems


1

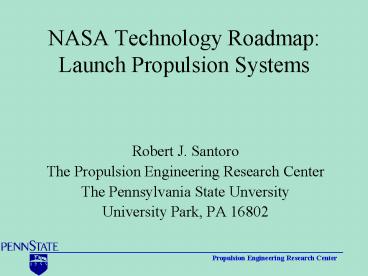

NASA Technology RoadmapLaunch Propulsion Systems
  • Robert J. Santoro
  • The Propulsion Engineering Research Center
  • The Pennsylvania State Unversity
  • University Park, PA 16802

2
Context for Current NASA Planning
  • No access to low earth orbit (LEO) after Space
    Shuttle retirement.
  • Access to Space Station dependent on Soyuz in the
    near term.
  • Decision to enable and rely on commercial space
    launch capabilities to provide access to LEO in
    the near term and eventually beyond LEO.
  • 2011 NASA Strategic Plan notes current U.S.
    launch capability for many planetary missions
    only possible using Delta and Atlas vehicles.

3
Other Challenges
  • NASA has not developed a new rocket launch engine
    or vehicle since the Space Shuttle.
  • All NASA personnel with experience on Saturn V
    program (LOX/RP engine) have retired or died.
  • Most of the engineers that worked on the Space
    Shuttle development program have or will soon
    retire.
  • Current NASA or U.S. commercial space vehicle
    workforce has little or no experience with system
    integration challenges of developing a new
    launch vehicle engine or a new vehicle.

4
Commercial Launch Vehicles
  • Promising launch vehicles such as the Space-X
    Falcon 9 and Orbital Sciences Taurus II rely on
    old engine technology such as the former TRW
    pintle-based injector technology or the Russian
    NK-33 engine, respectively.
  • Use of innovations related to advances in
    lighter, stronger materials and electronics for
    Avionics, Guidance/Navigation/Control have
    impacted reliability and lowered cost for these
    vehicles.

5
  • What technologies should NASA invest in to make
    the biggest difference in terms of
  • a) increasing capabilities to do NASAs space
    missions or
  • b) lowering the cost for those missions?

6
Lowering Costs
  • The NASA rocket-based combined cycle (RBCC)
    program showed the biggest factor in lowering
    costs is flight rate.
  • Costs for launching payloads for 500-1000 per
    pound requires flight rates of 100 to 200 flights
    per year, which is probably true for reusable as
    well as expendable vehicles
  • Reduce parts count, which increases reliability
    and decreases needed inventories

7
Lowering costs for Reusable Vehicles
  • Reduce the number of people required to turn
    around the vehicle for the next flight.
  • Use propellants that do not require special
    handling for worker health and safety (e.g.
    N2O4).
  • Design for easy access for servicing vehicle.
  • Service at landing site

8
Near term (5 years) most important technology for
NASA investment
  • Development of a highly reliable chemical rocket
    engine for launch applications
  • Propellant selection is very important and has
    two options
  • LOX/LH2 draws on current NASA knowledge and
    experience base.
  • LOX/RP has superior fuel mass density as compared
    to LH2 that significantly affects fuel tank size
    and weight which is reflected in vehicle mass.
    In my opinion, LOX/RP is the correct technical
    choice. However, LOX/RP engines have not been a
    focus of NASA since the Saturn V program and
    will require a steeper learning curve.

9
Longer term (20 years) most important technology
for NASA investment
  • Development of a two-stage, combined cycle
    vehicle for space access to LEO and beyond.
  • Game changing development in terms of access to
    space and cost
  • Either TBCC or RBCC should be pursued at first
    with the focus on the high speed turbine
    technology for TBCC. For RBCC focus on the the
    rocket ejector system. Both require the same
    ram/supersonic cycles in the full engine
    operation
  • Second stage should be a more conventional liquid
    chemical rocket engine, likely using LOX/LH2.

10
Rationale for NASA to develop a Two-Stage
Combined-Cycle engine
  • Complexity of engine requires the broad rocket
    and air-breathing expertise found in NASA.
  • First stage would be reusable and more like
    current aircraft operation.
  • First stage operation using air reduces
    propellant weight while operating at lower
    chamber pressure and reduced parts count.
  • Second stage could provide wide payload size
    flexibility through sizing of this stage.

11
Other projects of merit
  • Pulse detonation engines for both closed cycles
    (rockets) and open cycles (air breathing
    engines).
  • Game changing potential due to higher Isp and
    fewer moving parts.
  • Potential to reduced operating pressures of
    turbomachinery for rocket engines and fewer
    compressor stages for high compression ratio jet
    engine applications.
  • New upper stage rocket engine using shuttle
    derived or expander cycle.

12
Constructive Criticisms
  • Due to current budget and mission uncertainty,
    the technology roadmap is very broad and will
    need to be focused early in the program.
  • The Fundamental Liquid Propulsion Technology
    (1.2.6) TRL 1-3 level effort should be extended
    from two years to five years. There still is a
    need for more fundamental research on specific
    areas (e.g. combustion instability).

13
Questions????
