Attention, Selection and Nonconceptual Reference

1

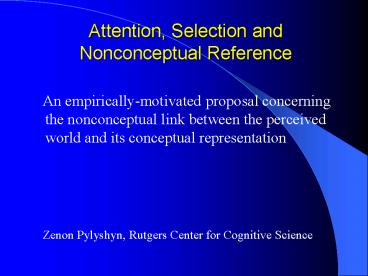

Attention, Selection and Nonconceptual Reference

• An empirically-motivated proposal concerning
  the nonconceptual link between the perceived
  world and its conceptual representation

Zenon Pylyshyn, Rutgers Center for Cognitive
Science
2
Focal attention What is it for?Perceptual
selection and perceptual demonstratives

• The principal function of focal attention is to
  select. But why do we need to select?
• We must select because our capacity to process
  information is limited.
• We also must select because we need to be able to
  mark certain tokens in the perceived world and to
  refer to the marked tokens qua individuals (e.g.,
  as in counting things).
• Another way to put this is that we need to select
  in order to refer to things and we need to refer
  to things whenever we detect relational
  properties among them (Collinear, Inside,
  Part-of, Connected-to, ...)
• An important reason for early selection is that
  it provides a way to group properties
  appropriately at the earliest (nonconceptual)
  stages of perception and thus to help solve the
  binding problem
• Thats what this talk is about but first some
  background

3
Some background .

• The early origins and motivation for the view
  that there is nonconceptual selection a
  personal introduction

4
Why do we need to be able to pick out individuals
without concepts?

• We need to make nonconceptual contact with the
  world through perception in order to stop the
  regress of concepts being defined in terms of
  other concepts which are defined in terms of
  still other concepts sometimes called the
  symbol grounding problem
• Sensory transduction appears to be the universal,
  though typically tacit, assumption about how
  grounding occurs, at least in psychology and
  artificial intelligence. Yet most concepts
  cannot be reduced to sensory transduction.
• My proposal is that nonconceptual selection of
  individual objects is the primitive basis for all
  conceptualization and predication
• The argument for nonconceptual selection of token
  objects as the primitive operation is primarily
  empirical.
• I begin with a personal experience in developing
  a model for reasoning about geometry by drawing a
  diagram.

5
Begin by drawing a line.
6
Now draw a second line.
7
And draw a third line.
8
Notice what you have so far.(noticings are
local you encode what you attend to)
There is an intersection of two lines But which
of the two lines you drew are they? There is no
way to indicate which individual things are seen
again unless there is a way to refer to
individual things
9
Look around some more to see what is there .
L3
L6
Here is another intersection of two lines Is it
the same intersection as the one seen earlier? To
be able to tell without a reference to
individuals you would have to encode unique
properties of the individual lines. Which
properties should you encode?
10
Keeping track by encoding unique properties of
individual items will not work in general

• No description can keep picking out the same
  individual when it is changing its location or
  appearance unpredictably
• But a perceptual representation is always
  changing since it is always built up over time as
  properties are noticed so you need a way to
  find the representation of a particular token
  element when new properties of that particular
  token element are noticed
• Many writers have postulated a marking process
  for computing relational predicates. But where
  is the mark placed? It cant be placed in the
  representation, because its purpose is to keep
  track of which things in the world correspond to
  which things in the representation (e.g.
  counting).
• People can pick out several individual items even
  if they are in a field of identical individuals
  e.g., pick out a dot in a uniform field of dots
  so the picking out cannot be done solely by
  direction of gaze.

11
Footnote

• Notice that in the previous example it would
  not help if you labeled the diagram as you drew
  it. Why not?
• Because to refer to the line with label L1 you
  would have to be able to think This is line L1
  and you could not think that unless you had a way
  to think this and the label would not help you
  to do that!
• Being able to think this is another way to view
  the very problem I will be concerned with in this
  talk. You need an independent way to pick out and
  refer to an individual element even if it is
  labeled! (I will also provide evidence that you
  need to do this for several individuals
  simultaneously).
• This is exactly the point of Kaplans and Perrys
  claim about the essential indexical

12
The requirements for picking out individual
things and keeping track of them reminded me of
an early comic book character called Plastic Man
13
Imagine being able to place several of your
fingers on things in the world without being able
to detect their properties in this way, but being
able to refer to those things so you could move
your gaze or attention to them. If you could you
would possess FINgers of INSTantiation FINSTs!
14
Outline of remainder of this talk

• Selection What is selected?
• Places vs Objects (Posner analogue attention
  movement)
• Evidence in favor of object-based selection
• Selection and demonstrative reference
• Multiple selection
• FINST Theory and Object Files
• Multiple Object Tracking (MOT) and FINST Indexes
  as direct (non-conceptually-mediated) reference
• Selection and the Binding Problem
• Implication for philosophical ideas about
  individuals, tracking and nonconceptual
  representation

15
Covert movement of attention


Example of an experiment using a cue-validity
paradigm for showing that the locus of attention
moves without eye movements and for estimating
its speed. Posner, M. I. (1980). Orienting of
Attention. Quarterly Journal of Experimental
Psychology, 32, 3-25.
16
Extension of Posners demonstration of attention
switch
Does the improved detection in intermediate
locations entail that the spotlight of
attention moves continuously through empty space?
17
But the enhancement of intermediate locations
does not require a continuous analogue movement
of attention through empty space

• When attention is attracted by an onset event,
  the appearance of analog movement of focal
  attention can be explained by a punctate
  (quantal) theory of attention-switching Sperling
  Weichselgartner (1995) an episodic theory of
  attention shift
• This raises the possibility that in shifting
  between two objects, attention does not actually
  move through empty space
• Maybe attention is allocated to objects rather
  than locations?

18
Evidence for Objects as the basis for selection

• Single Object Advantage pairs of judgments are
  faster when both judgments concern the same
  perceived object
• Entire objects acquire enhanced sensitivity from
  the allocation of focal attention to part of the
  object
• Single-Object advantage occurs even with
  generalized objects defined in feature space
  (Blaser Pylyshyn, 2000) and even when the
  object is distributed over time-slices (Flombaum
  Scholl, 2006)
• Clinical (brain damage) syndromes such as
  Simultanagnosia and Hemispatial Neglect show
  object-based properties
• Attention moves with Moving Objects
• Inhibition of Return (IOR)
• Object Files
• Multiple Object Tracking MOT (and generalization
  to movement in feature space)

19
Single-object superiority even when the shapes
are controlled
There are a large number of published experiments
showing that when several perceptual judgments
are made they are faster when they pertain to the
same object, even when all other factors are
controlled
20
Attention spreads over perceived objects
Spreads to B and not C
Spreads to C and not B

Spreads to B and not C
Spreads to C and not B
Using a priming method (Egly, Driver Rafal,
1994) showed that the effect of a prime spreads
to other parts of the same visual object compared
to equally distant parts of different objects.
21
Objecthood endures over space-time

• Several studies have shown that what counts as
  the same object endures over time and location
• Object-specific priming (Kahneman Scholl),
  Inhibition of return (Tipper)
• Inhibition of return is object-based
• Certain forms of disappearance-reappearance
  preserve objecthood
• Multiple Object Tracking MOT (Scholl, Keane)
• Apparent motion (Kolers, Yantis)
• Tunnel Effect (Michotte, 1953 Flombaum Scholl,
  2006)
• This identity constancy gives visual objects a
  real physical-object character and is one of the
  reasons why psychologists refer to them as
  objects.

22
Objects endure despite changes in location and
they carry their history with them!
Object File Theory of Kahneman Treisman
Letters are faster to read if they appear in the
same box in which they had appeared initially.
Priming travels with the object. According to
the theory, when an object first appears, a file
is created for it and the properties of the
object are encoded and subsequently accessed
through this object-file.
23
Inhibition of return appears to be object-based

• Inhibition-of-return is thought to help in visual
  search since it prevents previously visited
  objects from being revisited
• The original study used static objects. Then
  (Tipper, Driver Weaver, 1991) showed that IOR
  moves with the inhibited object.

24
IOR appears to be object-based (it travels with
the object that was attended)
25
There is also evidence from clinical studies
supporting object-based selection

• Hemispatial Neglect
• Balint and simultanagnosia syndromes

26
Simultanagnosic (Balint Syndrome) patients attend
to only one object at a time
Simultanagnosic patients cannot judge the
relative length of two lines, but they can tell
that a figure made by connecting the ends of the
lines is not a rectangle but a trapezoid (Holmes
Horax, 1919).
27
An empirical hypothesis To select is to refer

• When we select an object with focal attention we
  thereby refer to it. Consequently we can e.g.,
• Entertain thoughts about it (this is red)
• Carry out certain actions towards it (e.g., move
  our gaze to it)
• But we can select several (n 4) objects at once
  so
• We can have demonstrative thoughts about several
  objectsthis1 is above this2
• Having selected several objects we can evaluate
  predicates over them or move focal attention to
  them
• We can also subitize them or search through them
  ltexperimentsgt
• We can keep track of selected objects if we or
  they move unpredictably or change their
  properties ltMOTgt

28
Pick out 3 dots I will cue and keep track of them

• In a field of identical elements you can select
  several of them and move your attention among
  them (e.g., move one up or Move 2 right etc)
  so long as at no time do you have to hold on to
  more than 3 or 4 dots

29
Subset selection for search
Burkell, J., Pylyshyn, Z. W. (1997). Searching
through subsets A test of the visual indexing
hypothesis. Spatial Vision, 11(2), 225-258.
30
Subset search results

• Only properties of the subset matter
• If the subset is a single-feature search it is
  fast and parallel
• If the subset is a conjunction search set,
  finding the target takes longer and is a serial
  search (RT increases with set size)
• The distance between targets does not matter, so
  observers dont seem to be scanning the display
  looking for the target but can switch their
  attention directly to the subset items.
• This finding supports the claim that we have a
  small number of FINST indexes that can be
  captured by sudden onsets and can serve to direct
  focal attention

31
Individuals and patterns

• Vision does not recognize patterns by applying
  templates but rather by decomposing them into
  parts Recognition-By-Parts (Biederman, 2000)
• A pattern is encoded over time (and often over
  different views separated by saccades), so the
  visual system must keep track of the individual
  parts and merge descriptions of the same part at
  different times and stages of encoding
• In recognizing a pattern, the visual system must
  pick out individual parts and bind them to the
  representation being constructed

32
Are there collinear items (ngt3)?
33
Several objects must be picked out at once in
making relational judgments

• The same is true for other relational judgments
  like inside or on-the-same-contour etc. We must
  pick out the relevant individual objects first.
  Respond Inside-same contour? On-same contour?

34
When items cannot be individuated, predicates
over them cannot be evaluated? Do these figures
contain one or two distinct curves? ?
Individuating these curves requires a curve
tracing operation, so Number_of_curves (C1,
C2, ) takes time proportional to the length
of the shortest curve.
35
The figure on the left is one continuous curve,
the one on the right is two distinct curves as
shown in color.
36
Signature subitizing phenomena only appear when
objects are automatically individuated and indexed
Counting slope
subitizing slope
Trick, L. M., Pylyshyn, Z. W. (1994). Why are
small and large numbers enumerated differently? A
limited capacity preattentive stage in vision.
Psychological Review, 101(1), 80-102.
37
Our principal methodology Multiple Object
Tracking

• In a typical experiment, 8 simple identical
  objects are presented on a screen and 4 of them
  are briefly distinguished in some visual manner
  usually by flashing them on and off.
• After these 4 targets have been briefly
  identified, all objects resume their identical
  appearance and move randomly. The subjects task
  is to keep track of which ones had earlier been
  designated as targets.
• After a period of 5-10 seconds the motion stops
  and subjects must indicate, using a mouse, which
  objects were the targets.
• People (even children) are very good at this task
  (80-98 correct). The question is How do they
  do it?

38
Demonstrations of MOT

• These require a Quicktime Viewer
• Basic MOT with repulsion
• Basic Early MOT with repulsion between items
• MOT with no restrictions
• Basic MOT without repulsion
• MOT with occluding surfaces
• Objects can be tracked even if they briefly
  disappear
• Tracking without keeping track of identities
• Track these and recall what label they had
  initially

39
Explaining Multiple Object Tracking

• Do we track by storing and updating objects
  locations?
• Not likely the possibility that locations of
  targets are encoded and updated through serial
  visitation by focal attention was excluded in an
  early study
• This supports the idea that the FINST mechanism
  automatically keeps track of objects as long as
  there are 4 or fewer of them (in other words
  indexes are sticky).

40
Other findings using MOT

• There have been dozens of studies using MOT
  with many surprising findings. Here are a few
• Tracking performance is not affected if objects
  continually change their color or shape during a
  tracking trial (whether the change is synchronous
  or asynchronous)
• If objects do change their color or shape the
  change is not noticed
• Tracking is not disrupted of objects disappear
  briefly but totally behind opaque strips or if
  they all disappear together
• Targets can be selected automatically (by
  flashing) and also voluntarily. If selected
  voluntarily they have to be visited serially
  (while indexes are dropped off)

41
Review A FINST is a mechanism that

• Picks out, and keeps track of individual distal
  objects
• It does so directly without the mediation of
  concepts and without using any encoded property
  of the indexed objects
• In other words, FINSTs pick out and track objects
  as individuals rather than as bearers of certain
  properties
• Because FINSTs do not pick out and track
  individuals as members of any category (including
  the category object), their connection to the
  world is transparent and nonconceptual. It is
  not an opaque selecting as relation
• Consequently a person may literally not know what
  he has selected (although indexes do make it
  possible for properties of the objects to be
  subsequently encoded into Object Files)
• Pace John Campbell (2002, p134)conscious
  experience of an object explains how you know the
  reference of a demonstrative, we may not know
  the reference of a (perceptual) demonstrative

42
More on FINSTs

• A FINST is a numerically limited mechanism for
  selecting individual visual objects currently in
  view. It works just the way that a pointer in a
  computer data structure works It provides
  epistemic access to a particular item without
  representing the items location or other
  properties
• Although a FINST does not pick out an object in
  terms of its represented properties, there are
  properties that cause an index to be assigned (cf
  Kripkes distinction between properties that fix
  a referent vs properties of the referent). There
  are also properties (maybe different properties)
  that allow objects to be tracked
• A FINST is usually captured or grabbed by an
  object that suddenly appears. But its attachment
  to particular items can be voluntarily enabled by
  moving unitary focal attention to the desired
  objects, thus precipitating the capture of an
  index

43
A fundamental problem of perception Encoding
conjunctions of properties

• Finally this brings me to an important function
  that FINST indexes provide a way to solve the
  ubiquitous binding problem in perception
• Since we can distinguish between one combination
  of properties and another, early vision
  (sensation?) cannot simply announce the presence
  of properties for which there are sensors. They
  must provide additional information that allows
  the reconstruction of which properties go with
  which.
• The almost universal assumption about how this is
  done is that in early vision properties are
  encoded as being at particular locations
• Treismans Feature Integration Theory
• Strawsons (and Clarks) use of Feature Placing
  Theory

44
The role of location in Treismans Feature
Integration Theory
45
But in encoding properties, early vision cant
just bind them together according to their
spatial co-occurrence even their co-occurrence
within some region. Thats because the relevant
region depends on the object. So the selection
and binding must be according to the objects that
have those properties
46
The problem of binding conjunctions by the
location of conjuncts does not work when feature
location is not punctate and becomes even more
problematic if they are co-located e.g., if
their relation is inside
47
In computing conjunctions of properties attention
is directed at objects since it is objects that
have conjoined properties
An alternative

• Instead of being like a spotlight beam that can
  be scanned around a scene, and can be zoomed to
  cover a larger or smaller area, maybe attention
  can only be directed to occupied places i.e.,
  to visual objects
• A large experimental literature shows that
  attention is Object-Based
• This suggests an alternative view of how the
  binding problem is solved in early vision
  through the prior selection of perceptual objects
• But selection does not have to depend only on
  unitary focal attention. FINSTs allow multiple
  objects to be selected.

48
Object Files and the binding problem

• Suppose that only properties of indexed objects
  are conceptually encoded and that these are
  stored in object files associated with each
  object.
• Then properties that belong to the same object
  are stored in the same object file (which may be
  empty, as they are in MOT).
• This automatically solves the binding problem
  since it connects encoded properties to their
  visual object
• This view comes out of both FINST Theory
  (Pylyshyn, 1989) and Object File Theory (Kahneman
  et al., 1992)

49
FINSTs and Object Files form the link between the
world and its conceptualization
50
Some open questions

• We have arrived at the view that only properties
  of selected (indexed) objects enter into
  subsequent conceptualization and perception-based
  thought (i.e., only information in object files
  is made available to cognition)
• So what happens to the rest of the visual
  information?
• Visual information seems rich and fine-grained
  while this theory only allows for the properties
  of 4 or 5 objects to be encoded!
• The present view leaves no room for nonconceptual
  representations whose content corresponds to the
  content of conscious experience
• According to the present view, the only content
  that nonconceptual representations have is the
  demonstrative content of indexes that refer to
  perceptual objects
• Question Why do we need any more than that?

51
An intriguing possibility.

• Maybe the theoretically relevant information we
  take in is less than (or at least different from)
  what we experience
• This possibility has received attention recently
  with the discovery of various blindnesses
  (e.g., change-blindness, inattentional blindness,
  blindsight) as well as the discovery of
  independent-vision systems (e.g., recognition and
  motor control)
• The qualitative content of conscious experience
  may not play a role in explanations of cognitive
  processes
• Even if unconceptualized information enters into
  causal process (e.g., motor control) it may not
  be represented or made available to the cognitive
  mind it not even as a nonconceptual
  representation
• For something to be a representation its content
  must figure in explanations it must capture
  generalizations. It must have truth conditions
  and therefore allow for misrepresentation. It is
  an empirical question whether current proposals
  do (e.g., primal sketch, scenarios). cf Devitt
  Pylyshyns Razor

52
Vision science has always been deeply ambivalent
about role of conscious experience

• Isnt how things appear one of the things that
  our theories must explain? Answer There is no a
  priori must explain!
• The content of subjective experience is a major
  type of evidence. But it may turn out not to be
  the most reliable source for inferring the
  relevant functional states. It competes with
  other types of evidence.
• How things appear cannot be taken at face value
  it carries substantive theoretical assumptions.
  It also draws on many levels of processing.
• It was a serious obstacle to early theories of
  vision (Kepler)
• It has been a poor guide in the case of theories
  of mental imagery (e.g., color mixing, image
  size, image distances). Reading X off an image
  is an illusion.
• It seems likely that vision science will use
  evidence of conscious experience the way
  linguistics uses evidence of grammatical
  intuitions only as it is filtered through
  developing theories.
• The questions a science is expected to answer
  cannot be set in advance they change as the
  science develops.

53
What next?

• This picture leaves many unanswered questions,
  but it does provide a mechanism for solving the
  binding problem and also explaining how mental
  representations could have a nonconceptual
  connection with objects in the world (something
  required if mental representations are to connect
  with actions)

54

• For a copy of these slides seehttp//ruccs.rutge
  rs.edu/faculty/pylyshyn/SelectionReference.ppt
• Or MIT PressPaperback

55
A new puzzle individuation without reference?

• The correspondence problem is often solved
  without a numerical limit, therefore without the
  objects being indexed.
• Examples include apparent motion and stereovision
• Such computations do not seem to be over
  continuous visual manifolds but over discrete
  elements
• Such discrete elements must therefore be created
  by a process that clusters features over space
  and time
• Psychologists call the creation of individual
  elements individuation

56
Structure from Motion Demo
Cylinder Kinetic Depth Effect
57
The correspondence problem for biological motion
58
Apparent motion of random dots
59
Another example Punctate inhibition of moving
objects?

• We have recently obtained evidence that
  nontargets are inhibited (as measured by the rate
  of detection of small faint probe dots).
• There appears to be no inhibition of the empty
  region through which the nontargets move
• The inhibition is spatially local
• How can punctate moving objects be inhibited
  unless they are somehow being tracked? And how
  can they be tracked if there are many (n gt 5) of
  them?
• This provides more evidence for individuation
  without reference Maybe Indexing is a two-stage
  process?
• Individuate (numerically unlimited)
• Assign a demonstrative reference (limited to 4
  indexes)

60
Recent experimental results on Inhibition of
nontargets
