Efficiently Managing Large-Scale Raster Species Distribution Data in PostgreSQL

1

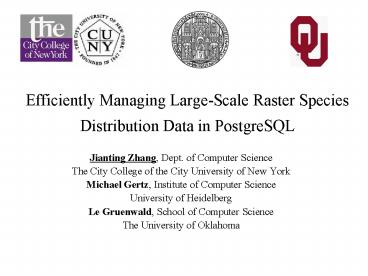

Efficiently Managing Large-Scale Raster Species
Distribution Data in PostgreSQL

• Jianting Zhang, Dept. of Computer Science
• The City College of the City University of New
  York
• Michael Gertz, Institute of Computer Science
• University of Heidelberg
• Le Gruenwald, School of Computer Science
• The University of Oklahoma

2
Outline

• Introduction
• Background and Related Work
• Species Distribution Data
• Quadtree Indexing and Query Processing
• The Proposed Solution
• Database Preparation
• Query Window Decomposition
• Query Optimization and Result Combination
• Experiments and Evaluation
• Conclusion and Future Work

3
Introduction
3
4
Introduction
Linked Environment for Exploratory Analysis of
Large-Scale Species Distribution Data
ACMGIS08
5
Introduction
Environmental
Taxonomic
Correlation
Distribution
Configuration
Distribution
Approximation
Geographical
Phylogenetic
6
Background Species Distribution Data
Museum Collections or Species checklists Global Biodiversty Facility (GBIF) data portal (http//data.gbif.org/) 177,887,193 occurrence records from 294 data providers as of 07/25/2009
Museum Collections or Species checklists Species 2000 Annual Checklist (www.sp2000.org) 1,160,711 species as of 2009
Species Range Maps NatureServe Birds of the Western Hemisphere http//www.natureserve.org 4253 birds species 3 Gigabytes
Species Range Maps Little Tree Species http//esp.cr.usgs.gov/data/atlas/little/ 679 tree species, 137 Megabytes
Compiled Species databases WWF Wildfinder database http//www.worldwildlife.org/science/data/wildfinder.cfm 29112 species, 4815 genus, 445 families, 69 orders, 350045 species-ecoregion records, 80 Megabytes
Compiled Species databases USDA Plant databases http//plants.usda.gov/ 89759 plant species in 3141 US counties
7
Background Species Distribution Data
8
Related Work

• Quadtree Indexing One of the oldest and most
  extensively studied indexing and query processing
  approach Gaede and Günther 1998 Samet 2005
• Research prototypes QUILT (Shaffer et al 1990)
  and SAND (Esperanca and Samet 2002, Samet and
  Webber 2006 ) - Lacking of full SQL support
• Window query in linear quadtree (Aboulnaga and
  Aref 2001) -Key values are stored as Morton codes
  for B-Tree Indexing Implementation is
  non-trivial
• SP-GIST (Aref and Ilyas 2001, Eltabakh et al
  2006) - Quad-tree based indexing of line-segments
  in PostgreSQL

• Commercial products (Oracle/SQL Server) Kothuri
  et al 2002, Fang et al 2008
• Quadtree based indexing of polygonal data
• Filtering mechanism to facilitate querying
  spatial relationships at the polygon level
• Not directly accessible to application developers

9
Related Work

• Open source products
• PostgreSQL Quadtree indexing for binary raster
  data is not available
• Rasdaman support storing and querying dense
  multi-dimensional real-valued arrays based on
  tiling (chunking) techniques

• Pieces that contribute to the research
• Quadtree representation of geo-referenced data
  and linear quadtrees (Hunter et al 1979,
  Gargantini 1982, Samet et al 1983, Shaffer et al
  1990, Esperanca and Samet 2002, Samet and Webber
  2006)
• Efficient window query decomposition (Aref and
  Samet 1993, Aref and Samet 1997, Proietti 1999,
  Aboulnaga and Aref 2001, Tsai et al 2004)
• Microsoft SQL Server Spatials implementation of
  quadtree indexing based on path query (Fang et al
  2008)
• LTREE Tree path indexing module in PostgreSQL

10
Overview of the Proposed Approach
11
Database Preparation

• Polygons representing species distributions vary
  in sizes and shapes significantly
• Distributions among a large number of species
  overlap greatly cross layer query
• It is inefficient to create a quadtree for each
  polygon - quadtree paths will be duplicated
• Associate a quadtree node with a set of species
  identifiers instead of a single species
  identifier
• How to combine individual quadtrees for efficient
  query processing?

12
Database Preparation
Individual Quadtrees for Species Distributions
13
Database Preparation
Classic Combination
14
Database Preparation
Improved Combination
15
Database Preparation

• Each of quadtree nodes (leaf or non-leaf) and
  their associated species identifiers become a
  tuple in PostgreSQL database
• Index the table based on the paths of the
  quadtree nodes offline
• Sample query
• Select bk_id, sp_ids from TB where bk_id lt_at_ 3
• selecting all the tuples whose paths are
  decedents of tree path 3
• Results A (16), B(4), C(4)

16
Query Window Decomposition

• Transform a spatial query window into tree paths
  to match with the database tuples - Decomposition

• Exact matches searching for ancestors.
• Exact matches searching for descendents

3
A
B
A
3.2
B
C
C
C
3.2.0
3.2.2
Condition to match a query window cell C with a
database tuple R
(C.ID is an ancestor of R.path) or (C.ID is a
descendant of R.path)
17
Query Window Decomposition
We adopt the approach reported in (Tsai et al
2004) -efficiency and easy of implementation
m8 d3 l13 (1 level 2 and 12 level 3)

• Complexity analysis
• Decomposition algorithm ? O(m) (Tsai et al
  2004), m is the larger of the width and height of
  a query window
• Converting the outputs of (Tsai et al 2004) to
  tree paths ? O(ld). l is the number of
  decomposed cells and d is the depth of quadtree
  for a raster tessellation.
• l is proportional to one dimension of the query
  window, i.e., m. (Tsai et al 2004)
• The overall complexity O(m) O(ld) ?O(md)
• d is a relative small number ?O(m)

18
Query Optimization

• For a large query window that does not align with
  quadrant divisions very well, the decomposed
  cells can be thousands or even more and most of
  them will be small cells with same ancestor nodes

• As the queries are sent to the server
  independently, duplicated tuples may be returned
  and need to be removed when combining query
  results

How to minimize duplication while ensure
correctness?
Can we remove duplication and make combination as
simple additions?
19
Query Optimization
20
Proposed Approach -Discussions

• Summary
• Utilizes existing database storage and indexing
  functions no need to define new data types,
  develop new indexing approaches, modify query
  syntax and revise database query engines
• User queries are transformed into formats that
  are supported by existing database backend and
  the results are combined in the middleware to
  answer users query effectively and efficiently.
• Advantages
• Use SQL query syntax instead of being forced to
  use APIs
• Use a variety of databases (as long as they
  support efficient path query)
• The underlying database systems are left
  untouched
• Reduce technical complexities
• Does not depend on the availability of source code

21
Experiment Setups

• Dell Precision T5400 workstation/PostgreSQL 8.3.5
• Species Distribution Data
• NatureServe http//www.natureserve.org/getData/an
  imalData.jsp
• Mammals (1693 species), birds (4148 species) and
  amphibian (5816 species)
• Quadtree
• West hemisphere, i.e., (-180,-90, 0, 90)
• Depth14 (21416384)
• Spatial resolution is finer than 1 arc minute
  (1806010800)
• Four query window sizes 0.1, 0.5, 1 and 5
  degrees
• For each query window size 100 queries with
  random centers

22
Experiments on Database Preparation

• Rasterized bird species distributions (finest
  resolution)
• 46,139,247 cells
• 1,318,136,140 pairs of (cell, identifier)
  combinations
• 28.7 species per cell
• of quadtree nodes (database tuples)
• Classic combination 7,511,823 leaf nodes
• Proposed combination 4,957,050 leaf and non-leaf
  nodes
• Proposed combination 19.3 compression ratio
• of species identifiers
• Classic combination 831,903,250 (110.7 per
  node)
• Proposed combination 23,865,343 (4.8 per node)
• 34.9 times less with respect to the total of
  species identifiers
• 23 time less with respect to the average of
  identifiers per node

23
Experiments on Query Processing
Query response time (ms) Baseline (lt) and
Optimized (op) approaches
of species
24
Experiments on Query Processing
Average and Maximum Response Times under Four
Query Windows for the Three Approaches (in
seconds)
Window Size Baseline Query Baseline Query Optimized Query Optimized Query
Window Size AVG MAX AVG MAX
0.1 0.14 0.36 0.03 0.06
0.5 0.93 2.39 0.12 0.25
1 1.63 3.93 0.20 0.50
5 9.68 21.13 1.16 3.38
25
Conclusions and Future Work

• This research tackles the problem of storing,
  indexing and querying large-scale species
  distribution data in the form of binary rasters
  in a database environment

• A middleware approach has been adopted by
  utilizing existing PostgreSQL database support
  for tree paths and by transforming spatial window
  query into tree path matching.

• The approach does not require any modifications
  on database backend and is applicable to many
  database systems that support tree path matching.

• An end-to-end system to manage large-scale
  species distribution datasets has been developed
  with demonstrated efficiency based on 4000 bird
  species distribution data in the West Hemisphere.

26
Conclusions and Future Work

• Future work
• Further extend the solution to manage even larger
  scale of species distribution datasets. The
  ultimate goal is to support all known species at
  the million scale and reduce the average query
  response time to below one second for realistic
  query window sizes to support interactive
  customer applications
• Possible strategies
• New efficient data structures and algorithms
  (e.g. column store, bitmap)
• Combing pre-computation and on-demand processing
  (query window decomposition)
• Using main-memory database techniques
  (indexing/querying)
• Using GPU for faster query processing (Fermi,
  CUDA, Nexus)
• Using Map-Reduce/Hadoop for parallel/distributed
  query processing (HadoopDB)

27
Latest Progresses

• Main-memory database and query processing
  algorithm
• Memory Consumption 200M for 4000 birds species
• Query response time 1/4 second for query window
  size as large as 5 by 5 degrees
• Can be used as a cache system for extremely large
  scale species distribution data
• Web-based tool http//geoteci.engr.ccny.cuny.edu/
  geoteci/SPTestMap.html
