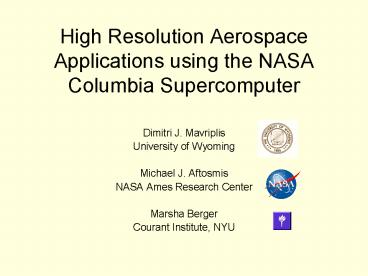

High Resolution Aerospace Applications using the
NASA Columbia Supercomputer

• Dimitri J. Mavriplis
• University of Wyoming
• Michael J. Aftosmis
• NASA Ames Research Center
• Marsha Berger
• Courant Institute, NYU

2
Computational Aerospace Design and Analysis

• Computational Fluid Dynamics (CFD) Successes
• Preliminary design estimates for various
  conditions
• Accurate prediction at cruise conditions (no flow
  separation)

3
Computational Aerospace Design and Analysis

• Computational Fluid Dynamics (CFD) Successes
• Preliminary design estimates for various
  conditions
• Accurate prediction at cruise conditions (no flow
  separation)
• CFD Shortcomings
• Poor predictive ability at off-design conditions
• Complex geometry, flow separation
• High accuracy requirements
• Drag coefficient to 10-4 (i.e. wind tunnels)
• Production runs with 109 grid points (vs 107
  today) should become commonplace (NIA
  Congressional Report, 2005)

4
Computational Aerospace Design and Analysis

• Computational Fluid Dynamics (CFD) Successes
• Preliminary design estimates for various
  conditions
• Accurate prediction at cruise conditions (no flow
  separation)
• CFD Shortcomings
• Poor predictive ability at off-design conditions
• Complex geometry, flow separation
• High accuracy requirements
• Drag coefficient to 10-4 (i.e. wind tunnels)
• Production runs with 109 grid points (vs 107
  today) should become commonplace (NIA
  Congressional Report, 2005)
• Drive towards Simulation based Design
• Design Optimization (20 100 Analyses)
• Flight envelope simulation (103 106 Analyses)
• Unsteady Simulations
• Aeroelastics
• Digital Flight (simulation of maneuvering vehicle)

5
MOTIVATION

• CFD computational requirements in aerospace
  vehicle design are essentially insatiable for the
  foreseeable future
• Addressable through hardware and software
  (algorithmic) advances
• Recently installed NASA Columbia Supercomputer
  provides quantum leap in agencys/stakeholders
  computing capability
• Demonstrate advances in state-of-the-art using 2
  production codes on Columbia
• Cart3D (NASA Ames, NYU)
• Lower Fidelity, rapid turnaround anaysis
• NSU3D (ICASE/NASA Langley, U. Wyoming)
• Higher Fidelity, analysis and design

6
Cart3D Cartesian Mesh Inviscid Flow Simulation
Package

• Unprecedented level of automation
• Inviscid analysis package
• Surface modeling, mesh generation, data
  extraction
• Insensitive to geometric complexity
• Aimed at
• Aerodynamic database generation
• Parametric studies
• Preliminary design
• Wide dissemination
• NASA, DoD, DOE, Intel Agencies
• US Aerospace industry, commercial and general
  aviation

Mesh Generation
Domain Decomposition
Flow solution
Parametric Analysis
7
Multigrid Scheme Fast O(N) Convergence
8

• Space-Filling-Curve based partitioner and mesh
  coarsener
• Each subdomain has own local grid hierarchy
• Good (not perfect) nesting favor load balance
  at each level
• Restrict use of OpenMP constructs - Use MPI-like
  architecture
• Exchange via structure copy (OpenMP),
  send/receive (MPI)

Each subdomain resides in processor local memory
Cart3D Solver programming paradigm
Explicit subdomain communication
9
Flight-Envelope Data-Base Generation (parametric
analysis)

• Configuration space
• Vary geometric parameters
• Control surface deflection
• Shape optimization
• Requires remeshing
• Wind-Space Parameters
• Vary wind vector
• Mach, aincidence, bsideslip
• No remeshing
• Completely Automated
• Hierarchical Job launching, scheduling
• Data retrieval

10
Aerodynamic Database Generation
Parametric Analysis
11
Flight-Envelope Data-Base Generation (parametric
analysis)

• Configuration space
• Vary geometric parameters
• Control surface deflection
• Shape optimization
• Requires remeshing
• Wind-Space Parameters
• Vary wind vector
• Mach, aincidence, bsideslip
• No remeshing
• Completely Automated
• Hierarchical Job launching, scheduling
• Data retrieval

12
 Wind-Space M8 0.2-6.0, a -530, b
030  P has dimensions (38 x 25 x 5)  2900
simulations
Liquid glide-back booster - Crank delta
wing, canards, tail Wind-space only
Database Generation
parametric Analysis Wind-Space
13
 Wind-Space M8 0.2-6.0, a -530, b
030  P has dimensions (38 x 25 x 5)  2900
simulations
Liquid glide-back booster - Crank delta
wing, canards, tail Wind-space only

• Typically smaller resolution runs
• 32-64 cpus each
• Farmed out simultaneously (PBS)
• 2900 simulations

14
 Wind-Space M8 0.2-6.0, a -530, b
030  P has dimensions (38 x 25 x 5)  2900
simulations
Liquid glide-back booster - Crank delta
wing, canards, tail Wind-space only

• Need for higher resolution simulations
• - Selected data-base points
• - General drive to higher accuracy
• Good large cpu count scalability important

15
NSU3D Unstructured Navier-Stokes Solver

• High fidelity viscous analysis
• Resolves thin boundary layer to wall
• O(10-6) normal spacing
• Stiff discrete equations to solve
• Suite of turbulence models available
• High accuracy objective 0.01 Cd
• 50-100 times cost of inviscid analysis (Cart3D)
• Unstructured mixed element grids for complex
  geometries
• VGRID NASA Langley
• Production use in commercial, general aviation
  industry
• Extension to Design Optimization and Unsteady
  Simulations

16
Agglomeration Multigrid

• Agglomeration Multigrid solvers for unstructured
  meshes
• Coarse level meshes constructed by agglomerating
  fine grid cells/equations

17
Agglomeration Multigrid

• Automated Graph-Based Coarsening Algorithm
• Coarse Levels are Graphs
• Coarse Level Operator by Galerkin Projection
• Grid independent convergence rates (order of
  magnitude improvement)

18
Anisotropy Induced Stiffness

• Convergence rates for RANS (viscous) problems
  much slower then inviscid flows
• Mainly due to grid stretching
• Thin boundary and wake regions
• Mixed element (prism-tet) grids
• Use directional solver to relieve stiffness
• Line solver in anisotropic regions

19
Method of Solution

• Line-implicit solver

20
Parallelization through Domain Decomposition

• Intersected edges resolved by ghost vertices
• Generates communication between original and
  ghost vertex
• Handled using MPI and/or OpenMP (Hybrid
  implementation)
• Local reordering within partition for
  cache-locality
• Multigrid levels partitioned independently
• Match levels using greedy algorithm
• Optimize intra-grid communication vs inter-grid
  communication

21
Partitioning

• (Block) Tridiagonal Lines solver inherently
  sequential
• Contract graph along implicit lines
• Weight edges and vertices
• Partition contracted graph
• Decontract graph
• Guaranteed lines never broken
• Possible small increase in imbalance/cut edges

22
Partitioning Example

• 32-way partition of 30,562 point 2D grid
• Unweighted partition 2.6 edges cut, 2.7 lines
  cut
• Weighted partition 3.2 edges cut, 0 lines cut

23
Hybrid MPI-OMP (NSU3D)

• MPI master gathers/scatters to OMP threads
• OMP local thread-to-thread communication occurs
  during MPI Irecv wait time (attempt to overlap)

24
Simulation Strategy

• NSU3D Isolated high resolution analyses and
  design optimization
• Cart3D Rapid flight envelope data-base fill-in
• Examine performance of each code individually on
  Columbia
• Both codes use customized multigrid solvers
• Domain-decomposition based parallelism
• Extensive cache-locality reordering optimization
• 1.3 to 1.6 Gflops on 1.6GHz Itanium2 cpu (pfmon
  utility)
• NSU3D Hybrid MPI/OpenMP
• Cart3D MPI or OpenMP (exclusively)

25
NASA Columbia Supercluster

• 20 SGI Atix Nodes
• 512 Itanium2 cpus each
• 1 Tbyte memory each
• 1.5Ghz / 1.6Ghz
• Total 10,240 cpus
• 3 Interconnects
• SGI NUMAlink (shared memory in node)
• Infiniband (across nodes)
• 10Gig Ethernet (File I/O)
• Subsystems
• 8 Nodes Double density Altix 3700BX2
• 4 Nodes NUMAlink4 interconnect between nodes
• BX2 Nodes, 1.6GHz cpus

26
NASA Columbia Subsystems

• 4 Node Altix 3700 BX2
• 2048 cpus, 1.6GHz, 4 Tbytes RAM
• NUMAlink4 between all cpus (6.4Gbytes/s)
• MPI, SHMEM, MLP across all cpus
• OpenMP (OMP) within a node
• Infiniband using MPI across all cpus
• Limited to 1524 mpi processes
• 8 Node Altix 3700BX2
• 4096 cpus, 1.6 GHz / 1.5 GHz, 8 Tbytes RAM
• Infiniband using MPI required for cross-node
  communication
• Hardware limitation 2048 MPI connections
• Requires hybrid MPI/OMP to access all cpus
• 2 OMP threads running under each MPI process
• Overall well balanced machine
• 1Gbyte/sec I/O on each node

27
Cart3D Solver Performance

• Test problem
• Full Space Shuttle Launch Vehicle
• Mach 2.6,
• AoA 2.09 deg
• Mesh 25 M cells

28
Cart3D Solver Performance
Pressure Contours

• Test problem
• Full Space Shuttle Launch Vehicle
• Mach 2.6,
• AoA 2.09 deg
• Mesh 25 M cells

29
Cart3D Solver Performance
Compare OpenMP and MPI

• Pure OpenMP restricted to single 512 cpu node
• Ran from 32-504 cpus (node c18)
• Perfect speed-up assumed on 32 cpus
• OpenMP show slight beak at 128 cpus due to change
  in global addressing scheme - MPI unaffected (no
  global addressing)
• MPI achieves 0.75 TFLOP/s on 496 cpus

30
Cart3D Solver Performance
Single Mesh vs Multigrid

• Used NUMAlink on c17-c20
• MPI only, from 32-2016 cpus
• Reducing multigrid de-emphasizes communication
• Single-grid scalability 1900 on 2016 cpus
• Coarsest mesh in 4 level multigrid has 16
  cells/partition
• 4 Level multigrid shows parallel speedups of 1585
  on 2016 cpus

31
Cart3D Solver Performance
Compare NUMAlink Infiniband

• MPI only, from 32-2016 cpus, 4 Level multigrid
• 32-496 cpus run on 1 node - (no interconnect)
• 508-1000 cpus run on 2 nodes
• 1000-2016 cpus on 4 nodes
• IB lags due to decrease in delivered bandwidth
• Delivered bandwidth drops again when going from 2
  to 4 nodes
• NUMAlink on 2016 cpus achieves over 2.4 TFLOP/s

32
NSU3D TEST CASE

• Wing-Body Configuration
• 72 million grid points
• Transonic Flow
• Mach0.75, Incidence 0 degrees, Reynolds
  number3,000,000

33
NSU3D Scalability
G F L O P S

• 72M pt grid
• Assume perfect speedup on 128 cpus
• Good scalability up to 2008 using NUMAlink
• Superlinear !
• Multigrid slowdown due to coarse grid
  communication
• 3TFlops on 2008 cpus

34
NSU3D Scalability

• Best convergence with 6 level multigrid scheme
• Importance of fastest overall solution strategy
• 5 level Multigrid
• 10 minutes wall clock time for steady-state
  solution on 72M pt grid

35
NUMAlink vs. Infiniband (IB)

• IB required for gt 2048 cpus
• Hybrid MPI/OMP required due to MPI limitation
  under IB
• Slight drop-off using IB
• Additional penalty with increasing OMP Threads
• (locally) sequential nature during mpi to mpi
  communication

128 cpu run split across 4 hosts
36
NUMAlink vs. Infiniband (IB)
Single Grid (no multigrid)

• 2 OMP required for IB on 2048
• Excellent scalability for single grid solver (non
  multigrid)

37
NUMAlink vs. Infiniband (IB)
6 level multigrid

• 2 OMP required for IB on 2048
• Dramatic drop-off for 6 level multigrid

38
NUMAlink vs. Infiniband(IB)
5 level multigrid

• 2 OMP required for IB on 2048
• Dramatic drop-off for 5 level multigrid

39
NUMAlink vs. Infiniband(IB)
4 level multigrid

• 2 OMP required for IB on 2048
• Dramatic drop-off for 4 level multigrid

40
NUMAlink vs. Infiniband(IB)
3 level multigrid

• 2 OMP required for IB on 2048
• Dramatic drop-off for 3 level multigrid

41
NUMAlink vs. Infiniband(IB)
2 level multigrid

• 2 OMP required for IB on 2048
• Dramatic drop-off for 2 level multigrid

42
NUMAlink vs. Infiniband(IB)
2nd coarse grid level alone ( lt 1M pts)

• Similar slowdowns with NUMALINK and Infiniband

43
NUMAlink vs. Infiniband(IB)

• Inconsistent NUMAlink/Infiniband performance
• Multigrid IB drop-off not due to coarse grid
  level communication
• Due to inter-grid communication
• Not bandwidth related
• More non-local communication pattern
• Sensitive to system ENV variable settings
• Addressable through
• More local fine to coarse partitioning
• Multi-level communication strategy

44
Single Grid Performance up to 4016 cpus
First real world application on Columbia using gt
2048 cpus

• 1 OMP possible for IB on 2008 (8 hosts)
• 2 OMP required for IB on 4016 (8 hosts)
• Good scalability up to 4016
• 5.2 Tflops at 4016

45
Inhomogeneous CPU Set

• 1.5GHz (6Mbyte L3) cpus vs 1.6GHz (9Mbyte L3)
  cpus
• Responsible for part of slowdown

46
Concluding Remarks

• NASAs Columbia Supercomputer enabling advances
  in state-of-the-art for aerospace computing
  applications
• 100M grid point solutions (turbulent flow) in 15
  minutes
• Design Optimization overnight (20-100 analyses)
• Rapid flight envelope data-base generation
• Time dependent maneuvering solutions
• Digital Flight

47
Conclusions

• Much higher resolution analyses possible
• 72M pts on 4016 cpus? only 18,000 points per cpu
• 109 Grid points feasible on 2000 cpus
• Should become routine in future
• Approximately 4 hour turnaround on Columbia
• Other bottlenecks must be addressed
• I/O Files 35 Gbytes for 72M pts -- 400Gbytes for
  109pts
• Other sequential pre/post processing (i.e. grid
  generation)
• Requires rethinking entire process
• On demand parallel grid refinement and load
  balancing
• Obviates large input files
• Requires link to CAD database from parallel
  machine

48
Conclusions

• Columbia Supercomputer Architecture validated on
  real world applications (2 production codes)
• NUMAlink provides best performance but currently
  limited to 2048 cpus
• Infiniband practical for very large applications
• Requires hybrid MPI/OMP communication
• Issues remain concerning communication patterns
• Bandwidth adequate for current and larger
  applications
• Large applications on 8,000 to 10,240 cpus using
  IB and OMP 4 should be feasible and achieve
  12Tflops
• Special thanks to Bob Ciotti (NASA), Bron
  Nelson (SGI)
