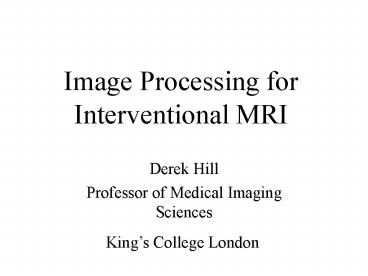

Image Processing for Interventional MRI

1
Image Processing for Interventional MRI

• Derek Hill
• Professor of Medical Imaging Sciences

Kings College London
2
Image Processing for Interventional MRI

• Derek Hill
• Professor of Medical Imaging Sciences

University College London
3
The team

• Kawal Rhode
• Marc Miquel
• Redha Berboutkah
• David Atkinson
• Maxime Sermesant
• Rado Andriantsimiavona
• Kate McLeish
• Sebastian Kozerke

• Reza Razavi
• Vivek Muthurangu
• Sanjeet Hegde
• Jas Gill
• Pier Lambraise
• Cliff Bucknall
• Eric Rosenthal
• Shaqueel Qureshi

4
Context

• Interventional MRI provides particular
  opportunities and challenges for image analysis.
• Hostile environment for computers
• real time requirements
• Link between acquisition and analysis

5
Overview

• Background to XMR guided interventions
• Integrating x-ray and MRI
• Automatic cathether tracking
• Integration of image analysis in acquisition

6
XMR

• X-ray cylindrical bore MRI in the same room
• Becoming main platform for MR guided
  interventions
• Resection control in neurosurgery
• Endovascular procedures
• Not ideal for percutaneous procedures

7
XMR suite at Guys(funded of JREI, Philips
Medical Systems and Charitable Foundation of
Guys St Thomas)
Staff
Patient
8
XMR System at Guys Hospital

• XMR hybrid X-ray/MR imaging
• Common sliding patient table
• Provides path to MR-guided intervention

9
XMR suite at Guys
10
Catheter manipulation
11
Visualizing catheters

• Fast imaging (70 msec per frame)
• TE 1.3, TR 2.6
• SSFP sequence (balanced TFE)
• Acquisition 78 x 96, 80 FOV, 80 acq, SENSE
  factor 2 (ie only 25 phase encodes!)
• Carbon dioxide filled balloon as contrast agent

12
Catheter Manipulation
Images acquired with standard Philips real time
or interactive sequences
13
Catheter Manipulation
Miquel et al. Visualization and tracking of an
inflatable balloon catheter using SSFP in a flow
phantom and in the heart and great vessels of
patients. Magn Reson. Med. 51(5)988-95 2004
14
(No Transcript)
15
Integrating x-ray and MRI

• XMR provide rapid transfer between modalities
• No capability to integrate the images
• X-ray and MRI provide complementary information
• Combined x-ray and MR has value in complex
  interventions eg electrophysiology

16
(No Transcript)
17
Registration Matrix Calculation

• Overall registration transform is composed of a
  series of stages
• Calibration tracking during intervention

M1
?T
Scanner Space
3D Image Space
X
-
ray Table Space
M2
X
-
ray C
-
arm
RP
Space
M3
2D Image Space
18
XMR RegistrationSoftware Overview
19
XMR Registration Calibration

• Acrylic calibration object with 14 markers
• Interchangeable caps for MR and X-ray imaging
• Determine geometric relationship between MR and
  X-ray system
• Determine X-ray projection geometry

MR
X-ray
20
Calibration
(1) Fixing flange for sliding table. (2)
Saline-filled acrylic half cylinder with 20 divot
cap markers in a helical arrangement. (3) Slot
in acrylic base plate to allow sliding of half
cylinder. (4) (5) End stops. (6) Fixing to
allow MR surface coil attachment
21
XMR RegistrationMR Overlay on X-Ray
22
XMR Registration3D Reconstruction
23
XMR RegistrationPhantom Validation

• T1-weighted MR volume 5 pairs of tracked x-ray
  images using calibration object as a phantom
• 2D RMS Error 4.2mm (n35), Range 1.4 to 8.0
  mm
• 3D RMS Error 4.6mm (n17), Range 1.7 to 9.0
  mm
• Registration and Tracking to Integrate X-ray and
  MR Images in an XMR Facility , Rhode et al, TMI,
  Nov 2003.

24
(No Transcript)
25
Clinical Example

• Patient undergoing electrophysiology study prior
  to RF ablation of heart rhythm abnormality

26
MR Imaging - Anatomy

• SSFP three-dimensional multiphase sequence
• 5 phases
• 256x256 matrix
• 152 slices
• resolution1.33 x 1.33 x 1.4 mm
• TR3.0 ms
• TE1.4 ms
• flip angle45?

27
MR Imaging - Motion

• SPAMM tagged imaging sequence
• 59 phases SA 50 phases LA
• 256x256 matrix
• 11 slices SA 4 slices LA
• resolution1.33 x 1.33 x 8.0 mm
• TR11.0 ms
• TE3.5 ms
• flip angle13?
• tag spacing8 mm

28
X-ray Imaging Electrical Mapping

• Contact electrical mapping system
• Constellation catheter (Boston Scientific)

LAO View
AP View
29
MR Anatomy Overlay
30
Catheter Reconstruction
31
Refining the Registration

• Errors due to limitations of registration
  technique and patient motion
• Basket point cloud meshed
• Rigid surface-to-image registration used to
  realign the basket mesh

32
Visualising the Electrical Data

• Cycle 1 - normal
• Cycle 2 - ectopic

33
Instantiation of model
34
Simulation results
LV volume
35
Catheters re-visited

• Essential properties of catheters
• Clearly visible
• Safe
• mechanically
• electrically
• Magnetically
• Desirable properties
• Automatic localization
• Tip and length visible

• CO2 filled balloon catheters are safe
• Tip location ambiguous
• Length not visible
• Cannot be localized automatically

36
Is there an image analysis solution?

• Find catheter automatically in modulus image?
• Is it easier to find in a phase image?

37
Better solution change nucleus

• Fluorine is not present in body
• High NMR sensitivity
• Safe blood subsitutes available (eg PFOB)

38
Catheter tracking
SSFP proton image plus fluorine projections
Phantom setup
39
Catheter tracking
Phantom setup
Automatic superposition Of catheter tip on proton
40
Lumen visible
41
Dynamic scan
42

• Catheter Tracking and Visualization Using19F
  Nuclear Magnetic Resonance
• Sebastian Kozerke1,2, Sanjeet Hegde3, Tobias
  Schaeffter4, Rolf Lamerichs5, Reza Razavi3,
  Derek L. Hill2
• Magn. Reson. Med. 2004 (in press)

43
Image analysis combined with acquisition

• Real time MRI can provide high temporal
  resolution, but low quality
• Can we subsequently combine real time images to
  generate high image quality?

44
Real time MRI with slice tracking

• Real time undersampled radial acquisitions

Navigator Slice tracking
45
Registration to compensate for motion
Rigid body then non-rigid registration to correct
motion During scanning
46
Demonstration on gated volunteer heart images
(n4)

• Undersampled images

47
Demonstration on gated volunteer heart images
(n4)

• Combined with no registration

48
Demonstration on gated volunteer heart images
(n4)

• Combined with rigid registration

49
Demonstration on gated volunteer heart images
(n4)

• Combined with rigid then non-rigid registration

50
(No Transcript)
51
Conclusions

• Interventional MRI is fertile area for image
  analysis
• Real time requirements
• New applications (eg RF ablation)
• Improving guidance
• Novel acquisition and reconstruction
  incorporating image analysis
