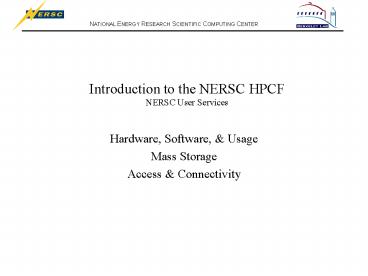

Introduction to the NERSC HPCF NERSC User Services

1
Introduction to the NERSC HPCFNERSC User Services

• Hardware, Software, Usage
• Mass Storage
• Access Connectivity

2
Hardware, part 1

• Cray Parallel Vector Processor (PVP) Systems
• 96 CPUs, Shared-memory parallelism (Cray tasking,
  OpenMP)
• J90SE clock is 100 MHz peak performance is 200
  Mflops/cpu (125, actual)
• SV1 clock is 300 MHz peak performance is 1200
  Mflops/cpu (300, actual)
• J90Se and SV1 are not binary compatible
• Cray T3E MPP System
• mcurie
• 692 PEs 644 application, 33 command, 15 OS 256
  MB/PE
• PE clock is 450 MHz peak performance is 900
  Mflops/PE (100, actual)

3
Hardware, part 2

• IBM SP MPP System
• gseaborg, Phase 1
• 304 nodes (608 CPUs) 256 (512) compute, 8 (16)
  login, 16 (32) GPFS, 8 (16) network, 16 (32)
  service) 1 GB/node
• Node clock is 200 MHz peak performance is
  800Mflops per CPU (200, actual)
• Phase 2 will be bigger and faster
• Visualization Server
• escher SGI Onyx 2
• 8 CPUs, 5 GB RAM, 2 graphic pipes
• CPU clock is 195 MHz 2 simultaneous video
  streams
• Math Server
• newton Sun UltraSPARC-II
• 1 CPU, 512 MB RAM
• CPU clock is 248 MHz

4
Hardware, part 3

• Parallel Distributed Systems Facility (PDSF)
• High Energy Physics facility for detector
  simulation and data analysis
• Multiple clustered systems Intel Linux PCs, Sun
  Solaris workstations
• Energy Sciences Network (ESNet)
• Major component of the Internet ATM Backbone
• Specializing in information retrieval,
  infrastructure, and group collaboration
• High Performance Storage System (HPSS)
• Multiple libraries, hierarchical disk and tape
  archive systems
• High speed transfers to NERSC systems
• Accessible from outside NERSC
• Multiple user interface utilities
• Directories for individual users and project
  groups

5
PVP File Systems, part 1

• HOME
• permanent (but not archival)
• 5 GB quota, regular backups, file migration
• local to killeen, NFS-mounted on seymour and
  batch systems
• poor performance for batch jobs
• /u/repo/u10101
• /Un/u10101
• /u/ccc/u10101
• /U0/u10101

6
PVP File Systems, part 2

• TMPDIR
• temporary (created/destroyed each session)
• no quota (but NQS limits 10 GB - 40 GB)
• no backups, no migration
• local to each machine
• high-performance RAID arrays
• system manages this for you
• A.K.A. BIG
• /tmp
• location of TMPDIR
• 14-day lifetime
• A.K.A. /big
• you manage this for yourself

7
PVP Environment, part 1

• Unicos
• Shells
• Supported
• sh
• csh
• ksh (same as sh)
• Unsupported
• tcsh (get it by module load tcsh)
• bash (get it by module load tools)

8
PVP Environment, part 2

• Modules
• Found on many Unix systems
• Sets all or any of environment variables,
  aliases, executable search paths, man search
  paths, header file include paths, library load
  paths
• Exercise care modifying startup files!
• Crays PrgEnv is modules-driven
• Provided startup files are critical!
• Add to .ext files, dont clobber originals
• Append to paths, dont set them, and this only if
  necessary
• If you mess up, no compilers, etc.
• Useful commands
• module list
• module avail
• module load modfile
• module display modfile
• module help modfile

9
PVP Environment, part 3

• Programming
• Fortran 90 - f90
• C/C - cc, CC
• Assembler - as
• Use compiler (f90, cc, CC) for linking also
• f90 file naming conventions
• filename.f - fixed form Fortran-77 code
• filename.F - fixed form Fortran-77 code, run
  preprocessor first
• filename.f90 - free form Fortran 90 code
• filename.F90 - free form Fortran 90 code, run
  preprocessor first
• Multiprocessing (aka multitasking,
  multithreading)
• setenv NCPUS 4 (csh)
• export NCPUS4 (ksh)
• "a.out Command not found.
• ./a.out (Note No parallelism specified with
  execution)

10
PVP Environment, part 4a

• Execution modes
• Interactive serial
• 10 hours on killeen and seymour
• 80 MW max memory
• Interactive parallel
• No guarantee of real-time concurrency
• Batch queues
• killeen, seymour, franklin, bhaskara
  franklin, bhaskara
• To see them qstat -b
• Queues shuffled at night, and sometimes during
  the day
• Subject to change

11
PVP Environment, part 4b

• Batch
• User creates shell script (e.g., myscript)
• Submits to NQE with cqsub myscript
• Returns NQE task id (e.g., t1234)
• NQE selects machine and forwards to NQS
• Job remains pending (NPend) until resources
  available
• NQS runs the job
• Assigns NQS request id (e.g., 5678.bhaskara)
• Run job in appropriate batch queue
• Job log returned upon completion

12
PVP Environment, part 5

• Libraries
• Mathematics
• nag, imsl, slatec, lsode, harwell, etc.
• Graphics
• ncar, gnuplot, etc.
• I/O
• HDF, netCDF, etc.
• Applications
• Amber, Ansys, Basis, Gamess, Gaussian, Nastran,
  etc.

13
PVP Environment, part 6

• Tools
• ja - job accounting
• hpm - Hardware Performance Monitor
• prof - Execution time profiler viewer
• flowtrace/flowview - Execution time profiler
  viewer
• atexpert - Autotasking performance predictor
• f90 - Compiler feedback
• totalview - Debugger (visual and line-oriented)

14
T3E File Systems, part 1

• HOME
• permanent (but not archival)
• 2 GB quota, regular backups, file migration
• poor performance for batch jobs
• /u/repo/u10101
• /Un/u10101
• /u/ccc/u10101
• /U0/u10101

15
T3E File Systems, part 2

• TMPDIR
• temporary (created/destroyed each session)
• 75 GB quota (but NQS limits 4 GB - 32 GB)
• no backups, no migration
• high-performance RAID arrays
• system manages this for you
• Can be used for parallel files
• /tmp
• location of TMPDIR
• 14-day lifetime
• A.K.A. /big
• you manage this for yourself

16
T3E Environment, part 1

• UNICOS/mk
• Shells sh/ksh, csh, tcsh
• Supported
• Sh
• Csh
• ksh (same as sh)
• Unsupported
• tcsh (get it by module load tcsh)
• Bash (get it by module load tools)

17
T3E Environment, part 2

• Modules - manages user environment
• Paths, Environment variables, Aliases, same as on
  PVP systems
• Crays PrgEnv is modules-driven
• Provided startup files are critical!
• Add to .ext files, dont clobber originals
• Append to paths, dont set them, and this only if
  necessary
• If you mess up, no compilers, etc.
• Useful commands
• module list
• module avail
• module load modfile
• module display modfile
• module help modfile

18
T3E Environment, part 3a

• Programming
• Fortran 90 f90
• C/C cc, CC
• Assembler cam cam
• Use compiler (f90, cc, CC) for linking also
• Same naming conventions as on PVP systems
• PGHPF - Portland group HPF
• KCC Kuck and Assoc. C
• Get it via module load KCC
• Multiprocessing
• Execution in Single-Program, Multiple-Data (SPMD)
  Mode
• In Fortran 90, C, C, all processors execute
  same program

19
T3E Environment, part 3b

• Executables - Malleable or Fixed
• specified in compilation and/or execution
• f90 -Xnpes ... (e.g., -X64) creates fixed
  executable
• Always runs on same number of (application)
  processors
• Type ./a.out to run
• f90 -Xm... or without -X option creates
  malleable executable
• ./a.out will run on command PE
• mpprun -n npes ./a.out runs on npes APP PEs
• Executing code can ask for
• Process id (from zero up)
• MPI_COMM_RANK(...)
• Total number of PEs
• MPI_COMM_SIZE(...)
• PE or Process/Task ID used to establish
  master/slave identities, controlling execution

20
T3E Environment, part 4a

• Execution modes
• Interactive serial
• lt 60 minutes on one command PE, 20 MW max memory
• Interactive parallel
• lt 30 minutes on lt 64 processors, 29 MW memory per
  PE
• Batch queues
• To see them qstat -b
• Queues shuffled in at night
• Subject to change

21
T3E Environment, part 4b

• (Old, obsolete) Example of T3E management and
  queue scheduling

22
T3E Environment, part 5

• Math graphics libraries, and application codes
  are similar to those on the PVP systems
• Libraries are needed for communication
• MPI (Message-Passing Interface)
• PVM (Parallel Virtual Machine)
• SHMEM (SHared MEMory non-portable)
• BLACS (Basic Linear Algebra Communication
  Subprograms)
• ScaLAPACK (SCAlable parts of LAPACK)
• LIBSCI (including parallel FFTs), NAG, IMSL
• I/O libraries
• Crays FFIO
• NetCDF (NETwork Common Data Format)
• HDF (Hierarchical Data Format)

23
T3E Environment, part 6

• Tools
• Apprentice - finds performance problems and
  inefficiencies
• PAT - Performance analysis tool
• TAU - ACTS tuning and analysis utility
• Vampir - commercial trace generation and viewing
  utility
• Totalview - multiprocessing-aware debugger
• F90 - compiler feedback

24
SP File Systems, part 1

• AIX is a Virtual Memory operating system
• Each node has its own disks, with OS image, swap
  and paging spaces, and scratch partitions .
• Two types of user-accessible file systems
• Large, globally accessible parallel file system,
  called GPFS
• Smaller node-local partitions

25
SP File Systems, part 2

• Environment variables identify directories
• HOME - your personal home directory
• Located in GPFS, so globally available to all
  jobs
• Home directories are not currently backed up!
• Quotas 4 GB, and 5000 inodes
• SCRATCH - one of your temporary spaces
• Located in GPFS
• Very large - 3.5 TB
• Transient - purged after session or job
  termination
• TMPDIR - another of your temporary spaces
• Local to a node
• Small - only 1 GB
• Not particularly fast
• Transient - purged on termination of creating
  session or batch job

26
SP File Systems, part 3

• Directly-specified directory paths can also be
  used
• /scratch - temporary space
• Located in GPFS
• Very large
• Not purged at job termination
• Subject to immediate purge
• Quotas 100 GB and 6000 inodes
• Your SCRATCH directory is set up in
  /scratch/tmpdirs/nodename/tmpdir.number
• where number is system-generated
• /scratch/username - user-created temporary
  space
• Located in GPFS
• Large, fast, encouraged usage
• Not purged at job termination
• Subject to purge after 7 days, or as needed
• Quotas 100 GB and 6000 inodes

27
SP File Systems, part 4

• /scr - temporary space
• Local to a node
• Small - only 1 GB
• Your session-local TMPDIR is set up in
  /scr/tmpdir.number
• where number is system-generated
• Not user-accessible, except for TMPDIR
• /tmp - System-owned temporary space
• Local to a node
• Very small - 65 MB
• Intended for use by utilities, such as vi for
  temporary files
• Dangerous - DO NOT USE!
• If filled up, it can cause the node to crash!

28
SP Environment, part 1

• IBM's AIX - a true virtual memory kernel
• Not a single system image, as on the T3E
• Local implementation of module system
• No modules load by default
• Default shell is csh
• Shell startup files (e.g., .login, .cshrc, etc.)
  are links DONT delete them!
• Customize extension files (e.g., .cshrc.ext), not
  startup files

29
SP Environment, part 2

• SP Idniosyncracies
• All nodes have unique identities different
  logins may put you on different nodes
• Must change password, shell, etc. on gsadmin node
• No incoming FTP allowed
• xterms should not originate on the SP
• Different sessions may be connected to different
  nodes
• High speed I/O is done differently from the T3E
• Processors are faster, but communication is
  slower, than on the T3E
• PFTP is faster than native FTP
• SSH access methods differ, slightly

30
SP Environment, part 3a

• Programming in Fortran
• Fortran - Fortran 77, Fortran 90, and Fortran 95
• Multiple "versions" of the XLF compiler
• xlf, xlf90 for ordinary serial code
• xlf_r, xlf90_r for multithreaded code (shared
  memory parallelism)
• mpxlf90, mpxlf90_r for MPI-based parallel code
• Currently, must specify separate temporary
  directory for Fortran-90 modulesxlf90
  -qmoddirTMPDIR -ITMPDIR modulesource.F
  source.F
• IBM's HPF (xlhpf) is also available

31
SP Environment, part 3b

• Programming in C and C
• C C languages supported by IBM
• Multiple "versions" of the XLC compiler
• cc, xlc for ordinary serial C code
• xlC for ordinary serial C code
• cc_r, xlc_r for multithreaded C code (shared
  memory parallelism)
• xlC_r for multithreaded C code (shared memory
  parallelism)
• mpcc for MPI-based parallel C code
• mpCC for MPI-based parallel C code
• Kuck Assoc. KCC also available in its own module

32
SP Environment, part 4a

• Execution
• Many ways to run codes
• serial, parallel
• shared-memory parallel, message-based parallel,
  hybrid
• interactive, batch
• Serial execution is easy
• ./a.out ltinput_file gtoutput_file
• Parallel execution - SPMD Mode, as with T3E
• Uses POE, a supra-OS resource manager
• Uses Loadleveler to schedule execution
• There is some overlap in options specifiable to
  POE and LoadLeveler
• You can use one or both processors on each node
• environment variables and batch options control
  this

33
SP Environment, part 4b

• Shared memory parallel execution
• Within a node, only
• OpenMP, Posix Threads, IBM SMP directives
• Message-based parallel execution
• Across nodes and within a node
• MPI , PVM, LAPI, SHMEM (planned)
• Hybrid parallel execution
• Threading and message passing
• Most likely to succeed OpenMP and MPI
• Currently, MPI understands inter- vs. intra-node
  communication, and sends intra-node messages
  efficiently

34
SP Environment, part 4c

• Interactive execution
• Interactive jobs run on login nodes or compute
  nodes
• currently, there are 8 login nodes
• Serial execution is easy
• ./a.out ltinput_file gtoutput_file
• Parallel exeuction involves POE
• poe ./a.out -procs 4 ltinput_file gtoutput_file
• Interactive parallel jobs may be rejected due to
  resource scarcity no queueing
• By default, parallel interactive jobs use both
  processors on each node
• Batch execution
• Batch jobs run on the compute nodes
• By default, parallel batch jobs use both
  processors on each node
• you will be charged for both, even if you
  override this
• Use Loadleveler utilities set to submit, monitor,
  cancel, etc.
• requires a script, specifying resource usage
  details, execution parameters, etc.
• Several job classes, for charging, resource
  limits premium, regular, low
• two job types - serial and parallel

35
SP Environment, part 4d

• SP Batch Queues and resource Limits
• Limits
• 3 jobs running
• 10 jobs considered for scheduling (idle)
• 30 jobs submitted

36
SP Environment, part 5

• Libraries and Other Software
• Java, Assembler
• Aztec, PETSc, ScaLAPACK
• Emacs
• Gaussian 98, NWChem
• GNU Utilities
• HDF, netCDF
• IMSL, NAG, LAPACK
• MASS, ESSL, PESSL
• NCAR Graphics
• TCL/TK

37
SP Environment, part 6

• Tools
• VT - vsualization tool for trace visualization
  and performance monitoring
• Xprofiler - graphical code structure and
  execution time monitoring
• Totalview - multiprocessing-aware debugger
• Other Debugging Tools
• Totalview - available in its own MODULE
• adb - general purpose debugger
• dbx - symbolic debugger for C, C, Pascal, and
  FORTRAN programs
• pdbx - based on dbx, with functionality for
  parallel programming
• TAU - ACTS tuning and analysis utility - planned!
• Vampir - commercial trace generation and viewing
  utility - future!
• KAP Suite - future?
• PAPI - future?

38
HPSS Mass Storage

• HPSS
• Hierarchical, flexible, powerful,
  performance-oriented
• Multiple user interfaces allow easy, flexible
  storage management
• Two distinct physical library systems
• May be logically merged in future software
  release
• Accessible from any system from inside or outside
  NERSC
• hpss.nersc.gov, archive.nersc.gov (from outside
  NERSC)
• hpss, archive (from inside NERSC)
• Accessible via several utilities
• HSI, PFTP, FTP
• Can be accessed interactively or from batch jobs
• Compatible with system maintenance utilities
  (sleepers)

39
HPSS Mass Storage

• HPSS
• Allocated and accounted, just like CPU resources
• Storage Resource Units (SRUs)
• Open ended - you get charged, but not cut off, if
  you exceed your allocation
• Project spaces available, for easy group
  collaboration
• Used for system backups and user archives
• hpss used for both purposes
• archive is for user use only
• Has modern access control
• DCE allows automatic authentication
• Special DCE accounts needed
• Not uniformly accessible from all NERSC systems
• Problems with PFTP on the SP system
• Modern secure access methods are problematic
• ftp tunneling doesnt work (yet)

40
Accessing NERSC

• NERSC recognizes two connection contexts
• Interaction (working on a computer)
• File transfer
• Use of SSH is required for interaction (telnet,
  rlogin are prohibited)
• SSH is (mostly) standardized and widely available
• Most Unix Linux systems come with it
• Commercial (and some freeware) versions available
  for Windows, Macs,
• SSH allows telnet-like terminal sessions, but
  protects account name and password with
  encryption
• simple and transparent to set up and use
• Can look and act like rlogin
• SSH can forward xterm connections
• sets up a special DISPLAY environment variable
• encrypts the entire session, in both directions

41
Accessing NERSC

• SSH is encouraged for file transfers
• SSH contains scp, which acts like rcp
• scp encrypts login info and all transferred data
• SSH also allows secure control connections
  through tunneling or forwarding
• Heres how tunneling is done
• Set up a terminal connection to a remote host
  with port forwarding enabled
• This specifies a port on your workstation that
  ssh will forward to another host
• FTP to the forwarded port - looks like you are
  ftping to your own workstation
• Control connection (login process) is forwarded
  encrypted
• Data connections proceed as any ftp transfer
  would, unencrypted
• Ongoing SSH issues being investigated by NERSC
  staff
• Not all firewalls allow ftp tunneling, without
  passive mode
• HPSS wont accept tunneled ftp connections
• Workstation platform affects tunneling method
• Methods differ slightly on the SP
• New options, must use xterm forwarding, no ftp
  tunneling...
• Different platforms accept different ciphers

42
Information Sources - NERSC Web Pages
43
Information Sources - On-Line Lecture Materials
