EE110300 ???????? Lecture 3 ?????? II ---- Operating Systems ????? ??? ??

1

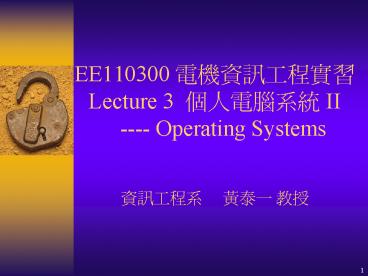

EE110300 ????????Lecture 3 ?????? II ----
Operating Systems????? ??? ??
2
What is an operating system?Definition

• An operating system is the permanent software
  that controls/abstracts hardware
• User applications can thus be simpler and
  device-independent

User Applications
virtual machine interface
Operating System
physical machine interface
Architecture
3
What is an operating system?Definition (cont)

• Manages resources and processes to support
  different user applications
• Provides Applications Programming Interface (API)
  for user applications

User Application
User Application
Operating System
Architecture
4
Modern operating systems

• x86 platform
• Linux
• Windows
• Mac platform Mac OS
• Sun Solaris Unix (Sun workstations)
• IBM AIX (mainframes)
• Embedded systems (special-purpose OS)
• Palm, PocketPC, etc
• Xbox, etc

5
Linus Torvalds

• 1991, Finland, Linux Project
• 1992, Linux Kernel 0.02
• Bash v1.08
• GCC v1.40
• 1997, Moves to Transmeta
• 1998, Linux Kernel v2.2
• 2001, Linux Kernel v2.4
• Pronunciation Linn-ucks

6
Windows 2000 XP

• 1989 10 developers left DEC VMS team and joined
  Microsoft ? Windows NT 1.0
• 1996 Windows NT 4.0
• 1999 Windows 2000
• 2001 Windows XP
• 2002 Microsoft .Net Server

7
Linux vs. Windows NT

• Linux is kernel only, free and open source
• Windows is full-loaded OS and pricy
• Linux requires minimum HW, Windows not
• Web server
• (Win2K SWC ) beats (Linux TUX)
• File server printer server
• Windows supports a wider range of HW
• Linux has more stable drivers

8
Operating System Interfaces
9
Software hardware layer
user
User Program
Executable Binary
compiler
Compiler
Linker
user mode
OS interface
System library
kernel
OS
Operating System
device drivers
Hardware
Architecture
10
Device Driver

• Device driver????????????????.
• ????????????????????.
• ?????????????????????, ????????,?ISR???????????.

11
System service call (monitor)

• C Programs
• main()
• // call printf, provided
• // by the C library, to
• // print on the screen
• printf(Hello World!)

Borland C library Int printf() // call
SysOutputString, // provided by NT // system
library, to // print on the screen SysOutputString
()
NT library Void SysOutputString() // call
NtOutputString, that in turn will call // video
card driver to output strings to // the
screen NtOutputString()
12
System service call (disk)

• C Programs
• main()
• // call CreateFile
• // by the C library, to
• // create a file on disk
• CreateFile(a.txt)

Borland C library Int CreateFile() // call
NtCreateFile, // provided by NT to // create a
file NtCreateFile()
NT library Void NtCreateFile() // call
NtInternalCreateFile, that in turn will //
call the file system driver and the disk //
driver to create a file on a disk
NtInternalCreateFile()
13
System service calls (network)

• C Programs
• main()
• so createsocket()
• send(so, text)
• close(so)

Borland C library int createsocket()
NtCreateSocket() int send()
NtSocketSend()
NT library Void NtCreateSocket()
NtAfdCreateSocket()
14
(No Transcript)
15
Virtual computer concept
Virtual C Computer
C compiler
LISP interpreter
Operating system
Operating System Command interpreter
FORTRAN compiler
Macroinstruction interpreter
Bare machine
C compiler
Assembler
Virtual C Computer
Java compiler

16
Importance of operating system

• System API are the only interface between user
  applications and hardware
• API are designed for general-purpose, not
  performance driven (e.g. network applications)
• OS code cannot allow any bug
• Any break (e.g. invalid access) causes reboot
• The owner of OS technology controls the software
  industry

17
What is Embedded System?

• ????????????,???????????????????????,??????????.
• ?? PDA, ???, ??????, ????? ?.

18
Embedded system architecture

• 2-layered device
• XBox

• 3-layered device
• Palm, PocketPC

User Applications
Embedded OS
Application
Hardware
Hardware
19
General-purpose embedded OS
General-purpose Embedded OS
Examples Linux, Windows WinCE, Palm OS
Hardware General-purpose Special device
OS code size Large Small
Stability req. Strong Weak
Develop. cost Huge Medium
20
Operating system concepts
21
Process Thread

• How do different applications run on the same
  machine at the same time without interfering each
  other?
• Protection between processes
• Protection between a process and the OS
• Process an execution of a program, consisting of
  a virtual address space, one or more threads, and
  some OS states.

22
Virtual memory (address space)
page 0
pp 0
page 1
pp 1
page 2
pp 2
x
pp N
paging file
pp 212
physical memory (16MB)
page 220
virtual address space (4GB)
23
Virtual memory (address space)
page 0
pp 0
page 1
pp 1
page 2
pp 2
pp N
paging file
pp 212
physical memory (16MB)
page 220
virtual address space (4GB)
24
Memory manager
pp 0
pp 1
pp 2
PT
process VA
pp N
paging file
pp 212
physical memory
PT
process VA
25
Memory manager
pp 0
pp 1
pp 2
PT
process VA
pp N
paging file
pp 212
physical memory
PT
process VA
26
Memory manager (w/ constraint)
pp 0
x
pp 1
pp 2
PT
process VA
memory manager
pp N
paging file
pp 212
physical memory
PT
process VA
27
Protectiondual mode operation

• Can application modify its own page table? If it
  could, could get access to all physical memory.
• Dual Mode
• Kernel/protected model no restriction, can touch
  any physical memory page
• User mode where you program runs, can only touch
  part of the virtual address space
• Applications can enter the kernel mode through
  systems calls (traps)

28
Mode change system call trap
1. System call traps to the kernel (kernel
mode) 2. Kernel determines service routine
required 3. Kernel services the call. 4. Control
is returned to user program (user mode)
29
Thread

• A process starts with one thread (main thread),
  and can initialize more threads by CreateThread()
  calls
• A thread represents an execution stream of
  instructions and its CPU register context
• A thread is the unit used in the scheduler
• Kill a process ?? kill its all threads

30
Scheduler

• A component in OS that decides which thread in
  the thread pool gets the CPU
• Priority-based scheduler
• Context switch

new thread
terminating threads
signal events
31
Synchronization

• All threads in the same process share all global
  data
• Synchronization among these threads is necessary
  to maintain data integrity
• Resource lock is commonly used to guarantee
  thread mutual exclusive
• abuse of such locks decreases scalability
• ignorance of such locks decreases stability
• Deadlock issues

32
File Systems

• A hard disk is just a raw media storage
• A hard disk device driver allows OS to
  communicate with the hardware
• But, it is the responsibility of the OS to
  organize disk sectors/tracks for storing files
• such component is called the file system
• E.g. A hard disk that stores NTFS information
  cannot be read with the FAT32 driver
• example paper with Moses code

33
Operating Systems and System Software
Example web server software
34
User-mode web server architecture
User Mode
I/O module
Kernel Mode
35
User-mode web server commons

• User-mode application architecture
• e.g. Microsoft Internet Information Server (IIS),
  Netscape Enterprise Server, Apache HTTP Server,
  etc.
• Dependent on generally system API
• Stand-alone web content cache limited by virtual
  address space
• Time-to-live cache replacement algorithm
• Memory-less dynamic code execution

36
SWC web server architecture
User Mode
Kernel Mode
miss
System Cache
network card
37
SPECWEB99 Performance
estimated scaling data
38
Kernel vs. user-based web server

• Increase peak capacity by five times
• Web cache size be limited by physical memory size
• Web cache be shared by both static dynamic web
  requests
• Remove I/O overhead and Socket creation
• Fast TCPIP data transmission

39
Summary
A.D. 1492 Columbus discovers America --- The new
and free land is on your grip!!
