Chapter 16 Optical Phenomena

1

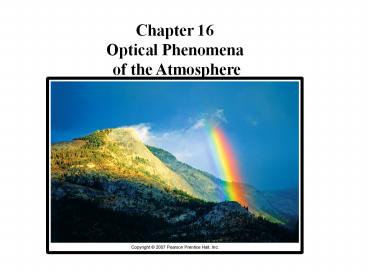

Chapter 16 Optical Phenomena of the Atmosphere
2
basic properties of light

• reflection,
• refraction,
• diffraction, and
• interference.

3
Law of Reflection

• when light rays are reflected, they bounce off
  the reflecting surface at the same angle (the
  angle of reflection) at which they meet that
  surface (the angle of incidence).

4
Law of Reflection
On Smooth Surface
On Rough Surface
5
Internal reflection

• when light that is traveling through a
  transparent material, reaches the opposite
  surface and reflects back into the transparent
  material.

6
Refraction

• is the bending of light due to a change in
  velocity as it passes obliquely from one
  transparent medium to another.

7
Bending of Light
Refraction
8
The bending of light

• by refraction is responsible for such common
  optical illusions as the apparent displacement of
  the position of the stars, Moon, and Sun.

9
Mirages

• are an optical effect of the atmosphere caused by
  refraction when light passes from air with one
  density into air with a different density and the
  object appears displaced from its true position.

10
Highway Mirage
11
Hot Air Below Cool Air Objects Appearing
Upside Down
12
inferior mirage

• occurs when the image appears below the true
  location of the observed object.
• End day 1 notes.
• Socrative.com review

13
Cool Air Below Warm Air Objects Appear Above
Their Positions
14
Looming

• When objects appear to be suspended above the
  horizon.
• Looming is considered a superior mirage because
  the image is seen above its true position

15
Apparent Displacement of Position of the Sun
16
Towering

• Is a mirage that changes the apparent size of an
  object.

17
Fata Morgana

• A type of towering that is observed in coastal
  areas as towering castles that appear out of thin
  air.

18
Rainbows

• Require sunlight and water droplets.
• the observer must be between the Sun and rain
• water droplets act as prisms and refraction
  disperses the sunlight into the spectrum of
  colors, a process called dispersion.

19
Formation of a Rainbow
20
Primary rainbow

• sunlight is reflected once within a raindrop.
• In a secondary rainbow, light is reflected twice
  within a raindrop before it exits.

21
The Visible Spectrum
22
Rainbow
23
Secondary Rainbow
24
Halo

• is a narrow whitish ring with a large diameter
  centered on the Sun.
• are produced by dispersion of sunlight from
  atmospheric ice crystals that refract light.
• End day 2 notes
• Socrative.com review

25
Common Ice-Crystal Configurations
Path Taken by Light to Generate Halos
26
Halo Produced by Dispersion of Sunlight by
Cirrostratus Clouds
27
sun dogs or parhelia

• mock suns.
• viewed near sunset or sunrise, is a vertical
  shaft of light that appears to extend upward from
  the Sun

28
Sun Dogs (Parhelia)
29
Sun Pillar
30
Glory

• commonly seen by pilots,
• consists of one or more colored rings that
  surround the airplanes shadow projected on the
  clouds below.

31
corona

• a bright whitish disk centered on the Moon or
  Sun.
• produced when water droplets scatter light from
  the illuminating body.

32
The Corona
The Glory
33
diffraction

• bending of light as it passes near the edges of
  cloud droplets.
• diffracted light will be directed into the
  shadow of the droplet.

34
Multiple Distorted Images of Sun Form a Long,
Narrow Band
35
Chapter 16

• END
• Socrative.com review
