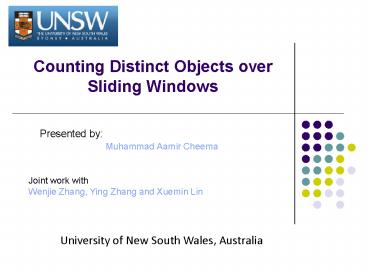

Counting Distinct Objects over Sliding Windows

1
Counting Distinct Objects over Sliding Windows

• Presented by
• Muhammad Aamir Cheema

Joint work with Wenjie Zhang, Ying Zhang and
Xuemin Lin
University of New South Wales, Australia
2
Introduction

• Counting distinct objects
• Given a dataset D, return the number of distinct
  objects in D.
• Counting distinct objects against sliding
  windows
• Given a data stream, return the number of
  distinct objects that arrive at or after
  timestamp t.
• Applications
• traffic management, call centers, wireless
  communication, stock market etc.

3
Introduction

• Approximate counting
• Let n be the actual number of distinct
  objects and n be the reported answer. Build a
  sketch s.t. every query is answered with the
  following guarantee
• n-n/n e with confidence
  (1 d)
• Contribution
• FM based algorithms
• SE-FM (accuracy guarantee space usage
  guarantee)
• PCSA-based algorithm (No accuracy guarantee
  (although practical) more efficient)
• k-Skyband
• (Accuracy guarantee efficient no space
  usage guarantee)

4
FM Algorithm

• FM SKETCH
• Let h(x) be a uniform hash function
• Let pivot p(y) be the position of left most
  1-bit of h(x)
• FM be an array of size k initialized to zero
• For each record x in dataset
• FMpivot 1
• Let BFMmin be the position of left most 0-bit of
  FM
• Number of distinct elements a 2B
• where a 1.2897385
• Each bit i of h(x) has 1/2 probability to be one

r1 r2 r1 r3 r1
k 4
1 0 1 0
h(r1)
0 0 1 0
h(r2)
1 1 0 1
h(r3)
0 0 0 0
FM
1 0 0 0
1 0 1 0
P. Flajolet and G. N. Martin. Probabilistic
counting algorithms for data base applications.
JCSS 1985
FMmin 1
5
FM Algorithm

• Each bit i of h(x) has 1/2 probability to be one
• A h(x) with first i bits zero and (i1)th bit one
  has a probability 1/2i1
• Let n be the number of distinct elements
• FM0 is accessed appx. n/2 times
• FM1 is accessed appx. n/4 times
• .
• FMi is accessed appx. n/2i1 times
• If i gtgt log2 n
• FMi will almost certainly be zero
• If i ltlt log2 n
• FMi will almost certainly be one
• If i log2 n
• FMi may be zero or one
• Hence, the first i for which FMi is zero may be
  used to approximate number of distinct elements
  n.

r1 r2 r1 r3 r1
1 0 1 0
h(r1)
0 0 1 0
h(r2)
1 1 0 1
h(r3)
FM
1 0 1 0
FMmin 1
6
FM Algorithm

• Use r hash functions to create r FM Sketches
• Initialize each FM to zero
• For each record x in dataset
• For each hash function hi(x)
• FMipivot 1
• Let Bi be the position of left most 0-bit of FMi
• B (B1 B2 Br )/ r
• Number of distinct elements a 2B
• where a 1.2897385

1 0 1 0
FM1
B1 1
1 1 0 0
FM2
B2 2
Performance Guarantee Let n be the actual number
of distinct objects, n be the reported answer
and m be the domain of elements then P( n
n/n ? ) 1 - d If n gt 1/? and k
O(log m log 1/? log 1/d ) and r O(1/?2 log
1/d)
1 1 0 1
FM3
B3 2
B (1 2 2)/3 1.67
7
FM-based Algorithm

• Maintaining one FM sketch
• For each record (x,t) in dataset
• FMpivot t
• Answering a query
• For any t, let B FMmin (t) be the position of
  left most entry of FM with value less than t
• Number of distinct elements arrived after
  (inclusive) t a 2B where a 1.2897385

1 2 3 4 5
r1 r2 r3 r2 r2
1 0 1 0
h(r1)
0 0 1 0
h(r2)
1 1 0 1
h(r3)
FM
0 0 0 0
1 0 0 0
1 0 2 0
3 0 4 0
3 0 5 0
3 0 2 0
FMmin (4) 0
8
FM-based Algorithm

• Maintain r FM sketches
• Initialize each FM to zero
• For each record (x,t) in dataset
• For each hash function hi(x)
• FMipivot t
• Answering a query
• For any t, let Bi (t) be the position of left
  most entry smaller than t in i-th FM
• Let B ( B1 (t) B2 (t) Br(t) )/ r
• Number of distinct elements arrived after
  (inclusive) t a 2B where a 1.2897385

9
Performance Analysis

• Let n be the actual number of distinct objects
  arriving not before time t, n be the reported
  answer and m be the domain of elements then
• P( n n/n ? ) 1 - d
• If n gt 1/?
• and k O(log m log 1/? log 1/d )
• and r O(1/?2 log 1/d)
• Total Space O(1/?2 log 1/d log m)
• Total maintenance cost for one record O(1/?2 log
  1/d log log m)
• Total query cost O(1/?2 log 1/d log log m)

10
PCSA-based Algorithm

• Maintain r FM sketches but update j lt r sketches
• Generate j hash functions H(x) that map x to
  1,r
• Initialize each FM to zero
• For each record (x,t) in dataset
• For each of the j hash functions H()
• i H(x)
• Update i-th FM sketch
• Answering a query
• For any t, let Bi (t) be the position of left
  most entry smaller than t in i-th FM
• Let B ( B1 (t) B2 (t) Br(t) )/ r
• Number of distinct elements arrived after
  (inclusive) t (a 2B)/ j where a 1.2897385
• Inspired by PCSA technique in P.. Flajolet and
  G. N. Martin. Probabilistic counting algorithms
  for data base applications. JCSS 1985
• NOTE No accuracy guarantee but performs well in
  practice

11
BJKST Algorithm

• Main Idea
• Let h() be a hash function to hash D to 1,m3
  where m D
• For each record x, we generate its hash value
  h(x)
• Maintain k-th smallest distinct hash value k_min
• Number of distinct elements n km3/k_min
• Improved algorithm
• Use r hash functions
• Compute ni for each hash function hi() as above
• Report final answer as median of ni values
• Performance guarantee
• P( n n/n ? ) 1 - d
• If m gt 1/ d
• and n gt k
• and k O(1/?2)
• and r O(log 1/d)

Z. Bar-Yossef, T. S. Jayram, R. Kumar, D.
Sivakumar, and L. Trevisan. Counting distinct
elements in datastream. In RANDOM'02.
12
K-Skyband Technique

• Main Idea
• Let h() be a hash function to hash D to 1,m3
  where m D
• For each record (x,t) we generate h(x) and store
  record (x, h(x), t)
• Answering a query q(t)
• Retrieve all records (x,h(x),t) for which
  timestamp t t
• Get the k-th smallest distinct hashed value and
  apply BJKST algorithm
• Limitation Requires storing all records

13
K-Skyband Technique

• For any time t, we need to find k-th smallest
  hash value arriving no later than t
• A record x dominates another record y if x
  arrives after y and has smaller hash value
• K-Skybands keeps only the objects that are
  dominated by at most (k-1) records
• Maintaining K-Skyband
• Keep a counter for each record
• When a new element (x,t) arrives, increment the
  counter of all records dominated by it
• Remove the records with counter at least equal to
  k
• We increment the counters of groups to improve
  efficiency (Domination aggregation search tree)

k 2
b
e
c
t
d
a
h(x)
14
K-Skyband Technique

• Answering Query
• Find k_min (the k-th smallest hash value among
  elements arriving no later than t)
• Let z be the number of elements arrived before t
• k_min is the (zk)-th overall smallest hash value
• Algorithm
• Maintain a binary search tree eT that stores
  elements according to t
• Maintain a binary search tree eH that stores
  elements according to h(x)
• When a query q(t) arrives
• Compute z by using eT
• Find (zk)-th overall smallest hash value from eH

k_min 5th smallest h(x)
k 2
b
e
c
t
d
a
z 3
f
h(x)
15
Performance Analysis

• Let n be the actual number of distinct objects
  arriving not before time t, n be the reported
  answer and m be the domain of elements then
• P( n n/n ? ) 1 - d
• If m gt 1/ d
• and n gt k
• and k O(1/?2)
• and r O(log 1/d)
• Expected total space O(1/?2 log 1/d log n)
• Expected time complexity O(log 1/d (log 1/?
  log n))

16
Experiments

• Synthetic datasets following Uniform and Zipf
  distribution
• Real dataset WorldCup 98 HTTP requests (20 M
  records)

j
17
Space Efficiency
18
Space Efficiency
19
Time Efficiency
Maintenance cost
20
Time Efficiency
Query response time
21
Accuracy
22
Thanks
23

• P. B. Gibbons. Distinct sampling for
  highly-accurate answers to distinct values
  queries and event reports. In VLDB, 2001.
• Space usage 1/e2 log 1/d m1/2
• Y. Tao, G. Kollios, J. Considine, F. Li, and D.
  Papadias. Spatio-temporal aggregation using
  sketches. In ICDE 2004.
• Space usage O(N/e2 log 1/d log m)

24
Space Requirement (SE-FM)

• To guarantee the performance we require the
  following
• k O(log m log 1/? log 1/d )
• r O(1/?2 log 1/d)
• Let m gt 1/? and m gt 1/d then k O(log m)
• Size of one sketch is k O(log m)
• Size of r sketches is O(r log m) O(1/?2 log
  1/d log m)
• Total Space O(1/?2 log 1/d log m)

25
Time Complexity (SE-FM)

• To guarantee the performance we require the
  following
• k O(log m log 1/? log 1/d )
• r O(1/?2 log 1/d)
• The elements in a sketch are stored in a min-heap
  to support logarithmic search/update
• Hence, cost of one search/update operation O(
  log k) O( log log m)
• To maintain the sketches, we update r sketches
  for each record x
• Total maintenance cost for one record O( r log
  log m) O(1/?2 log 1/d log log m)
• To answer a query, we search in r sketches
• Total cost O( r log log m) O(1/?2 log 1/d log
  log m)

26
Space Usage (K-Skyband)

• Performance guarantee
• P( n n/n ? ) 1 - d
• If m gt 1/ d
• and n gt k
• and k O(1/?2)
• and r O(log 1/d)
• Expected size of k-skyband O (k ln (n/k) )
• Expected size of r k-sybands O(rk log (n/k) )
  O(1/?2 log 1/d log n)

27
Time Complexity (K-Skyband)

• Performance guarantee
• P( n n/n ? ) 1 - d
• If m gt 1/ d
• and n gt k
• and k O(1/?2)
• and r O(log 1/d)
• Answering Query q(t)
• Search eT to compute z log (k log n) O(log k
  log n)
• Search eH to find (zt)-th element O(log k log
  n)
• We require this for all r sketches O (r (log k
  log n)) O(log 1/d (log 1/? log n))
