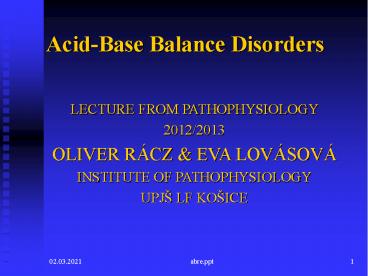

Acid-Base Balance Disorders

1
Acid-Base Balance Disorders

• LECTURE FROM PATHOPHYSIOLOGY
• 2012/2013
• OLIVER RÁCZ EVA LOVÁSOVÁ
• INSTITUTE OF PATHOPHYSIOLOGY
• UPJŠ LF KOŠICE

2
Introductory remarks

• Acidobasic balance (ABB) First of all ABB of
  extracellular space blood
• 7,4 40 nmol/l H (or 410-7 mol/l )
• (not H but H3O)
• CO2 production 20 mols/day (300 360 l)
• Strong (non-volatile) acid production 60 70
  mmols/day
• oxidation of SH groups (amino acids) sulfate
• hydrolysis of proteins, phospholipids phospate
• keto acids, lactic acid...

3
Logarithms
H Exp mmol/l pH pH nmol/l
100 mmol/l -1 1 7,1 79
10 mmol/l -2 2 7,2 63
1 mmol/l -3 3 7,3 50
100 mmol/l -4 4 7,4 40
10 mmol/l -5 5 7,5 31
1 mmol/l -6 6 7,6 25
100 nmol/l -7 7 7,7 20
10 nmol/l -8 8 7,8 16
1 nmol/l -9 9 7,9 12
4
Physiological a pathological values

• pH H nmol/l
• 7,36 - 7,44 44 - 36
• 7,10 94
• 6,80 - 7,70 158 - 20
• 4,50 - 8,00 32000 10
• 7,28 53
• 6,90 126
• 6,2 - 8,5 631 - 3
• 6,5 - 7,6 316 - 25
• 4,50 32 mmol/l
• 1,2 - 3,0 1000 - 63

• Blood
• Physical exercise
• Frontiers of life
• Urine
• Red cells
• Muscle cells
• Bile
• Duodenal juice
• Prostata cells
• Gastric juice

5
ABBMeasurement
Not very long ago...
6
Astrup

• Arterial or arterialised capillary blood
  (hyperemisation of finger or auricle)
• 0,1 ml into heparinised capillary tube without
  air, immediate measurement
• pH and pCO2 electrochemically
• pCO2 5,3 0,53 kPa 1,2 0,12 mmol/l
• Other calculated
• actual bicarbonates 24 2 mmol/l
• anion gap 9 17 mmol/l
• standard bicarbonates as actual
• base excess 0 2 mmol/l
• buffer base 49 3

7
Buffers and regulatory systems

• Buffers only absorb the attacks of hydrogen ions
  and prevent sudden big fluctuations of pH.
• Closed systems
• hydrogencarbonate
• phosphate
• haemoglobin/protein
• bones (carbonate)
• Regulatory systems open, regulate the
  hydrogencarbonate system
• respiratory (provisional, delayed)
• excretory (definite)

8
(No Transcript)
9
Henderson and Hasselblach

• pH pK log HCO3/CO2
• pK 6,1
• HCO3 24 mmol/l
• CO2 40 mmHg 5,3 kPa 1,2 mmol/l
• pH 6,1 log (24/1,2) 6,1 1,3
• pH 7,4

10
Acute and chronic Not compensated, partial
compensated, corriged
11
Henderson and Hasselblach 1metabolic acidosis
something is decreasing bicarbonate (24)

• HCO3 12 mmol/l CO2 1,2 mmol/l
• pH 6,1 log (12/1,2) 6,1 1,0
• pH 7,1
• COMPENSATION THROUGH HYPERVENTILATION (CO2 OUT)
• HCO3 12 mmol/l CO2 0,6 mmol/l
• pH 6,1 log (12/0,6) 6,1 1,3
• pH 7,4 is everything OK???

12
Henderson and Hasselblach 2metabolic alkalosis
too much of bicaarbonate

• HCO3 36 mmol/l CO2 1,2 mmol/l
• pH 6,1 log (36/1,2) 6,1 1,5
• pH 7,6
• COMPENSATION THROUGH HYPOVENTILATION (CO2)
  RETENTION
• HCO3 36 mmol/l CO2 1,8 mmol/l
• pH 6,1 log (36/1,8) 6,1 1,3
• pH 7,4 is everything OK???

13
Henderson and Hasselblach 3respiratory acidosis
asfyxia

• HCO3 24 mmol/l CO2 2,4 mmol/l
• pH 6,1 log (24/2,4) 6,1 1,0
• pH 7,1
• COMPENSATION THROUGH ACID EXCRETION
• HCO3 48 mmol/l CO2 2,4 mmol/l
• pH 6,1 log (48/2,4) 6,1 1,3
• pH 7,4 is everything OK???

14
Henderson and Hasselblach 4respiratory alkalosis
histeria, mountain sickness

• HCO3 24 mmol/l CO2 0,8 mmol/l
• pH 6,1 log (24/0,8) 6,1 1,5
• pH 7,6
• COMPENSATION THROUGH ACID RETENTION
• HCO3 16 mmol/l CO2 0,8 mmol/l
• pH 6,1 log (16/0,8) 6,1 1,3
• pH 7,4 is everything OK???

15
Acids bind and decrease bicarbonate Respiratory
insufficiency increases CO2 Increased
bicarbonate Decreased CO2
MAC RAC MAL RAL
20 HCO3
1 CO2
7,4
16
RAC, MAC, RAL, MAL
7,2
CO2
7,3
7,4
7,5
7,6
HCO3
17
Compensation
7,2
CO2
7,3
7,4
7,5
7,6
HCO3
18
Compensated disorders
7,2
CO2
7,3
7,4
7,5
7,6
HCO3
19
Respiratory compensation of MAC

• Exspiration of CO2 (Kussmaul) balances the
  decreased bicarbonate
• Delayed respiration reacts to pH in the brain
• Danger delay also during treatment
• HCO3 and pH restored through treatment
• Hyperventilation persists
• Respiratory alkalosis!

20
Kidneys

• Synthesis of bicarbonate in renal tubular cells
• H20 CO2 H2CO3 H -HCO3
• Complete resorbtion of bicarbonate into blood
• Maximal excretion of H through exchange for
  Na, K and by protone pump
• In filtrate H ions associate with ammonia and
  primary phosphate
• H NH3 NH4 H HPO42- H2PO4-

21
Metabolic acidosispH lt 7,35 HCO3 lt 22 mmol/l

• Increased production of endogenous acids
  diabetic ketoacidosis, lactic acidosis
• Exogenous acids or compounds metabolised to acids
  ethylene glycol, methanol, salicylate
• Bicarbonate losses through GIT or kidneys
  (diarrhoe, intestinal fistulae, kidney diseases)
• Insufficient excretion of H in acute or chronic
  kidney failure and in some hereditary
  tubulopathies

22
Severity of metabolic acidosis
pH HCO3
Light 7,35 7,30 22 20
Medium 7,30 7,20 20 16
Severe 7,20 7,10 16 10
Very severe lt 7,10 lt 10
23
Anion gap
Ketones ? Lactate ? Other ?
AG
HCO3-
Cl-
Na
1 norma, anion gap 15 mmol/l 2 MAC,
bicarbonate ß ,chloride Ý , anion gap 15 mmol/l
3 MAC, bicarbonate ß ,chloride norm, anion gap
Ý
24
Ketoacidosis during starvation

• Lipid catabolism
• Gluconeogenesis from oxalacetate, an important
  intermediate od Krebs cycle
• Accumulation of acetylcoenzyme A
• Ketonemia without hyperglycaemia
• Decreased albumin, phosphate depletion

25
Diabetic ketoacidosis I(cell starvation)

• Nondiagnosed Type 1 DM, increased insulin demand
  during intercurrent diseases
• Hyperglycaemia
• Polyuria and dehydratation (glycosuria)
• Lipid degradation, gluconeogenesis, Krebs cycle
  blockade
• Ketonemia, ketonuria (instead of nitroprusside
  test specific b-hydroxybutyrate assay in blood,
  too)
• Kussmaul breathing, disturbed consciousness, coma
• Increased anion gap

26
Diabetic ketoacidosis II(electrolyte disorder)

• Hyponatremia, hypophosphatemia
• Intracellular potassium depletion due to
• insulin deficiency
• outflow of K from cells (acidosis)
• Urinary losses of K (osmotic diuresis, RAA
  system activation in dehydration)
• Not always connected with hypokalemia
• Dangerous hypokalemia can occur during too rapid
  treatment with insulin
• FOLLOW IT!

27
Ketoacidosis in alcohol, methanol and ethylene
glycol intoxication

• Ethanol Þ acetaldehyde, b-hydroxybutyrate (AG)
  and
• thiamin deficiency (coenzyme of pyruvate
  dehydrogenase)
• Hypalbuminemia, hypomagnesemia
• Tissue hypoxia (lactic acid)
• But vomitus leads to MAL
• Methanol Þ formaldehyde, formic acid (AG)
• Optic nerve (alcohol dehydrogenase)
• Ethanol as treatment
• Ethylene glycol Þ glyoxal, oxalic acid (AG)
• Acute tubular necrosis
• Treatment dialysis and ethanol

28
Lactic acidosis

• Hypoxia (A) or block of degradation (B)
• A respiratory diseases, circulatory failure,
  anaemia. With RAC
• B some oral antidiabetics of biguanide type
  (withdrawn or strict indication
  contraindications), fructose, sorbitol
• B some malignancies, thiamin deficiency
  hereditary enzyme defects (G6PD)

• Norm lt 1,3 mmol/l
• gt 5 mmol/l high mortality

29
Acidosis in kidney failure

• Simple principle decrease of glomerular
  filtration lt 0,3 ml/s (n 2 ml/s) the kidneys
  are not able to resorb bicarbonate and excrete
  acids
• Complicated reality adaptory mechanisms of
  tubuli / damage of tubuli
• Anion gap Ý phosphates Ý potassium Ý
• Dialysis

30
MAC with normal anion gap(hyperchloremic)

• Bicarbonate losses through GIT (diarrhoe)
• Renal tubular acidoses
• RTA II proximal type
• RTA I distal type
• RTA III mixed
• RTA IV with hyperkalemia

31
Acids and aldehydes

• Formic acid and formaldehyde, (from methanol)
• CH3OH Þ H2CO Þ HCOOH
• Acetic acid and acetaldehyde (from ethanol)
• C2H5OH Þ CH3-HCO Þ CH3-COOH
• Oxalic acid and glyoxal (from ethylene glycol
  antifreeze)
• HOCH2-CH2OH Þ OHC-CHO Þ HOOC-COOH
• Lactic acid (from glycolysis)
• CH3-CHOH-COOH
• b-hyrdroxybutyric, acetoacetic acid and acetone
  (stravation, insulin deficiency)
• CH3-CHOH-CH2-COOH, CH3-CO-CH2-COOH, CH3-CO-CH3

32
Metabolic alkalosispH gt 7,45 HCO3- gt 26 mmol/l

• Decrease of extracellular space volume
• smaller space and increased K and H secretion
  due to activation of renin-angiotensin-aldosterone
  system, Na reabsorbtion, hypokaliemia
• Metabolites
• citrate from blood transfusions, milk alkali
  syndrome, metabolites of ketone bodies
• Mineralocorticoids Na retention, K and H
  depletion
• Chloride depletion diuretics, vomitus, Mg
  deficiency
• Dg. help Urinary chloride excretion lt or gt 10
  mmol/day

33
Respiratory acidosis pH lt 7,35 pCO2 gt 5,8 kPa

• Connection between ABR and tissue oxygen supply
  remember haemoglobin dissociation curve
• CO2 in red cells is rapidly converted
  (carboanhydrase) to H2CO3 which dissociates to
  H and HCO3-
• Respiration is regulated by pH and pCO2
• RAC in respiratory disorders (as a part of
  global respiratory insufficiency) and in
  hemodynamic failure
• Renal compensation is not complete
• Tisue hypoxia leads to lactate acidosis

34
Respiratory alkalosis pH gt 7,45 pCO2 lt 4,8 kPa

• Hyperventilation
• psychogenic, fever, G negative sepsis
• mountain disease, CO intoxication
• some drugs aminophyllin, salicylate
• some lungs diseases pulm. embolism
• Parestesia, cramps, arrhythmias (ionized Ca)
