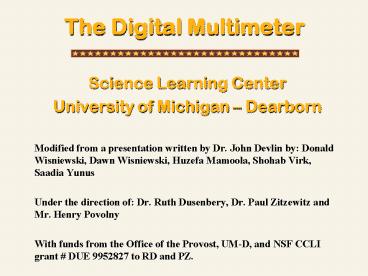

The Digital Multimeter
  • Science Learning Center
  • University of Michigan Dearborn
  • Modified from a presentation written by Dr. John
    Devlin by Donald Wisniewski, Dawn Wisniewski,
    Huzefa Mamoola, Shohab Virk, Saadia Yunus
  • Under the direction of Dr. Ruth Dusenbery, Dr.
    Paul Zitzewitz and Mr. Henry Povolny
  • With funds from the Office of the Provost, UM-D,
    and NSF CCLI grant DUE 9952827 to RD and PZ.

2
Quick Overview
  • The digital multimeter is one of the most
    versatile instruments, containing three different
    meters in one.
  • 1. A voltmeter measures the electrical potential
    across a device (in volts).
  • 2. An ammeter measures the amount of electrical
    current through a device (in amperes, or amps).
  • 3. An ohmmeter measures the electrical resistance
    of a device (in ohms).

3
Digital Multimeter Layout
  • The top portion of the meter contains the digital
    readout area, which resembles the digital display
    of many pocket calculators.
  • Below the digital readout is a large gray knob,
    called the FUNCTION switch. This switch
    determines which function the multimeter will
    perform (voltmeter, ammeter, or ohmmeter).

4
Function Switch
  • There are eight positions to choose from on the
    function switch.
  • The first is OFF. The meter should always be
    returned to this position when not in use.
  • In general, the three V markings measure voltage,
    the next measures electrical resistance, the one
    marked ?-))) checks for continuity, and the last
    two read AC and DC currents.

5
Function Switch - Voltage
  • The V () is set to measure alternating-current
    voltages, or simply AC voltage.
  • V () is for direct current voltage, or DC
    measurements.
  • 300mV ()is used to measure low voltages of
    direct current in the millivolt (mV) range.




6
Function Switch - Ohms/Amps
  • The ? position () is normally used to measure
    electrical resistance (in ohms).
  • The ?-))) position () is for certain
    applications that will not be covered here.
  • A () is used to measure AC current (in amps).
  • A () is used to measure DC current (in amps).





7
Starting Up
  • When the digital multimeter is first turned on,
    it will go through a self-analysis of its battery
    and its internal circuits.
  • While this is proceeding, the meter will light up
    almost all of the digital segments including a
    tiny battery symbol in the upper left hand
    portion of the display.
  • If you turn it on and it does not look like the
    image below, notify the SLC personnel.

8
SummaryThe Digital Multimeter Function Switch
  • V for AC voltage
  • V for DC voltage
  • 300 mV for low DC voltages (millivolts)
  • A for AC current
  • A for DC current
  • ? for resistance
  • ?-))) for continuity (not used in this module)

9
Voltage Measurements
  • This first series of measurements will be of DC
    voltages.
  • Turn the function switch to the V position to
    read DC voltages.

10
  • The connections to devices such as batteries or
    resistors are made via the two terminals on the
    lower right of the base of the meter.
  • Connect a long red test lead to the red input
    terminal on the meter (labeled V?) and a long
    black lead to the black input terminal (labeled
    COM for common terminal).
  • You will now be ready to begin making
    measurements. Start by measuring the electrical
    potential difference of the battery in your
    circuit box.

11
Circuit Box
  • The battery is installed between the terminals
    labeled A and B at the left-hand side of the box.
  • Terminal A is at a higher potential with respect
    to terminal B.

12
  • To measure the potential across the battery,
    connect the red test lead from the meter to point
    A on the circuit box, and the black test lead to
    B.
  • Read the value on your display. You should
    obtain a value of about 9 volts, since that is
    the potential of the battery that powers the
    circuit boxes.
  • The type of voltage is indicated by VDC to the
    right of the number displayed, which means volts
    across a direct current circuit.

13
Review of Method
  • We first set the function switch to the desired
    position (V in this case).
  • Then we connect the long leads to the proper
    terminals of the meter.
  • Lastly, we connect the meter across the device in
    the circuit and read the display.

14
Determining Polarity
  • Leave the Function switch in the position just
    used, but disconnect the test leads from the
    circuit box. You will now reverse the
    connections of the long leads to the circuit box.

15
  • Connect the red test lead to terminal B on the
    board, and the black test lead to terminal A.
  • Notice the display shows nearly the same
    numerical value, but now has a negative (-) sign
    in front of it. The multimeter not only measures
    the magnitude of the voltage, but it also senses
    which terminal is at the higher potential.
  • Positive readings indicate that the red
    terminal is at the higher potential,while
    negative readings indicate that the black (or
    COM) terminal is at higher potential.

16
Schematic Circuit Diagram
  • This is a schematic (or abstract) circuit
    diagram. Do not worry if you have not seen this
    before. It is really quite common and will be
    explained in detail in your physics course this
    term. We will just give you a brief introduction
    to such diagrams.

17
  • The device between points C and D is a resistor.
    A resistor reduces electric potential when there
    is a current through it.
  • Your circuit box contains a battery and 3
    resistors (R1,R2,R3) that are all soldered in
    place and connected to terminals. Since the box
    contains no internal wiring, you will have to
    connect these devices in a closed circuit.

18
  • Connect a short wire from point A to point C on
    the circuit board.
  • Then connect another short wire from point D to
    point E.
  • Finally, connect a third short wire from point F
    to point B.
  • You have just set up a simple series circuit
    which includes a battery and two resistors
    connected in series.

19
Measuring Voltage
  • Check to see if your meter is still set to the V
    position, and the leads are disconnected from the
    box.
  • Now, connect the red test lead to point A, and
    the black to point B. Record your results as
    VAB, the voltage between points A and B, that is
    the battery voltage.

20
  • Next, disconnect the two meter leads from the
    circuit box.
  • Now place the free end of the red test lead to
    point C and the free end of the black test lead
    to point D.
  • Because the meter is now connected across
    resistor R1, we will be measuring the potential
    difference across it. Record this value as VCD.

21
  • Now disconnect the two leads from the box, and
    reconnect the red lead to point E and the black
    lead to point F.
  • This configuration measures the value of
    potential across resistor R2. Record your result
    as VEF.

22
  • Add the voltage results for VCD and VEF.
  • The loop law states that the sum of potential
    changes around a circuit is zero. In this
    circuit the loop law gives the following
    equation.
  • VCD VEF VAB
  • If this rule does not hold within 10 of your
    measurements, you have probably measured
    something wrong. If so, redo the measurements.
  • When you are finished, disconnect all your
    wires and turn the meter off.

23
Summary of Voltage Measurements
  • Measuring DC Voltage
  • Set Function switch to V.
  • Connect long red lead to V? terminal.
  • Connect long black lead to COM terminal.
  • Connect the leads across the device.
  • Read the meter and record result in volts.

24
Current Measurements
  • When measuring electrical currents through
    devices, it is important to remember that the
    ammeter must be connected in an entirely
    different fashion from that used for voltage
    measurements.
  • It MUST be connected in series with the circuit.

25
Diagram of a Simple Circuit
  • The device between points A and B is a battery.
  • The device between C and D is a resistor.
  • In this circuit, the battery will cause a
    current, or flow of electric charge, to pass out
    one end of the battery, through the resistor and
    into the other end of the battery. The current
    direction is represented by the arrows around the
    circuit. We will use the letter I to designate
    the current.

26
  • Assemble this circuit with the circuit box.
    Connect a short wire from point A to point C and
    then another short wire from D to B. This
    completes the circuit with the battery and
    resistor R1.

27
  • Set the FUNCTION switch to the A position.
  • Connect a black lead to the COM terminal at the
    lower right.
  • Connect a red lead to the 300mA at the lower left
    corner of the meter. We use this terminal for low
    current (milliamp range) measurements only. This
    will be used for all measurements using this
    circuit box. If we needed to measure larger
    currents, we would use the 10A terminal instead.
  • In order for the ammeter to be able to measure
    I, we must have this current pass through the
    ammeter. We want the current to go, from the
    battery, into the multimeter through the red lead
    and exit through the black lead.

28
Measuring the Current I
  • Disconnect the end of the short lead from point C
    and join the free end of the short lead to the
    long red lead from the multimeter. These
    connected leads remain hanging free, unattached
    to any of the terminals on the circuit box.
  • Connect the long black lead of the multimeter
    point C to complete the electrical circuit.
  • The meter should read between 8.0 mA and 10.0 mA
    (that is, within 10)

29
Note
  • We have temporarily interrupted the current
    through the resistor and forced that current
    through the meter before going through the
    resistor. The current through the meter is the
    same as that through the resistor. The ammeter is
    connected in series with the resistor.
  • Would you have obtained the same result if you
    had measured the current out of the resistor?
    Try it.
  • All current measurements are to be performed in
    this manner.

30
Schematic diagram showing a current measurement
  • Open up the circuit at the point of interest and
    connect the meter between the open points. The
    ammeter is indicated by a circle with the letter
    A inside of it.

31
Summary of Current Measurements
  • Set the function switch to A.
  • Connect the long leads to the 300 mA and the COM
    terminals.
  • Connect the meter in series with the device being
    measured by opening up the circuit and inserting
    the meter between the open points.
  • Read the display and record the result. When the
    300 mA terminal is used, the units of your
    results are milliamps.

32
Lets try a more complicated circuit.
  • Before you begin, disconnect all of your
    previous wiring.
  • Place a short lead between points A and C on your
    board.
  • Place another short lead between D and E, and
    then another one between E and G.
  • Finally connect a wire from point H to point F
    and then another wire from F to B.

33
  • Your wiring should look like this.
  • Note that there are double plug connections at
    points E and F.
  • Ask yourself How would the meter have to be
    connected to the circuit board in order to
    properly measure all of the current that passes
    through resistor R2 only?

34
  • The correct answer is that the circuit would have
    to be opened up at point E and the meter
    connected between the open points.
  • The current into point E goes to R2. If we
    insert the meter at this point all of the current
    through R2 will first go through the ammeter.

35
  • Now, connect the meter in this fashion, by
    removing both of the plugs that go into point E
    and connecting both of them to the long, red
    meter lead. This combination of 3 plugs will not
    be attached to anything else.
  • Finally, connect the long, black meter lead to
    point E to complete the circuit.
  • Your reading should be between 2.1 and 2.7 mA for
    the current through resistor R2.

36
  • Before measuring the current through the 3rd
    resistor, disconnect the 2 meter leads and return
    the 2-plug pair to point E as before. This
    restores the circuit to its original
    configuration.
  • How would you connect the meter to the circuit to
    measure the current through circuit R3?

37
  • The correct answer is shown diagrammatically.
  • Open up the circuit at point G.
  • Connect the long red meter lead to the end of the
    single, short wire from E.
  • Connect the long black meter lead to point G.
    Note that the free end is a double plug.

38
  • In this configuration, all of the current through
    the meter will also have to go through R3.
  • Read the display to find the value of the
    current. Record this result as I3.
  • Your answer should be between 1.4 and 1.8
    milliamps (mA).

39
  • After recording your value, disconnect both meter
    leads from the circuit box and return the end of
    the short lead to point G as before.
  • Now we shall measure the current through resistor
    R1.
  • How would you would do this?

40
  • The answer is Open the circuit at resistor R1.
  • Open the circuit at point C by disconnecting the
    short lead at point C. Connect the long red
    meter lead to the end of the short lead and
    connect the long black meter lead to point C.
  • Note that the current through R1 will now be the
    same as through the meter. Double check your
    wiring, and record the value obtained for the
    current as I1.

41
  • Your meter should read between 3.6 and 4.4 mA.
  • Disconnect both meter leads from the circuit and
    return the end of the short wire to point C to
    restore the original circuits configuration.

42
  • A second important circuit law says that the
    current through resistor R1 is equal to the sum
    of the current through resistor R2 and R3, or

I1 I2 I3
  • Check your numbers to see if this holds for
    your case. The agreement should be within
    about 10 uncertainty.
  • If you do not obtain this result, measure I1,
    I2, I3 again, being very careful with your
    connections.

43
Current Through the Battery
  • To measure the current through the battery, we
    perform the same procedure as for the resistors.
  • We open the circuit at the battery terminal and
    insert the meter between the open points. One
    possible connection is as follows

44
  • Disconnect the wire at point B, and connect that
    wire to the long red meter lead. Connect the
    long black meter lead to point B.
  • Record this value as IB. For this particular
    circuit IB I1 current through
    battery is the same as current through
    resistor R1.
  • If this is not the case for you, go back and
    measure I1 and IB again.

45
General Procedure for Measuring Electrical
Currents.
  • First, set the function switch to A in order to
    measure DC currents.
  • Second, connect the long leads to the 300mA and
    the COM terminals on the multimeter if you are
    measuring milliamp currents.
  • Third, connect the meter in series with the
    device by opening up the circuit at the device
    and inserting the meter between the two points so
    that all of the current going through the meter
    also goes through the device.
  • Fourth, read the value and record the results.

46
Resistance Measurements
  • The final portion of this study unit will be
    concerned with resistance measurements.
    Electrical resistance is an intrinsic property of
    almost every electrical device and is measurable
    by the multimeter.
  • The basic unit resistance is the ohm. When the
    multimeter is used to measure electrical
    resistance, it is called an ohmmeter.
  • SYMBOLS FOR RESISTANCE UNITS
  • ? for ohms
  • k? for kilohms
  • M? for megohms

47
Preparations forResistance Measurements
  • Disconnect all wiring from the meter and circuit
    box.
  • Individual resistors must be measured separately
    from any other device in the circuit.
  • All power sources must be disconnected when
    taking resistance measurements.

48
  • Turn the function switch to the ? position. You
    will use this position for all of your resistance
    measurements.
  • In this position, the display will show an O.L.
    reading when first turned on. This indicates
    that there is an over load or off scale
    resistance. This occurs when the resistance is
    higher than the meter is capable of reading, such
    as when no device is connected.
  • The long leads must also be connected properly to
    measure resistance. The long red lead must be
    connected to the V? terminal, while the long
    black lead must be plugged into the COM terminal.

49
  • Please note that these are the same connections
    that were used when recording voltage readings.
  • Once the O.L. reading has been obtained and the
    long leads are attached properly, you are ready
    to begin making resistance measurements.
  • These measurements are made by placing the leads
    across the resistor to be measured.

50
  • Note that while measuring either voltage or
    resistance, the meter is connected across or in
    parallel with the device.
  • For example, connect the red test lead to point C
    on your circuit board, and the black test lead to
    point D to measure the resistance of R1.
  • Within a 10 uncertainty range, R1 measures 1000
    ohms.

51
  • Disconnect your meter leads, and reconnect them
    across R2.
  • The value shown here is 2,184 ohms.
  • Repeat this procedure to determine R3. It will
    show 3.28 k?, or 3,280 ?.

52
The Digital Multimeter Measuring Resistance
  • Set FUNCTION switch to ?
  • Connect long red lead to V ? terminal
  • Connect long black lead to COM terminal
  • Connect the leads ACROSS the device
  • Read meter and record ?, k?, or M?

53
Resistances In the Circuit Box
  • You should get the following to within a 10
    range
  • R1 - 1000 ?
  • R2 - 2200 ?
  • R3 - 3300 ?
  • If you did not obtain these values, repeat your
    measurements carefully.

54
  • Sometimes it is necessary to know the combined
    resistance of a group of resistors. The ohmmeter
    is capable of measuring this resistance as well.
  • Displayed here is a special combination of
    resistors R1, R2, and R3. This is the circuit
    you will assemble.

55
  • Connect a short lead from D to E, another from E
    to G, and a third from F to H.
  • Now find the resistance between C and F (RCF).
  • RCF should read around 2,320 ohms (2.32 kilo
    ohms), or be within a 10 difference (between
    2088 and 2552 ohms).

56
Summary of Resistance Measurements
  • Remove all power sources
  • Turn the Function switch to the ? position.
  • Connect the long leads to the V? and COM
    terminals of the multimeter.
  • Connect the meter across the device.
  • Read the scale and record the results, noting the
    units in the readout.

57
Conclusion
  • You should now be ready to take the mastery test
    for this study unit on the multimeter.
  • Disconnect all of your wiring and turn the
    function switch to the OFF position to prevent
    depletion of the battery inside the multimeter.
  • Return only the circuit box to the SLC personnel
    to obtain the post-test and test-box.
Write a Comment
User Comments (0)
About PowerShow.com
