Nairobi, Kenya

1

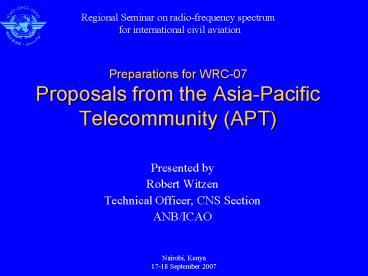

Preparations for WRC-07Proposals from the
Asia-Pacific Telecommunity (APT)
Regional Seminar on radio-frequency spectrum for
international civil aviation

• Presented by
• Robert Witzen
• Technical Officer, CNS Section
• ANB/ICAO

2
ASIA PACIFIC REGIONAL ACTIVITIES

• Support from DCGA conference in December 2006
• Support from APANPIRG Conclusion 14/24
  assigning high priority to spectrum management
• APT had 5 meetings
• ICAO observer participated in most of these
  meetings
• APT meetings
• Considered preparatory work in ITU-R
• Develop APT preliminary views for on WRC issues
• General support to ICAO position

3
ASIA PACIFIC REGIONAL ACTIVITIES (2)

• ICAO regional preparations
• RPG (Regional Preparatory Group)
• 2 meetings (2005 and 2007)
• Encouraging States to participate in WRC

4
WRC-Agenda item 1.1Requests from administrations
to delete their country footnotes or to have
their country name deleted from footnotes, if no
longer required, in accordance with Resolution 26
(Rev. WRC 97)

• For ASIA/PAC, this involves four States
• Japan (5.197 and 5.259)
• Pakistan 5.197 and 5.362B)
• Mongolia 5.362B)
• Democratic Republic of Korea (5.362B)
• 5.197 and 5.259 allocation to mobile service in
  ILS bands (Localizer and Glide Path)
• 5.362B allocation to fixed service in NGSS
  (GPS/GLONASS) bands
• No proposals from these States to remove their
  name

5
WRC-Agenda item 1.3In accordance with Resolution
747 (WRC-03) consider the upgrading of the
radiolocation service to primary allocation
status in the bands 9000 9200 MHz and 9300
9500 MHz and extending by up to 200 MHz the
existing primary allocations to the Earth
exploration-satellite service (active) and the
space research (active) in the band 9500 9800
MHz without placing undue constraints to the
service which the bands are allocated

• Upgrading radiolocation service to primary in
  9000-9200 MHz and 9300-9500 MHz.
• APT supports upgrading to primary status with
  additional provisions to protect the
  (aeronautical) radionavigation service
• This supports the ICAO position

6
WRC-Agenda item 1.3In accordance with Resolution
747 (WRC-03) consider the upgrading of the
radiolocation service to primary allocation
status in the bands 9000 9200 MHz and 9300
9500 MHz and extending by up to 200 MHz the
existing primary allocations to the Earth
exploration-satellite service (active) and the
space research (active) in the band 9500 9800
MHz without placing undue constraints to the
service which the bands are allocated

• Extending the EESS and the SRS into the band
  9300-9500 MHz.
• APT supports extending EESS and SRS into the band
  9300-9500 MHz on a primary status with additional
  provisions to protect the radionavigation service
• This supports the ICAO position

7
WRC-Agenda item 1.5To consider spectrum
requirements and possible additional spectrum
allocation for aeronautical telecommand and
high-bit rate aeronautical telemetry, in
accordance with Resolution 230 (WRC 03)

• APT does not support an allocation for AMT in the
  band 5030-5091 MHz. This band remains protected
  for MLS.
• APT does support an allocation for AMT in the
  band 5091-5150 MHz.
• Allocation for AMT limited to flight testing
• Priority to be given to and AM(R)S allocation in
  the band 5091-5150 MHz
• This supports the ICAO position

8
WRC-Agenda item 1.6 (1)To consider allocations
for the aeronautical mobile (R) service in parts
of the bands between 108 MHz to 6 GHz, in
accordance with Resolution 414 (WRC 03) and to
study current satellite frequency allocations
that will support the modernization of civil
aviation telecommunication systems, taking into
account Resolution 415 (WRC 03)

• APT does not support changes to current
  allocations in the band 108-112 MHz
• APT supports an allocation to AM(R)S in the band
  112-117.975 MHz.
• Compatibility with FM broadcasting required.
• This supports the ICAO position

9
WRC-Agenda item 1.6 (2)To consider allocations
for the aeronautical mobile (R) service in parts
of the bands between 108 MHz to 6 GHz, in
accordance with Resolution 414 (WRC 03) and to
study current satellite frequency allocations
that will support the modernization of civil
aviation telecommunication systems, taking into
account Resolution 415 (WRC 03)

• APT supports an allocation to AM(R)S in the band
  960-1164 MHz.
• ICAO SARPs required.
• Protection to existing services and systems in
  this band
• This supports the ICAO position

10
WRC-Agenda item 1.6 (3)To consider allocations
for the aeronautical mobile (R) service in parts
of the bands between 108 MHz to 6 GHz, in
accordance with Resolution 414 (WRC 03) and to
study current satellite frequency allocations
that will support the modernization of civil
aviation telecommunication systems, taking into
account Resolution 415 (WRC 03)

• APT supports an allocation to AM(R)S in the band
  5091-5150 MHz.
• APT does not support AM(R)S in the band 5030-5090
  MHz. This protects MLS
• APT does not support AM(R)S in the band 5000-5030
  MHz to protect RNSS

11
WRC-Agenda item 1.6 (4)and to study current
satellite frequency allocations that will support
the modernization of civil aviation
telecommunication systems, taking into account
Resolution 415 (WRC 03)

• APT does not support any modification to current
  satellite allocations to for the modernization of
  civil aviation telecommunications systems.
• This does not support the ICAO position which is
  to include a Recommendation in the Radio
  Regulations on VSAT systems that can be used for
  aeronautical communications.

12
WRC-Agenda item 1.13Taking into account
Resolutions 729 (WRC-97), 351 (WRC-03) and 544
(WRC-03) to review the allocations to all
services in the HF bands between 4 and 10 MHz,
excluding those allocations to service in the
frequency range 7000 7200 KHz and those bands
whose allotment plans are in Appendix 25, 26 and
27 and whose channeling arrangements are in
Appendix 17, taking into account the impact of
new modulation techniques, adaptive control
techniques and spectrum requirements for HF
broadcasting.

• APT does not support any modification to the
  Table of frequency allocations in the 4-10 MHz
  band no changes to Appendix 27 are proposed.
• This supports the ICAO position.

13
WRC-Agenda item 1.16To consider the regulatory
and operational provisions for maritime mobile
service identities (MMSIs) for equipment other
than shipborne mobile equipment taking into
account Resolution 344 (Rev. WRC-03) and 353
(WRC-03)

• APT supports the provisions of ITU-R
  Recommendation M.585.3 which extends the
  assignment of MMSI to aircraft stations and aids
  to navigation.
• This supports the ICAO position.

14
WRC-Agenda item 1.17To consider the results of
ITU-R studies on compatibility between the
fixed-satellite service and other services around
1.4 GHz, in accordance with Resolution 745
(WRC-03)

• APT supports the suppression of the secondary
  allocation for MSS feeder links in the bands
  1390-1392 MHz and 1430-1432 MHz.
• This supports the ICAO position.

15
WRC-Agenda item 1.20To consider the results of
the studies and proposals for regulatory
measures, if appropriate, regarding the Earth
exploration-satellite service (passive) from
unwanted emissions of active services in
accordance with Resolution 738 (WRC-03)

• APT supports inclusion of a limit for unwanted
  emissions to protect EESS for systems brought
  into operation in the future.
• This may partly support the ICAO position.

16
WRC-Agenda item 1.21To consider the results of
studies regarding the compatibility between the
radio astronomy service and the active space
services in accordance with Resolution 740 (Rev.
WRC-03), in order to review and update, if
appropriate, the tables of threshold levels used
for consultation that appear in the Annex to
Resolution 739 (WRC-03)

• APT is of the view that due to development in
  technology future RNSS systems can meet unwanted
  emissions criteria to protect RAS.
• No provisions proposed for unwanted emissions
  from RNSS systems in the band 1559-1610 MHz.
• This supports the ICAO position.

17
WRC-Agenda item 2To examine the revised ITU-R
Recommendations incorporated by reference in the
Radio Regulations communicated by the
Radiocommunication Assembly, in accordance with
Resolution 28 (Rev. WRC-03), and to decide
whether or not to update the corresponding
references in the Radio Regulations, in
accordance with principles contained in Annex to
Resolution 27 (Rev. WRC-03)

• Proposals from APT do not appear to affect
  aeronautical services.
• This supports the ICAO position.

18
WRC-Agenda item 7.2To recommend to the Council
items for inclusion in the agenda for the next
WRC, and to give its views on the preliminary
agenda for the subsequent conference and on
possible agenda items for future conferences,
taking into account Resolution 802 (WRC-03)

• APT supports inclusion of an agenda item for
  WRC-11 to address the MSS 1.5/1.6 GHz band to
  secure long term availability of spectrum for
  AMS(R)S.
• This supports the ICAO position.

19

• END
