Biomimetics Laboratory

1

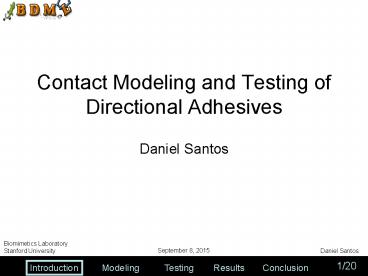

Contact Modeling and Testing of Directional
Adhesives

• Daniel Santos

2
Contact What and Why
Transmission of Forces through Mechanical
Interaction

• Contact Defines
• Slip Limits Pulloff Limits
• Guide Design
• Enable Control

3
Contact Models
Coulomb Friction
Hertz Contact
FNormal
FTangential

• Rigid-Body vs. Deformable Contact
• Point Contact vs. Area Contact

4
Analysis

• Stability Analysis
• Force Distribution
• Foot Orientation

Stability vs. Inclination Angle
Stability vs. Foot Orientation
Stable
Unstable
5
Adhesive Models
What is the Right Adhesive Model for Climbing?

• JKR Isotropic
• FA Anisotropic

What do StickyBot Pads Do?
6
Experimental Contact Testing

• Goals
• Analyze Behavior of StickyBot Pads
• Develop 3D Model of Directional Adhesion
• Method
• Apply Controlled Motions to Sample Pads
• Measure Forces
• Obtain Limits Associated with Slip and Pulloff

7
Mechanical Test Setup

• 3 Motor-Driven Lead Screws
• X/Y 0.2 per Revolution 1.7um per Tick
• Z 0.05 per Revolution 0.4um per Tick
• 6-axis Force/Torque Sensor
• Wall-mounted -gt /-25mN Noise
• 2-axis Alignment Stage

Sample
Wall
Force Plate
Alignment
Bench
8
Electronic Test Setup
Forces/Torques
1kHz
Voltage Encoder
Position
500Hz
Trajectory
1kHz
9
Experimental Procedure

• Preload
• Along 45
• Different Depths 01000um
• Pulloff
• In Y-Z Plane between 0-180
• In X-Z Plane between 0-180

Z
Y
10
Raw Data
Preload
Pulloff
11
Determining Pulloff
165,90
150,45
150,90
12
Determining Pulloff

• Buckling?
• Pulloff vs. Sliding
• Finding Pulloff
• Maximum Normal Adhesion
• Maximum Force in Velocity Direction
• Maximum Force Magnitude

13
Data YZ Plane
14
Data YZ Plane
15
Data XZ Plane
16
Data 3D
17
Data 3D
Show Demo
18
Summary of Results

• Experimental Procedure Challenges
• Absolute Positioning
• Alignment
• Data Interpretation Challenges
• Buckling
• Pulloff vs. Sliding
• Preload INCREASES Adhesion (up to limit)
• Adhesion CONTROLLABLE via Tangential Angle
• Lateral Loads DECREASE Adhesion

19
Future Work

• Continue Testing
• Fill in Sparse Areas of 3D Contact
• Test Different Samples
• Understand/Explain Anomalies
• Model Experimental Data
• Linear?
• Incorporate Findings into Previous Work
• Posture, Foot-Orientation Analysis
• Control of Internal Forces

20
Questions?

• Tidbits of Info
• 5,577 Trials
• 15 Hours of Continuous Operation
• 4GB of Data!
