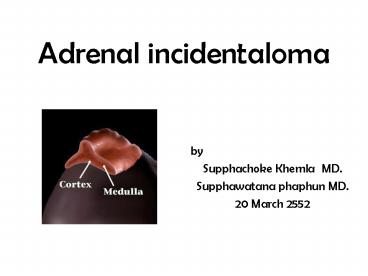

Adrenal incidentaloma

1
Adrenal incidentaloma

• by
• Supphachoke Khemla MD.
• Supphawatana phaphun MD.
• 20 March 2552

2
Cross Sectional Anatomy

• Normal size (Lt or Rt adrenal) 3 cm 6 mm
• Retroperitoneum organ
• Gerotas fascia connect the gland to upper pole
  of the kidney

3
(No Transcript)
4
(No Transcript)
5
(No Transcript)
6
Introduction

• Mass lesion greater than 1 cm.
• Serendipitiously discovered by radiologic
  examinations
• Such as - Computed tomography (CT)
• - Magnetic resonance imaging
  (MRI)
• Two questions
• - Is it malignancy ?
• - Is it functioning ?

7
Prevalence

• Autopsy Total 739 cases
• (adrenal masses between 2 mm 4 cm)
• - 9 normotensive
• - 12 hypertension
• The Mayo clinic
• - 61,054 abdominal CT scans
• - 1985 1990
• - adrenal masses 2,066 cases (3.4)

8
Prevalence

• The Mayo clinic
• 2,066 cases
• - 50 metastasis cancer
• - 25 other known lesions
• - 7.5 symptomatic tumors
• - 16.5 incidental (include nodules lt 1cm)
• - Overall incidental adrenal tumor
• (gt 1cm) 0.4

9
Prevalence

• Recent study high resolution scanner
• - report prevalence from CT abdomen 4.4
• Demonstration enlarged unusually shaped
• 1. one adrenal mass
• 2. bilateral adrenal masses

10
(No Transcript)
11
Bilateral masses

• Studies 887 and 202 cases (with adrenal
  incidentaloma)
• - bilateral 10-15
• - causes
• - metastasis
  - pheochromocytoma
• - congenital adrenal hyperplasia
  - amyloidosis
• - cortical adenoma
  - infiltrative disease of adrenal gl.
• - lymphoma
  - Infections TB, fungus
• - hemorrhage
  - ACTH-dependent Cushings
• - ACTH-independent bilateral
  macronodular adrenal hyperplasia

12
(No Transcript)
13
(No Transcript)
14
(No Transcript)
15
(No Transcript)
16
Bilateral masses

• One adrenal mass non-functioning cortical
  adenoma
• Contralateral adrenal mass hormone secreting
• All patients with bilateral adrenal masses
  should be screened for adrenocortical hyper/hypo
  function

17
(No Transcript)
18
(No Transcript)
19
Evaluate for malignancy

• Primary adrenal carcinoma quite rare
• Others - metastasis
• (particularly lung cancers)
• Evaluate size and imaging characteristics
  (imaging phenotype)

20
Size

• The maximum diameter is predictive of malignancy
• Important if the smaller is at the time of
  diagnosis, the better overall prognosis
• Adenocortical carcinomas
• - significantly asso. with mass size
• - 90 gt 4 cm

21
Size

• The National Italian Study Groups
• - 4 cm cutoff
• - sensitivity 93
• - specificity 76

22
Imaging phenotype

• MRI or CT
• 3-5 mm. cuts predict histological type of
  adrenal tumor
• Characteristics of the mass
• example lipid-rich nature of cortical
  adenomas
• (benign tumor)

23
CT scan

• Density (black is less dense)
• Spectrum Air -black, Bone-white
• Hounfield scale is a semiquantitative method of
  measuring x-ray attenuation
• Typical precontrast Hounsfield unit (HU) valves
• adipose tissue -20 to 150 HU
• kidney 20 to 150 HU
• if adrenal mass lt 10 HU on unenhanced CT
• (ie, has density of fat)? likelihood
  benign
• adenoma 100

24
(No Transcript)
25
CT scan

• contrast-enhanced CT
• - adenoma rapid contrast medium washout
• - non-adenoma delayed contrast medium
  washout
• 10 mins after administration pf contrast
• - adenoma absolute contrast media washout
  gt 50 ( 100 sensitivity specificity)
• if compared with carcinomas, metastasis or
  pheochromocytoma

26
CT scan

• Imaging phenotype does not predict hormone
  function, it can predict underlying pathology,
  and surgical resection

27
MRI

• Although CT primary adrenal imaging
• MRI has advantages in certain clinical situations
• Several difference MRI
• 1. - conventional spin-echo MRI
• - was the first
• - T1 and T2
• - distinguish benign adenomas from
• malignancy and pheochromocytoma

28
MRI

• 2- gadolinium-DPTA-enhanced MRI
• - adenoma mild enhancement and
  rapid
• washout of contrast
• - malignancy rapid and marked
• enhancement and a slower washout
• pattern

29
MRI

• 3 - Chemical shift imaging (CSI)
• - lipid sensitive imaging
• - principle hydrogen protons in water,
• lipid molecules
• - chemical shift technique
• 1. in-phase water lipid are aligned
• signal intensity
  high
• 2. out of phase opposite from each
  other
• signal intensity
  low

30
MRI

• Interpretation
• - benign adrenal cortical adenoma lose
  signal on out-of-phase images, but appear
  relatively bright on in-phase images

31
(No Transcript)
32
Others

• PET (Positron emission tomography)
• - fluoro-2-deoxy-D-glucose (FDG)
• - high sensitivity for detect malignancy
• - however 16 benign cortical lesions may

• have FDG-PET uptake
• - Metomidate (MTO) PET
• lack of MTO specific to non-adrenal
• cortical origin (metastasis
• pheochromocytoma

33
Others

• PET (Positron emission tomography)
• - FDG-PET and MTO-PET are not recommend
• (cost and insufficiency data to support
  their
• routine use)

34
(No Transcript)
35
Imaging characteristics
36
Benign adenoma

• Benign cortical adenoma
• Round homogenous density
• ? lt 4 cm, unilateral
• low unenhanced CT attenuate values (lt10HU)
• Rapid contrast washout (10 min)
• Absolute contrast washout gt50
• Isointensity with liver on both T-1 T-2 (MRI)
• Chemical shift lipid on MRI

37
Pheochromocytoma

• Increase attenuate on nonenhanced CT (gt20HU)
• Increase mass vascularity
• Delayed contrast washout
• (lt10 cm)
• Absolute contrast washout lt50
• High signal intensity on T-2 MRI
• Cystic and hemorrhage
• Variable size

38
Pheochromocytoma
39
Adrenocortical carcinoma

• Irregular shape
• Inhomogenous density (central necrosis)
• ?gt 4 cm, unilateral, calcify
• High unenhanced CT (gt20HU)
• Delayed contrast washout (10 min)
• Absolute contrast washout lt 50
• Hypointensity compared with liver T-1 and high to
  intermidiateintensity T-2 MRI
• High standard uptake value (SUV) on FDG-PET-CT
  study
• Evidence of local invasion or metas.

40
Metastasis

• Irregular, inhomogenous
• Bilateral
• High enhanced CT (gt20 HU)
• Enhancement with contrast
• Delayed contrast washout (10 min)
• Absolute contrast washout lt 50
• Isointensity or slightly less intense than liver
  T-1 , high to intermediate intensity T-2 MRI
  (represent water increase)

41
(No Transcript)
42
Others

• Adrenal cysts
• Adrenal hemorrhage
• myelolipoma

43
Fine-needle aspiration biopsy

• Cannot distinguish a benign adrenal mass from the
  rare adrenal carcinoma
• Thus FNA biopsy
• - indicated a suspicion of cancer outside
  the adrenal gland
• - staging evaluation for a known cancer
• - not useful routine evaluation

44
IS IT FUNCTIONAL?

• 6 - 20 of adrenal incidentalomas have hormonal
  abnormality.
• Hormonal hypersecretion is most likely in mass
  are at least 3 cm in diameter.
• Occurs mostly within the first 3 years after
  diagnosis.

45

• 85 percent of the masses were non fuctioning.
• 9 percent secreted sufficient cortisol to produce
  subclinical Cushing's syndrome .
• 4 percent were pheochromocytomas (less than half
  caused hypertension) .
• 2 percent were aldosteronomas .

46

• A careful personal and family history, review of
  systems, PE.
• At minimum for the following condition.
• Pheochromocytoma
• Cushing syndrome (including subclinical disease)
• Primary aldosteronism (only if hypertensive)

47
Pheochromocytoma

• 3-10 of adrenal incidentalomas prove to be
  pheochromocytomas.
• Screening for pheochromocytoma is mandatory in
  all case.
• Because high rate morbidity and mortality.
• It is symptomatic up to 15 of case.

48

• Screening test is measurement of plasma free
  metanephrines or 24 hr urine metanephrine .
• Plasma free metanephrines is 99 sensitive.
• Not very specific 85-89

49
Cushing syndrome

• 5-20 of pt with adrenal incidentaloma are report
  to have subclinical Cushing syndrome.
• Subclinical Cushing's syndrome
• mild hypercortisolism without clinical
  manifestations of Cushing's syndrome .
• most frequent hormonal abnormality detected in
  patients with adrenal incidentalomas .

50

• In 2002 ,a National institutes of Health
  consensus panel recommened a 1 mg over night
  dexamethasone supression test.
• Lack of supression interfering condition.
• Decrease dexamethason absorbtion.
• Drug barbiturate, phenyltoin, carbamazepine,
  rifampicin.
• Increase concentration of corticosteroid-binding
  globulin
• Pseudo Cushhig state

51

• Hormonal evaluation in subclinical Cushing's
  syndrome showed the following
• Low baseline secretion of corticotropine (ACTH)
  in 79 percent
• Lack of suppressibility of cortisol secretion
  after 1 mg dexamethasone in 73 percent
• Supranormal 24-hour urinary cortisol excretion in
  75 percent

52

• Disturbed cortisol circadian rhythm in 43 percent

• Blunted plasma ACTH responses to
  corticotropin-releasing hormone in 55 percent

53

• If the post-overnight DST
• Then baseline serum ACTH, two-day high-dose DST
  is indicated to confirm the excess hormone
  secretion.

54
Primary Hyperaldosteronism

• 1.6-3.8 of adrenal incidentalomas.
• Pt with hypertension should be evaluated for
  primary aldosteronism.
• Hypokalemia suggest aldosteronism.
• Normal K not exclude.
• The best screening test is the ratio of the
  plasma aldosterone to the plasma renin activity.

55
Management of adrenal incidentaloma
56
Clinical and CT apperance
True cyst
adrenolipoma
Metastasis carcinoma
FNAB
investigation
Metastasia CA
resect
Aspirate?
Treatment
or
F/U
Resect if appropriate
Repeat CT at 1 yr
57
Diagnosis unclear
BP serumK Catecholamine Overnigth 1 gm DST Urine
17 OHCS 17KS
Non fuctioning
functioning
FNA lt 6 CM
gt 6CM
Adenal tissue
resect
resect
Repeat CT at 2,8,18 mo
58
(No Transcript)
59

• subclinical Cushing's syndrome and unilateral
  adrenalectomy?
• absence of a prospective randomized study
• candidates for adrenalectomy.
• who have attributable to excess glucocorticoid
  secretion (eg, recent onset of hypertension,
  diabetes, obesity, and low bone mass)
• lack of suppression to both an overnight DST) and
  a two-day high-dose DST.

60
Bilateral adrenal masses

• The management of bilateral adrenal masses is
  different from that for unilateral masses.

61
SUMMARY

• All patients should be evaluated for subclinical
  hormonal hyperfunction and cancer.
• History and physical examination are important in
  the initial assessment.

62

• Benign cortical adenoma.
• A homogeneous adrenal mass lt4 cm in diameter,
• with a smooth border,
• and an attenuation value lt10 HU on unenhanced CT,

• and rapid contrast medium washout (eg, gt50
  percent at 10 minutes)

63

• The imaging suggest adrenal carcinoma or
  metastases include
• irregular shape.
• inhomogeneous density.
• high unenhanced CT attenuation values (gt20 HU),
  delayed contrast medium washout (eg, lt50 percent
  at 10 minutes),
• diameter gt4 cm, and tumor calcification. Other
  characteristics are described above.

64

• Pheochromocytoma should be excluded by measuring
  24-hour urinary fractionated metanephrines and
  catecholamines.
• Subclinical Cushing's syndrome should be ruled
  out by the 1-mg overnight dexamethasone.
• primary aldosteronism. should be screen in
  patient is hypertensive by a plasma
  aldosterone-to-plasma renin activity ratio and
  plasma potassium concentration

65

• Recommend surgery pheochromocytoma,
  aldosteronoma.
• Suggest surgery for patients with subclinical
  Cushing's syndrome who are younger and who have
  disorders potentially attributable to autonomous
  glucocorticoid secretion.

66

• Suggest surgery for patients with adrenal masses
  greater than 4 cm in diameter .
• If there is evidence of metastasis and after
  excluding pheochromocytoma with biochemical
  testing, suggest performing a diagnostic
  CT-guided FNA biopsy .

67
(No Transcript)
68
THANK YOU
69
(No Transcript)
70
(No Transcript)
