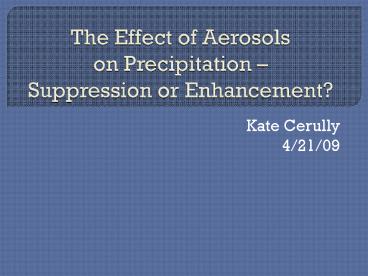

Title: The Effect of Aerosols on Precipitation


1
The Effect of Aerosols on Precipitation
Suppression or Enhancement?
  • Kate Cerully
  • 4/21/09

2
How Do Aerosols Form Droplets?
  • Cloud droplets and ice particles form in the
    atmosphere by condensation of supersaturated
    water vapor on aerosol particles
  • Those particles that have the potential to
    nucleate liquid cloud droplets are called cloud
    condensation nuclei (CCN), while aerosol
    particles that can induce the formation of ice
    crystals are named ice nuclei (IN)

3
How Do Aerosols Form Droplets?
Equilibrium line for a 20 nm ammonium sulfate
particle
CCN f (Size, Chemical Composition)
Moore, 2008
4
Key Effects Impacting Formation of Precipitation
5
Radiative Effects
  • Radiative effects of aerosols on clouds mostly
    act to suppress precipitation
  • Aerosols decrease amount of solar radiation that
    reaches land surface
  • Less heat to be available for evaporating water
    and energizing convective rain clouds
  • Fraction of radiation not reflected back to space
    by the aerosols is absorbed into the atmosphere,
    leading to heating of the air above the surface
  • Stabilizes the low atmosphere and suppresses the
    generation of convective clouds
  • Warmer and drier air thus produces circulation
    systems that redistribute the remaining
    precipitation

6
Microphysical Effects
  • Clouds formed with elevated concentrations of CCN
    contain higher concentrations of smaller cloud
    droplets
  • More CCN slows the conversion of cloud drops into
    raindrops by the need to nucleate larger number
    concentrations of smaller drops - slower to
    coalesce into raindrops
  • Created the expectation that polluted areas would
    suffer from reduced rainfall

7
Aerosol Indirect Effects
1st Indirect Effect Polluted clouds will have
smaller and more numerous droplets, which makes
the cloud denser and able to reflect more
incoming radiation 2nd Indirect Effect Smaller
droplets increase cloud lifetime by suppressing
precipitation
Moore, 2008
8
Contradictions
9
Microphysical Effects
  • Cloud Seeding
  • Expected that accelerating the conversion of
    cloud water to precipitation (i.e., increasing
    the autoconversion rate) would enhance rainfall
    amounts
  • It turns out, however, that polluted areas are
    not generally drier, and rain enhancement by
    cloud seeding remains inconclusive

10
Satellite Observations
  • Observe the larger picture of aerosol effects on
    clouds and precipitation
  • Agreement - more CCN ? suppression
  • Urban and industrial air pollution plumes were
    observed to completely suppress precipitation
    from 2.5-km deep clouds over Australia
  • Heavy smoke from forest fires was observed to
    suppress rainfall from 5-km-deep tropical clouds
  • Disagreement - more CCN ? enhancement
  • Clouds appeared to regain precipitation
    capability when ingesting giant CCN salt
    particles from sea spray and salt playas
  • World Meteorological Organization and the
    International Union of Geodesy and Geophysics
    report concluded that it is difficult to
    establish clear causal relationships between
    aerosols and precipitation and to determine the
    sign of the precipitation change in a
    climatological sense. Based on many observations
    and model simulations the effects of aerosols on
    clouds are more clearly understood (particularly
    in ice-free clouds) the effects on precipitation
    are less clear.

11
How Can This Be?
12
CCN Size
  • Submicrometer CCN aerosols decrease precipitation
    from shallow clouds and invigorate deep
    convective rain clouds with warm (gt 15C) cloud
    base
  • Impact on the overall rainfall amount is not
    easily detectable
  • Observations supported by a large number of
    cloud-resolving model studies
  • Simulations also show that adding giant CCN to
    polluted clouds accelerates the autoconversion,
    mainly through nucleating large drops that
    rapidly grow into precipitation particles by
    collecting the other smaller cloud droplets
  • Autoconversion rate is not restored to that of
    pristine clouds

13
Precipitation - Evaporation Balance
  • Fundamentally, the amount of precipitation must
    balance the amount of evaporation at a global
    scale
  • Consequence of aerosols suppressing precipitation
    from shallow clouds must be an increase in
    precipitation from deeper clouds
  • Can occur at global scale and cloud scale (clouds
    can grow to heights where aerosols no longer
    impede precipitation)
  • Suggests that slowing the rate of cloud droplet
    coalescence into raindrops delays the
    precipitation of the cloud water, so that more
    water can ascend to altitudes where the
    temperature is colder than 0C

14
Precipitation - Evaporation Balance
15
Radiative vs Microphysical Effects
  • Considered separately and independently
  • Derived a point as a function of SS and
    concentration where invigoration effect is at its
    maximum
  • More CCN depression less CCN enhancement

16
(No Transcript)
17
Additional Factors
  • Conclusions from numerical study
  • Decreasing the solubility of the aerosol
    particles also reduces the dependency of rain
    formation on the initial number of aerosol
    particles
  • Number and solubility of aerosol particles
    present at the beginning of the simulation seem
    to be the main parameters which influence
    precipitation formation, as they both determine
    the number of activated CCN and hence the size of
    the drops and the efficiency of collection
    processes

18
Hygroscopicity
  • Aerosol hygroscopic properties are dependent on
    particle size and chemical composition
  • The typical size range of atmospheric aerosols
    spans several orders of magnitude (a few
    nanometers to tens of micrometers) and particles
    may contain any of the hundreds of different
    organic species, the eight or so major inorganic
    species (Na, K, NH4, Ca2, Mg2, SO42-, Cl-,
    NO3-) and water.
  • Aerosol composition correlates for some chemical
    species to wet droplet size
  • Adding to the complexity, gas- and aerosol-phase
    chemical reactions in the atmosphere change the
    hygroscopic properties of aerosols over time

19
References
  • Andreae, M.O., and Rosenfeld, D. (2008).
    Aerosolcloudprecipitation interactions. Part 1.
    The nature and sources of cloud-active aerosols,
    Earth-Science Reviews, 89, pp 1341.
  • Leroy, D., Monier, M., Wobrock, W., and
    Flossmann, A.I. (2006). A numerical study of the
    effects of the aerosol particle spectrum on the
    development of the ice phase and precipitation
    formation, Atmospheric Research, 80, pp 1545.
  •
  • Rosenfeld, D., Lohmann, U., Raga, G.B. ODowd,
    C.D., Kulmala, M., Fuzzi, S., Reissell, A., and
    Andreae, M.O. (2008). Flood or Drought How Do
    Aerosols Affect Precipitation?, Science, 321, pp
    1309-1313.
  • Wikipedia, The Free Encyclopedia (2009). Cloud
    Seeding, http//en.wikipedia.org/w/index.php?titl
    eCloud_seedingoldid284460362, revised 13 April
    2009.

20
(No Transcript)
21
How Cloud Seeding Works
  • Predicated upon the fact that the equilibrium
    vapor pressure is lower over ice than over water
  • When ice particles form in supercooled clouds,
    this fact allows the ice particles to grow at the
    expense of liquid droplets
  • Common chemicals - silver iodide, dry ice
    (frozen carbon dioxide), liquid propane, or
    hygroscopic materials such as salt
  • Seeding of clouds requires that they contain
    supercooled liquid waterthat is, liquid water
    colder than zero degrees Celsius. Introduction of
    a substance will induce freezing nucleation. Dry
    ice or propane expansion cools the air to such an
    extent that ice crystals can nucleate
    spontaneously from the vapor phase.
