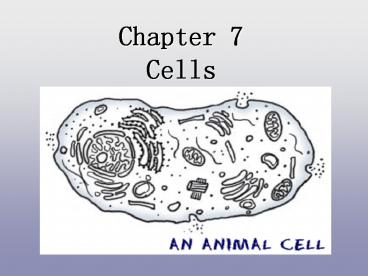

Chapter 7 Cells

1
Chapter 7Cells
2
7.1 Life is Cellular

• Robert Hooke 1665 saw plant cell walls in cork.
• Anton van Leeuwenhoek 1667 sees microorganisms
• Matthias Schleiden 1838 all plants are made of
  cells
• Theodor Schwann 1839 all animals are made of
  cells
• Rudolph Virchow 1855
• Where a cell exists, there must have been
  a
• preexisting cell.

3
Cell Theory

• 1. All living things are made of cells
• 2. Cells are the basic unit of structure and
  function.
• 3. New cells are made from existing cells

4
2 Groups of Cells

• 1. Prokaryotic
• Generally smaller (.1-10 microns)
• No nucleus. DNA is a circular
• chromosome called a plasmid
• No membrane-bound organelles
• All bacteria are prokaryotes
• Found everywhere even extreme
• environments

5

• 2. Eukaryotic
• Larger, more complex (10 100microns)
• Have a nucleus.
• highly specialized
• Have organelles little organs
• Ex plant, animal, fungus, protists

6

• Prokaryote cell vs. Eukaryote Cell

No true nucleus Has DNA, however
True nucleus and other organelles
7
7.2 Basic Cell Structure
Eukaryotes

• Eukaryotic cells have 2 general regions
• 1. cell membrane thin flexible barrier around
  cell.
• 2. cytoplasm
  inside the cell
• membrane,
  outside
• the nucleus,
• contains
  organelles.

8

• A. Nucleus
• Controls cell activities
• Contains DNA hereditary material
• 2 forms of DNA in nucleus
• chromatin granular
• - DNA bound around proteins.
• - spread out through nucleus
• - seen in a non- dividing cell
• chromosomes
• - condensed threads
• of DNA
• - found in dividing cells

9
chromatin

• nucleolus
• inside nucleus
• helps make ribosomes
• Nuclear envelope
• composed of 2
• membranes with pores
• for RNA to get out to the cytoplasm

Nuclear pores
10

• B. Endoplasmic Reticulum
• large internal membrane system
• lipid components of the cell membrane are
  assembled along with proteins that will be used
  or exported from the cell.

11

• Rough ER
• Ribosome studded
• where proteins are made
• and modified for export
• Smooth ER
• no ribosomes.
• contains enzymes
• for many reactions including
• synthesizing membrane lipids

12

• C. Ribosomes
• made of RNA
• Assemble proteins following the coded
• instructions from DNA.
• Found either on the rough ER
• or free in the cytoplasm.

13

• D. Golgi Apparatus
• membranes that contain
• enzymes to modify, sort,
• and package proteins
• Proteins are used in the cell or
• shipped out for
• use elsewhere in the
• organism.

14

• E. Lysosomes
• small sacs of digestive enzymes that digest
  lipids, carbs, proteins.
• lysosomes break
• down old cell parts

15

• F. Vacuole
• Large membrane bound sac. stores water,
  carbohydrates, salts
• In many plant cells there is a single, large
  central
• vacuole filled with liquid.
• The pressure of the
• vacuole allows plants to
• support heavy structures
• such as leaves and flowers.
• This pressure is called
• turgor pressure
• Animal cells have smaller vacuoles

16

• Vacuoles are also found in some unicellular
  organisms.
• The paramecium has a contractile vacuole that
  pumps excess water out of its cell. The use of
  the vacuole helps the paramecium maintain
  homeostasis.

17
Vacuole
18

• G. Mitochondria
• Mitochondria convert
• the energy in food into forms that are more
• convenient for cells to use.
• Glucose from food
• is converted into ATP.
• .

19

• H. Cytoskeleton
• Network of protein filaments that help the cell
  maintain its shape.
• Involved in movement of organelles inside the
  cell
• The cytoskeleton is made up of
• microfilaments
• microtubules

20

• Microfilaments
• are threads made up of the protein actin
• flexible framework that supports the cell
• help some cells move cytoplasm- Amoeba
• Allows movement of organelles in cell
• Microtubules
• hollow structures made of the protein tubulin
• maintain cell shape
• are important in cell division spindle fibers
• build projections from the cell surfacecilia and
  flagella that help some cells to swim rapidly.

21
Cytoskeleton
Cell membrane
Endoplasmic reticulum
Microtubule
Microfilament
Ribosomes
Mitochondrion
22

• I. Centrioles
• In animal cells, structures known as centrioles
  are formed from tubulin.
• Centrioles are located near the nucleus and help
  to organize cell division.

centrioles
23

• J. Cell Wall
• plants, algae, fungi, bacteria all have C.W.
• tough membrane made of cellulose It supports and
  protects the cells.
• K. Chloroplast
• located in plants , some algae, protists,
  bacteria.
• oval organelle with membranes that contain the
  pigment chlorophyll that plants use to make
  carbohydrates from the sun
•


24
Organisms that have chloroplasts
Your Basic plant
chloroplast
Euglena protist
Cyanobacteria .a bacteria
25
Plant Cell!!
Notice the cell wall
and chloroplast
26
Animal Cell
cytoplasm
27
(No Transcript)
28

• Cell animation

Egg sperm,
Macrophage eating bacteria
E. coli
29
7.3 Cell Boundaries

• All cells are surrounded by a thin, flexible
  barrier
• known as the cell membrane.
• A. Cell Membrane
• controls what goes in / out of the cell
  selectively permeable
• protects and supports the cell
• Helps with communication with other cells

30

• Materials needed for life
• water
• oxygen
• correct balance of ions (Na, Mg,
• Ca, H, Cl-, K)
• CO2 for autotrophs
• hormones
• building material for food and proteins
• The cell membrane acts as a gateway for these
  important materials.

31

• Components of cell membranes
• 2 thin layers of phospholipid molecules.
• non-polar fatty acid chains form the inner part
  of the membrane
• polar heads form the outermost and innermost
  (facing cytoplasm), parts of the membrane.
• membrane is fluid flexible not rigid
• it is selectively permeable
• Structure called fluid mosaic model

32
phospholipid bilayer
33

• Proteins
• embedded in lipids like ice in a punch bowl.
• Form channels for things to pass through

34
Membrane Structure

• cool animation of cm
• Fluid Mosaic Structure
• Membrane - web

35

• B. Transport of Materials in/out of cells
• Molecules naturally move from areas of high
  concentration to areas of low concentration. Does
  not require energy.
• The concentration of a solution is the mass of
  solute in a given volume of solution, or mass /
  volume.
• A concentration gradient means theres a
  difference in the concentration of solute in 2
  areas or on either side of a membrane.

36

• During the process of diffusion, particles in a
  solution tend to move from an area of greater
  concentration to an area where they are less
  concentrated.
• Does not require energy passive transport

37

• When equilibrium is reached, solute particles
  continue to diffuse across the membrane in both
  directions.

38

• Osmosis?
• The movement of water across a selectively
• permeable membrane until equilibrium is
  reached.

Sugar is the solute in this solution
39

Sugar is the solute in this solution the
membrane is only permeable to water.
40

• Osmosis ?
• 3 Types of solutions that affect how water moves

• isotonic solution concentration of solute
  concentration of water cell size stays constant
• hypertonic solution concentration of solute is

• greater than water causes a cell to shrink
  (hyper more solute)
• hypotonic solution concentration of solute is
  less than water causes a cell to swell
  (hypo less solute)

41

• osmosis demo
• Simulation - web
• simulation 2 - web
• simulation 3 - web

42
Osmotic Pressure

• Osmosis exerts a pressure known as osmotic
  pressure on the cell membrane.
• Cells in large organisms are not in danger of
  bursting because they are bathed in fluids, such
  as blood, that are isotonic.
• Other cells are surrounded by tough cell walls
  that prevent the cells from expanding even under
  tremendous osmotic pressure.

43
The effects of osmosis on plant cells red
blood cells
44

• Facilitated Diffusion diffusion with a helper
• Some molecules cant cross through the lipid
  membrane, but still move from high to low
  concentration through protein channels
• helper a carrier protein
• no energy required, still passive transport

45
Facilitated Diffusion

• facilitated diffusion web

46

• Active Transport
• Moves materials across membranes against the
  concentration gradient
• requires energy
• Uses pumps proteins that pump molecules
  against
• the gradient. Ex. Na K

47

• Active Transport - pump web
• Active Transport 2

48

• Endocytosis?
• Cell engulfs a large amount of material by
  forming pockets within the cell membrane.
• results in large vacuoles in the cytoplasm
• phagocytosis large solid particles
• pinocytosis large amounts of liquid
• phagocytosis web
• endocytosis Prent hall

49

• Exocytosis?
• Release of large amounts of material through the
  cell membrane.

50

• Movement of materials in plants?
• Xylem moves water up
• Hollow tube-shaped cells that carry water
• minerals up from the roots to the leaves for
• use in photosynthesis.

51

• Phloem moves food down
• food moves down from leaves after
  photosynthesis- to stems and roots for storage.

52
7.4 Cellular Diversity

• A. Unicellular Organisms?
• organisms that perform all cell functions and
  are
• one single cell.
• 1. prokaryotes bacteria.good
  survival
• adaptations. Most abundant on
  earth.
• 2. eukaryotes some protists and
  fungus
• euglena,
  amoeba, yeast
• amoeboid movement

53

• B. Colony ?
• a group of unicellular organisms living together
• biofilm mixed bacterial colonies coordinating
  efforts to survive
• - surround themselves w/ a slime
  layer
• example dental plaque

54
\

• volvox a colonial algae in which individuals
• take on special roles
• some propose it is a multicellular organism

55

• C. Multicellular Organisms?
• Organisms composed of many cells
• Cell specialization cells are specialized to
  perform different functions in organisms.
• Increases efficiency.

56
Cell Differentiation
57

• Hydra a small freshwater animal showing
  considerable cell specialization.
• - stinging cells - muscle cells
• - gland cells - reproductive cells
• - epidermal cells - sensory cells
• - flagellated cells - nerve cells

58

• D. Levels of organization?
• Cells within organisms are classified into
  levels
• 1. Cells (muscle cell)
• 2. Tissues group of similar cells with a
  function
• (muscle)
• 3. Organs several tissues working
  together
• (stomach)
• 4. Organ systems organs that work
  together to
• complete a task. (Digestive)

59

• Human systems
• Reproductive
• Integumentary
• Endocrine
• Lymphatic
• Skeletal
• Muscular

Digestive Cardiovascular Nervous Urinary Respi
ratory Immune
