Emergency

1

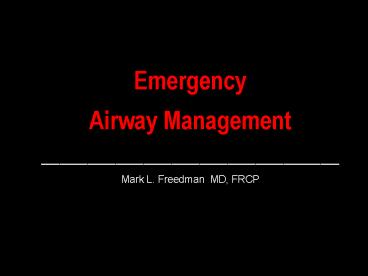

Emergency Airway Management ____________________
____________ Mark L. Freedman MD, FRCP
2
Objectives

• To review the indications for intubation
• To briefly discuss RSI
• To review the airway assessment
• To discuss difficult airways
• To review difficult airway algorithms
• To discuss an approach to difficult airways
• Case discussions

3
Case

• 13 yr/o M mountain biking
• Neck vs. handlebars
• Sitting-up on bike path
• Anterior neck swelling
• VSS
• Mild stridor
• What will you do?

4
The 4 Questions

• Does this patient need intubation now?
• Is this a crash situation?
• Is this a difficult airway?
• 4. Can I use RSI?

5
Outline

• Indications for intubation
• Basic airway algorithm
• Difficult airways
• Difficult airway algorithm
• Securing the difficult airway
• Cases

6
Outline

• Indications for intubation
• Basic airway algorithm
• Difficult airways
• Difficult airway algorithm
• Securing the difficult airway
• Cases

7
Indications for Intubation

• Failure of oxygenation
• Failure of ventilation
• Failure to protect
• Impending obstruction
• Expected management

8
Failure of Oxygenation

• Low FiO2
• Failure of ventilation
• V/Q mismatch
• Diffusion abnormalities
• Anemia
• Low C.O.
• Increased tissue O2 consumption

9
Failure of Ventilation

• Brain CHI
• Stroke
• Raised ICP
• Stem Stroke
• Narcotics
• Injury
• Cord SCI
• Degenerative diseases
• Nerve Peripheral Neuropathy
• NMJ Myasthenia gravis
• Guillon-Barre
• NMJBs
• Muscle Myopathy
• Thorax Burn eschar
• Rib fractures
• Lungs Restrictive disease
• Contusions
• Abdomen Tense ascities
• Compartment Syndrome

10
Failure to Protect

• Low or dropping GCS
• GCS less than 8, intubate
• Aspiration risk

11
Impending Obstruction

• Expanding hematoma
• Deep space infection
• Epiglotitis/Bacterial tracheitis
• Angioedema/Allergic reaction
• Inhalation injury
• Eschar
• Foreign body
• Tumour
• Others.

12
Outline

• Indications for intubation
• Basic airway algorithm
• Difficult airways
• Difficult airway algorithm
• Securing the difficult airway
• Cases

13
Basic airway algorithm
Yes
Fails
Crash Airway
Crashing ?
No
Yes
Fails
Difficult Airway ?
Difficult Airway
Failed Airway
No
Fails
RSI ?
14
The 8 Ps of RSI

• 0 - 10min Preparation
• 0 - 5 min Preoxygenation
• 0 3 min Premedication
• 0 Pharmacological Induction
• 0 Pressure
• 0 Paralysis
• 0 45 sec Place tube
• 0 1 min Post Intubation Care

15
Outline

• Indications for intubation
• Basic airway algorithm
• Difficult airways
• Difficult airway algorithm
• Securing the difficult airway
• Cases

16
Difficult Airways

• Difficult mask ventilation
• Difficult laryngoscopy
• Difficult tracheal intubation
• Combinations of above

17
Difficult Airway

• EMS Incidence
• Not known
• ED Incidence
• Not known
• Cricothyrotomy reported as high as 1
• Definitely inflated
• Reflects an aggressive approach without employing
  alternate intubation techniques

18
Difficult Airways

• Difficult mask ventilation
• Predicting the difficulty (BOOTS)
• Bearded
• Older (gt 55 years)
• Obese (BMI gt 26 kg/m2)
• Toothless
• Snores

19
Difficult Airways

• Difficult laryngoscopy/intubation
• Predicting the difficulty (LEMON)
• Look
• Evaluate 3,3,2
• Mallampati score
• Obstruction
• Neck mobility

20
Difficult Airways

• The airway assessment
• Look (BOOTS, others)
• Evaluate 3,3,2
• Mallampati score
• Obstruction
• Neck mobility

21
(No Transcript)
22
(No Transcript)
23
(No Transcript)
24
(No Transcript)
25
(No Transcript)
26
(No Transcript)
27
(No Transcript)
28
Evaluate 332
29
Mallampati score
30
(No Transcript)
31
(No Transcript)
32
Neck Mobility
33
(No Transcript)
34
Difficult Airways

• Specific situations
• Trauma
• Obesity
• Pregnancy
• Pediatrics

35
Difficult Airways

• Not a catastrophe if you cant see well
• Not even if you cant intubate
• But, if you ALSO cant ventilate.

36
(No Transcript)
37
Outline

• Indications for intubation
• Basic airway algorithm
• Difficult airways
• Difficult airway algorithm
• Securing the difficult airway
• Cases

38
Difficult Airway
Anticipated
Unanticipated
Fail to Intubate
Cooperative Time
Uncooperative No time
Ventilation Sats Maintained
- Ventilation Sats Dropping
OR? Topicalize Sedate Awake Laryngoscope Glides
cope Lighted Stylet FOB
Help Sedate Topicalize Brutane Sedate
More RSIDouble set-up
Better Position BURP Better Blade Better
Drugs Bougie Better Person Glidescope Bronch BNTI
LMA
TTJV Cricothyrotomy
TTJV Cricothyrotomy
Suction if bleeding
39
Outline

• Indications for intubation
• Basic airway algorithm
• Difficult airways
• Difficult airway algorithm
• Securing the difficult airway
• Cases

40
Securing the Difficult Airway

• Anticipated
• Best to get patient to ED/OR
• BVM as bridge
• Otherwise intubation
• Dont burn bridges

41
(No Transcript)
42
Securing the Difficult Airway

• Unanticipated
• Can you ventilate??
• Yes time
• No trouble

43
Difficult Airway
Anticipated
Unanticipated
Fail to Intubate
Cooperative Time
Uncooperative No time
Ventilation Sats Maintained
- Ventilation Sats Dropping
Help Sedate Topicalize Brutane Sedate
More RSIDouble set-up
Transport Observe
Better Position BURP Better Blade Better
Drugs Bougie Better Person Glidescope Bronch BNTI
LMA
TTJV Cricothyrotomy
TTJV Cricothyrotomy
Suction if bleeding
44
Difficult Airways

• Difficult ventilation
• 1. Head tilt/chin lift
• 2. Exaggerated Jaw thrust
• 3. Oral/nasal airways
• 4. Two handed/two person technique
• 5. Consider mask change
• 6. Ease up on cricoid pressure
• 7. Rule out FB

45
(No Transcript)
46
(No Transcript)
47
(No Transcript)
48
(No Transcript)
49
(No Transcript)
50
Difficult Airway
Anticipated
Unanticipated
Fail to Intubate
Cooperative Time
Uncooperative No time
Ventilation Sats Maintained
- Ventilation Sats Dropping
Help Sedate Topicalize Brutane Sedate
More RSIDouble set-up
Transport Observe
Better Position BURP Better Blade Better
Drugs Bougie Better Person Glidescope Bronch BNTI
LMA
TTJV Cricothyrotomy
TTJV Cricothyrotomy
Suction if bleeding
51
(No Transcript)
52
(No Transcript)
53
Outline

• Indications for intubation
• Basic airway algorithm
• Difficult airways
• Difficult airway algorithm
• Securing the difficult airway
• Cases

54
Case 1

• 13 yr/o M mountain biking
• Neck vs. handlebars
• Sitting-up on bike path
• Anterior neck swelling
• VSS
• Mild stridor
• How will you proceed?

55
Case 2

• 40 yr/o M
• Fall from height
• Spike through mandible into eye
• HD stable, respiratory distress
• Gaping mandible and bleeding into airway
• GCS 14
• How will you proceed?

56
Case 3

• 67 yr/o F
• Sudden collapse
• On ship in Southern Ocean (Antarctica)
• Decreased LOC, blown pupil, posturing
• GCS 6.5.4.
• 40 220/110 16 100 37.0
• How will you proceed?

57
Case 4

• 30 yr/o M
• Hanging two feet off ground
• Found unconscious
• Now agitated
• Anterior neck
• rope mark
• Swelling
• tender
• How will you proceed?

58
Case 5

• 40 yr/o F
• Extensive full thickness burns
• Head, face
• Neck, thorax, and arms circumferentially
• VSS
• GCS 15
• Gross stridor
• How will you proceed?

59
Case 6

• 30 y/o male
• Shotgun blast to face
• Bleeding and gross disruption of anatomy
• GCS 15
• VSS
• How will you proceed?

60
The 4 Questions

• Does this patient need intubation now?
• Is this a crash situation?
• Is this a difficult airway?
• 4. Can I use RSI

61
Difficult Airway
Anticipated
Unanticipated
Fail to Intubate
Cooperative Time
Uncooperative No time
Ventilation Sats Maintained
- Ventilation Sats Dropping
Help Sedate Topicalize Brutane Sedate
More RSIDouble set-up
Transport Observe
Better Position BURP Better Blade Better
Drugs Bougie Better Person Glidescope Bronch BNTI
LMA
TTJV Cricothyrotomy
TTJV Cricothyrotomy
Suction if bleeding
62
Securing the Difficult Airway

• Anticipated
• Best to get patient to ED/OR
• BVM as bridge
• Otherwise intubation
• Dont burn bridges

63
Difficult Airways

• Difficult ventilation
• 1. Head tilt/chin lift
• 2. Exaggerated Jaw thrust
• 3. Oral/nasal airways
• 4. Two handed/Two person technique
• 5. Consider mask change
• 6. Ease up on cricoid pressure
• 7. Rule out FB

64

• Questions?
