Network security

1

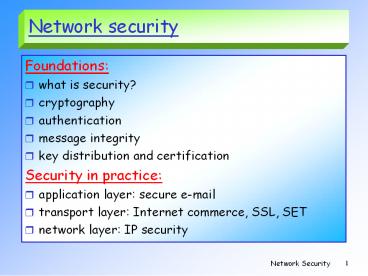

Network security

• Foundations
• what is security?
• cryptography
• authentication
• message integrity
• key distribution and certification
• Security in practice
• application layer secure e-mail
• transport layer Internet commerce, SSL, SET
• network layer IP security

2
Network Security
Network Entities Friends and Enemies
Insecure medium

• well-known in network security world
• Bob, Alice want to communicate 'securely'
• Trudy, the intruder may intercept, delete, add
  messages

Routers exchange tables
Email applications exchange secure emails
Client-server establish secure transport
connection
3
What is network security?
DESIRABLE PROPERTIES OF SECURE CONNECTION

• Secrecy only sender, intended receiver should
  understand message contents
• sender encrypts messages
• receiver decrypts messages
• Authentication sender, receiver want to confirm
  identity of each other
• Message Integrity sender, receiver want to be
  sure message did not get altered (in transit), or
  get altered without detection

1
2
3
4
What is network security?
DESIRABLE PROPERTIES OF SECURE CONNECTION

• Availability and Access Control
• communication can occur in the first place
• Prevent Denial-of-Service attacks (DoS)
• ensures network entities can gain access to
  resources if they have access rights and perform
  accesses in a well-defined manner
• Firewall controls access to and from the
  network by regulating which packet can pass into
  and out of the network

4
5
Network Security
CYCLE IN ACHIEVING NETWORK SECURITY

• Protect network communication and network
  resources
• Detect breaches of secure communication
  attacks on infrastructure
• Respond deployment of additional protection
  mechanisms

1
2
3
6
Internet security threats
Sniffer tool for capturing packets sent across
wire/air

• Packet sniffing
• broadcast media (remember CSMA/CD protocol)
• promiscuous NIC reads all packets passing by
• can read all unencrypted data (e.g. passwords)
• e.g. C sniffs B's packets

C
A
B
e.g. TCPDump, Snoop, Snort, Ethereal
7
Ethereal
An adapter could be set to listen in promiscuous
mode.
Lets see a sample capture file from Ethereal
8
Internet security threats
Spoofing providing false information about your
identity in order to gain unauthorized access to
systems

• IP Spoofing
• can generate raw IP packets directly from
  application, putting any value into IP source
  address field
• receiver can't tell if source is spoofed
• e.g. C pretends to be B

C
A
B
9
Internet security threats
Attack to reduce ability to service clients by
overloading target

• Denial of service (DOS)
• flood of maliciously generated packets swamp
  receiver
• Distributed DOS (DDOS) multiple coordinated
  sources swamp receiver
• e.g., C and remote host SYN-attack A

C
A
B
10
DoS
Exploits basic weakness of TCP/IP Protocol
Recall

• Attacker sends thousands and thousands of SYN
  packets to the victim

• Victim is forced to wait for replies that would
  never come.

• While the host is waiting for so many replies,
  it cannot accept any legitimate requests, so it
  becomes unavailable

11
The language of cryptography
Figure 7.3 goes here

• symmetric key crypto sender, receiver keys
  identical
• public-key crypto encrypt key public, decrypt
  key secret

12
Cryptography
From Alice to Bob (SENDER)
Key KA Plaintext Message m
Ciphertext KA(m)
Encryption Algorithm
Bobs side (RECEIVER)
Encrypted Message KA key KB
Decryption Algorithm
Plaintext m
KB(KA(m))
Symmetric key systems KAKB, kept secret
Public key systems 1 key known to the world
other key known only
by Alice or Bob (but not both)
13
Monoalphabetic Cipher
Substitution of letters without any regular
pattern

• Any letter can be substituted with any other
  letter, as long as each letter has a unique
  substitute letter, and vice-versa

plaintext abcdefghijklmnopqrstuvwxyz
ciphertext mnbvcxzasdfghjklpoiuytrewq
E.g.
Plaintext bob. i love you. alice
ciphertext nkn. s gktc wky. mgsbc
Q How hard to break this simple cipher?
Better than Ceasars cipher (shift cipher) in
that there are 26! (on the order of 1026)
Possible pairings of letters
14
Monoalphabetic Cipher
Substitution of letters without any regular
pattern

• Any letter can be substituted with any other
  letter, as long as each letter has a unique
  substitute letter, and vice-versa

9 of letter occurrences
e and t are the most frequently occurring
letters in English
13 of letter occurrences
Two- and three-letter occurrences of letters
appear quite often together (e.g. in, it,
the, ion, ing, etc.)
If intruder has some knowledge about possible
contents of the message, code is even easier to
break
15
Symmetric key crypto DES

• DES Data Encryption Standard
• US encryption standard NBS 1977, NIST 1993
• Designed by IBM adopted by the U.S. Government
  for non-military and non-classified use
• 56-bit symmetric key, 64-bit plain text input

GOAL
Completely scramble data and key so that every
bit of ciphertext depends on every bit of data
and every bit of the key.. With a good algorithm,
there should be no correlation between the
ciphertext and either the original data or key.
16
Symmetric key crypto DES

• initial permutation
• 16 identical 'rounds' of function application,
  each using different 48 bits of key
• final permutation

• involve multiple rounds
• block cipher - plaintext is divided into
  blocks and use the same key to encrypt and
  decrypt the blocks

• For encrypting longer messages use cipher-block
  chaining

17
Symmetric key crypto DES

• How secure is DES?
• 97 DES Challenge 56-bit-key-encrypted phrase
  ('Strong cryptography makes the world a safer
  place') decrypted (brute force) in 4 months
• After testing a quarter of the key space 18
  quadrillion keys
• no known backdoor decryption approach
• making DES more secure
• use three keys sequentially (3-DES) on each datum
• Successor to DES (2001) AES Advanced Encryption
  Standard
• 128-bit block data processing keys 128,192,256
  bits long
• A machine that could crack 56-bit DES in one sec.
  (i.e. 255 per second) would approx. take 149
  trillion years to crack a 128-bit AES key

18
Public Key Cryptography
Is it possible to communicate with encryption
without having a shared secret key known in
advance?

• symmetric key crypto
• requires sender, receiver know shared secret key
• Q how to agree on key in first place
  (particularly if never met)?
• Typical problem in the Internet

• public key cryptography
• radically different approach Diffie-Hellman76,
  RSA78
• sender, receiver do not share a secret key
• encryption key public (known to all)
• decryption key private (known only to receiver)

19
Public key cryptography

• Figure 7.7 goes here

20
Public key encryption algorithms
Two inter-related requirements
.
.

• need d ( ) and e ( ) such that

B
B
RSA Rivest, Shamir, Adleman algorithm
21
RSA Choosing keys
1. Choose two large prime numbers p, q.
(e.g., 1024 bits each)
2. Compute n pq, z (p-1)(q-1)
3. Choose e (with e lt n) that has no common
factors with z. (e, z are 'relatively prime').
4. Choose d such that ed-1 is exactly divisible
by z. (in other words ed mod z 1 ).
5. Public key is (n,e). Private key is (n,d).
In mathematics, a prime number (or a prime) is a
natural number that has exactly two (distinct)
natural number divisors, which are 1 and the
prime number itself. The first 30 prime numbers
are 2, 3, 5, 7, 11, 13, 17, 19, 23, 29, 31, 37,
41, 43, 47, 53, 59, 61, 67, 71, 73, 79, 83, 89,
97, 101, 103, 107, 109, and 113
22
RSA Encryption, decryption
0. Given (n,e) and (n,d) as computed above
2. To decrypt received bit pattern, c, compute
d
(i.e., remainder when c is divided by n)
Magic happens!
23
RSA example
Bob chooses p5, q7. Then n35, z24.
e5 (so e, z relatively prime). d29 (so ed-1
exactly divisible by z.
e
m
m
letter
encrypt
l
12
248832
17
c
letter
decrypt

17
12
l

481968572106750915091411825223072000 - too big !!
(int type)
24
RSAhow strong is it??

• RSA Challenges
• Prize offered to anyone who can break an RSA key
  of a certain size
• (See www.rsasecurity.com/rsalabs )
• US200,000.00 for whoever solves a 2048 bits
  factorization problem. No one claimed the prize
  so far...
• Last challenge solved
• RSA-576 10,000 Factored in 2003 by J. Franke et
  al.
• Using a powerful parallel machine and very clever
  algorithms
• Currently RSA-1024 is commonly used in practice
• RSA key's size matters, see next...

25
Authentication
Process of proving ones identity to someone else
over a network

• live party (often routers, client-server
  processes)
• Cannot rely on biometric information
• Must be done solely on the basis of messages and
  data exchanged
• Must be performed before other protocols
• E.g.
• Reliable data transfer protocol
• Routing information exchange protocol
• E-mail protocol

Lets see stepwise evolution of a design of an
authentication protocol (ap)
Next
26
Authentication

• Goal Bob wants Alice to prove her identity to him

Protocol ap1.0 Alice says ''I am Alice''
Failure scenario??
27
Authentication using IP
Protocol ap2.0 Alice says ''I am Alice'' and
sends her IP address along to prove it.
Failure scenario??
Create an Operating system kernel that sends an
IP datagram using Alices IP address
Not unless first-hop router of Trudy would
prevent it
28
Authentication Secret Password
Protocol ap3.0 Alice says ''I am Alice'' and
sends her secret password to prove it.
Failure scenario?
Passwords are sent as cleartext for some
applications (e.g. Telnet). Within the same LAN,
it can be sniffed
WireShark
29
Authentication Encrypted Secret Password
Protocol ap3.1 Alice says ''I am Alice'' and
sends her encrypted secret password to prove it.
Assumption Symmetric key cryptography is
employed
Shared Secret key
Failure scenario?
Playback attack record encrypted password,
playback encrypted password version to Bob to
pretend that she is Alice
Password is not learned by Trudy
Pitfall same password is used over and over
again.
30
Playback Attack
How to solve it?
Failure Scenario
Bob cannot distinguish between the original
authentication and its playback version
Countermeasures
Use a different password each time

• use a sequence of passwords or password
  generator (could be a number)

• apply encryption algorithm to each password

Bob knows Alice is indeed sending the datagram,
because she knows the secret encryption key, and
she is sending it live because she is using the
number recently generated by Bob.
31
Authentication Sequence of Encrypted Secret
Passwords
Nonce Symmetric key Cryptography (Shared Secret
Key)
Goal avoid playback attack
Nonce number (R) used only once in a lifetime
ap4.0 to prove Alice is live, Bob sends Alice
nonce, R. Alice must return R, encrypted with
shared secret key
Figure 7.11 goes here
Failures, drawbacks?
We have a solution! Bob knows Alice is indeed
sending the datagram, because she knows the
secret encryption key, and she is sending it
live
32
Authentication ap5.0
Ap5.0 Nonce Public key cryptography

• ap4.0 requires shared symmetric key
• problem how do Bob, Alice agree on key
• can we authenticate using public key techniques?

Problem Trudy may be able to impersonate Alice
Figure 7.12 goes here
Note eA(dA(R)) dA(eA(R)) R
Trudy
Eventually, Alice Bob may find together that
someone else was interacting with Bob.
33
ap5.0 security hole

• Man (woman)-in-the-middle attack Trudy poses as
  Alice (to Bob) and as Bob (to Alice)

Alice is happy to receive encrypted message using
her own public key
Bob is happy to send encrypted data
Figure 7.14 goes here
Need 'certified' public keys (more later )
Alice Bob may never know that Trudy was there
all along.
34
Digital Signatures

• Cryptographic technique analogous to hand-written
  signatures.
• Sender (Bob) digitally signs document,
  establishing he is document owner/creator.
• Verifiable, non-forgeable, non-repudiable
  recipient (Alice) can verify that Bob, and no one
  else, signed document.

• Simple digital signature for message m
• Bob encrypts m with his private key dB, creating
  signed message, dB(m).
• Bob sends m and dB(m) to Alice.

35
Digital Signatures (more)

• Suppose Alice receives msg m, and digital
  signature dB(m)
• Alice verifies m signed by Bob by applying Bobs
  public key eB to dB(m) then checks eB(dB(m) )
  m.
• If eB(dB(m) ) m, whoever signed m must have
  used Bob's private key.

• Alice thus verifies that
• Bob signed m.
• No one else signed m.
• Bob signed m and not m.
• Non-repudiation
• Alice can take m, and signature dB(m) to court
  and prove that Bob signed m.

36
Message Digests

• It is computationally expensive to
  public-key-encrypt long messages.
• Goal fixed-length,easy to compute digital
  signature, 'fingerprint'
• apply hash function H to m, get fixed size
  message digest, H(m).

• Hash function properties
• Many-to-1
• Produces fixed-size msg digest (fingerprint)
• NON-FORGEABILITY REQUIREMENT
• Given message digest x, computationally
  infeasible to find m such that x H(m)
• computationally infeasible to find any two
  messages m and m' such that
• H(m) H(m').

37
Digital signature Signed message digest

• Bob sends digitally signed message

• Alice verifies signature and integrity of
  digitally signed message

38
Internet checksum poor crypto hash function

• Internet checksum has some properties of hash
  function
• produces fixed-length digest (16-bit sum) of
  message
• is many-to-one

But given message with given hash value, it is
easy to find another message with same hash
value
message
ASCII format
message
ASCII format
I O U 9 0 0 . 1 9 B O B
49 4F 55 39 30 30 2E 31 39 42 4F 42
I O U 1 0 0 . 9 9 B O B
49 4F 55 31 30 30 2E 39 39 42 4F 42
B2 C1 D2 AC
B2 C1 D2 AC
different messages but identical checksums!
39
Hash Function Algorithms

• MD5 hash function widely used (RFC1321 with
  code).
• Computes 128-bit message digest in 4-step
  process.
• For any arbitrary 128-bit message digest x, it
  appears difficult to construct msg m whose MD5
  hash is equal to x.
• SHA-1 is also used.
• US federal standard
• 160-bit message digest

• Internet checksum would make a poor message
  digest.
• Too easy to find two messages with same checksum.
• Even using a 128-bit CRC it would be easy to find
  a second message to fit to the CRC

40
Hash Function Algorithms

• MD5
• Try the freeware WinMD5Free.exe
• MD5 is a very reliable way to fingerprint a file
• From rfc1321 (with code) ...The MD5 algorithm
  takes as input a message of arbitrary length and
  produces as output a 128-bit "fingerprint" or
  "message digest" of the input. It is conjectured
  that it is computationally infeasible to produce
  two messages having the same message digest, or
  to produce any message having a given
  pre-specified target message digest.

Difficulty of coming up with any two messages
with same message digests order of 264
operations.
Given a message digest, the difficulty of coming
up with any message with the same message digest
is in the order of 2128 operations.
41
Trusted Intermediaries

• Problem
• How do two entities establish shared secret key
  over network?
• Solution
• trusted key distribution centre (KDC) acting as
  intermediary between entities

• Problem
• When Alice obtains Bob's public key (from web
  site, e-mail, diskette), how does she know it is
  Bob's public key, not Trudy's?
• Solution
• trusted certification authority (CA)

42
Kerberos

• Authentication service developed at MIT (RFC
  1510)

• Uses symmetric key encryption key distribution
  center

• Variations extensions to KDC

Authentication Server (AS)
Plays the role of the KDC
Repository of secret keys of all users
Repository of users access privileges indicating
which service the user has access to, and on
which network servers
43
Key Distribution Center (KDC)
How can Alice Bob get a shared symmetric key in
a secured way?
expiration time

• Alice,Bob need shared symmetric key.
• KDC server shares different secret key with each
  registered user.
• Alice, Bob know their own symmetric keys, KA-KDC
  KB-KDC , for communicating with KDC.

R1-encrypted time-stamp (nonce)
Bob a Server to which Alice a user
KDC uses the appropriate private user secret key
to communicate with them.
44
Key Distribution Center (KDC)
45
Certification Authorities

• Certification authority (CA) binds public key to
  particular entity.
• Entity (person, router, etc.) can register its
  public key with CA.
• Entity provides proof of identity to CA.
• CA creates certificate binding entity to public
  key.
• Certificate digitally signed by CA.

• When Alice wants Bob's public key
• gets Bob's certificate (from Bob or elsewhere).
• Apply CA's public key to Bob's certificate, get
  Bob's public key

46
Certificate Sample
47
Certification Authorities
International Telecommunication Union (ITU)
IETF set standards for CAs

• Take a look at the CA in the browser...

48
END OF SESSION
49
Firewall
Uses a combination of hardware and software
components

• isolates organization's internal net from larger
  Internet, allowing some packets to pass, blocking
  others.

gateway-to-remote host telnet session
X
application gateway
router and filter
50
Firewall

• Two firewall types
• packet filter (network layer)
• application gateways (application layer)

51
PACKET FILTERING

• Operates at the Network Layer

• The Internet access relies on a particular Router
• The router can filter packets based on
• IP addresses
• Domain names
• Port numbers
• Protocol types
• TCP SYN and ACK bits on a TCP packet

• Coarse-grain filtering on IP and TCP/UDP headers

• Operates by sequentially checking filtering rules
  against the datagram being inspected the first
  rule matching the datagram determines the action
  taken

52
PACKET FILTERING

• Alice administers a company network 222.22.0.0/16
  and, in general, wants to disallow access to her
  network from the public internet (R3). However,
  Alice collaborates with Bob and his colleagues
  who are at network 111.11/16. Alice wants to let
  users from Bobs network access a specific
  subnet, 222.22.22/24 within her companys network
  (R1). The problem is that Trudy belongs to Bobs
  network, with subnet 111.11.11/24. Therefore,
  Alice doesnt want any traffic from 11.11.11/24
  entering anywhere into her network (R2).

• Packet filtering rules (ordering of evaluation is
  important!)

SOURCE IP DEST IP Desired Action Comments
R1 111.11/16 222.22.22/24 Permit Let datagram from Bobs university into a restricted subnet.
R2 111.11.11/24 222.22/16 Deny Dont let traffic from Trudys subnet into anywhere within Alices network
R3 0.0.0.0/0 0.0.0.0/0 Deny Dont let traffic into Alices network
53
PACKET FILTERING

• Specifying filtering rules

SOURCE IP DEST IP Desired Action Comments
R1 111.11/16 222.22.22/24 Permit Let datagram from Bobs university into a restricted subnet.
R2 111.11.11/24 222.22/16 Deny Dont let traffic from Trudys subnet into anywhere within Alices network
R3 0.0.0.0/0 0.0.0.0/0 Deny Dont let traffic into Alices network
SOURCE IP DEST IP Desired Action R2,R1,R3 R1,R2,R3
P1 111.11.11.1 222.22.6.6 Deny
P2 111.11.11.1 222.22.22.2 Deny
P3 111.11.6.6 222.22.22.2 Permit
P4 111.11.6.6 222.22.6.6 Deny
54
PACKET FILTERING

• Operates at the Network Layer

SOURCE IP DEST IP Desired Action R2,R1,R3 R1,R2,R3
P1 111.11.11.1 222.22.6.6 Deny Deny(R2) Deny(R2)
P2 111.11.11.1 222.22.22.2 Deny Deny(R2) Permit(R1)
P3 111.11.6.6 222.22.22.2 Permit Permit(R1) Permit(R1)
P4 111.11.6.6 222.22.6.6 Deny Deny(R3) Deny(R3)

• Applying more specific rules first does not
  always avoid unanticipated or unwanted behaviour
  arising from ordering issues

55
PACKET FILTERING

• Example 3 block 'ping'
• In order to avoid external users to find suitable
  IP addresses to attack.
• Example 4
• Block domain names that are known to be dangerous
  to users or inadequate for the scope of the
  institution.

• Example 1 block incoming and outgoing datagrams
  with IP protocol field 17 and with either
  source or dest port 23.
• All incoming and outgoing UDP flows and telnet
  connections are blocked.
• Example 2 Block inbound TCP segments with ACK0.
• Prevents external clients from making TCP
  connections with internal clients, but allows
  internal clients to connect to outside.

56
APPLICATION GATEWAYS

• Application specific server through which all
  application data must pass

Packet Filter Application Gateway
e.g. Force all outbound Telnet connections to
pass through the application gateway
Each Gateway separate server with own processes

• Make policy decisions based on application data

• Multiple application gateways on the same host

e.g. Telnet, HTTP, FTP, mail server, Web
Cache
57
APPLICATION GATEWAYS

• Filters packets on application data as well as on
  IP/TCP/UDP fields.
• Example Allow only selected internal users to
  telnet outside.

58
Limitations of firewalls and gateways

• IP spoofing router can't know if data really
  comes from claimed source
• Multiple applications need special treatment
  each with its own gateway.
• Client software must know how to contact gateway.
• e.g., must set IP address of proxy in Web browser

• Filters often use all or nothing policy for UDP.
• Trade off degree of communication with outside
  world, level of security
• Many highly protected sites still suffer from
  attacks.
• Does not protect against the enemy from within.

59
Snort

• Snort is an open source network intrusion
  prevention and detection system (IDS/IPS)
  developed by Sourcefire. Combining the benefits
  of signature, protocol, and anomaly-based
  inspection, Snort is the most widely deployed
  IDS/IPS technology worldwide. With millions of
  downloads and nearly 400,000 registered users,
  Snort has become the de facto standard for IPS.

60
Secure e-mail
Desirable Security Features

• Confidentiality
• Sender authentication
• I dont love you anymore. I never want to see
  you again. Formerly yours, Alice
• Message Integrity
• Receiver Authentication
• Tools
• symmetric key public key cryptography
• Authentication
• Key Distribution
• Message Integrity
• Digital Signatures

Lets see stepwise evolution of a design of a
Secure E-mail
Next
61
Secure e-mail
SE v1
Confidentiality

• Alice wants to send secret e-mail message, m, to
  Bob.

• generates random symmetric private key, KS.
• encrypts message with KS
• also encrypts KS with Bob's public key.
• sends both KS(m) and eB(KS) to Bob.

Tools Symmetric Session key Public key
cryptography
62
Secure e-mail (continued)
SE v2
X
Confidentiality Authentication Message
Integrity

• Alice wants to provide sender authentication
  message integrity.

• Alice digitally signs message.
• sends both message (in the clear) and digital
  signature.

Tools Hash Function Digital Signature
63
Secure e-mail (continued)
SE v3
Confidentiality Authentication Message
Integrity

• Alice wants to provide secrecy, sender
  authentication, message integrity.

Confidentiality measures
Authentication Message Integrity
Note Alice uses both her private key, Bob's
public key.
64
Pretty good privacy (PGP)
dA(H(m))

• Internet e-mail encryption scheme, a de-facto
  standard.
• Uses symmetric key cryptography, public key
  cryptography, hash function, and digital
  signature as described.
• Provides secrecy, sender authentication,
  integrity.
• Inventor, Phil Zimmerman, was target of 3-year
  federal investigation.

A PGP signed message

• ---BEGIN PGP SIGNED MESSAGE---
• Hash SHA1
• Bob(secret message)
• ---BEGIN PGP SIGNATURE---
• Version PGP 5.0
• Charset noconv
• yhHJRHhGJGhgg/12EpJlo8gE4vB3mqJhFEvZP9t6n7G6m5Gw2

• ---END PGP SIGNATURE---

Cryptography programs are considered munitions
under US federal law and are not allowed to be
exported
65
PGP
TOOLS

• Design

Similar to SEv3 diagram discussed

• Creation of Message Digest

MD5, SHA

• Symmetric Key Encyption

CAST, triple-DES, IDEA

• Public Key Encyption

RSA

• Compression

66
Pretty good privacy (PGP)

• Freely available on http//web.mit.edu/network/pgp
  .html
• Look also www.pgp.com
• Zimmermann has received technical awards
• 2001 he was inducted into the CRN Industry Hall
  of Fame
• 2000 InfoWorld named him one of the Top 10
  Innovators in E-Business
• 1999 Louis Brandeis Award from Privacy
  International
• 1998 Lifetime Achievement Award from Secure
  Computing Magazine
• 1996 the Norbert Wiener Award from Computer
  Professionals for promoting the responsible use
  of technology.

67
Internet Commerce Scenario
Purchasing a product from a website
Use SSL protocol to combat these problems
Alice Incorporated Site
Information
Product, Quantity Address Payment card
number password
submit

• Intercept order, obtain Bobs card information,
  then make purchases using Bobs card or

• Trudy could be masquerading as Alice Incorporated

68
Secure sockets layer (SSL)
sits between Application Layer and TCP

• Server authentication
• SSL-enabled browser includes public keys for
  trusted CAs.
• Browser requests server certificate, issued by
  trusted CA.
• Browser uses CA's public key to extract server's
  public key from certificate.
• Visit your browser's security menu to see its
  trusted CAs.

• Originally developed by Netscape
• SSL security services
• server authentication
• data encryption
• client authentication (optional)
• SSL works at transport layer. Provides security
  to any TCP-based app using SSL services.
• SSL used between WWW browsers, servers for
  Internet-commerce (https).

69
Secure Sockets Layer (SSL)
Originally developed by Netscape

• Data encryption

Can be viewed as a layer bet. App. Layer
Transport Layer

• Authentication bet. Web client Web server

Web Client (browser)
SSL-enabled Web Server
1. Handshake Phase

• negotiates encryption algorithm

• Authenticates server to client (or, vice-versa)

2. Data Transmission Phase

• Encryption of data using Session keys generated
  during handshake phase

70
Secure Sockets Layer (SSL)
HIGH-LEVEL VIEW OF HANDSHAKE PHASE OF SSL
Bob browses Alices secure page
Alice sends Bob her certificate
Bob extracts Alices public key
Bob generates a random symmetric key and
encrypts it using Alices public key
Alice extracts the symmetric key
71
Secure Sockets Layer (SSL)
FEATURES

• SSL SERVER AUTHENTICATION

• Allows the browser to authenticate the server
• before the user submits important information

List of trusted CAs Public keys

• Client obtains certificate from server, then
• checks certificate with clients list of trusted
  CAs.
• If found on list, client validates certificates
  integrity and
• extracts servers public key

• SSL CLIENT AUTHENTICATION (Optional)

• ENCRYPTED SSL SESSION

• encryption/decryption of all information between
  browser server

• information tampering detection

72
SSL (continued)
ENCRYPTED SSL SESSION

• SSL basis of IETF Transport Layer Security
  (TLS).
• SSL can be used for non-Web applications, e.g.,
  IMAP.
• Client authentication can be done with client
  certificates.

• Browser generates symmetric session key, encrypts
  it with servers public key, sends encrypted key
  to server.
• Using its private key, server decrypts session
  key.
• Browser, server agree that future msgs will be
  encrypted.
• All data sent into TCP socket (by client or
  server) encrypted with session key.

73
Secure Sockets Layer (SSL)
LIMITATIONS

• Provides a popular platform (for servers and
  browsers) for card payment transactions

• Generic secure communication bet. server client

• signed certificate guarantees bona fide
  company
• certificate does not indicate if company is
  authorized to accept
• card payments nor if its a reliable merchant

• Company has no assurance if card is not stolen

74
(No Transcript)
75
(No Transcript)
76
(No Transcript)
77
Secure electronic transactions (SET)

• designed for payment-card transactions over
  Internet.
• provides security services among 3 players
• customer
• merchant
• Merchant's bank
• All must have certificates.
• SET specifies legal meanings of certificates.
• apportionment of liabilities for transactions

• Customer's card number passed to merchant's bank
  without merchant ever seeing number in plain
  text.
• Prevents merchants from stealing, leaking payment
  card numbers.
• Three software components
• Browser wallet
• Merchant server
• Acquisition gateway

78
SSH (Secure Shell)
an example of secure connection

• Telnet or rsh are not secure
• They transmit login/passwords over the network
• SSH is safer because it encrypts the
  login/password
• Authenticates the hosts
• Keeps keys on the user's local directory
• Example of known_hosts file
• hostname1,130.113.118.147 ssh-rsa
  AAAAB3NzaC1yc2EAAAABIwAAAIEAsmnfyxDMN7o1UrXuvjchDD
  FGRVdwRLVC/pVoXvrVl5Byxp/GQSdWJeYzMyEyKaNQIgFpiB
  Gqnsgfk8uQJCzyJnB3nkYSAhVlz2emjuC6kuJ8yFgoIxON4v9N
  VEeSgSEIua6aVBi4a4tfy2sSj15aYzWPSOmJoGhnt6lEaDY0

79
END OF SESSION
80
Ipsec Network Layer Security
Blanket coverage for all Internet traffic (RFC
2401, 2411)
Advantages
Necessary Precursor

• Network-layer secrecy
• sending host encrypts the data in IP datagram
• TCP and UDP segments ICMP and SNMP messages.
• Network-layer authentication
• destination host can authenticate source IP
  address
• Two principal protocols
• authentication header (AH) protocol
• encapsulation security payload (ESP) protocol

• For both AH and ESP, source, destination
  handshake
• create network-layer logical channel called
  security association (SA)
• Each SA unidirectional.
• Uniquely determined by
• security protocol (AH or ESP)
• source IP address
• 32-bit connection ID

81
Authentication Header (AH) Protocol

• AH header includes
• connection identifier
• authentication data signed message digest,
  calculated over original IP datagram, providing
  source authentication, data integrity.
• Next header field specifies type of data (TCP,
  UDP, ICMP, etc.)

• Provides source host authentication, data
  integrity, but not secrecy.
• AH header inserted between IP header and IP data
  field.
• Protocol field 51.
• Intermediate routers process datagrams as usual.

82
Encapsulation Security Payload (ESP) Protocol

• Provides secrecy, host authentication, data
  integrity.
• Data, ESP trailer encrypted.
• Next header field is in ESP trailer.

• ESP authentication field is similar to AH
  authentication field.
• Protocol 50.

83
Network Security (summary)

• Basic techniques...
• cryptography (symmetric and public)
• authentication
• message integrity
• . used in many different security scenarios
• secure email
• secure transport (SSL)
• IP sec
